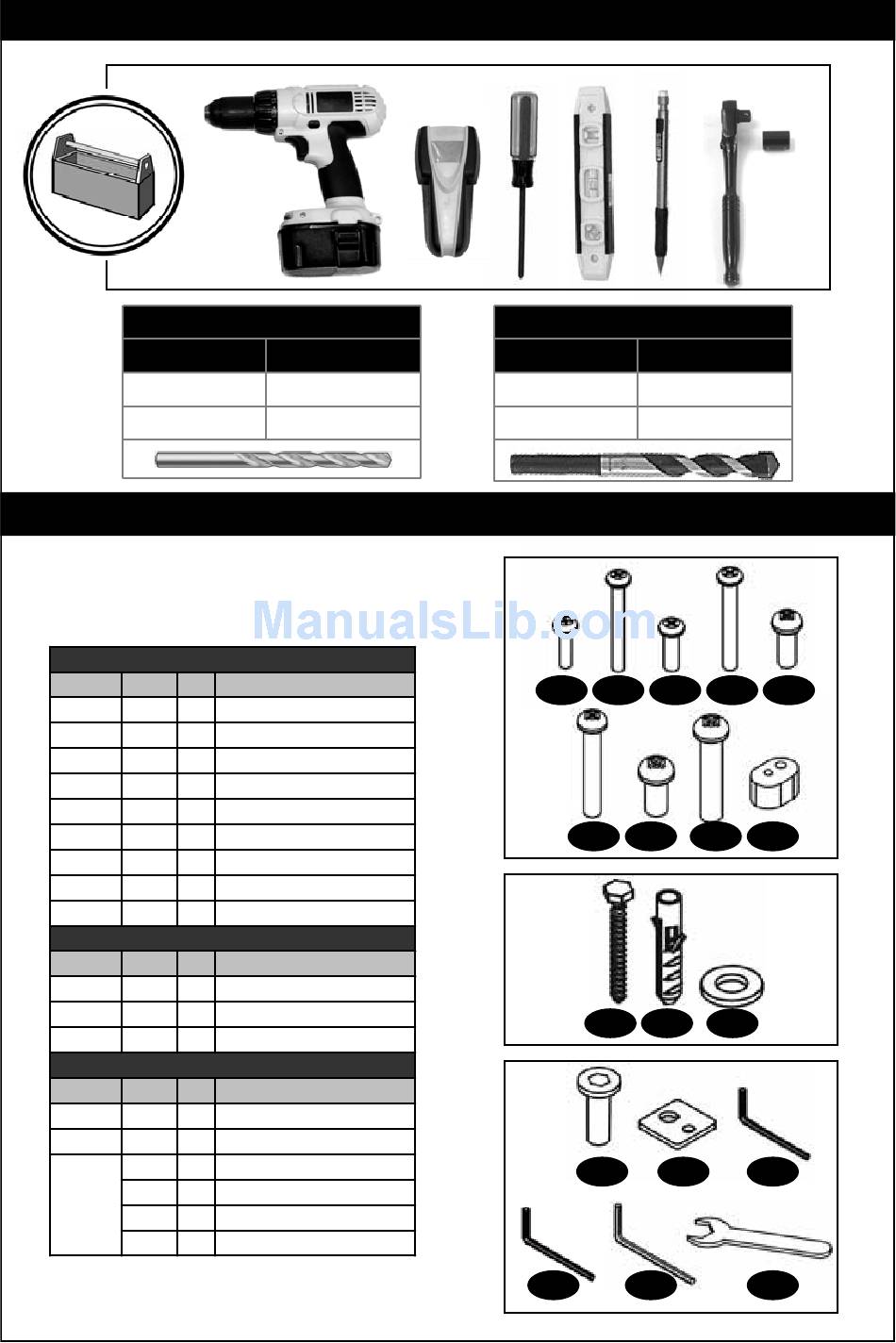

Tools Needed - Omnimount 1004114 Instruction Manual

Wood Pilot
Pilot Hole Size Pilot Drill Depth
9/32" inch
7 mm
Monitor Kit L-U-vB
Pouch # Part # Qty
M-A M-A 4 Philips screws M4 x 15mm
M-B M-B 4 Philips screws M4 x 35mm
M-C M-C 4 Philips screws M5 x 15mm
M-D M-D 4 Philips screws M5 x 35mm
M-E M-E 4 Philips screws M6 x 15mm
M-F M-F 4 Philips screws M6 x 35mm
M-G M-G 4 Philips screws M8 x 15mm
M-H M-H 4 Philips screws M8 x 35mm
M-I M-I 4 Oval Spacers: 3/4"
Wall Kit 38-4
Pouch # Part # Qty
W-A W-A 4 Lag Bolts
W-B W-B 4 Wall Anchor
W-C W-C 4 Steel Washer
1004114vA
Pouch # Part # Qty
1 P-A 4 M6 x 16 Screw
2 P-B 4 Square Washer
P-C 1 3mm Allen Wrench
P-D 1 4mm Allen Wrench
3
P-E 1 5mm Allen Wrench
P-F 1 Open Wrench 4mm

TOOLS NEEDED

3.5" inch
90 mm
TOOLS NEEDED
Description
Description
Description
Concrete Pilot
Pilot Hole Size Pilot Drill Depth
1/2" inch 3.5" inch
14 mm
M-A M-B M-C
M-F M-G
W-A W-B
P-A P-B
P-D P-E
90 mm
M-D M-E
M-H M-I
W-C
P-C
P-F
P10
