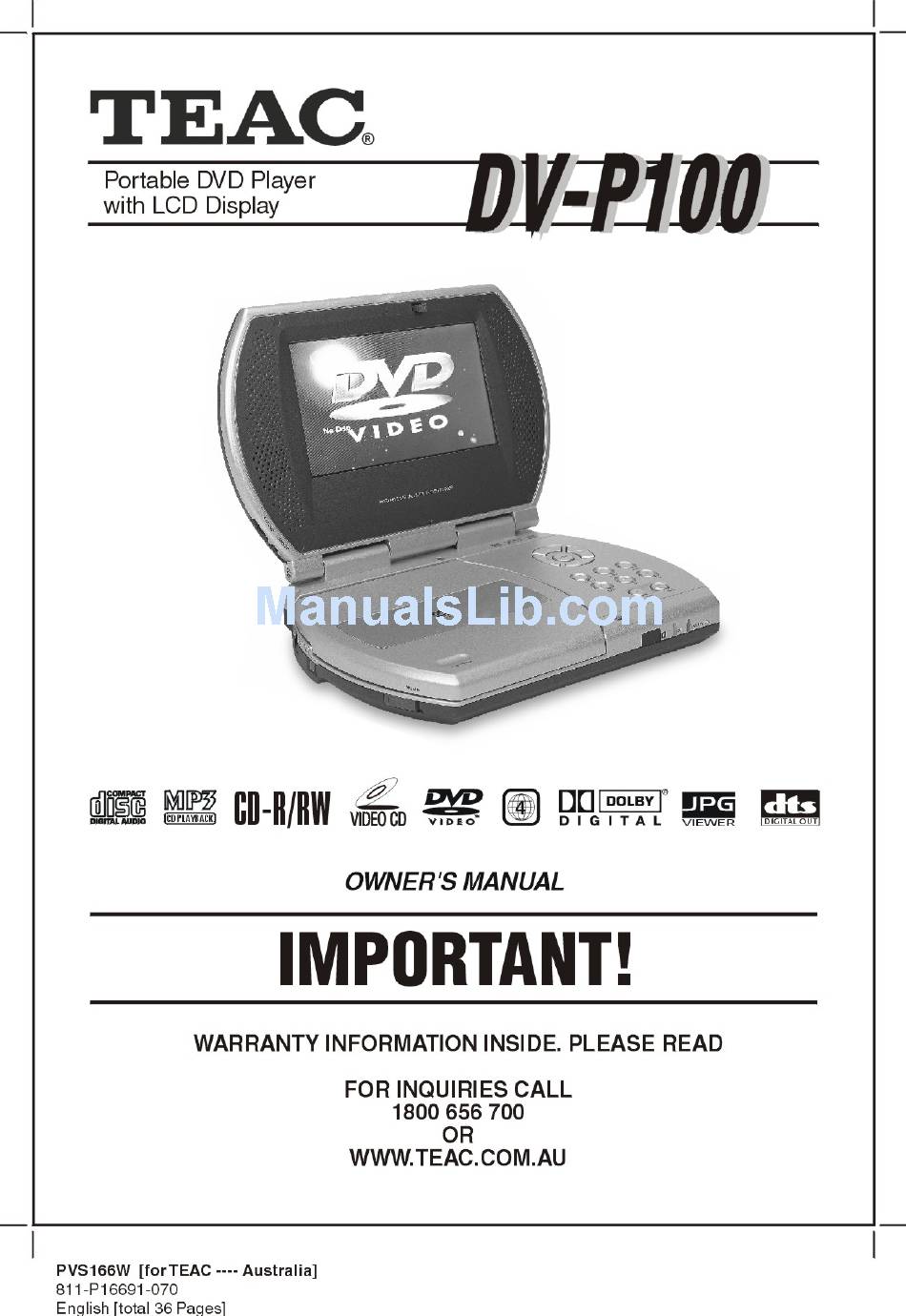

Summary of Contents for Teac DV-P100
- Page 2 WA R R A N T Y R E G IS T R AT IO N ® P le a se r ea d th is w a rra n ty c a rd . K e e p yo u r p u rc ha se rec e ip t to e n a b le y ou to p ro c e e d q u ick ly in th e e ve n t o f a W a rra n ty S er vic e . W arran ty Term &...
- Page 3 K eep th is w arran ty in fo rm a tio n an d y o u r p u rch ase rec eip t Yo u r p ro o f o f p u rc h a se (re c eip ts) w ill e n a b le fa st a n d e ffic ie n t serv ice in th e e v e n t o f rep air. WA R R A N T Y P R O C E D U R E S ®...
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS The lightning flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to cause an electric shock. The exclamation point within the equilateral triangle WARNING: TO REDUCE THE RISK OF ELECTRIC is intended to alert the user to the presence of... -
Page 5: Table Of Contents
TABLE OF CONTENTS Repeat Playback ......22-23 Safety Precautions ........3 Repeating a title/chapter (DVD) ......22 Table Of Contents ........4 Repeating a single track/whole disc (CD) ... 22 Disc Formats ..........5 Repeating a specific section (DVD/CD) ....23 Accessories .......... -
Page 6: Disc Formats
DISC FORMATS The unit can playback. DVDs [8cm/12cm disc] Compatible Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc. -
Page 7: Accessories
ACCESSORIES Please check and identify the supplied accessories. Remote control (with battery) ..................... x 1 AC adaptor .......................... x 1 AC power cord ........................x 1 Car plug adaptor ........................x 1 Earphones ........................... x 1 Rechargeable battery pack (Model no.: BATT-3P) ............x 1 Battery charger (Model no.: CHRR-2) ................. -
Page 8: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control 1) ZOOM button Zoom into an image of a DVD. 8) MENU button TV MODE button Open and close DVD menu. In stop mode, select whether to output the NEXT button video signal. TV shows "AUTO" means output Move forward through titles, chapters or tracks on signal depends on DVD (either NTSC or PAL). -
Page 9: Control Reference Guide
CONTROL REFERENCE GUIDE Unit 17 18 19 20 21 Cursor ( ) button PAUSE/SETUP button Press to pause playback of disc. Each time you press Use to highlight selections on a menu screen and the PAUSE button the picture advances one frame. make adjust certain settings. -
Page 10: Power Supply
POWER SUPPLY Using the AC adaptor This AC adaptor operates on AC between 100V and 240V, but • In the Europe and Hong Kong, the AC power supply cord must be connected to a 230V-240V AC power supply only. • When connecting to an AC supply outside of the Europe and Hong Kong, use a plug adaptor to suit the AC outlet configuration. -
Page 11: Using The Rechargeable Battery Pack
POWER SUPPLY C. Using the rechargeable battery pack • Charge the rechargeable battery pack before using them for the first time. • The rechargeable battery pack is suitable when adapting the unit for portable use and when it is convenient for you to enjoy the unique functions of the unit out of doors. -
Page 12: Turning On The Unit
POWER SUPPLY Disconnecting the Battery Pack from the unit. Push the button to disconnect the RECHARGEABLE BATTERY PACK RECHARGEABLE BATTERY PACK P U SH bottom of the unit Condition and attention: • When battery is low, player will stop playing. •... -
Page 13: Connecting Other Equipment
CONNECTING OTHER EQUIPMENT A. VCR Right side of unit (Yellow) Yellow White (Audio (Red) (Video) Red ( Audio Ground (White) To AV IN/OUT Jack 3.5mm plug description AUDIO/VIDEO CABLE ( NOT SUPPLIED ) Watching a Videotape 1. Turn on the unit, slide the FUNCTION button to select "AV IN". 2. -
Page 14: Another Source Connection
CONNECTING OTHER EQUIPMENT C. Another source connection This unit can play Dolby Digital, but only in two channels. Analogue connection Right side of unit Amplifier of (No need to connect stereo system, etc. the Yellow video plug) (Red) AUDIO (White) AUDIO/VIDEO CABLE ( NOT SUPPLIED ) Digital connection COAXIAL DIGITAL AUDIO CABLE ( NOT SUPPLIED ) -
Page 15: Using Earphones
CONNECTING OTHER EQUIPMENT Right side of unit Using Earphones • Turn down the volume before connection, and then adjust the level. • When earphones are connected, no sound will be emitted from the unit's speakers. EARPHONES Caution: • Avoid listening to sound at levels which may be harmful to your ears. -
Page 16: Playing A Disc
PLAYING A DISC Basic playback This owner’s manual explains the basic instructions of this unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 17: Fast Foward/Fast Reverse
PLAYING A DISC Fast Forward/Fast Reverse 1. Press the SEARCH SEARCH button of the remote unit when a disc is playing. • The disc begins fast scan at x2 speed. • Four speeds are available. Each time SEARCH SEARCH button is pressed, the speed of fast scan changes in the following sequence: Note : You also can press and hold... -
Page 18: Angle Selection
PLAYING A DISC Angle selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number of the current angle. -
Page 19: Special Functions
SPECIAL FUNCTIONS Basic playback DISPLAY function Using DISPLAY, you can check and change the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button of the remote unit to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. -
Page 20: Locating A Specific Title
SPECIAL FUNCTIONS Basic playback Locating a specific title If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. 1.Press the GOTO button. 2. Press button to highlight a specific field and press the corresponding number button(s) for the title you want. -
Page 21: Locating A Specific Time
SPECIAL FUNCTIONS Basic playback Locating a specific time You can move to a specific location by entering its corresponding time (hours, minutes, seconds) 1. Press the GOTO button. 2. Press button to highlight time. 3. Press the corresponding number buttons for the setting point you want. •... -
Page 22: Cd / Dvd Programmable Memory
Advanced CD / DVD PROGRAMMABLE MEMORY playback Programmable memory The two types of programmed playback provided by this unit are, title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1. Press the MEM (Memory) button while the disc is stopped. 2. -
Page 23: Repeat Playback
Advanced REPEAT PLAYBACK playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a title You can play the same title repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the “... -
Page 24: Repeating A Specific Section Dvd Cd
Advanced REPEAT PLAYBACK playback Repeating a specific section You can play a specific section repeatedly. 1. While the disc is playing, press the REPEAT A-B button at the beginning of the section you want to play repeatedly. ( R ep A - is displayed. -
Page 25: Playing Mp3 And Picture File Disc
PLAYING MP3 AND PICTURE FILE DISC This unit can play MP3 and Picture files recorded on CD-R and CD-RW discs Playing a MP3 file disc 1. Press the OPEN button to open the disc door. 2. Hold a MP3 file disc by its sides and carefully make it fit onto the central support of compartment with the label side facing up you until you hear a “click”. -
Page 26: Playing A Picture File Disc
PLAYING MP3 AND PICTURE FILE DISC Playing a Picture file disc 1. Press the OPEN button to open the disc door. 2. Hold the Picture disc by its sides and carefully make it fit onto the central support of compartment with the label side facing up you until you hear a “click”. -
Page 27: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS LANGUAGE setting STEP 2 1. Press the SETUP button in stop mode. Language Video Audio Rating 2. Use button to one language, then press the ENTER English button. The screen will change to your selected language Deutsch immediately. -
Page 28: Audio Setting
CUSTOMIZING THE FUNCTION SETTINGS Brightness 1. Press the SETUP button in stop mode. 2. Use button to select Video, then press the ENTER button. 3. Use button to select Brightness, and then press the ENTER button. 4. Use button to shift and select the Off/On, then press the ENTER button. 5. -
Page 29: Rating Setting
CUSTOMIZING THE FUNCTION SETTINGS Virtual Effect (for CD and DVD only) If you want to obtain expansive virtual surround sound effects from just two speakers. 1. Press the SETUP button in stop mode. 2. Press button to select Audio, press the ENTER button. 3. -
Page 30: Settings
CUSTOMIZING THE FUNCTION SETTINGS Password/Parental lock DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc. For example, if the disc allows, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether. -
Page 31: Language Code List For Disc Language
LANGUAGE CODE LIST FOR DISC LANGUAGE Code Language Name Code Language Name Code Language Name Code Language Name E - 30... -
Page 32: Maintenance
MAINTENANCE Cleaning Discs A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabelled side of the disc. •... - Page 33 TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) • The region number of the disc doesn't match the region number of this unit. No picture • Incorrect video source selection. Please select DVD using the AV- IN/DVD switch on the right hand side of the unit. The picture is not •...
-
Page 34: Video Bag Installation
VIDEO BAG INSTALLATION Place the unit into the video bag as shown. Video bag to separate as shown. Place the straps on video bag. Adjust the straps tightly Take strap around the headrest so that the unit is secured. of the driver's seat as shown. E - 33... - Page 35 E - 34...
- Page 36 TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan. Phone: (0422) 52-5081 TEAC AUSTRALIA PTY., LTD. A.B.N. 80 005 408 462 HEAD OFFICE 280 William Street, Melbourne, VIC 3000. Phone: (03) 9672 2400 NSW OFFICE Unit 8, 20-22 Foundry Rd., Seven Hills, NSW 2147 Phone: (02) 8811 4000 QLD OFFICE 335 Montague Road, West End, QLD 4101.
