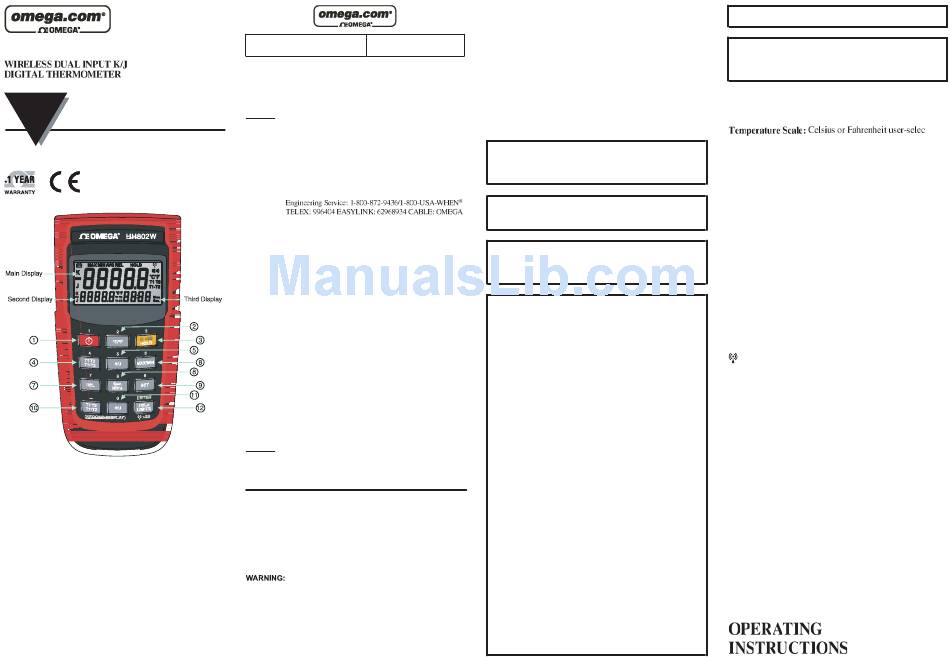

INTRODUCTION
This instrument is a 5 digit, compact-sized portable
digital thermometer designed to use external K-type and J
type thermocouples as temperature sensor. Temperature
indication follows Reference Temperature/Voltage Ta-
bles (N.I.S.T. Monograph 175 Revised to ITS-90) for K-
type and J-type thermocouples. Two K-type thermocou-
ple are supplied with the thermometer.

SAFETY INFORMATION

It is recommended that you read the safety and opera-
tion instructions before using the thermometer.
WARNING
To avoid electrical shock, do not use this instrument
when working voltages at the measurement surface
over 24V AC or DC.
®
®
WARNING
To avoid damage or burns, do not make temperature
measurement in microwave ovens.
CAUTION
Repeated sharp flexing can break the thermocouple
leads. To prolong lead life, avoid sharp bends in the
leads, especially near the connector.
FEDERAL COMMUNICATIONS
COMMISSION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two condi-
tions:(1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference
received, including interference that may cause unde-
sired operation.
NOTE
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection. This equipment gener-
ates, uses and can radiated radio frequency energy and,
if not installed and used in accordance with the in-
structions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation If
this equipment does cause harmful interference to ra-
dio or television reception, which can be determined
by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV tech-
nician for help.
Shielded interface cables must be used in order to
comply with emission limits.
Changes or modifications not expressly approved by
the party responsible for compliance could void
user's authority to operate the equipment.
WIRELESS NOTE
Wireless receiver must keep a distance at least 40cm
from the meter and meter to meter must keep a dis
tance at least 30cm.

SPECIFICATIONS

ELECTRICAL
Measurement Range:
J-TYPE -200°C to 1050°C, (-328°F to 1922°F)
K-TYPE -200°C to 1370°C, (-328°F to 2498°F)
Resolution: 0.1°C or 0.2°F
Accuracy: Accuracy is specified for operating tempera-
tures over the range of 18°C to 28°C (64°F to 82°F),
year, not including thermocouple error.
±(0.05% rdg + 0.3°C) -50°C to 1370°C
±(0.05% rdg + 0.7°C) -50°C to -200°C
±(0.05% rdg + 0.6°F) -58°F to 2498°F
±(0.05% rdg + 1.4°F) -58°F to -328°F
Temperature Coefficient:
0.1 times the applicable accuracy specification per
from 0°C to 18°C and 28°C to 50°C (32°F to 64°F
82°F to122°F).
Input Protection:
24V dc or 24V ac rms maximum input voltage on
combination of input pins.
Maximum Differential Common Mode Voltage
(Maximum Voltage between T1 and T2 during meas-
urement): 1volt.
Reading Rate: 1 time per second.
Wireless Features:
Frequency range: 904~927.83MHz
Low current consumption les than 5 to 20mA
Viewable distance 25M.
ENVIRONMENTAL
Ambient Operating Ranges:
0°C to 50°C (32°F to 122°F) <80% R.H.
Storage Temperature:
-20°C to 60°C (-4°F to 140°F) <70% R.H.
GENERAL
Display: 5 digit liquid crystal display (LCD).
Overload: "----.-" or "OL" is display.
Battery: 1.5V x 4 PCS (SIZE AAA) UM-4 R03.
Battery Life: 190 hours typical with carbon zinc battery.
Auto power off: 30 minutes, press power key to resume
operation.
Dimensions: 160mm(H) x 83mm(W) x 38mm(D).
Weight: Approx. 265g including batteries.
Supplied Thermocouples (2 per input):
1 meter (40") type K insulated beaded wire thermoco
ple. Maximum insulation temperature is 482°C (900°F).
Thermocouple accuracy is ±1.1°C or 0.4% of reading
(whichever is greater) from 0°C to 1250°C.
