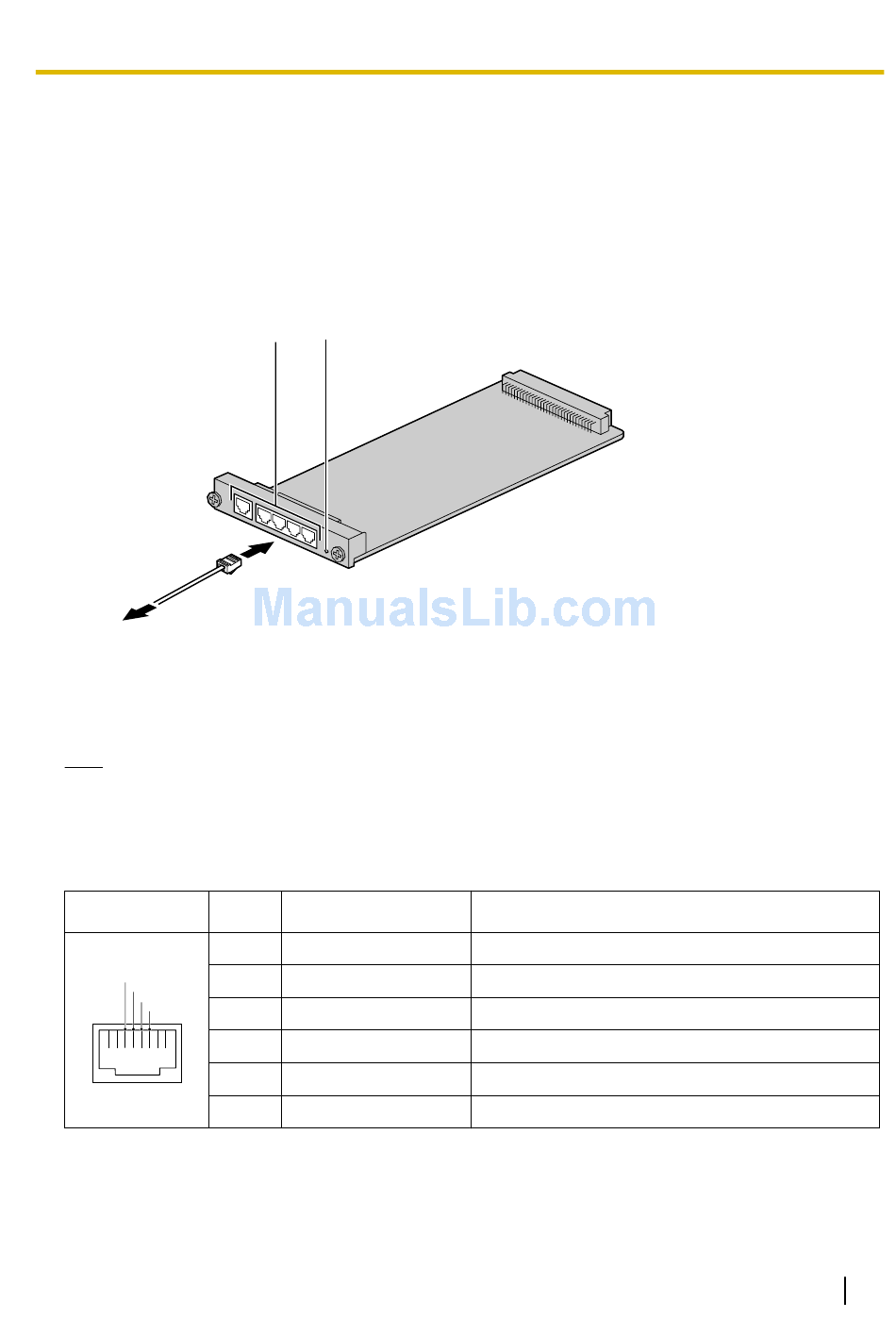

3.6 Information about the Physical Extension Cards

3.6.1 DHLC4 Card (KX-NCP1170)

Function
4-port digital hybrid extension card for DPTs, APTs, SLTs, DSS consoles, and PT-interface CSs, with Caller
ID (FSK) and 1 power failure transfer (PFT) port.
To extensions
Accessories and User-supplied Items
Accessories (included): none
User-supplied (not included): RJ45 connector
Note
For details about power failure transfer, refer to "3.12.1 Power Failure Connections".
Pin Assignments
RJ45 Connector
D1
T
R
D2
1 8
RJ45 LED
No. Signal Name
1-2 Reserved
3 D1
4 T
5 R
6 D2
7-8 Reserved
3.6.1 DHLC4 Card (KX-NCP1170)
Function
–
Data port (High)
Tip
Ring
Data port (Low)
–
