Panasonic WV-SFV531 Important Information Manual

Hide thumbs Also See for WV-SFV531:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

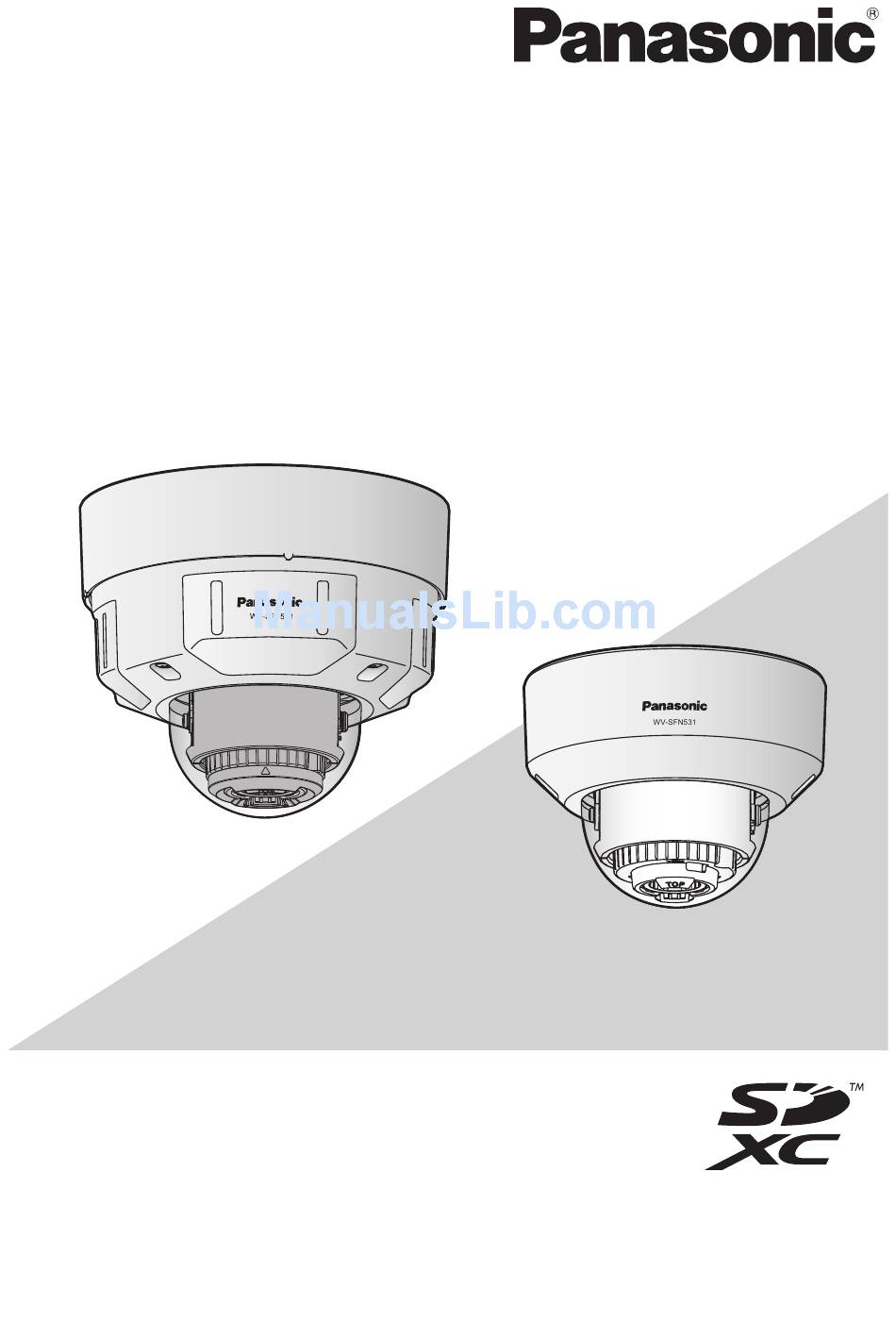

Important Information

Network Camera

WV-SFV531/WV-SFR531/
Model No.
WV-SFN531
WV-SFV531
WV-SFN531
* For information about the installation tasks, refer to the provided Installation Guide.
For information about how to perform the settings and how to operate the camera,
refer to the operating instructions on the provided CD-ROM.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
PGQX1905YB
sL0615-2075
Printed in China

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WV-SFV531

Summary of Contents for Panasonic WV-SFV531

  • Page 1: Important Information

    Important Information Network Camera WV-SFV531/WV-SFR531/ Model No. WV-SFN531 WV-SFV531 WV-SFN531 * For information about the installation tasks, refer to the provided Installation Guide. For information about how to perform the settings and how to operate the camera, refer to the operating instructions on the provided CD-ROM.
  • Page 2 For U.S.A. WARNING: The model number and serial number of this product may be found on the surface of the • To prevent injury, this apparatus must be unit. securely attached to the wall/ceiling in accor- You should note the model number and serial dance with the installation instructions.

  • Page 3: Table Of Contents

    Contents Important safety instructions ......................4 Limitation of liability ........................5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Main functions ..........................7 About the user manuals ........................ 8 System requirements for a PC ...................... 8 Trademarks and registered trademarks..................

  • Page 4: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. (WV-SFR531/WV-SFN531) 6) Clean only with dry cloth. (WV-SFR531/WV-SFN531) 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Only use attachments/accessories specified by the manufacturer. 1 0) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. S3125A 1 1) Unplug this apparatus during lightning storms or when unused for long periods of time. 1 2) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. (WV-SFR531/WV-SFN531)

  • Page 5: Limitation Of Liability

    THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;...

  • Page 6: Preface

    Preface The network cameras WV-SFV531/WV-SFR531/WV-SFN531 are designed to operate using a PC on a network (10BASE-T/100BASE-TX). By connecting to a network (LAN) or the Internet, images and audio from the camera can be moni- tored on a PC via a network. Note: • It is necessary to configure the network settings of the PC and its network environment to moni- tor images from the camera on the PC. It is also necessary to install a web browser on the PC. About notations The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. <Outdoor Vandal resistant & waterproof model> F ull-HD type: SFV531 The functions with this notation are available when using the model WV-SFV531. <Indoor Vandal resistant model> F ull-HD type: SFR531 The functions with this notation are available when using the model WV-SFR531. <Indoor model> F ull-HD type: SFN531 The functions with this notation are available when using the model WV-SFN531.

  • Page 7: Main Functions

    Extension software support Installing extension software makes it possible to add functions that use image data. * F or further information about the Extension software supported by this camera, refer to our website (http://security.panasonic.com/pss/security/support/info.html). SFV531 The camera conforms to the IP66 and Type 4X (UL50)* , is compliant with NEMA 4X ratings, and provides high dust resistance and waterproof performance.

  • Page 8: About The User Manuals

    About the user manuals There are 3 sets of operating instructions for the WV-SFV531/WV-SFR531/WV-SFN531 as follows. • Important Information (this document): Provides information about the cautions required for safely using and installing this camera. • Installation Guide: Explains how to connect devices. • Operating instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. ® ® Adobe Reader is required to read these operating instructions on the provided CD-ROM. When the Adobe Reader is not installed on the PC, download the latest Adobe Reader from the Adobe web site and install it.

  • Page 9: Trademarks And Registered Trademarks

    IMPORTANT: • F or information on the operation verification of the supported operating systems and web browsers, refer to our website at http://security.panasonic.com/pss/security/support/index.html. • When using a PC that does not meet the above requirements, displaying of images may become slower or the web browser may become inoperable. • Audio may not be heard if a sound card is not installed on a PC. Audio may be interrupted depending on the network environment.

  • Page 10: Network Security

    Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. • Use this unit in a network secured by a firewall, etc. • If this unit is connected to a network that includes PCs, make sure that the system is not infected by computer viruses or other malicious entities (using a regularly updated anti-virus program, anti-spyware program, etc.).

  • Page 11: Precautions For Use

    Do not use this product in an inflammable Do not install or clean the camera, or atmosphere. touch this product, the power cable or the connected cables during thunder storms. Failure to observe this may cause an explosion resulting in injury. Failure to observe this may cause electric shock. Avoid installing this product in the loca- tions where salt damage occurs or corro- Install this product in a location high sive gas is produced.
  • Page 12 When an error is detected, this product SFR531 SFN531 will restart automatically. This product is designed to be used This product will be inoperable for around 2 indoors. This product is not operable minutes after the restart just as when the outdoors. power is turned on. Make sure that the product does not About the automatic status detection become wet.
  • Page 13 • When using an SD memory card, format it SFV531 using this product. Recorded data on the What to do if “WARMING UP-PLEASE SD memory card will be deleted when for- WAIT” appears on the display. matted. If an unformatted SD memory card This message indicates that the temperature or an SD memory card formatted with inside the camera has become extremely low. other devices is used, this product may In such a case, wait until the heater unit of the not work properly or performance deterio- camera raises the internal temperature (for ration may be caused. Refer to the around 2 hours or more in low temperatures operating instructions on the provided below –10 ºC {14 ºF}), and turn the power off CD-ROM for how to format an SD memory once, then turn it back on again. card. • When some SD memory cards are used About the MOS image sensor with this product, the product may not • When continuously shooting a bright light work properly or performance deterioration source such as a spotlight, the color filter may be caused. Use the SD memory...
  • Page 14 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM Code label The code labels (accessory) are required at inquiry for trouble. Use caution not to lose these labels. It is recommended to paste one of the labels onto the CD-ROM case. Equipment classification and power source indication label Refer to the indication label on the bottom side of this unit for the equipment classification, power source, and other information. : Direct current symbol Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal...

  • Page 15: Precautions For Installation

    Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. Power supply This product has no power switch.

  • Page 16: Before Installation

    sufficient enough so that there is no SFR531 SFN531 movement or looseness. • Locations where it may get wet from rain or water splash (including under the eaves, etc.) SFV531 • Locations subject to moisture or dust Do not remove or loosen the screws on • Locations subject to condensation as the the bottom of this product. result of severe changes in temperature (In If the screws (7 pcs.) are loosened, water case of installing the camera in such loca- exposure may cause damage or malfunction of tions, the lens may become foggy or con- the product, or dropping may result in injury. densation may be caused on the cover.) Check before installation Compatibility of devices is restricted. Before installation, check the ratings and dimensions of the devices to be used. Contact your dealer for details. Before installation • Use the attachment plate (accessory), Take notice of humidity...
  • Page 17 Protection from lightning Time & date setting It is necessary to set the time & date before SFV531 putting this product into operation. Refer to the When cables are used outdoors, there is a operating instructions on the provided chance that they may be affected by lightning. CD-ROM for descriptions of how to perform In such a case, install a lightning arrestor close the settings. to the camera, and make the length of the net- work cable between the camera and lightning Make sure to remove this product if it will arrestor as short as possible to prevent the no longer be used. camera from being damaged by lightning. SFR531 SFN531 When connecting to a network using the network cable of this product, observe the following. • When wiring for the network, design and engineer not to be affected by lightning. Radio disturbance When this product is used near TV/radio antenna, strong electric field or magnetic field...

  • Page 18: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply • Are the PoE device and the network connector con- nected using a LAN cable (category 5 or better)? Check whether the connection is appropriately established. • Depending on the PoE device, the power supply will stop when the demanded power exceeds its total power limit for all PoE ports. Refer to the operating instructions of the PoE device in use. • When connecting both of the 12 V DC power supply and the PoE device for power supply, the network Power is not turned Installation connection may not be established.
  • Page 19 Unlock the write protect switch of the SD memory card. Operating • Hasn't the inserted SD memory card been formatted instructions SD ERROR/AF indi- on a PC? (included in cator lights up red. Use an SD memory card formatted on the camera. the Or install the software to format the SD memory card CD-ROM) on the PC. Refer to our website (http://security.panasonic.com/pss/security/support/ info.html) for further information about the supported software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one. • Check the following. • G rounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • T he camera is used near a device which produces Audio input contains strong magnetic field or radio waves (such as near noise. a TV/radio antenna, a motor of an air conditioning system, a transformer, etc.)
  • Page 20 About the indicator The indicator will light or blink as follows depending on the camera status. Indicator type and operation state Change of indicator indication ACT indicator When data is being sent via the network camera Blinks green (accessing) LINK indicator When the camera is able to communicate with the con- Lights orange nected device SD MOUNT indicator • W hen an SD memory card is inserted and could be Lights off → Blinks green → recognized Lights off • W hen data can be saved after the SD memory card is Lights off → Lights green inserted and the SD ON/OFF button is pressed (for 1 second or less) • W hen data can be saved to the SD memory card Lights green • W hen the SD memory card is removed after holding Lights green → Blinks green →...

  • Page 21: Specifications

    Specifications Basic • WV-SFV531 WV-SFR531/WV-SFN531 Power source: DC 12 V, PoE (IEEE802.3af compliant) Power consumption * DC 12 V: DC 12 V: 750 mA/Approx. 9 W 450 mA/Approx. 5.4 W PoE DC 48 V: PoE DC 48 V: 210 mA/Approx. 10.1 W (Class 110 mA/Approx. 5.3 W (Class 0 device) 2 device) Operating environment Ambient operating temperature: –40 °C to +50 °C –10 °C to +50 °C {–40 °F to 122 °F} {14 °F to 122 °F} (Power On range: –30 °C to +50 °C {–22 °F to 122 °F}) Ambient operating humidity: 10 % to 90 % (no condensation) 10 % to 90 % (no condensation) Storage environment Storage temperature: –30 °C to +60 °C {–22 °F to 140 °F} Storage humidity: 10 % to 95 % (no condensation) Monitor output VBS: 1 .0 V [p-p]/75 Ω, composite, ø3.5 mm mini jack (for adjustment): An NTSC or PAL signal can be outputted from camera (either press the INITIAL SET switch quickly (within 1 second) or use software to select NTSC or PAL signal).
  • Page 22 Without base bracket: SFN531 Approx. 1.2 kg {2.65 lbs} Approx. 490 g {1.08 lbs} Finish: Main body: SFR531 Aluminum die cast Main body: (Light gray) Aluminum die cast (Sail white) Dome cover: Dome cover: Clear polycarbonate resin Clear polycarbonate resin SFN531 Main body: ABS resin (Sail white) Dome cover: Clear acrylic resin Others: Tamper-resistant enclosure *1 R efer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about Power source and Power consumption. *2 O nly when installation work is properly performed according to the instructions guide and appropriate waterproof treatment is performed. *3 C omponent that has a structure on which the screws that are accessible after installation can- not be screwed or unscrewed using an ordinary screwdriver.
  • Page 23 Camera • Image sensor: Approx. 1/3 type MOS image sensor Effective pixels: Approx. 2.4 mega pixels Scanning area: 5.28 mm (H) × 3.30 mm (V) {7/32 inches (H) × 1/8 inches (V)} Scanning system: Progressive Minimum illumination: Color : 0.07 lx {0.0065 footcandle} (F1.6, Maximum shutter: Off (1/30 s), AGC: High) 0.005 lx {0.0005 footcandle} (F1.6, Maximum shutter: max. 16/30 s, AGC: High)* BW : 0 .01 lx {0.0009 footcandle} (F1.6, Maximum shutter: Off (1/30 s), AGC: High) 0.0007 lx {0.00007 footcandle} (F1.6, Maximum shutter: max. 16/30 s, AGC: High)* * Converted value Super Dynamic: On (High)/ On (Normal)/ Off * W hen 60 fps is selected, the Super Dynamic function is automati- cally set to off. Dynamic range: 133 dB typ. (Super Dynamic: On) Face SD (Super Dynamic): On/ Off (only when Super Dynamic: On) Gain (AGC): On (High)/ On (Mid)/ On (Low)/ Off Adaptive black stretch: On/ Off (only when Super Dynamic: Off) Back light compensation (BLC): On/ Off (only when Super Dynamic: Off) Fog compensation: On/ Off (only when Super Dynamic/ Adaptive black stretch: Off)
  • Page 24 Lens • Zoom ratio: 3.3x Varifocal Lens 9.9x Extra optical zoom is available when VGA resolution is used.* * 16:9 mode must be selected Digital (electronic) zoom: Choose from 3 levels of x1, x2, x4 Focal length: 2.8 mm – 9.5 mm {1/8 inches – 3/8 inches} Maximum aperture ratio: 1:1.6 (WIDE) – 1:3.3 (TELE) Focus range: 0.3m – ∞ Aperture range: F1.6 – T380 Angular field of view: SFV531 [16:9 mode] Horizontal: 31° (TELE) – 109° (WIDE) Vertical: 18° (TELE) – 59° (WIDE) [4:3 mode] Horizontal: 26° (TELE) – 89° (WIDE) Vertical: 20° (TELE) – 66° (WIDE) SFR531 [16:9 mode] Horizontal: 31° (TELE) – 109° (WIDE) Vertical: 18° (TELE) – 59° (WIDE) [4:3 mode] Horizontal: 26° (TELE) – 89° (WIDE) Vertical: 20° (TELE) – 66° (WIDE) SFN531 [16:9 mode] Horizontal: 32° (TELE) – 110° (WIDE)
  • Page 25 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: 2 mega pixel [16:9](30 fps mode)/ 2 mega pixel [16:9](60 fps mode) H.264 1920×1080, 1280×720, 640×360, 320×180, 160×90 JPEG (MJPEG) 2 mega pixel [4:3](30 fps mode) 1600×1200, 1280×960, 800×600, VGA, 400×300, QVGA, 160×120 3 mega pixel [4:3](30 fps mode) * Used by super resolution techniques 2048×1536, 1280×960, 800×600, VGA, 400×300, QVGA, 160×120 Image compression method: H.264* Transmission priority: Constant bit rate/ Variable bit rate/ Frame rate/ Best effort/ Advanced VBR Frame rate: <When Variable bit rate, Frame rate, or Advanced VBR is selected> 1 fps/ 3 fps/ 5 fps*/ 7.5 fps*/ 10 fps*/ 12 fps*/ 15 fps*/ 20 fps*/ 30 fps* * T he frame rate is limited to “bit rate”. When a value with an asterisk (*) is selected, the actual frame rate may be lower that the value selected. Bit rate per client: 64 kbps/ 128 kbps*/ 256 kbps*/ 384 kbps*/ 512 kbps*/ 768 kbps*/ 1024 kbps*/ 1536 kbps*/ 2048 kbps*/ 3072 kbps*/ 4096 kbps*/ 6144 kbps*/ 8192 kbps*/ 10240 kbps*/ 12288 kbps*/ 14336 kbps*/ 16384 kbps*/ 20480 kbps*/ 24576 kbps*/ 30720 kbps*/ 40960 kbps* * T he available range of the H.264 bit rate varies depending on the setting selected for “image capture size”.
  • Page 26 Windows Internet Explorer 11 (32-bit) Windows Internet Explorer 10 (32-bit) Windows Internet Explorer 9 (32-bit) Windows Internet Explorer 8 (32-bit) Windows Internet Explorer 7 (32-bit) Maximum concurrent 14 (Number of sessions that can connect to cameras at the same access number: time) * Depends on network conditions FTP client: Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SD memory card is available.) Multi-screen: Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card* SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 2 GB (except miniSD card and microSD card) Cellular phone compatibility: JPEG image, AUX control (by access level) Mobile terminal compatibility: iPad, iPhone, iPod touch (iOS 4.2.1 or later) (As of May, 2015)* Android mobile terminals *1 Transmission for 4 streams can be individually set. *2 AAC-LC (Advanced Audio Coding - Low Complexity) is only used when recording audio on an SD memory card. *3 For further information about PC system requirements and precautions for when using Microsoft Windows 8.1, Microsoft Windows 8, Microsoft Windows 7, Microsoft Windows Vista, or Windows Internet Explorer, click “Manual” - “Open” from the supplied CD-ROM and ® ®...

  • Page 27: Standard Accessories

    Standard accessories Important Information (this document) ....1 pc. Installation Guide ..........1 set Warranty card* ........... 1 set CD-ROM* ............1 pc. Code label* ............1 pc. The following parts are used during installation procedures. SFV531 Base bracket ............1 pc. Attachment plate ..........1 pc. Fixing screws for attachment plate (M4 x 8 mm) ..... 5 pcs. (of them, 1 for spare) Template A (for the attachment plate) ....1 sheet Template B (for the base bracket) ....1 sheet Waterproof tape ...........1 pc. Bit (Hex wrench, screw size 6.35 mm {1/4 inches} T20) ..1 pc. 4P alarm cable ............1 pc. 2P power cable ...........1 pc. LAN connector cover ...........1 pc. MONITOR OUT conversion plug ......1 pc. Auxiliary handle ............1 pc. SFR531 SFN531 Attachment plate ..........1 pc.

  • Page 28: Optional Accessories

    User License Accessory (For H.264): BB-HCA8A BB-HCA8CE Ceiling Mount Bracket: WV-Q105A* Ceiling Mount Bracket: SFV531 WV-Q169A SFR531 SFN531 WV-Q174B Dome Cover: SFV531 (Smoke type) WV-CW7S SFR531 WV-CR1S SFN531 WV-CF5SA Sun Shade: SFV531 WV-Q7118 Ceiling mount bracket: SFV531 (Use with the WV-Q124 (mount bracket) WV-Q121B to be able to install on a ceiling.) Wall mount bracket: SFV531 (Use with the WV-Q124 (mount bracket) WV-Q122A to be able to install on a wall.) Mount bracket: SFV531 (Use when installing the WV-SFV531 WV-Q124 using the WV-Q121B or WV-Q122A.) *1 W V-SFV531 can only be installed indoors when WV-Q105A is used to install it on the ceiling.
  • Page 32 For Europe and other countries: Panasonic Corporation Panasonic System Communications Company of North America, http://www.panasonic.com Unit of Panasonic Corporation Panasonic System Networks Co., Ltd. of North America Fukuoka, Japan www.panasonic.com/business/ For customer support, call 1.800.528.6747 Authorised Representative in EU: Two Riverfront Plaza, Newark, NJ 07102-5490 Panasonic Testing Centre Panasonic Canada Inc.
