Page 1: Dvd Recorder

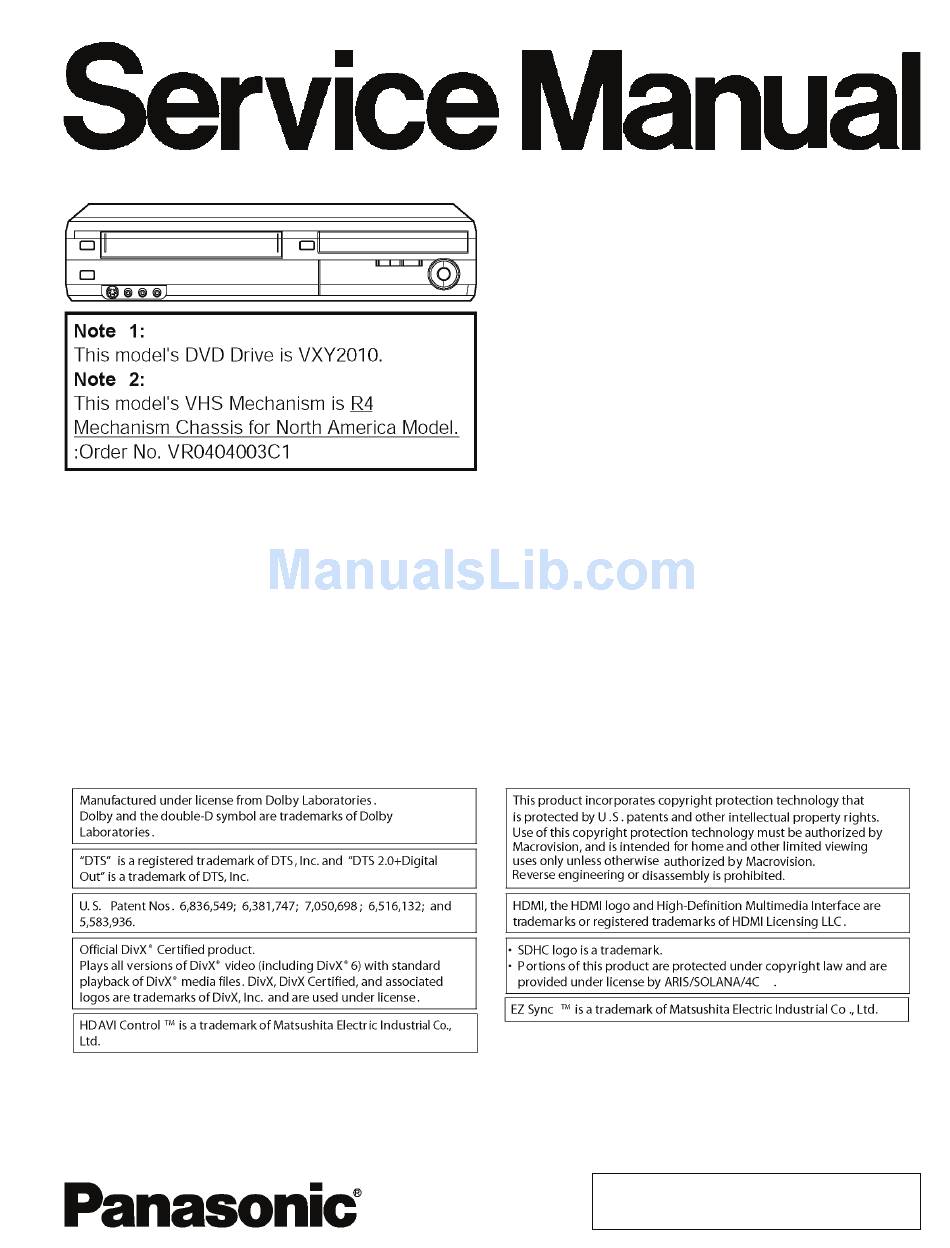

ORDER NO.CHM0802005CE DVD Recorder DMR-EZ48VP Model No. DMR-EZ48VPC DMR-EZ485VP Vol. 1 Colour (K).......Black Type © 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law. -
Page 2: Parts And Exploded Views
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP 15 Parts and Exploded Views 15.1. Exploded Views 15.1.1. Casing Parts & Mechanism Section1... -
Page 3: Casing Parts & Mechanism Section
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP 15.1.2. Casing Parts & Mechanism Section 2... -
Page 4: Vhs Mechanism Section
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP 15.1.3. VHS Mechanism Section... -
Page 5: Packing & Accessories Section
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP 15.1.4. Packing & Accessories Section... -
Page 6: Replacement Parts List
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP 15.2. Replacement Parts List Notes: Ref. Part No. Part Name & Remarks Description *Important safety notice: C3011 F1H1C104A090 16V 0.1U Components identified mark have special C3012 F2A0J470A824 6.3V 47U C3013 F2A1C100B099 16V 10U characteristics important for safety. - Page 7 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C4006 F2A1H4R7B033 50V 4.7U C4825 F2A1H4R7B040 50V 4.7U C4007 ECJ1VB1H182K 50V 1800P C4828 F2A1E470B030 25V 47U C4008 F2A1H3R3B032 50V 3.3U...
- Page 8 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description IC3702 C1AB00002748 QR4801 B1GBCFJJ0040 TRANSISTOR IC4501 AN3656NFBPBV QR4802 B1GDCFJJ0037 TRANSISTOR IC4801 C0CBCDC00037 QR4803 UNR5216J0L TRANSISTOR IC4803 B3ZAZ0000016 QR4804...
- Page 9 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R4007 ERJ3GEYJ103V 1/10W 10K R4841 ERJ3GEYJ123V 1/10W 12K R4008 ERJ3GEYJ334V 1/10W 330K R4842 ERJ3GEYJ221V 1/10W 220 R4009 ERJ3GEY0R00V...
- Page 10 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R7551 ERJ3GEYJ182V 1/10W 1.8K W765 ERJ3GEY0R00V 1/10W 0 R7552 ERJ3GEYJ101V 1/10W 100 W766 ERJ6GEY0R00V 1/8W 0 R7553 ERJ3GEYJ101V...
- Page 11 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description PP27501 K1KA10B00196 CONNECTOR(10P) R66804 ERJ3GEYJ104V 1/10W 100K R66805 ERJ3GEYJ103V 1/10W 10K QR27501 B1GBCFJJ0040 TRANSISTOR R66806 ERJ3GEYJ330V 1/10W 33...
- Page 12 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C7313 F2A1C100B099 16V 10U IC1290 C0DBEKG00003 C7314 F2A1H2R2B032 50V 2.2U IC1300 C0DBAZZ00132 C7316 ECJ1VB0J105K 6.3V 1U IC1340 C0DAEYH00002...
- Page 13 DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R1121 ERJ6GEYJ100V 1/8W 10 W303 ERJ3GEY0R00V 1/10W 0 R1122 ERDS2TJ221T 1/4W 220 W304 ERJ3GEY0R00V 1/10W 0 R1123 ERJ3GEYJ103V...
-
Page 14: Front Panel Assy
DMR-EZ48VP / DMR-EZ48 VPC / DMR-EZ485VP Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description RYP1418D-K FRONT PANEL ASS’Y (EZ485V) XYN3+C4FJ SCREW XTN26+7JFJ SCREW 28-1 RGU2475-S DUBBING BUTTON XTV26+5FFJ SCREW 28-2 RGU2563-K OPERATION BUTTON...
