Summary of Contents for Oki PAGE 16n

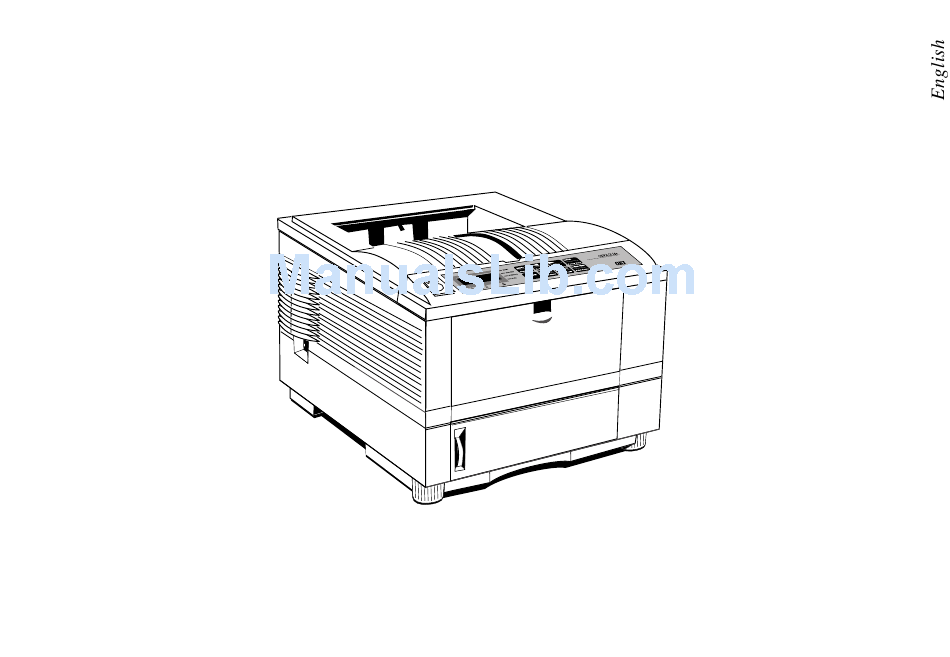

- Page 1 OKIPAGE 16n Read Me First Read Me First...
- Page 2 Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki assumes no responsibility for the results of errors beyond its control. Oki also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.
-
Page 3: Table Of Contents
Creating Sample Printouts ... 16 Demo Page ... 16 Sample Font Listing ... 16 Installing a Windows Printer Driver ... 17 Installation for Windows 3.1x ... 17 Installation for Windows 95 ... 17 Using an Alternative Printer Driver ... 18... -
Page 4: Safety Instructions
Safety Instructions Your Oki printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the printer: •... -
Page 5: Important Wiring Instructions
Green and Yellow ... Earth Blue ... Neutral Brown ... Live If the colours of the wires in the power cable of this printer do not correspond with the markings of the terminals of your plug, proceed as follows: •... -
Page 6: Printer Features
89/336/EEC and 73/23/EEC on the approximation of the laws of the member states relating to electromagnetic compatibility and low voltage. Energy Star As an Energy Star Partner, Oki has determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 7: Optional Accessories
Optional Accessories • Second paper tray holding 500 sheets • Multi purpose feeder for up to 50 envelopes or 100 sheets of labels, paper etc. • Two memory expansion slots (SIMMs) • Memory upgrade to 64Mb • High speed multi-purpose I/F slots •... -
Page 9: Identifying Your Printer
Printer Image drum cartridge (already installed) Toner cartridge Power cable User guides Printer driver diskettes Lightproof plastic bag If any item is missing or damaged, please contact your Oki dealer without delay. Read Me First... -
Page 10: Installing Your Printer
Installing Your Printer Before connecting the printer to your PC and mains outlet, you must first install the toner cartridge and insert paper in the paper tray. Note: Your printer is shipped with the image drum cartridge already installed. Remove any adhesive tape from the outer covers. -
Page 11: Installing Toner Cartridge
Shake the toner cartridge to distribute the toner. Then remove the packaging. Carefully peel off the sealing tape. Insert the cartridge into the printer, left end first as illustrated. Push the coloured tab forward to release the toner into the toner hopper. -
Page 12: Installing Paper
Pull down on the packing card under the front of the tray, and remove it from the machine. Remove the paper tray from the bottom of the printer and place plain paper in the tray, carefully keeping the level of the paper in the tray below the guide marks (1). -
Page 13: Connecting Your Printer
OFF. Read Me First Paper Exit Paths At the rear of your printer you will see a pull down panel. Carefully pull the panel by the central tab. Rear Paper Exit When the panel (1) is fully lowered, open the two paper supports (2) as shown. -
Page 14: Top Paper Exit
Top Paper Exit During normal operation paper will exit through the top of the printer, face down. To facilitate this there is a small paper support set in to the printer cover. Carefully pull this support (1) to the upright position and extend the small plastic tab (2). -
Page 15: Front Feed Tray
FRONT Press the TRAY, then press the ENTER button. Press the ON-LINE button to return the printer to on line. Load your paper stack (nominally up to 100 sheets of standard 80g/m² copier paper, less for heavier stock). If printing on pre-printed stationery, load face up, top into the printer. -
Page 16: Changing The Default Language
Changing the Default Language When the printer is shipped the default language is English. To change this language proceed as follows: Take the printer off-line, press the ON-LINE button. Press the MENU 1 button for more than two seconds. The message PRINT MODE will be displayed. -
Page 17: Installing A Windows Printer Driver
Click the Install button. Choose Unlisted Printer from the list of printers. Click the Add button. Insert the Oki Windows 3.1 driver diskette into drive A, and click the OK button. Select the OKIPAGE 16n printer from the printer list, and click OK. -
Page 18: Using An Alternative Printer Driver
Any PCL5e driver. • Any driver for the following printers: • HP LJ IV • HP LJ IV P • HP LJ IV Plus Note: Using a non-Oki driver may restrict you from obtaining the best results from your printer. -
Page 19: Index
... 13 data interface ... 13 top exit ... 14 power ... 4, 5, 13 Paper tray Cleaning the printer ... 4 filling ... 12 Components level indicator ... 12 indentification ... 9 rear support guide ... 12 Printer driver Demo page ... -
Page 20: Oki Systems Company
Oki Systems Company Oki Systems (UK) Limited 550 Dundee Road Slough Trading Estate Slough Berks SL1 4LE Tel: 44 (0) 1753 819819 Fax: 44 (0) 1753 819899...
