Oki OKIPOS 425S Developer's Manual

Oki printer developer's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
global logo.jpg
OKIPOS 425S
Developer's Guide
59336201

Advertisement

Table of Contents
loading

Related Manuals for Oki OKIPOS 425S

Summary of Contents for Oki OKIPOS 425S

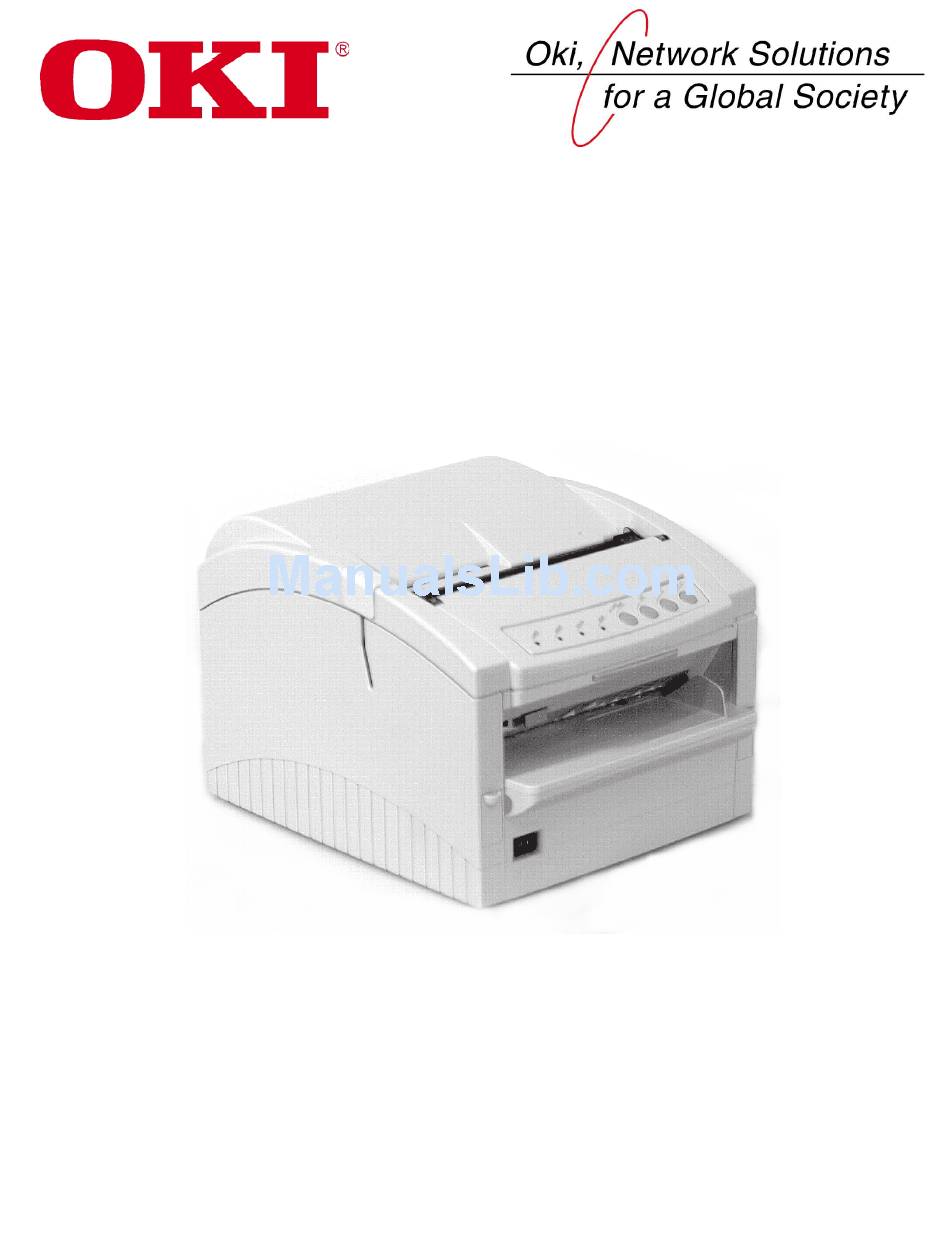

  • Page 1 OKIPOS 425S o425_02.jpg Developer’s Guide 59336201...
  • Page 2 Disclaimer Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors or omissions beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this document will not affect the applicability of the information in it.

  • Page 3: Table Of Contents

    1.3 Unpacking ... 7 Getting Started ... 7 1.4 Installing the Printer ... 8 Getting to Know the OKIPOS 425S ... 8 1.4.1 Remove the Shipping Restraints ... 9 1.4.2 Setting the Interface Board Assembly ...10 1.4.2.1 Setting the DIP Switches (RS-232C) ...10 1.4.2.2 Installing the Interface Board Assembly ...11...
  • Page 4 5.3.1 Parallel Interface (OKI/OEM Standard Type) ...60 5.3.2 RS-232C Interface (OKI Standard Type) ...61 5.3.3 Cash Drawer connector (OKI Standard Type) ...62 5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type) ...63 5.4 Physical Characteristics ...64 5.4.1 Printhead ...64 5.4.2 Printer ...64 5.5 Logical Characteristics ...65...
  • Page 5 6.2.1.7 Abicomp ... 104 6.2.1.8 Multilingual 858 ... 105 6.2.1.9 ISO 8859/15 ... 106 6.2.1.10 International character set table ... 107 6.2.2 Code table (OKI — Standard Type) ... 108 6.2.2.1 USA ... 108 6.2.2.2 Canada-French ... 109 6.2.2.3 Multilingual ... 110 6.2.2.4 Portugal ...

  • Page 6: Setting Up The Printer

    1.2 Where to install your printer Install your printer on as flat and stable a desk as possible. Also, make sure that the following installation space is reserved for services such as operation, daily check and replacement of supplies to maintain the performance of your printer.

  • Page 7: Unpacking

    1.3 Unpacking Getting Started Check the contents: Printer Ribbon Cartridge If anything is missing or damaged, contact your dealer immediately. o425_02.jpg and o425_07.jpg Developer’s Guide: English...

  • Page 8: Installing The Printer

    1.4 Installing the Printer Getting to Know the OKIPOS 425S o425_02.jpg Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch OKIPOS 425S...

  • Page 9: Remove The Shipping Restraints

    1.4.1 Remove the Shipping Restraints Important! Save the shipping restraints and packing materials in case you ever need to ship the printer. Remove the five pieces of shipping tape. o425_01.jpg Press the Cover open bar and open the printer cover.

  • Page 10: Setting The Interface Board Assembly

    Selects the hard reset signal Selects the software reset signal * There are three types of errors: the parity error, the framing error, and the overrun error. o425_83.jpg 10 = OFF; 11 = ON OKIPOS 425S Switch Setting 7 bits Present Even Parity...

  • Page 11: Installing The Interface Board Assembly

    1.4.2.2 Installing the Interface Board Assembly (1) Insert the Interface Board Assembly in the direction of the arrow. o425_84.jpg (2) Secure the Interface Board Assembly with 2 screws. o425_28.jpg Developer’s Guide: English...

  • Page 12: Connecting The Computer

    1.4.3 Connecting the Computer This printer supports either Parallel Interface or RS232C when the interface board is installed in the printer. To install the interface board, refer to Section 1.4.2.2. 1. Check to be sure that the printer’s power is OFF.

  • Page 13: Installing The Ribbon Cartridge

    1.4.7 Installing the Ribbon Cartridge Make sure the printer is turned OFF. Press the Cover open bar and open the printer cover. o425_03.jpg and o425_04.jpg Center the printhead. o425_06a.jpg Developer’s Guide: English...
  • Page 14 Ribbon Shield Take-up Knob Grip Points 5. Install the new ribbon cartridge. 1) Hold the ribbon cartridge as shown below. o425_08.jpg 2) Fit the grooves in the flat end of the cartridge over the posts on the ribbon plate. OKIPOS 425S...
  • Page 15 3) Lower the front of the cartridge over the printhead until it snaps into place. o425_06.jpg 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. o425_10.jpg Developer’s Guide: English...

  • Page 16: Installing The Paper

    The standard paper weight is 57g/m paper. Note 3: Multiple part paper should be fastened by spot-pasting or crimpling on both sides and should be free of wrinkles. OKIPOS 425S Paper Specifications Maximum thickness: 0.3 mm (0.012 inches) Length Weight...

  • Page 17: Roll Paper

    Adjust paper guide A (1) to the paper width. Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm) 1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm width) o425_10.jpg 2) To use narrow roll paper (2.73 inch or 69.5 mm width), hold up the roll paper guide and move it to the left to insert...
  • Page 18 2) Keeping the paper in position, turn the adjusting screw counter-clockwise to release the paper guide B (2) and adjust it to fit the roll paper edge. After paper width adjustment, turn the screw (3) clockwise to fasten the paper guide B. o425_10.jpg OKIPOS 425S...

  • Page 19: Loading The Roll Paper

    1.5.1.2 Loading the Roll Paper Use roll paper that matches the specifications. Note: The printer must be turned on before installing the roll paper. Fold the paper so it is exactly straight and even (1), and will not tear off jaggedly (2).
  • Page 20 Even roll papers outside the above defined range can be used by inserting the Spacer that comes with the printer, if the space between the Flange and the Roll paper is 1mm.

  • Page 21: Adjusting The Roll Paper Near End Sensing Position

    The paper near end detector detects when the paper is almost gone by measuring the diameter of the Roll paper. If you want to change the amount of paper remaining when the printer stops printing, follow the steps below to adjust the paper near end detector.

  • Page 22: Cut-Sheet Paper (Slip)

    When using a MICR-version machine, align the marks “ ” and “ ” as shown below and set the paper along the paper guide. o425_46.jpg Printer feed the paper until the top of form of the paper is reached. Note: If cut sheet paper is set askew, remove the paper following the procedure below and reset it: Pull the lever (1) (marked “PULL”).

  • Page 23: Cut-Sheet Paper (Validation/Stub)

    With the right edge of the paper positioned at the “ ” mark on the Cover Top, insert the paper. o425_48.jpg Note: To feed paper along the long edge, remove the Piece (1) on the left side of the printer cover and set the paper. o425_02.jpg Developer’s Guide: English...
  • Page 24 How to remove the Piece 1. Press the Cover Open Bar and open the Printer Cover. CAUTION: Printhead may be very hot. o425_03.jpg and o425_04.jpg Unlock the latch (1) of the Piece Cover B (2) and remove the Piece Cover B.
  • Page 25 Close Printer Cover. * Paper has been set for long-edge printing. o425_49.jpg * Store the removed Piece in a safe place so that you will not lose it. Developer’s Guide: English...

  • Page 26: Sprocket Paper (Tractor)

    The printer must be turned off before inserting the tractor. 1. Turn off the printer. Move the Paper Guide all the way to the right. Pull the hooks (1) on the tractor cover (2) in the arrow direction and remove the tractor cover.
  • Page 27 3. Set the tractor lever (1) in the direction of the arrow. o425_18.jpg 4. Turn on the printer. 5. Pull up on the lock levers (1) and open the tractor covers (2), then move the right tractor over to fit the width of the paper.
  • Page 28 7. Move the left tractor to align the edge of the paper with the appropriate reference mark (!), and push back the right lock lever (2). o425_52.jpg 8. Fine-tune the position of the right tractor to center the holes in the paper on the pins, and push back the left lock lever (1). o425_52.jpg OKIPOS 425S...
  • Page 29 9. Printer feeds the paper into the printer when your computer sends data. 10. Preparation 1) Position the printer at the front edge of the support (this promotes the unrestricted flow of paper into the printer), then place a stack of Sprocket (Tractor) Paper below the printer.

  • Page 30: Using The Printer

    The operation panel is under the control of the fiscal control PCB. Consequently, the fiscal control PCB should be removed before self tests. Alternatively, disconnecting the cable from the main control PCB is acceptable. Operation Panel Specification POWER LED Green LED1 LED2 Orange LED3 Orange LED4 Green OKIPOS 425S o425_20.jpg Operation Panel...

  • Page 31: Switching Functions

    2.1.1 Switching Functions Switch Function in Modes other than Tractor In Receipt Mode: Feeds Receipt paper for the specified (FF/LOD,PAK) length (10/6”) In Slip Mode: Ejects a fed slip paper In Validation Mode: Disabled *Printing will not be started. In Receipt/Slip/Validation Modes: (CUT) Disabled In Receipt Mode: Feed a line of...

  • Page 32: Led Function

    * Media Does Not Match Alarm (1) is detected by monitoring the option tractor lever. Media Does Not Match Alarm (2) is detected by the Validation sensor monitoring (media manually inserted into the validation opening). OKIPOS 425S A25004.doc Powered On...

  • Page 33: Local Functions

    2.2 Local Functions Note OEM Fiscal Type : This section describes local maintenance capabilities under the control of the printer block. The fiscal control PCB should be removed before the functions are performed. 2.2.1 Types Local Functions Local test All letters & rolling ASCII continuous printing test (Receipt) All letters &...

  • Page 34: Starting

    Tractor side. 3. No. 3, 6 and 8: if the lever is on the Tractor side, the printer starts up for normal printing with the function disabled. No. 1, 4, 5, and 7: the printer starts up with the function enabled regardless of the lever position.

  • Page 35: Menu Function (Receipt)

    Overview The menu function is the local function that sets each mode to control the printer and adjust it. This mode has the following items, saved in the E2P-ROM. This information is printed only when the menu mode is activated at Power On, and the information can be overwritten from the operator panel.

  • Page 36: Oki - Standard Model

    2.3.2 OKI — Standard Model Item Auto Cutter Unit MICR Unit Print Registration Top Adjust Cut Adjust Auto LF (Auto line feed) Receive Buffer Size Print Mode Off-line Busy Control Cover Open Alarm Width of Roll Paper Zero Character Page Length...

  • Page 37: How To Operate

    To start the Menu Mode, turn the printer on while holding down SW2 + SW1. When the printer’s initialization ends correctly, the printer prints the title “Menu Print” and all the menu items and set values. Then, the printer line-feeds until the print result goes beyond the Manual Cutter position, prints the item/set value immediately after “Menu Print,”...

  • Page 38: Hex Dump Function (Receipt)

    If it receives the I-PRIME signal (Parallel model)/Reset signal (Serial model), the printer starts printing if it has some data, then feeds one line. Then, the printer is initialized. (If it does not have any data, the printer feeds one line and then is initialized.)

  • Page 39: Using The Micr Reader (Option)

    2.5 Using the MICR Reader (Option) If your printer has the factory installed optional MICR (Magnetic Ink Character Recognition) reader that enables the printer to read and process MICR characters on personal checks, read this section. Note 1: If Cut-sheet Paper or Sprocket Paper has been loaded, eject it before you use the MICR feature. This does not apply to the Roll Paper.
  • Page 40 How to use the MICR Reader Send the command “FS a 0 n” from the host computer. Then the printer shifts to the MICR Mode and waits for the Check Sheet to be inserted. LED3 blinks slowly in orange (repeats 1 sec ON, 1 sec OFF).

  • Page 41: Micr Read Test (Receipt)

    (a) When this mode is started, the printer enters Wait for MICR Insertion state. (b) Insert MICR card and perform MICR read. (c) The printer prints MICR read results on the Receipt paper, and enters Wait for MICR Insertion state. (b) and (c) above are repeated.
  • Page 42 Character Code Note In both cases of CMC-7 and E-13B, special character codes are different from those sent to host by a check paper read command. OKIPOS 425S Status No errors. Error: Read/Decode error. Error: No magnetic ink detected. Error: Document jam or document is too long.

  • Page 43: Rewinder Winding Evaluation Continuous Print Test (Receipt)

    2.7 Rewinder Winding Evaluation Continuous Print Test (Receipt) This function performs print/platen switch continuous test to evaluate the rewinder winding performance. (1) How to start Turn the power on while holding down SW3 + SW1 + SW4. (2) How to exit Turn the power off.

  • Page 44: Maintenance

    3.1 Replacing the Ribbon Cartridge When printing becomes light, replace the Ribbon Cartridge, following the procedure shown below: Make sure the printer is turned OFF. Press the Cover open bar and open the printer cover. o425_03.jpg and o425_04.jpg Center the printhead.
  • Page 45 Swing the front of the cartridge up off the printhead, then lift the cartridge out and discard it. Caution! The printhead may be HOT! o425_06.jpg Unpack the ribbon cartridge. Important! Do NOT remove the ribbon shield (1) from the ribbon! o425_07.jpg Ribbon Shield Take-up Knob...
  • Page 46 3) Lower the front of the cartridge over the printhead until it snaps into place. o425_06.jpg and o425_09.jpg 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. o425_10.jpg OKIPOS 425S...

  • Page 47: Replacing The Roll Paper

    When the Roll is used up, load a new one, following the procedure shown below. Press Form Feed switch (1) and eject all the Receipt Paper (2). o425_54.jpg Press the Cover Open Bar and open the Printer Cover. * Caution! The printhead may be HOT! o425_03.jpg and o425_04.jpg...
  • Page 48 Remove the paper roll on the rewinder, following the procedure below. (1) Remove the rewinder (1) from the printer (2). o425_37.jpg (2) Rotate the flange (2) in the direction shown below and remove it from the rewinder (1). Note 1: Rotation direction of the flange varies depending on the width of the Roll Paper.

  • Page 49: Clearing Paper Jams

    3.3 Clearing Paper Jams When Roll Paper gets jammed, remove the paper, following the procedure shown below: Press Cover Open Bar and open the printer cover. * Print head may be very hot. Exercise caution. o425_03.jpg and o425_04.jpg Remove the rewinder and cut the Roll Paper (1) at the location (2) shown below.
  • Page 50 Load a new paper roll. For the procedure to load Roll Paper, refer to Section 1.5.2. Note: Before loading Roll Paper, press down on the two levers (1) to close the plate assembly securely. o425_105.jpg OKIPOS 425S...
  • Page 51 Cut-Sheet Paper When cut-sheet paper gets jammed, remove the paper, following the procedure shown below: Press the Cover Open Bar and open the printer cover * Print head may be hot. Exercise caution. o425_03.jpg and o425_04.jpg Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.
  • Page 52 Open the Tractor Cover (1) and cut the sprocket paper at the perforation (2). o425_57.jpg Press the Cover Open Bar and open the printer cover o425_03.jpg and o425_04.jpg Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.

  • Page 53: Troubleshooting And Repair

    4. Troubleshooting and Repair 4.1 Alarm Indication for a Failure When a failure occurs, the printer indicates its contents with LED1 lamp on the operation panel, which blinks in different ways depending on the failure type. Note: OEM Fiscal Type: The alarm indication works only when the Fiscal Control PCB is not mounted.

  • Page 54: Details Of Alarm Indications

    Contact the store where you bought the printer or Maintenance Service Center Although the MICR Option is not installed in your printer, is the No. 2 MICR Unit setting in the Menu “Yes?” (On how to check the Menu Settings, refer to Section 2.3, “Menu Function.”...

  • Page 55: Led Indication

    If the paper does not move through the Tractor Gear turns, remove it manually. Media Mismatch Alarm Media different from the one the printer is trying to print on has been set. Change the print mode or set the correct media.

  • Page 56: Specifications

    5.1 Introduction 5.1.1 Scope of Application This specification applies to OKIPOS 425S/425S/425SF, a 9-pin type serial dot impact printer. This device is a desk-top serial dot impact printer, used exclusively as the output device for POS (Point-of-sales) system. • OKIPOS 425S: OKI Single Standard Version •...
  • Page 57 Options Front Tractor: User Option o425_26.jpg Parallel Interface: Dealer Option (OKI/OEM Standard Type) o425_23.jpg RS-232C Interface: Dealer Option (OKI Standard Type) o425_81.jpg Note Only one interface option can be installed. Developer’s Guide: English...

  • Page 58: Configuration

    5.1.3 Configuration Standard Printer Configuration Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch o425_02.jpg OKIPOS 425S...

  • Page 59: General Specifications

    5.2 General Specifications 5.2.1 Power Requirements Input power Single-phase AC Voltage: Universal 120VAC+15% – 230VAC+15% Frequency: 50/60Hz +2% Power consumption (without Fiscal Control PCB) Local Test : Max. 40W (Local Printing) Idle: Max. 15W (Energy Star compliant) 5.2.2 Environmental Conditions Ambient temperature and relative humidity Operating Non-operating...

  • Page 60: Communication Interface Specifications

    Frame ground To host PC +5VDC power supply (Max 400mA) From host PC Initialization To host PC Error To host PC OEM Standard Type: Not used OKI Standard Type: Cash Drawer status signal From host PC 1284 mode move request...

  • Page 61: Rs-232C Interface (Oki Standard Type)

    5.3.2 RS-232C Interface (OKI Standard Type) Interface signals A25013.doc Pin No. Signal Protective ground Transmitted Data Received Data Request to Send Data Set Ready (Note 2) Signal Ground Data Terminal Ready 5,8 to 10,11, 12 to 19, 21 to 24...

  • Page 62: Cash Drawer Connector (Oki Standard Type)

    5.3.3 Cash Drawer connector (OKI Standard Type) Cash Drawer Connector Signals A25014.doc Pin No. Signal Name Direction CASHDV1 To Cash Drawer CASHST-N From Cash Drawer +24V To Cash Drawer CASHDV2 To Cash Drawer Note: Pin arrangement OP425_07.eps 1 2 3 4 5 6...

  • Page 63: Customer Display Connector (Oki Standard Rs-232C Interface Type)

    5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type) Customer Display Connector Signals A25015.doc Pin No. Signal Name +24V Note Pin arrangement OP425_08.eps 1 2 3 4 5 6 7 8 Direction Function Frame ground Not Connected To Customer Display...

  • Page 64: Physical Characteristics

    265 mm (10.43") (W) x 218 mm (8.58") (H) x 337 mm (13.27") (D) OP425_09b.eps 265mm (10.43inch) Outside dimensions (with Tractor) 265 mm (10.43") (W) x 218 mm (8.58") (H) x 422 mm (16.61") (D) OKIPOS 425S 25.5mm (1inch) 337mm (13.27inch)

  • Page 65: Logical Characteristics

    5.5 Logical Characteristics 5.5.1 Print Direction Bidirectional, unidirectional printing Short-line-seeking printing 5.5.2 Selectable Character Pitches Character width A25016.doc Selected font 20 CPI Regular size 0.05 inch 1.27 mm 10 CPI Double wide size 0.1 inch 2.54 mm (*) OEM Type: Cut Sheet or Sprocket Paper (Tractor) mode only Character pitch A25017.doc Number of dots per inch (DPI)

  • Page 66: Font Size/Cell Size

    A variable line feed pitch of n/216 inch (integer n: 0 < n < 255) can also be specified. OKI Standard Type: A variable line feed pitch of n/144 inch (integer n: 0 < n < 255) can also be specified.

  • Page 67: Media Specifications

    5.7 Media Specifications 5.7.1 Cut-Sheet Paper (Slip/Validation) Paper Width: 105 to 215.9 mm (4.13" to 8.5") Paper Length: 70 to 297 mm (2.76" to 11.7") Single part (Slip) Weight: 52 to 105 g/m Thickness: 0.065 to 0.13 mm (0.0026" to 0.005") Single part (Validation) Weight: 65 to 81g/m...

  • Page 68: Sprocket Paper (Tractor)

    Thickness: 0.27 mm max. (0.01" max) Multiple-part paper should be fastened by spot-pasting or crimpling on both side and should be free of wrinkles. OKIPOS 425S (14 to 21 lb) (9 to 11 lb) (10 to 12 lb) [Carbon: 34g/m...

  • Page 69: Appendix: Media Specifications

    5.7.5 Appendix: Media Specifications 5.7.5.1. Cut-Sheet Paper (Slip/Validation) 5.7.5.1.1. Paper Size and Printing Area Single-part Paper OP425_10.eps Base line First character position Paper inserting direction Against the perpendicular to the Base line Printing area + 0.2mm or less Standard media are in A5 and B5 sizes. A25022.doc Symbol Designation...
  • Page 70 Note 3 Before printing on a stub, fold the other sheets backward to make the stub available for print as shown in the fig. below. OP425_12.eps Fold backward Stub OKIPOS 425S Standard Value 70mm (2.76 inch) or more 40mm (1.57 inch) or more 18mm (0.7 inch) or less 2.54mm (0.1 inch) or more...
  • Page 71 Note 3 Wide paper with the left or right edge pasted should be printed carefully, since it may twist during feeding. Note 4 Only a multi-part slip can be used for printing. (Insert it from the front side of the printer.)
  • Page 72 5.7.5.1.4 Fixing Method of Multi-part Paper Joint The multi-part paper joint shall be fixed with 1mm line-pasting on the edge which is first fed into the printer. The joint must be glued securely and pressed without fail to prevent any part from lifting.
  • Page 73 5.7.5.1.5 Binding Holes Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines: Do not print within 5 mm of the hole center. Make sure that paper dust is not left on the paper.
  • Page 74 Do not print within the shaded area adjoining the perforations. An example of a perforated sheet is shown in the figure below. op425_16.eps Uncrossed Vertical perforated line Horizontal perforated line Uncut 4 places Unit: mm The shaded area indicates the region where printing is prohibited. OKIPOS 425S...
  • Page 75 5.7.5.1.7 Provisions on Fold, Bend and Curl on Cut-sheet Paper Paper is apt to sustain bends, cambers or curls resulting from manual handling, carrying, stacking, storing conditions, etc. Therefore, before printing, check and adjust paper in accordance with the provisions below to eliminate paper feed problems. Do not use paper that does not meet the specifications outlined here: it may cause paper feed problems.

  • Page 76: Roll Paper

    Roll paper outside diameter Core inside diameter Left margin Right margin Printing area width Top margin OKIPOS 425S Standard Value 69.5/76.2 mm (2.73/3 inch) +0.5mm (0.02 inch) 101.6mm (4 inch) or less 10mm (0.4 inch) or more 2.54 mm (0.1 inch) or less 2.54 mm (0.1 inch) or more...
  • Page 77 5.7.5.2.2 Paper Quality Paper of the following quality may be used. A25028.doc Type Paper Quality Single-part paper High quality paper Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. If you use paper other than that specified here, test it to verify that it prints without problems. 5.7.5.2.3 Paper Weight The weight of paper usable for printing .

  • Page 78: Sprocket Paper (Tractor)

    5.7.5.3. Sprocket Paper (Tractor) 5.7.5.3.1 Paper size and Printing area OP425_20.eps Printing area Printable area First character position Paper inserting direction Unit: mm Maximum 160.02 The specification for the printable area differs from that for the printing area. A25030.doc OKIPOS 425S...
  • Page 79 Symbol Designation Paper width Paper length Heading position Top margin (on the 1 page) Bottom margin, recommended Bottom margin, printable Top margin, recommended Top margin, printable Bottom margin, recommended Bottom margin, printable Unprintable left margin Unprintable right margin Note 1 Though you can print within the light shaded area (printable area), feeding may be less accurate. Note 2 The print quality on the last page is not warrantied.
  • Page 80 Multi-part Pressure-sensitive paper paper, Carbon- lined paper Interleaved paper Note 1 The thickness of carbon paper used for Interleaved paper must be 0.03 mm or less. OKIPOS 425S Weight Max Copies 52~81 g/m (14~21 lb) 34~40 g/m (9~11lb) 4 copies (original...
  • Page 81 5.7.5.3.4 Fixing Method of Multi-part Paper Joint The joint fixing method for a multi-part paper shall be spot-pasting, line-pasting or crimping. Spot pasting is the proper precaution against position deviation made when piling sheet tiers. Crimping may cause position deviation of approx 3 mm. Metal staples must not be used.
  • Page 82 Press paper after crimping to eliminate lifting. OP425_23.eps 50.8 interval Paper inserting direction Horizontal perforated line 2 or more Approx. 1 Press paper to prevent lifting Form/Position of Crimping Quadruple crimping Enlarged Figure of Crimped Mark 10 Unit: mm OKIPOS 425S...
  • Page 83 5.7.5.3.5 Rising in Horizontal Perforated Line Protrusions in a horizontal perforated line may result in poor print quality, unstable paper feeding or frequent paper jam. Therefore, the rising height must be kept within 1mm. OP425_24.eps Horizontal perforated line Within 1mm 5.7.5.3.6 Position Deviation of Sprocket Holes Deviation of the sprocket hole positions may be caused when each copy or tier is piled to produce multi-part paper.
  • Page 84 Make sure that the edges of holes are even with the paper surface. If they stick up, the printhead may not move smoothly. The positions of holes should be as illustrated in the figure below. OP425_26.eps 10 or more o 10 (shaded area) Do not print. Binding hole Unit: mm OKIPOS 425S...
  • Page 85 5.7.5.3.8 Corner Cut Do not use paper with corner cuts. It may invalidate your warranty. If you choose to use corner cut paper, be sure to test it thoroughly. Follow these guidelines: Do not print within the shaded area adjoining a corner cut. Make sure that paper dust is not left on the paper.
  • Page 86 Newly unpacked paper often has wrinkles or pleats on the first and last pages. Please eliminate pages having wrinkles and pleats before printing. Do not utilize paper whose folding position inflates as illustrated in the fig below, because it may cause malfunction in paper feed. OP425_28.eps and OP425_29.eps Wrinkle Pleat Rounded ends OKIPOS 425S...

  • Page 87: Micr (Only With Micr Type)

    5.7.5.4. MICR (only with MICR Type) 5.7.5.4.1 Paper Size and Scanning Area OP425_30.eps Paper inserting direction Scanning Area A25033.doc Symbol Designation Standard Value Paper width 76~78mm (2.99~3.07 inch) Paper length 174~176mm (6.85~6.93 inch) 4.8mm (0.19 inch) Scanning area 6.4mm (0.25 inch) 4.8mm (0.19 inch) 6.35mm (1/4 inch) or more 50mm (1.97 inch) or more...

  • Page 88: Paper Feed Specifications

    With Sprocket paper (Tractor) feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from the last printed line. Upon detecting the paper end, the printer stops printing and sends a paper end signal to the interface. OKIPOS 425S...

  • Page 89: Micr Specifications (Only With Micr Type)

    9.2 inches / sec 5.9.3 Recognition Rating 95% or more at 25°C Rating = ([total checks - number misread or not identified] / total checks) x 100 Check paper tested is OKI recognized check paper 5.9.4 Reliability Life: 240,000 passes Passes: reading and printing on U.S.

  • Page 90: Ribbon Specifications

    5.10 Ribbon Specifications Genuine Oki Data cartridge ribbon Ink color: Black Ribbon life: Approximately 3 million characters (when 1 character = 14 dots) 5.11 Reliability MTBF (mean time between failures) 10,000 hours of power-on time at 25% duty cycle. Page density: 35% Printhead life 200 million characters (average) in Utility Print Quality mode.

  • Page 91: Command Description

    6. Command Description 6.1 Control Code List 6.1.1 OEM — Standard Model 6.1.1.1 Function Code List of Function Codes A25037.doc CODE * Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

  • Page 92: Esc Sequence

    1B 77 ESC w n 1B 78 ESC x n 1B 7A ESC z n OKIPOS 425S Functions To enable/disable auto line feed To set Condense To set up menu items To set the amount of space to the right side...

  • Page 93: Gs Sequence

    6.1.1.3 GS sequence Command recognition GS codes in combination are handled the same way that ESC codes are handled. GS Sequence table A25039.doc Command Sequence 1D 45 GS E n 1D 76 GS v n 6.1.1.4 US Sequence A25038a.doc Command Sequence 1F 0E US 0EH n 1F 0E 00...

  • Page 94: Oki Standard Model

    6.1.2 OKI Standard Model 6.1.2.1 Function Code List of Function Codes A25040.doc CODE * Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

  • Page 95: Esc Sequence

    Sets n/144 line feed Sets Italic Mode Resets Italic Mode Designates one-line uni-directional print Selects peripheral device Initializes printer Sets n/72 line feed pitch Sets page length for Sprocket paper Designates/cancels Emphasize print Designates/cancels Double Strike print Feeds paper in increments of n/144...
  • Page 96 The ESC DLE sequence other than No. 2~8, 53, 54 will be ignored by the sequence. The data that follows “Pno” will be ignored by as many bytes as set by Pno. OKIPOS 425S Partial cut (keeping one point uncut)

  • Page 97: Fs Sequence

    Loads Check paper to the print start position Ejects Check paper Requests for resending a result of reading Check paper Functions Sends a status of the printer status real-time Selects print speed and printhead current flow time Sends a printer ID Enables/disables auto status send...

  • Page 98: Character Set

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425S...

  • Page 99: Canada-French

    6.2.1.2 Canada-French OP425_04.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 100: Multilingual

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425S...

  • Page 101: Portugal

    6.2.1.4 Portugal OP425_06.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 102: Norway

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425S...

  • Page 103: Brascii

    6.2.1.6 BRASCII OP425_08.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 104: Abicomp

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH, 9xH, ExH, and FxH are ignored. (Shaded areas) OKIPOS 425S...

  • Page 105: Multilingual 858

    6.2.1.8 Multilingual 858 OP425_10.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 106: Iso 8859/15

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored. (Shaded areas) OKIPOS 425S...

  • Page 107: International Character Set Table

    6.2.1.10 International character set table A25044.doc ESC R n Country (00)H American (01)H French (02)H German … (03)H British (04)H Danish I ¼ (05)H Swedish (06)H Italian (07)H Spanish I (08)H Japanese ¼ (09)H Norwegian (0A)H Danish II (0B)H Spanish II (0C)H Latin American...

  • Page 108: Code Table (Oki - Standard Type)

    6.2.2 Code table (OKI — Standard Type) The character code tables follow. 6.2.2.1 USA OP425_12.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.”...

  • Page 109: Canada-French

    6.2.2.2 Canada-French OP425_13.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 110: Multilingual

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425S...

  • Page 111: Portugal

    6.2.2.4 Portugal OP425_15.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 112: Norway

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425S...

  • Page 113: Brascii

    6.2.2.6 BRASCII OP425_17.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 114: Abicomp

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH, 9xH, ExH, and FxH are ignored. (Shaded areas) OKIPOS 425S...

  • Page 115: Multilingual 858

    6.2.2.8 Multilingual 858 OP425_19.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 116: Iso 8859/15

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored. (Shaded areas) OKIPOS 425S...

  • Page 117: International Character Set Table

    6.2.2.10 International character set table A25045.doc ESC R n Country (00)H American (01)H French (02)H German (03)H British (04)H Danish I (05)H Swedish (06)H Italian (07)H Spanish I (08)H Japanese (09)H Norwegian (0A)H Danish II (0B)H Spanish II (0C)H Latin American (0D)H French Canadian (0E)H...

  • Page 118: Using The Unitool Printer Driver

    7.1 Setting Slip Paper in the Paper Tray This section describes the method to set Slip paper in the input bin. With this printer, the position of the Paper Guide can be adjusted sideways, enabling you to change the paper setting position. If you use this printer driver, however, follow the procedure below when determining the right/left margins for paper and the position to set the Slip paper.

  • Page 119: Using Registered Paper Icons

    7.1.1 Using Registered Paper Icons Paper width is 190.5 mm (7.5") or more and up to 215.9 mm (8.5") inclusive. O425_108.jpg Printing area Left Margin 27.94mm (1.1 inch) Right Margin 27.94mm (1.1 inch) Printable Maximum Width 160.02mm (6.3 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side Left Margin 2.54mm (0.1 inch)
  • Page 120 O425_109.jpg Printing area Printable Maximum Width 160.02mm (6.3 inch) Right Margin 27.94mm (1.1 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side Normal operation Paper Guide shifted toward the left. OKIPOS 425S...
  • Page 121 Paper Width is less than 190.5 mm (7.5"). The printing area, when printing paper that is less than 190.5mm (7.5") in width, is illustrated below. For paper 190.5 mm (7.5") or more and less than 215.9 mm (8.5"), slide the Paper Guide toward the left as needed so that the entire printing area on the paper shifts toward the right.

  • Page 122: Using Custom Size

    The left margin that is actually set up for using 101.6 mm (4.0") paper can be calculated according to the following formula. (Width of Custom Paper Size fixed) - (Width of paper size actually used) + (Left Margin for paper used) 187.96 mm (7.4") - 101.6 mm (4.0") + 2.54 mm (0.1") or more OKIPOS 425S...
  • Page 123 Set the right margin at 27.94 mm (1.1") (Printing disabled area 25.4 mm [1.0"] + Slip paper’s minimum right margin 2.54 mm [0.1"]) or more. Image of actual printing area O425_112.jpg Target Printing Area Printing Area with margin adjusted Left margin for paper to be used 2.54mm (0.1 inch) or more Width of Paper Size actually used 101.6mm (4.0 inch) Right margin for paper to be used 25.4mm (1.1 inch) or more (including the printing disabled area) Right margin actually set...
  • Page 124 187.96 mm (7.4") 101.6 mm (4.0") Set the right margin at 27.94 mm (1.1") (Printing disabled area 25.4 mm [1.0"] + minimum right margin 2.54 mm [0.1"]) or more. OKIPOS 425S 25.4 mm (1.0") 2.54 mm (0.1") or more...
  • Page 125 With the Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. An image of actual printing area o425_112.jpg Target Printing Area Printing Area with margin adjusted Left margin for paper to be used: 2.54mm (0.1 inch) or more Width of actually used Paper Size 101.6mm (4.0 inch) Right margin for paper to be used: 2.54mm (0.1 inch) Actually set right margin 25.4mm (1.1 inch) or more (including the printing disable area)
  • Page 126 With Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. O425_113.jpg Target Printing Area Printable Maximum Width 160.02mm (6.3 inch) Right Margin 27.94mm (1.1 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side OKIPOS 425S...

  • Page 127: Using Paper Size That Is 187.96 Mm (7.4") Or More And Less Than 215.9 Mm (8.5") In Width

    The printer’s physical printable area is 160.02 mm (6.3"). The value that is set at Left Margin/Page Setup in the application is treated as the distance from the printer’s print start position (left edge). In other words, if the value set at Left Margin is greater than 0, the printing area shifts to the right in actual printing by as much as the set value.

  • Page 128: About The Validation Printing Area

    Inserting Direction Symbol Designation Paper width Print starting position Left margin Right margin Printing area width OKIPOS 425S Standard Value 70 mm (2.7") or more 8 mm (0.7") or less 2.54 mm (0.1") or more 2.54 mm (0.1") Max 160.02 mm(6.3")
  • Page 129 The following shows examples of print data created in Windows applications in each Paper source (L_Alignment/Center/ R_Alignment). Data in application O425_116.jpg Center Line (L_Alignment is used) (Center is used) (R_Alignment is used) (L_Alignment is used) (Center is used) (R_Alignment is used) When spaces are inserted ( x x : space) Print result Developer’s Guide: English...
  • Page 130 [Width of Custom Paper Size fixed] 162.56 mm (6.4") 101.6 mm (4.0") Also, set the right margin at the minimum of 2.54 mm (0.1") or more. OKIPOS 425S [Width of paper size actually used] 2.54 mm (0.1") [Left margin for paper to be used]...

  • Page 131: Setting Tractor Paper In The Tractor Unit

    Orientation selections available with this printer driver are described next. The printer driver switches the document orientation according to the setting made by the user. When Landscape is designated, the driver rotates the direction 90° clockwise for printing. This rotation is done in Windows;...

  • Page 132: Special Functions Of The Windows 95/98 Version Printer Driver

    When the printer’s TOF position/paper auto exit position (see below) is changed in the printer side, this setting is used to adjust the driver’s TOF position/paper auto exit position to the positions set in the printer. The TOF position/paper auto exit...
  • Page 133 Thus, the application produces data while ignoring the data in the first 1 inch from the top of that data. Unless you set the printer Auto Loading to 1 inch, you cannot get the printing result you expect.

Table of Contents
