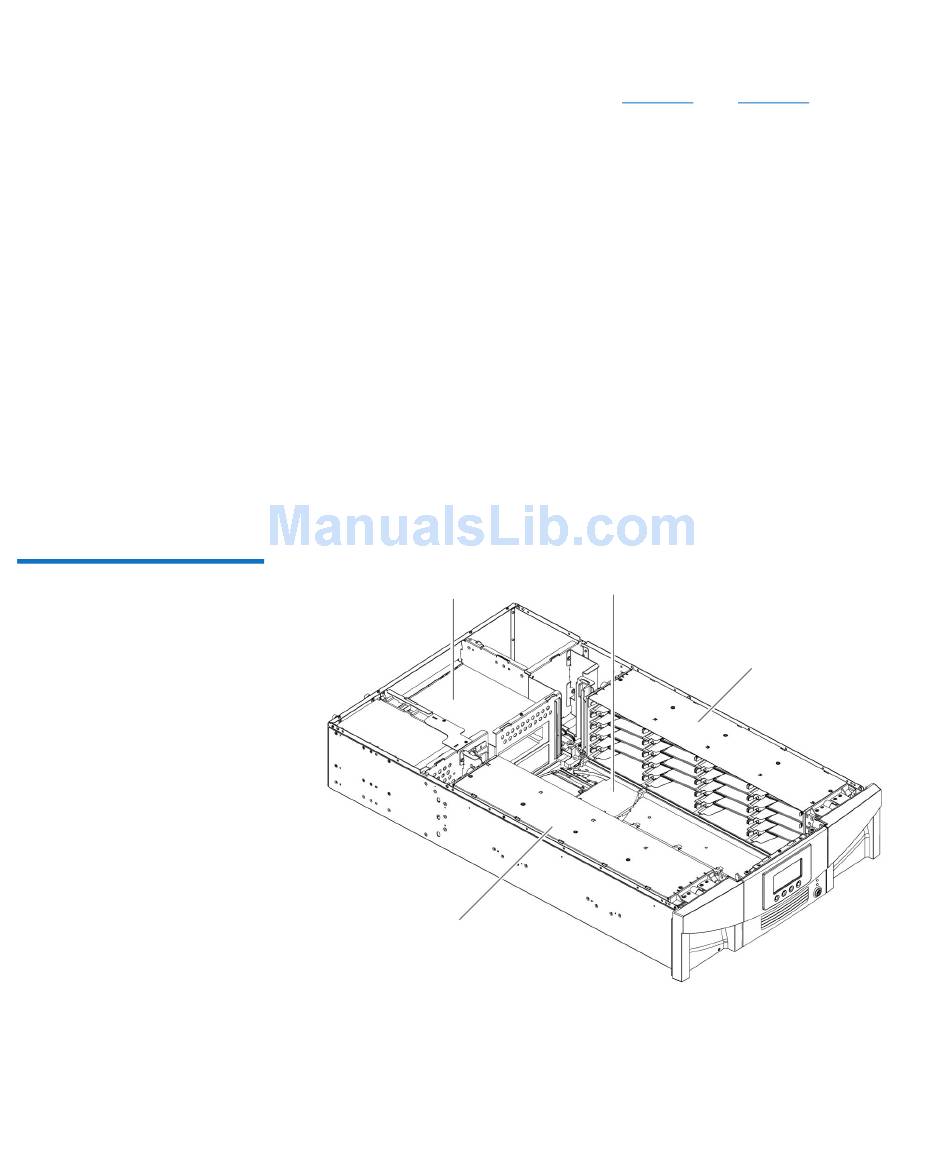

Figure 2 Scalar I40 Internal Layout And Magazine Slot Location - Quantum scalar i40 User Manual

Figure 2 Scalar i40 Internal
Layout and Magazine Slot
Location Coordinates
Quantum Scalar i40 and Scalar i80
follows: [Magazine],[Column],[Slot].
magazines and list all of the location coordinates.
• Magazine — Library magazine level is represented by the first digit
of a library coordinate. In a Scalar i40, there is only one level of
magazine. The coordinate is always zero. In a Scalar i80 library, the
bottom magazines are indicated by a zero; the top magazines are
indicated by the number 1.
• Column — A storage column is a group of slots arranged vertically
in the library. Columns are represented by the second digit of a
library coordinate. Columns are identified relative to the front left of
the library. The column in the front left of the library is number 1.
The column numbering continues around the library in a clockwise
direction. The I/E station column is always number 8.
• Slot — Slots (both storage and I/E station) are represented by the
third digit of the library location coordinate. Within each magazine
column, slots are numbered from 1 to 5, starting at the top of the
magazine.
Tape Drives
Left magazine
Chapter 1: Description
Figure 2 and Figure 3
Robot on Y-tray
Right magazine
Library Components
show the
5
