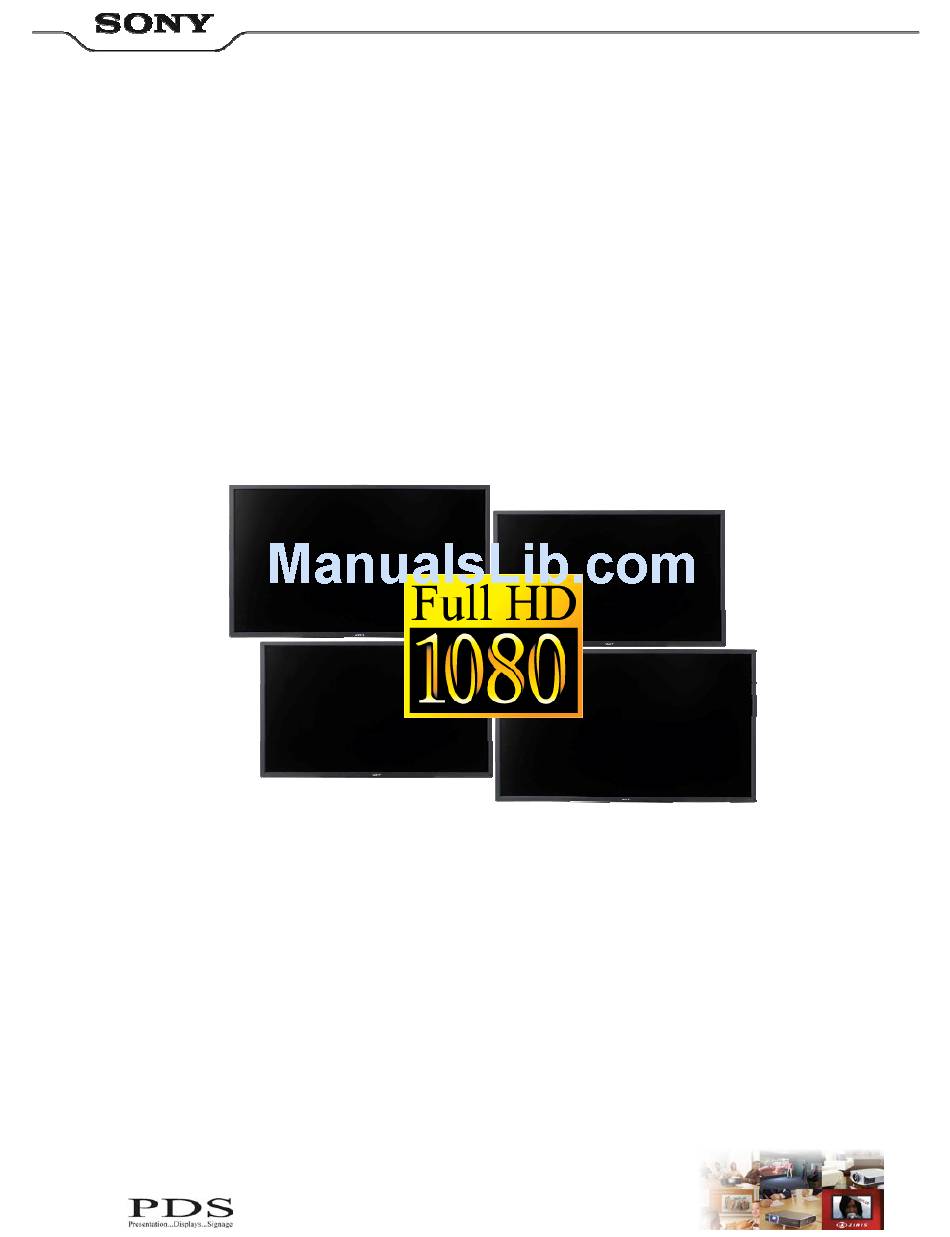

- Page 1 Slim Bezel Full HD Displays FWD-S42H1 / FWD-S47H1 Product Introduction Letter...
-
Page 2: Table Of Contents
3. Target markets & Applications............7 4. Benefits & Unique Selling Points ..........10 5. Competition...................15 6. Product Features ................16 7. Appendix..................23 7.1. Specifications ...............23 7.2. Mechanical Information ............26 7.3. Dimensions................29 7.4. Accessories ................30 ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 2 of 23... -
Page 3: Introduction
Full HD, Higher Brightness, Slim Bezel for a more sophisticated application is growing. The 47-inches FWD-S47H and 42-inches FWD-S42H1 displays were planned for satisfying such severe requirements. We believe their professional value will be recognized and they will win the public display business thanks to their unique features balanced sophisticatedly. - Page 4 EAN/JAN Code: 49-05524-54761 -0 • Product Name: Speaker System – • Product Number – SS-SPG01 – Suffix: /K1 WW • Product code: 92-3112-01 – – EAN/JAN Code: 49-05524-47482-4 – ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 4 of 23...
-
Page 5: Product Positioning
Other benefits include LCD technology that is better suited to static images and the large 42 and 47 -inch screen size for increased visibility and clarity. See key features for more details. ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 5 of 23... - Page 6 The high definition resolution of those displays guarantees a perfect image quality. With a complete range of HD inputs: DVI, HDMI (optional), HD-SDI (optional), the FWD-S42H1/S47H1 are able to fit in every Full HD system and even with an Anycast station.
-
Page 7: Benefits & Unique Selling Points
Full HD 1920 x 1080 native resolution for excellent picture quality Slim bezel Design Bezel width: 19mm Position the control buttons on the lower rear side ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 7 of 23... -
Page 8: Portrait Mode
Backlight Lifetime is approx. 50,000 hours (Typ.) regardless of Landscape or Portrait. • • Sony Logo and Menu screen are automatically switched according to its screen layout. Menu Menu ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 8 of 23... - Page 9 An embedded HTML Menu enables the user to control and monitor the display remotely over IP Network, without any additional software. (Same functionality BKM-FW32, FW50 offers) RS232C connection for Serial control and Sony unique S-Control is also available Center 3 Screen Saver functions –...
-
Page 10: Competition
Public displays on those sizes (between 40’’ and 50’’) having at the same time a Full HD resolution and a Slim bezel design. The only product we can compare the FWD-S42H1 and the FWD-S47H1 are the following models 40’’ and 46’’ with an HD resolution. ············································································································································································································... - Page 11 EMEA DTC forecasting 40''- 49'' displays repartition by resolution Quantity 800000 700000 600000 500000 Non HD 400000 Full HD 300000 200000 100000 2004 2005 2006 2007 2008 2009 2010 2011 2012 ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 11 of 23...
-
Page 12: Product Features
Network Display Management – Monitoring of Display Status and controlling Displays via a Network • Overscan On/Off feature (LX2 model was by default Overscan only) • 3 screen saver functions ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 12 of 23... -
Page 13: New Features
Gamma setting is in accordance with the Grayscale Standard Display Function (GSDF) of the Digital Imaging and Communications in Medicine (DICOM) standards. However, this setting is for reference only and cannot be used for medical diagnosis. ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 13 of 23... -
Page 14: Other Features
*Operation Time excludes the time when the display is in Standby, Power Saving or Standby Saver. • VESA mounting 400 x 400mm – – M6 screws – S47H1:17mm depth of screw holes – S42H1:16mm depth of screw holes ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 14 of 23... - Page 15 For example, long cables make a signal quality worse. – This chart is not applied for the other displays such as GXD-L52H1, FWD-LX2 series, Available combination of PinP and P&P ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 15 of 23...
-
Page 16: Appendix
972.1x 565.1 x 125 mm Dimensions 42 ¾ x 24 ¾ x 5 1/8 inches 38 ¾ x 22 ¾ x 4 7/8 inches (w/h/d, excluding projections) (w/h/d, excluding projections) ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 16 of 23... -
Page 17: Supplied Accessories
EU: CE EMC (EN55022 Class-B, EN55024, EN61000-3-3, EN55013, EN55020) AU/NZ: C-Tick (AS/NZS CISPR22) JP: Den-anho(J55022(H14)), VCCI Class B, JEITA(Dengen Kouchouha Kisei JIS C 51000-3-2) *Other regulations are to be applied locally. ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 17 of 23... -
Page 18: Mechanical Information
24psf video signal: 60Hz (2-3 pull down) 7.2. Mechanical Information Location and function of parts and controls Front ① Sony Logo ② Power/Standby indicator ③ Remote control sensor ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 18 of 23... - Page 19 Aspect ratio selecting ID mode buttons button ID Number Selecting buttons MENU button - Can also set IP address number Contrast Up/Down button Audio Muting button Volume Up/Down button ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 19 of 23...
-
Page 20: Recommendations On Installation
This can cause burns. Avoid touching the top or rear of the display when it is powered on or just after it has entered standby mode. ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 20 of 23... -
Page 21: Dimensions
Sony Product Information Category: PuD Product: FWD-S42H1/S47H1 7.3. Dimensions FWD-S42H1 has the same outer measurement as 40LX2, enabling a direct replacement 125ｍｍ 613.6ｍｍ 565.1ｍｍ 242ｍｍ 972.1ｍｍ FWD-S47H1 129ｍｍ 626.8ｍｍ 675.3ｍｍ 242ｍｍ 1081.6ｍｍ ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 21 of 23... -
Page 22: Accessories
•Remote Play is available via a network. BKM-FW21 Monitor Control Adaptor •REMOTE (RS-232C): D-sub 9 pin connector (female) x 1 *Straight RS-232C cable is required. • CONTROL S (IN/OUT): mini jack x 2 ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 22 of 23... - Page 23 Neat look of display system – Suitable for narrow space • Modification – Shape of Mounting ears – No cosmetic color change* • Applicable Displays: – GXD-L52H1, FWD-S47H1, FWD-S42H1 ············································································································································································································ © Sony Professional Solutions Europe, Revised September 08 23 of 23...
