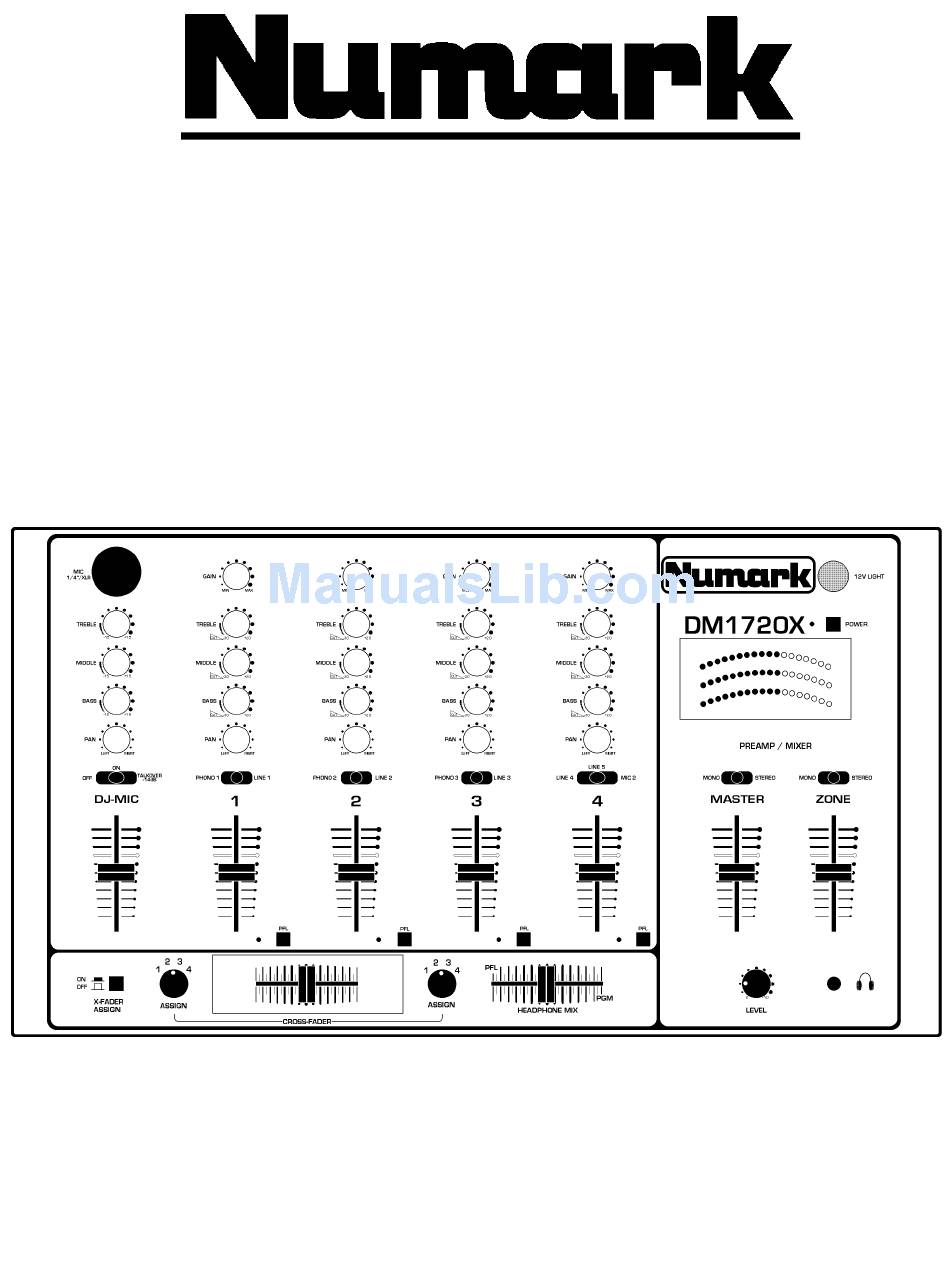

- Page 1 Professional Disc Jockey Products DM1720X STEREO MIXER OWNER’S MANUAL NUMARK INDUSTRIES http://www.numark.com 11 Helmsman Road, North Kingstown RI 02852...
-
Page 2: Safety Information
6. Heat - Avoid placing this product too close to any high heat sources such as radiators. 7. Power Sources - This product should be connected to a power supply only of the type described in these operating instructions, or as SHOCK marked on the unit. -
Page 3: Table Of Contents
NUMARK DM1720X Safety Information Product Registration Introduction and Features Precautions Front Panel Diagram Rear Panel Diagram Connection Instructions Connection Diagram Specifications Block Diagram Warranty and Service Numark - The Proven Leader in DJ Technology ©1998 Numark Industries STEREO MIXER INDEX... -
Page 4: Introduction And Features
The DM1720X Preamp Mixer has been designed by DJs for DJs. It gives you all of the controls and features you need in a professional piece of equipment to show off the best of your skills. -
Page 5: Precautions
IMPORTANT INFORMATION... Please read this entire manual before connecting the DM1720X to your system. For optimum performance: • Always make sure that AC power is OFF while making any connections. • Do not use excessively long cables (i.e. over 50ft/14m) Be sure plugs and jacks are tightly mated. -
Page 6: Front Panel Diagram
DM1720X DM1720X FRONT PANEL DIAGRAM... Channel Input Gain/Trim/Attenuation Controls. These control the sensitivity of the inputs for Channels 1-4. Use these whenever a particular source causes overload of the preamp inputs. Attenuation range is 0dB to -20dB. Use these with the PFL (pre-fader listen) monitor when cueing. - Page 7 - you’re back in business! REPLACEMENT CROSSFADERS can be purchased from your local Numark Dealer, or by calling Numark Industries. 12. The Split Cue Level controls what signal is being monitored through your headphones. Move the slide control to the left and you will hear your source music from the channel(s) selected with the cue/PFL switch.
-
Page 8: Rear Panel Diagram
DM1720X DM1720X REAR PANEL DIAGRAM... 1. GND is the grounding lug for turntables 1, 2 and 3 (phono inputs on Channels 1, 2 and 3). Always use this connection (your turntable cable should have a grounding wire). 2. The Stereo Main Outputs are low-impedance RCA connectors controlled by the Master fader. -
Page 9: Connection Instructions
Mic 2 on the back of the unit. Connect your headphones on the front right side of the unit. The OUTPUT MASTER jacks on the rear of the unit are for connecting to the amplifier. DM1720X CONNECTION DIAGRAM... Zone 1 Sound System... -
Page 10: Specifications
Variable from no cut to -14 dB POWER CONSUMPTION: 18 Watt typical Numark - The Proven Leader in DJ Technology ©1998 Numark Industries input impedance 78mV rms sensitivity (for 1.22 V output) input impedance balanced/unbalanced 3 mV rms sensitivity (unbalanced for 1.22 V output) 1.5 mV rms sensitivity (balanced for 1.22 V output) -
Page 11: Block Diagram
DM1720X BLOCK DIAGRAM... Numark - The Proven Leader in DJ Technology ©1998 Numark Industries http://www.numark.com... -
Page 12: Warranty And Service
To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
