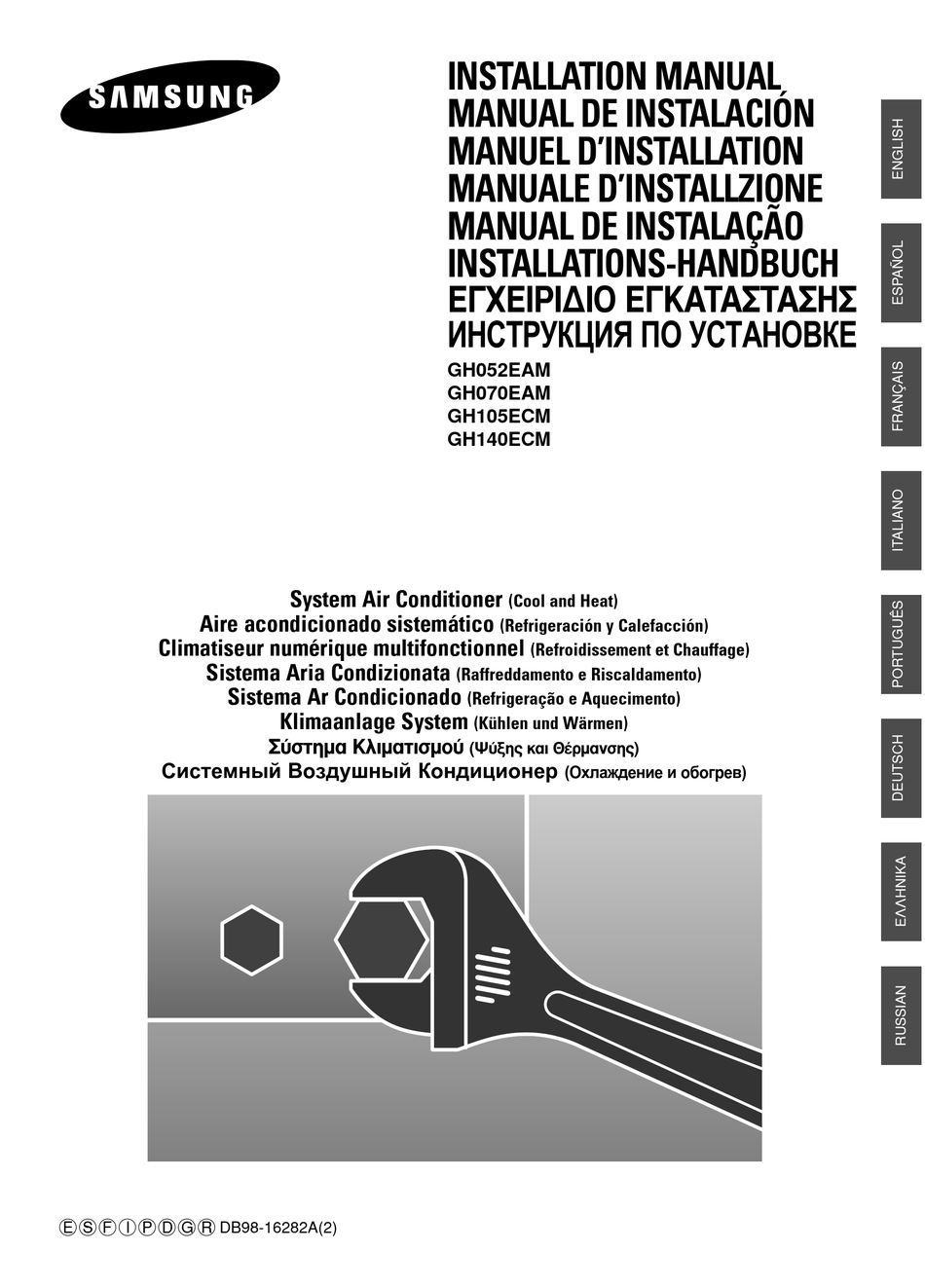

INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D'INSTALLATION
MANUALE D'INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E°XEIPI¢IO E°KATA™TA™H™
àçëíêìäñàü èé ìëíÄçéÇäÖ
GH052EAM
GH070EAM
GH105ECM
GH140ECM
System Air Conditioner
(Cool and Heat)
Aire acondicionado sistemático
(Refrigeración y Calefacción)
Climatiseur numérique multifonctionnel
(Refroidissement et Chauffage)
Sistema Aria Condizionata
(Raffreddamento e Riscaldamento)
Sistema Ar Condicionado
(Refrigeração e Aquecimento)
Klimaanlage System
(Kühlen und Wärmen)
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
(æ‡Í˘ Î·È £¤ÚÌ·ÓÛ˘)
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓ̉ˈËÓÌÂ
(éı·ʉÂÌËÂ Ë Ó·Ó„Â‚)
E S F I P D G R DB98-16282A(2)
Advertisement
Table of Contents
Related Manuals for Samsung GH052EAM
Summary of Contents for Samsung GH052EAM
- Page 1 INSTALLATION MANUAL MANUAL DE INSTALACIÓN MANUEL D’INSTALLATION MANUALE D’INSTALLZIONE MANUAL DE INSTALAÇÃO INSTALLATIONS-HANDBUCH E°XEIPI¢IO E°KATA™TA™H™ àçëíêìäñàü èé ìëíÄçéÇäÖ GH052EAM GH070EAM GH105ECM GH140ECM System Air Conditioner (Cool and Heat) Aire acondicionado sistemático (Refrigeración y Calefacción) Climatiseur numérique multifonctionnel (Refroidissement et Chauffage)
-
Page 2: Table Of Contents
Contents Chapter Preparation for Installation ....... 4 ■ Deciding on Where to Install the Indoor Unit ....5 ■... -
Page 3: 2 W W A A Y Y C C A A S S S S E E T T T T E E
Chapter ■ Preparation for Installation ....4 ■ Deciding on Where to Install the Indoor Unit . . . 5 Indoor Unit Installation ....8 ■... -
Page 4: Preparation For Installation
Preparation for Installation When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: ◆... -
Page 5: Deciding On Where To Install The Indoor Unit
Deciding on Where to Install the Indoor Unit Indoor Unit ◆ There must be no obstacles near the air inlet and outlet. ◆ Install the indoor unit on a ceiling that can support its weight. ◆ Maintain sufficient clearance around the indoor unit. ◆... - Page 6 Deciding on Where to Install the Indoor Unit (cont.) Drawing of the indoor unit GH052EAM/GH070EAM Unit : mm Name Remark Liquid pipe connection ø6.35 ø12.70 (GH052EAM) Gas pipe connection ø15.88 (GH070EAM) Drain pipe connection Power supply connection Air discharge grille Air suction grille...
- Page 7 Drawing of the indoor unit GH105ECM/GH140ECM Unit : mm Name Remark Liquid pipe connection ø9.52 Gas pipe connection ø19.05 Drain pipe connection Power supply connection Air discharge grille Air suction grille...
-
Page 8: Indoor Unit Installation
Indoor Unit Installation It is recommended to install the refnet joint before installing the indoor unit. Place the pattern sheet on the ceiling at the spot where you want to install the indoor unit. ◆ Since the diagram is made of paper, it may shrink or stretch slightly due to temperature or humidity. -
Page 9: Purging The Unit
Purging the unit On delivery, the indoor unit is loaded with inert gas. All this gas must therefore be purged before connecting the assembly piping. To purge the inert gas, proceed as follows. Unscrew the pinch pipe at the end of each refrigerant pipe. Result: All inert gas escapes from the indoor unit. -
Page 10: Connecting The Refrigerant Pipe
Connecting the Refrigerant Pipe There are two refrigerant pipes of differing diameters: ◆ A smaller one for the liquid refrigerant ◆ A larger one for the gas refrigerant ◆ The inside of copper pipe must be clean & has no dust. Before connecting the reprigerant pipe, open the cover side. -
Page 11: Cutting/Flaring The Pipes
Cutting/Flaring the Pipes Make sure that you have the required tools available (pipe cutter, reamer, flaring tool and pipe holder). If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure that the cut edge remains at a 90° angle with the side of the pipe. Refer to the illustrations below for examples of edges cut correctly and incorrectly. -
Page 12: Performing Leak Test & Insulation
Performing Leak Test & Insulation Leak Test To check for gas leaks on the indoor unit, check the connection part of each refrigerant pipe by using a leak detector. Insulation Once you have checked that there are no leaks in the system, you can insulate the piping and hose. -
Page 13: Drainpipe And Drain Hose Installation
Drainpipe and Drain Hose Installation Care must be taken when installing the drainpipe and drain hose for Flexible the indoor unit so that condensate water is drained correctly outside. hose Drainpipe Fix the flexible hose to the drainpipe. ◆ The connection port of the flexible hose and PVC drainpipe must be fixed with PVC adhesives. - Page 14 Drainpipe and Drain Hose Installation (cont.) Lift-up Drain piping If it is necessary to increase the height of the drain hose somewhat, install a lift-up drain piping. Connect a lift-up drain pipe top to the drain hose with an adhesive for PVC.
-
Page 15: Connecting The Connection Cord
Connecting the Connection Cord The indoor unit is powered from the outdoor unit via the connection cord. Remove the screw on the electrical component box. Push the hook of the electrical component box and pull the electrical component box out forward. Route the connection cord through the side of the indoor unit and connect the cable to terminals;... -
Page 16: Assigning Address To Indoor Unit
Assigning Address to Indoor Unit Before installing the indoor unit, assign an address to the indoor unit according to the air conditioning system plan. The address of the indoor unit is assigned by adjusting MAIN(SW02) and RMC(SW01) rotary switches. SW04 SW02 MAIN SW01 RMC SW03... - Page 17 Installation of more than 2 indoor units Indoor unit Indoor unit 1 Indoor unit 2 Switch MAIN(SW02) address RMC(SW01) address ◆ All indoor units must have different MAIN addresses, but their RMC addresses should be same. ◆ In case of installing the wired remote controller, all indoor units and the wired remote controller must have the same RMC address.
-
Page 18: Additional Functions
Additional Functions Compensation for lost temperature in heating operation ◆ Reduces the difference between an actual room temperature and a sensed SW04 temperature by the air conditioner when heating. Switch No. Switch ON Switch OFF 2°C compensation 5°C compensation Adjusting filter cleaning cycle ◆... -
Page 19: Bio-Pure Filter Installation(Optional)
Bio-pure Filter installation (optional) The air conditioner can be fitted with a Bio-Pure filter to remove minute dust particles. The service life of the filter is approximately three months depending on the time during which the air conditioner is used. Accessories M4x10 tapped Bio-pure filter... -
Page 20: Troubleshooting
Troubleshooting Detection of errors ◆ If an error occurs during the operation, one or more LED flickers and the operation is stopped except the LED. ◆ If you re-operate the air conditioner, it operates normally at first, then detect an error again. LED Display on the indoor unit LED Display Indicators... -
Page 21: Led Display
LED Display Indicators Abnormal conditions Operating Green Self-diagnostic error Displayed on appropriate indoor (including the indoor unit not detected) unit which is operating Displayed on outdoor unit 1. Error of electronic expansion valve close 2. Error of electronic expansion valve open 3. -
Page 22: Wired Remote Controller
Troubleshooting (cont.) Wired remote controller ◆ If an error occurs, is displayed on the wired remote controller. ◆ If you would like to see an error code, press the Test button. Display Explanation Remark Error of communication between the outdoor unit and the wired Communication remote controller errors... -
Page 23: I I I I O O O O N N N N A A A A L L L L A A C C C C C C C C E E E E S S S S S S S S O O O O R R R R I I I I E E E E S S S S
Chapter ■ Parts List ....... . . 24... -
Page 24: Parts List
Parts List Wired Remote Controller Accessories Wired remote M4x16 tapped Indoor unit power Owner’s Installation Cable-tie Cable clamp controller screw drawing cable instructions manual Wireless Remote Controller Accessories Wireless Remote STS 2S-2x10 Owner’s Installation Battery remote controller control holder tapped screw instructions manual Centralized Controller Accessories... - Page 25 Function Controller Accessories Function M4x16 tapped Owner’s Installation Cable-tie Cable clamp controller screw instructions manual Transmitter Accessories Transmitter Transmitter Installation Transmitter power cable communication cable manual...
- Page 26 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O: ùíéí...
