HANNspree Apple55TV Quick Start Manual

This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

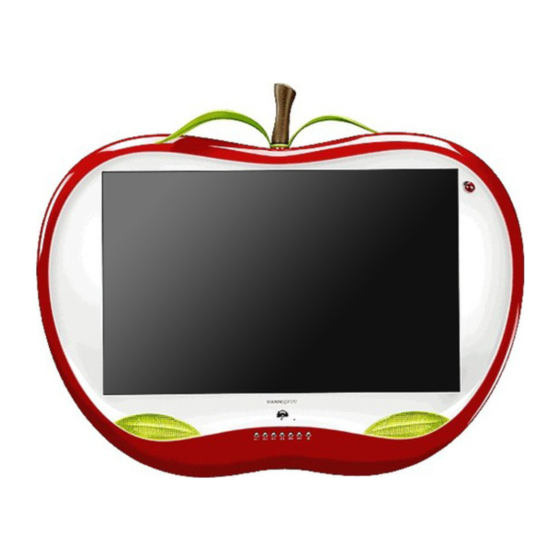

Front View Front View
1 Volume Adjust
2 Channel Select
3 Menu
4 Input Select
5 Power
6 Remote IR Sensor/
Power Indicator
7 Speaker
7
Assembling the stand base & Stem Assembling the stand base & Stem
1. Carefully place the TV face down on a soft and flat surface (blanket,foam,cloth,etc) to prevent
and damage to the TV.
2. Press the stand lock on both sides,
insert the stand into the holes.

Running Setup Wizard

The Setup Wizard is displayed on the screen when you turn on your LCD TV for the first time.
Note: Use the , to move through the menu. Press OK to select.
1. Select the Language for the 2. Select the Country.
on-screen display (OSD).
Initial Setup
Language
Please select your language: English
Italiano
Español
Português
Français
Deutsch
Magyar
Polski
Nederlands
Select Next Exit
Ok Menu
3. Select the Time Zone. 4. Press OK for channel scan.
Initial Setup
Time Zone
Please select time zone:
GMT
Select Next Back
Ok Menu
5. The channel scan may take a while to
complete.
Cannel Search
S.No TV Channel S.No Radio Channel
Channel 35 UHF 586000KHz/8M
Progress
Exit
Menu
Watching Your TV
Selecting Your Content Source
You can watch cable or broadcast TV,
play DVD or connect to your PC. To
display the Input Source menu, press
the INPUT button on the remote
control or the INPUT button on the
LCD TV.
To select the source signal:
Press the numeric buttons on the
remote control; Or
Press the , buttons to
move, then press OK to select.

Quick Start Guide

1 2 3 4
INPUT
FAV.
INFO
Initial Setup
Country
Please select your Country:
UK
EPG
Select Next Back
Ok Menu
Pro.LIST
VOL
Initial Setup
Channel Scan
INDEX
Connect the antenna first. Scan
Skip Scan
HOLD
Start channel scan now?
Channel 1
48.25 MHz
Select Next Back
Ok Menu
6. Press Menu when channel
scan is completed.
Initial Setup
Complete
Congratulations.
Complete Initial Setup.
Please press [Menu] to exit the wizard.
28%
Exit
Menu

Selecting Channels

Press the P or P button on
Source
the remote control or the LCD TV to
1 TV increase / decrease the program
2 DTV number; Or
3 AV
4 S-VIDEO
Press the numeric buttons on the
5 YPbPr
remote control.
6 PC
7 HDMI1
8 HDMI2
9 HDMI3
10 HDMI4
11 SCART1
12 SCART2
Rear View Rear View
14
1 CI
2 SERVICE (For service only)
3 S-Video
5 Earphone Output
5 7 6
6 HDMI Input
7 Component Video Input
8 Component Audio Input
9 Scart 1 / Scart 2
10 PC Audio Input
11 VGA Input (PC)
13 Cable / Antenna
3. Insert the stem into slot then turn 90 degrees clockwise to complete
installation.
A
Note: the sleeves are for design only and the TV cannot be carried by it.

Making Connections

Antenna
FREEZE SLEEP ASPECT
MENU
OK
Antenna
TEXT
coaxial
cable
LAST
MUTE
P
I - II
MIX SIZE SUBTITLE
REVEAL SOUND PIC
HDMI cable
HDMI
Note:
1. Images are for illustration purposes only.
2. All the cables illustrated above are not
provided by Hannspree.
Connecting the Power Cord
Power Cord
© Copyright 2010 Hannspree, Inc. All rights reserved.
4 AV Input
12 HDMI Input
14 AC IN
13 12 11
B C
OK
Audio cable
VGA cable
SCART
adapter
Audio
connectors
Audio/Video
SCART cable
connectors Video
connectors
R L VIDEO S-VIDEO SCART
R L P P Y
R B
VCR
or
STB
DVD
1. Plug the power connector into the
Power Outlet
AC IN input jack on the rear of the TV.
2. Insert the AC power plug at the other
end of the power cord into a power
outlet.
3. Press the Power button on the control
panel or the remote control to turn the
TV on.
Note:
Images are for illustration only and may vary
according to the model and region.
S_ST55F_Q_EU_V01_H
1
2
3
4
5
6
7
8
10 9
SERVICE CI SLOT
Audio/Video
connectors
HDMI cable
HDMI
R L VIDEO S-VIDEO
Game System
