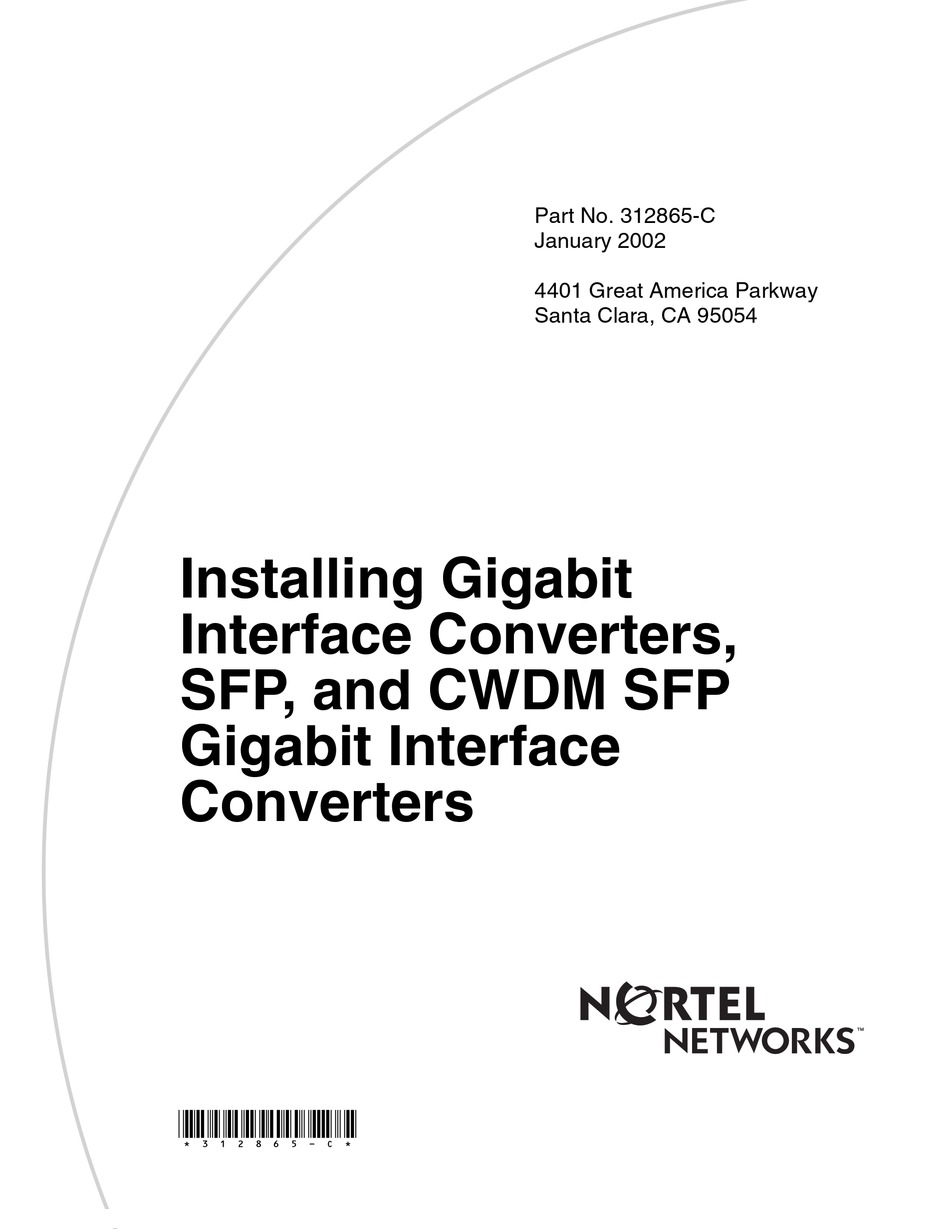

- Page 1 Installing Gigabit Interface Converters, SFP, and CWDM SFP Gigabit Interface Converters *312865-C* Part No. 312865-C January 2002 4401 Great America Parkway Santa Clara, CA 95054...
- Page 2 Nortel Networks Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
- Page 3 Caution: Only qualified technicians should install this equipment. Place all printed circuit boards on an antistatic mat until you are ready to install them. If you do not have an antistatic mat, wear a discharge leash to free yourself of static before touching any of the printed circuit boards, or free yourself of static by touching a grounded metal object before handling a printed circuit board.
-
Page 4: Product Description
GBIC model list. Product description Gigabit Interface Converters (GBICs) are hot-swappable input/output enhancement components designed for use with Nortel Networks* products to allow Gigabit Ethernet ports to link with fiber optic networks. Figure 1 shows the two GBIC insertion and removal... - Page 5 GBIC model with extractor tabs GBIC labeling The Nortel Networks label on a typical GBIC a Nortel Networks serial number, a bar code, a manufacturer’s code, an interface type, and a part number. Figure 2 Nortel Networks GBIC label Part number...
- Page 6 • Interface type • GBIC part number GBIC and SFP GBIC model list Table 1 lists and describes the Nortel Networks GBIC and SFP GBIC models. Table 1 Nortel Networks GBIC and SFP GBIC models Model number 1000BASE-SX 1000BASE-LX 1000BASE-XD...
-
Page 7: Handling, Safety, And Environmental Guidelines
Handling, safety, and environmental guidelines Before installing your GBIC, read the following handling, safety, and environmental guidelines: • GBICs are static sensitive. To prevent damage from electrostatic discharge (ESD), follow your normal board and component handling procedures. • GBICs are dust sensitive. When you store a GBIC, or when you disconnect it from a fiber optic cable, always keep the dust cover over the GBIC’s optical bores. -
Page 8: Removing A Gbic
Verify that the GBIC is the correct model for your network configuration (Table 1 on page Remove the dust cover from the GBIC’s optical bores. Grasp the GBIC between your thumb and forefinger. Insert the GBIC into the slot on the front panel of the Gigabit Ethernet switching module Figure 3 Inserting the GBIC into the switching module GBICs are keyed to prevent incorrect insertion. -
Page 9: Gbic Specifications
Depending on your GBIC model, either grasp the extraction tabs (Figure 1) located on either side of the GBIC with your thumb and forefinger, or lift the extractor handle attached to the GBIC. Slide the GBIC out of the Gigabit Ethernet module slot. If the GBIC does not slide easily from the module slot, use a gentle side-to-side rocking motion while firmly pulling the GBIC from the slot. -
Page 10: Standards, Connectors, Cabling, And Distance
Standards, connectors, cabling, and distance This section describes GBIC standards, connectors, cabling, and distance; and provides specifications for the following GBICs: • “1000BASE-SX,” next • “1000BASE-LX” on page 9 • “1000BASE-XD” on page 11 • “1000BASE-ZX” on page 13 • “1000BASE-T”... - Page 11 Table 3 1000BASE-SX specifications (continued) Type Connectors Cabling Distance Wavelength Optical budget Laser Transmitter Characteristics Minimum launch power Maximum launch power Receiver Characteristics Minimum receiver sensitivity Maximum input power 1000BASE-LX The Model 1000BASE-LX GBIC provides 1000BASE-LX (1300 nm, wavelength, Gigabit Ethernet) connectivity using SC duplex fiber connectors.
- Page 12 Table 4 describes standards, connectors, cabling, and distance for the Model 1000BASE-LX GBIC. Table 4 1000BASE-LX specifications Type Standards Connectors Cabling Distance Wavelength Optical budget Laser Transmitter Characteristics Minimum launch power Maximum launch power Receiver Characteristics Minimum receiver sensitivity Maximum input power Specifications Conformity to the following standards: 802.3z, 1000BASE-LX...
- Page 13 When multimode fiber is used in long-distance Note: applications, external, removable, mode-conditioning patch cords may be required to prevent differential mode delay (DMD). You can order mode conditioning patch cords through Nortel Networks: • SC-SC Mode-Conditioning Patch Cord 62.5/125 (part number AA0018035) •...
- Page 14 Minimum launch power into fiber Distance Receiver Characteristics Wavelength Minimum receiver sensitivity Maximum input power Nortel Networks recommends that you use an Note: in-line attenuator for shorter link distances to avoid overloading the receiver. Specifications Duplex SC single-mode fiber optic connector...
- Page 15 The 1000BASE-ZX Model GBIC is based on Note: proprietary signaling. Nortel Networks recommends that this product be used only with other Nortel Networks 1000BASE-ZX GBICs. Table 6 describes standards, connectors, cabling, and distance for the Model 1000BASE-ZX GBIC.
- Page 16 Table 6 1000BASE-ZX GBIC specifications (continued) Type Distance Receiver Characteristics Wavelength Minimum receiver sensitivity Maximum input power When shorter lengths of single-mode fiber cable Note: are used, there is a risk of overloading the receiver. It may be necessary to insert an in-line optical attenuator in the link to prevent overloading, as follows: •...
- Page 17 1000BASE-T The Model 1000BASE-T GBIC provides 1000BASE-T (Gigabit Ethernet) connectivity. Table 4 describes standards, connectors, cabling, and distance for the Model 1000BASE-LX GBIC. Table 7 1000BASE-LX specifications Type Standards Connectors Cabling Distance Receiver Characteristics Minimum receiver sensitivity Maximum input power Specifications Conformity to the following standards: IEEE 802.3z and IEEE 802.3AB...
- Page 18 Product description Small Form Factor Pluggable Gigabit Interface Converters (SFP GBICs) are hot-swappable input/output enhancement components designed for use with Nortel Networks* products to allow Gigabit Ethernet ports to link with fiber optic networks. Figure 4 shows the SFP GBIC...
- Page 19 SFP GBIC labeling The Nortel Networks label on a typical SFP GBIC contains a Nortel Networks serial number, a bar code, a manufacturer’s code, an interface type, and a part number. Figure 5 Nortel Networks SFP GBIC label Bar code...
- Page 20 SFP GBIC model list Table 8 lists and describes the Nortel Networks SFP GBIC models. Table 8 Nortel Networks SFP GBIC models Model number Product number 1000BASE-SX (LC AA1419013 Type) 1000BASE-SX AA1419014 (MT-RJ Type) 1000BASE-LX (LC AA1419015 Type) The cable distance may vary depending on the Note: quality of fiber optic cable used.
- Page 21 • SFP GBICs are dust sensitive. When you store a SFP GBIC, or when you disconnect it from a fiber optic cable, always keep the dust cover over the SFP GBIC’s optical bores. • To clean contaminants from the optical bores of a SFP GBIC, use an alcohol swab or equivalent to clean the ferrules of the optical connector.
- Page 22 Figure 6 Inserting a LC SFP GBIC Figure 7 Inserting a MT-RJ SFP GBIC SFP GBICs are keyed to prevent incorrect Note: insertion. L in k A c t E M D A 0 0 - 2 G B P S 2 0 L in k A c t E M D A...
- Page 23 Removing a Small Form Factor Pluggable (SFP) GBIC This section lists the steps for removing a GBIC. To remove a GBIC: Disconnect the network fiber cable from the SFP GBIC connector. Depending on your SFP GBIC model, either pull the LC extraction tab located in the front of the SFP GBIC (below right) with your thumb and forefinger, or press the button on the botton of the MT-RJ SFP GBIC (below left).
- Page 24 Dispose of the SFP GBIC according to all national laws and regulations. If you are storing a SFP GBIC, remember to place Note: a dust cover over the fiber optic bores. Small Form Factor Pluggable (SFP) GBIC specifications Table 9 describes general SFP GBIC specifications.
- Page 25 1000BASE-SX (LC Type) The Model 1000BASE-SX SFP GBIC provides 1000BASE-SX (850 nm, short wavelength, Gigabit Ethernet) connectivity using LC duplex multimode fiber connectors.The Model 1000BASE- SX SFP GBIC supports full-duplex operation only Table 10 describes standards, connectors, cabling, and distance for the Model 1000BASE-SX SFP GBIC.
- Page 26 Table 10 1000BASE-SX SFP GBIC specifications Type Maximum input power 1000BASE-LX (LC Type) The Model 1000BASE-LX SFP GBIC provides 1000BASE-LX (1300 nm, wavelength, Gigabit Ethernet) connectivity using LC duplex fiber connectors. The long wavelength optical transceivers used in the LX model provide variable distance ranges using both multimode and single-mode fiber optic cabling.
- Page 27 Table 11 1000BASE-LX SFP GBIC specifications Type Wavelength Optical budget Laser Transmitter Characteristics Minimum launch power Maximum launch power Receiver Characteristics Minimum receiver sensitivity Maximum input power 1000BASE-SX (MT-RJ Type) The Model 1000BASE-SX (MT-RJ Type) SFP GBIC provides Gigabit Ethernet connectivity using MT-RJ multi-mode fiber connectors.
- Page 28 Table 12 1000BASE-SX (MT-RJ Type) SFP GBIC specifications (continued) Type Cabling Distance Optical budget Laser Transmitter Characteristics Wavelength Maximum spectral width Maximum launch power Minimum launch power into fiber Receiver Characteristics Wavelength Minimum receiver sensitivity Maximum input power Specifications 62.5 µm MMF optic cable 50 µm MMF optic cable 275 mm (62.5 µm MMF optic cable) 550 mm (50 µm MMF optic cable)
- Page 29 This section describes how the Nortel Networks* coarse wavelength division multiplexed Small Form Factor Pluggable Gigabit Interface Converter (CWDM SFP GBIC) works within the optical routing system. It also provides a list of CWDM SFP GBICs by wavelength and shows how they are labeled and color- coded.
- Page 30 CWDM SFP GBIC Listing Table 13 lists the Nortel Networks CWDM SFP GBICs and describes their wavelengths, color codes, part numbers, and cable lengths. Table 13 Nortel Networks CWDM SFP GBIC List CWDM SFP GBIC Product number 1470nm/Gray 1490nm/Violet 1510nm/Blue...
- Page 31 CWDM SFP GBICs are installed and removed Note: like any other LC type SFP GBIC. CWDM SFP GBIC specifications Table 14 CWDM SFP GBIC specifications Item Physical dimensions Connectors Cabling Data rate Average launch power Transmitter extinction ratio Data format...
- Page 32 To avoid receiver saturation, you must insert a minimum attenuation of 5 dB when: • testing the CWDM SFP GBIC in loopback mode • using short runs of fiber with no intermediate CWDM OADM or CWDM OMUX...
-
Page 33: Hard-Copy Technical Manuals
Internet at the www1.fatbrain.com/documentation/nortel/ URL. How to get help If you purchased a service contract for your Nortel Networks product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. - Page 34 If you purchased a Nortel Networks service program, contact one of the following Nortel Networks Technical Solutions Centers: Technical Solutions Center Europe, Middle East, and Africa North America Asia Pacific China An Express Routing Code (ERC) is available for many Nortel Networks products and services.
