- Page 1 DSA-3600 Quick Install Guide Version 3.00 December, 2007...
-
Page 2: Package Contents
The major functional areas include user management, access control, AP management, security management, and VLAN. This Quick Installation Guide provides instructions and reference material for getting started with DSA-3600. The Guide will illustrate how to install the DSA-3600 and configure its basic setting. -
Page 3: Hardware Introduction

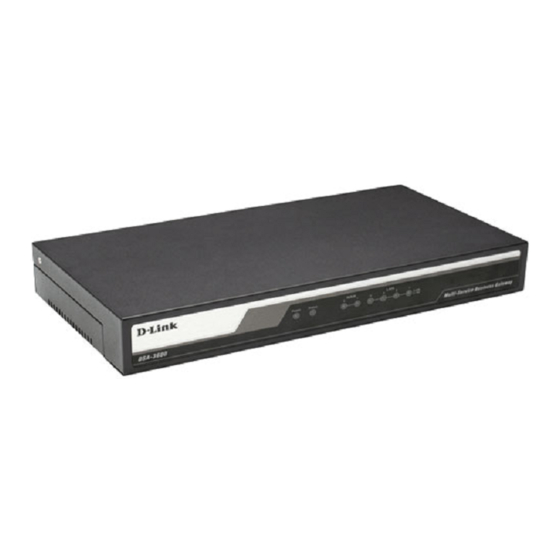

1.3 Hardware Introduction The DSA-3600 is implemented on an embedded platform with mini-desktop form factor. On the front panel of the product, there are eight LEDs that are used to indicate the system power, system status, and the link status of the six Fast Ethernet ports. The interface ports are installed on the rear panel. Six Fast Ethernet (100Mbps) ports are provided by DSA-3600. - Page 4 DSA-3600 to default configuration. 3. WAN1~WAN2 The two WAN ports are for connection to external network not managed by the DSA-3600. These ports may be used to connect to the ATU-Router of an ADSL, or the port of a Cable Modem, or a Switch or Hub on the LAN of an organization.
-
Page 5: Hardware Installation
1.4 Hardware Installation Please follow the steps mentioned below to setup the hardware of DSA-3600. 1. Connect the power adapter to the power socket on the rear panel. The Power LED on the front panel should be ON to indicate a proper connection. -
Page 6: Web Management Interface
First, set a PC as DHCP in the network TCP/IP setting to get an IP address from DHCP server automatically. Next, connect the PC to the DSA-3600 via any LAN port. An IP address will be assigned to the PC automatically via DSA-3600 built-in DHCP server. -
Page 7: Quick Setup
2. Quick Setup This chapter will provide a step-by-step guide to administrators on how to configure DSA-3600 via Setup Wizard. 2.1 Quick Setup by Wizard The administrator can configure the DSA-3600 via its web management interface as specified in section 1.5 of this document. - Page 8 Step 2: WAN1 Interface There are three connection types provided by DSA-3600, Static, Dynamic, and PPPoE. Contact your ISP or the network administrator if you are not sure what the connection type for WAN1 is, then select the Internet connection type for WAN1 interface. The following is an example of a PPPoE connection type.
- Page 9 Step 4: Confirm and Restart Click Finish to save the current settings and restart the DSA-3600. A confirmation message will appear after clicking Finish. Click OK to continue. The Setup Wizard is now completed. During the DSA-3600 restarting, a “Confirm and Restart.” page will appear on the screen. Please do not interrupt the DSA-3600 until the DSA-3600 Administrator Login Page reappears.
- Page 10 Click Exit to leave the Wizard. The DSA-3600 uses virtual LAN (VLAN) along with a SSID to separate service zones. At this stage, the system is ready for use with minimum configuration. The factory default configuration uses tag-based VLAN.
- Page 11 Internet via ADSL/cable modem. Note that external authentication server in the diagram is not required. Figure-1 shows that DSA-3600 can authenticate the users of its built-in database, as well as authenticate the users of external authentication database.
- Page 12 Menu Tree, click System and then click LAN Port Mapping to verify that Tag-Based service zone mode is selected. Click System and then click Service Zones to enter the Service Zone Settings page as shown below. DSA-3600 Quick Install Guide...
- Page 13 Scroll up to the middle of the page where the Authentication Settings is, and check the Enabled box for the Authentication Required for the Zone option. The users will now need to be authenticated to connect to the service zone. Make sure only Server1 is checked Enabled for this service zone. DSA-3600 Quick Install Guide...
- Page 14 Note: The default management IP address is 192.168.1.0/24. Please change it accordingly at System General Management IP Address List to let the administrator to login to the DSA-3600 admin page after the default IP address of Network Interface is changed.
- Page 15 Remember to enable Authentication requirement for this service zone and enable the On-demand Users authentication options only. Click Apply to activate the changes for the second service zone. Now is the time to restart the system. After the restart, the system will be configured according to Figure-1. DSA-3600 Quick Install Guide...
- Page 16 2.4 Port-based Service Zones Configuration Example After running through the Setup Wizard using a factory default settings, the DSA-3600 is ready to use the default tag-based VLAN for separating networks. Section 2.4 of this document will demonstrate how to map service zones to LAN ports if port-based VLAN is desired.
- Page 17 Compare Figure-1 of this document and Figure-3 below to see the differences. Figure-3: An example using Port-Based service zones For single zone deployment, use the Default service zone with port-based mode. For further information, please refer to the User’s Manual. DSA-3600 Quick Install Guide...
