TABLE OF CONTENTS
1 Specifications ----------------------------------------------------- 2
2 Location of Controls and Components ------------------- 3
3 Troubleshooting Guide ----------------------------------------- 5
4 Disassembly and Assembly Instructions ---------------- 6
4.1. Dust box cover assembly removal -------------------- 6
4.2. Separate the upper and lower body units ----------- 6
4.3. Printed circuit board AU removal ---------------------- 7
4.4. Motor removal ---------------------------------------------- 8
4.5. Cord reel partition unit replacement ------------------ 9
4.6. Rail base U replacement -------------------------------10
4.7. Spring-loaded cord reel pre-winding -----------------10
5 Wiring Connection Diagram ---------------------------------11
6 Exploded View and Replacement Parts List -----------12
6.1. EXPLODED VIEW (ATTACHMENTS)---------------12
6.2. PARTS LIST (ATTACHMENTS)-----------------------13
6.3. EXPLODED VIEW (BODY UNIT) --------------------14
6.4. PARTS LIST (BODY UNIT) ----------------------------15
MC-CG463-KA76
MC-CG463-KA7A
Destination
PAGE
6.5. PACKING INSTRUCTIONS --------------------------- 16
6.6. PACKING LIST ------------------------------------------- 17
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
Order No VCB0608018CE

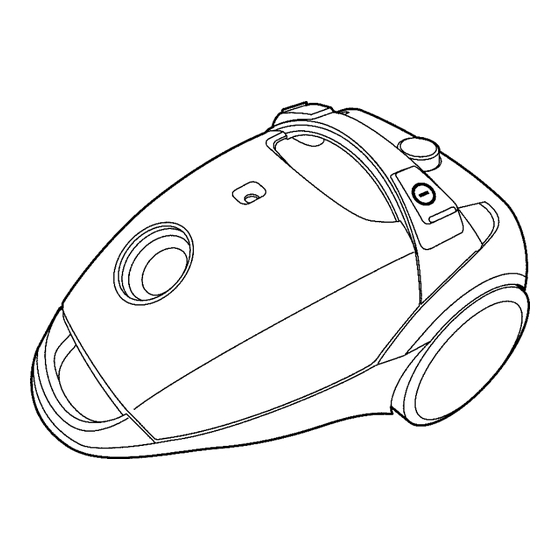

Vacuum Cleaner
: Swither land
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic MC-CG463-KA76
Summary of Contents for Panasonic MC-CG463-KA76
-
Page 1: Table Of Contents
Order No VCB0608018CE Vacuum Cleaner MC-CG463-KA76 MC-CG463-KA7A Destination : Swither land TABLE OF CONTENTS PAGE PAGE 1 Specifications ----------------------------------------------------- 2 6.5. PACKING INSTRUCTIONS --------------------------- 16 2 Location of Controls and Components ------------------- 3 6.6. PACKING LIST ------------------------------------------- 17 3 Troubleshooting Guide ----------------------------------------- 5 4 Disassembly and Assembly Instructions ---------------- 6 4.1. -
Page 2: Specifications
1 Specifications Model No. MC-CG463 Power source AC230V~50Hz Input power (MAX) 1800W Input power (IEC) 1500W Power control Extension wand Metal telescopic Floor nozzle 2-Step Turbin nozzle Parquet nozzle Dimensions (WxLxH)mm 280x425x260 Cord length 5.0m Net weight 4.5kg Cleaning tools Crevice nozzle / Dusting brush... -
Page 3: Location Of Controls And Components
2 Location of Controls and Components... -
Page 5: Troubleshooting Guide
3 Troubleshooting Guide CONDITION CHECKPOINT METHOD OF INSPECTION CAUSE / REMEDY Motor fails to rotate. Power cord Chech power cord continuity between If there is no continuity, replace the (no noise is heard at all) pliug pins cord reel patition unit. cord reel patition unit. -
Page 6: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions Important notice: Before replacing any components, make sure to turn OFF the vacuum cleaner. Remove the power plug from the outlet. 4.1. Dust cover assembly 4.2. Separate the upper and lower removal body units 1. Open the dust box cover assembly at an angle of approx. 1. -
Page 7: Printed Circuit Board Au Removal
3. Lift the upper body U to separate it from the lower body U. 2. Remove the switch lever. 3. Disengage the fast-on terminal of the lead wire (red) lead- 4.3. Printed circuit board ing to the fuse and that of the lead wire (blue) leading to removal the cord reel connected to the printed circuit board. -
Page 8: Motor Removal
4.4. Motor removal 4. Remove the fast-on terminal of the lead wire (gray and orange) connecting the switch to the printed circuit board. 1. Remove the dust box lid assembly. (Refer to paragraph 4.1 on P.6) 2. Remove the upper body from the lower body. (Refer to paragraph 4.2 on P.6) 3. -
Page 9: Cord Reel Partition Unit Replacement
4.5. Cord reel partition unit replace- 6. Remove all components fitted to the motor. a. Remove the motor support rubber (front). ment b. Remove the motor support rubber (rear). c. Remove the motor support. 1. Increase the gap width between the cord reel and the d. -
Page 10: Rail Base U Replacement
4.6. Rail base U replacement 1. Remove the screw fixing the rail base U onto the cord reel partition U. 2. Remove the rail base U from the cord reel partition U. 4.7. Spring-loaded cord reel pre- winding 1. The cord reel partition U has a spring that pre-winds the cord reel. -
Page 11: Wiring Connection Diagram
5 Wiring Connection Diagram MODEL MC-CG463... -
Page 12: Exploded View And Replacement Parts List
6 Exploded View and Replacement Parts List 6.1. EXPLODED VIEW (ATTACHMENTS) -
Page 13: Parts List (Attachments)
6.2. PARTS LIST (ATTACHMENTS) Safety Ref.No Service Parts No. Part Name & Description Q'TY Remarks AMC94P-YP0VE HOSE ASS'Y (AMC94P-YP0) AMC99P-UZ00E EXTENSION WAND UNIT (AMC99P-UZ0) AMC99R-UA0KE FLOOR NOZZLE ASS'Y (AMC99R-UA0) AMC60R-UA0VE CREVICE TOOL (Crevice Nozzle) (AMC60R-UA0) AMC88R-UA0VE DUSTING BRUSH (AMC88R-UA0) -
Page 14: Exploded View (Body Unit)
6.3. EXPLODED VIEW (BODY UNIT) 19 20 MC-CG463KA76... -
Page 15: Parts List (Body Unit)
HANDLE COVER AMC97A-YP0VE LOWER BODY UNIT AMC95C-YP0VE CASTER UNIT AMC05L-YP00E GASKET C AMC95K-YZ00E FILTER UNIT MC-CG463-KA7A (AMC95K-YZ0) HEPA Filter AMC95K-YM00E FILTER UNIT MC-CG463-KA76 (AMC95K-YM0) AMC41K-YP0VE FILTER COVER AMC60R-UA0VE CREVICE TOOL (AMC60R-UA0) AMC88R-UA0VE DUSTING BRUSH UNIT (AMC88R-UA0) XTN4+10BFY TAPPING SCREW XTN4+12BFY... -
Page 16: Packing Instructions
6.5. PACKING INSTRUCTIONS MC-CG463 MC-CG463... -
Page 17: Packing List
6.6. PACKING LIST Safety Ref.No Service Parts No. Part Name & Description Q'TY Remarks AMC61Z-YN0KE CARTON BOX AMC49Z-YP00E PARTITION BOARD A AMC69Z-YP00E CUSHION A AMC62Z-YP00E CUSHION PLATE AMC10Z-YP00E BODY BAG AMC01Z-YP00E OPERATING INSTRUCTIONS...
