SPEAKER MICROPHONE
Optional HM-203EX
D Description
NEVER immerse the connector in water. If the con-
nector becomes wet, be sure to dry it BEFORE con-
necting it to the transceiver.

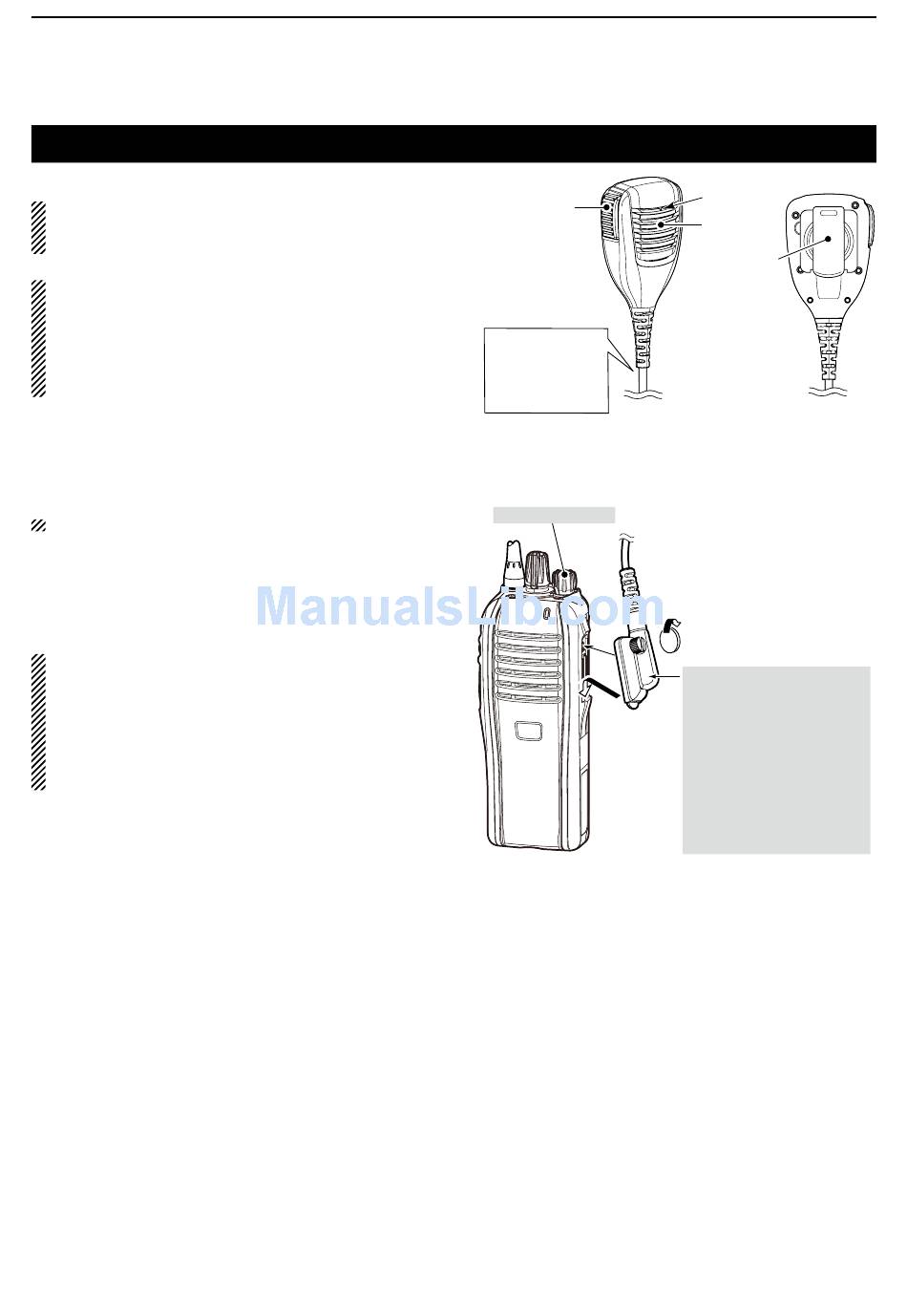

NOTE: The microphone is located at the top of the
speaker microphone, as shown in the diagram above.
To maximize the readability of your transmitted sig-
nal (voice), hold the microphone approximately 5 to
10 cm (2 to 4 inches) from your mouth, and speak at
a normal voice level.
D To attach
BE SURE to turn OFF the power before attaching.
Attach the connector of the speaker microphone into
➥
the multi connector on the transceiver, and tighten
the screw.
IMPORTANT: KEEP the connector cover attached
to the transceiver when the speaker microphone is
not in use. (p. 1-4)
Water will not get into the transceiver even if the cov-
er is not attached, however, the terminals (pins) will
become rusty, or the transceiver will function abnor-
mally if the connector becomes wet.
PTT SWITCH
Hold down to
transmit, release
to receive.
Turn OFF the trans-
ceiver power when
connecting or dis-
connecting the mi-
crophone.
Turn OFF the power
5-2
Microphone
Speaker
Belt clip
CAUTION: Attach the
multi connector snugly,
but do not overtighten.
A loose connection will
allow water intrusion into
the connector. A over-
tightened connector will
damage the connector
pins in the transceiver.
