Icom IC-F3230D series Instructions

INSTRUCTIONS
VHF DIGITAL TRANSCEIVERS
iF3230D
Series
UHF DIGITAL TRANSCEIVERS
iF4230D
Series
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.
IMPORTANT
This instruction sheet includes some functions that are
usable only when they are preset by your dealer. The
transceiver may have other functions and operations that
are not described in this instruction sheet. Ask your dealer
for preset function details.
EXPLICIT DEFINITIONS
WORD DEFINITION
R DANGER! Personal death, serious injury or an
explosion may occur.
R WARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION
Equipment damage may occur.
NOTE If disregarded, inconvenience only. No
risk of personal injury, fire or electric
shock.
Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:
• Force majeure, including, but not limited to, fires,
earthquakes, storms, floods, lightning, other natural
disasters, disturbances, riots, war, or radioactive
contamination.
• The use of Icom transceivers with any equipment that
is not manufactured or approved by Icom.
Icom, Icom Inc. and the Icom logo are registered
trademarks of Icom Incorporated (Japan) in Japan, the
United States, the United Kingdom, Germany, France,
Spain, Russia, Australia, New Zealand, and/or other
countries.
AMBE+2 is a trademark and property of Digital Voice
Systems Inc.
All other products or brands are registered trademarks or
trademarks of their respective holders.
1-1-32 Kamiminami, Hirano-ku, A7082D-1EX-4
Osaka 547-0003, Japan Printed in Japan
© 2013–2018 Icom Inc.
SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromagnetic
energy while transmitting. This radio is designed
for and classified as for "Occupational Use Only."
This means it must be used only during the
course of employment by individuals aware of
the hazards, and the ways to minimize such hazards. This
radio is NOT intended for use by the "General Population"
in an uncontrolled environment. This radio has been tested
and complies with the FCC and IC RF exposure limits for
"Occupational Use Only". In addition, your Icom radio
complies with the following Standards and Guidelines with
regard to RF energy and electromagnetic energy levels
and evaluation of such levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C,
Evaluating Compliance with FCC Guidelines for Human
Exposure to Radio Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1-1992),
IEEE Standard for Safety Levels with Respect to
Human Exposure to Radio Frequency Electromagnetic
Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992),
IEEE Recommended Practice for the Measurement of
Potentially Hazardous Electromagnetic Fields– RF and
Microwave.
• The following accessories are authorized for use with
this product. Use of accessories other than those
specified may result in RF exposure levels exceeding
the FCC and IC requirements for wireless RF
exposure.; Belt Clip (MB-93, MB-94/R and MB-96N/F),
Rechargeable Li-ion Battery Pack (BP-232WP) and
Speaker-microphone (HM-158LA/HM-159LA/HM-
168LWP).
To ensure that your expose to RF
electromagnetic energy is within the FCC and IC
allowable limits for occupational use, always
adhere to the following guidelines:
DO NOT operate the radio without a proper antenna
attached, as this may damage the radio and may also
cause you to exceed FCC and IC RF exposure limits. A
proper antenna is the antenna supplied with this radio by
the manufacturer or an antenna specifically authorized by
the manufacturer for use with this radio.
DO NOT transmit for more than 50% of the total radio use
time ("50% duty cycle"). Transmitting more than 50% of
the time can cause FCC and IC RF exposure compliance
requirements to be exceeded. The radio is transmitting
when the LED indicator lights red. You can cause the radio
to transmit by pushing the "PTT" switch.
ALWAYS keep the antenna at least 2.5 cm (1 inch) away
from the body when transmitting, and only use the Icom
belt-clips listed in "OPTIONS" of the INSTRUCTIONS
sheet when attaching the radio to your belt, or other
place, to ensure FCC and IC RF exposure compliance
requirements are not exceeded.
The information listed above provides the user with
the information needed to make him or her aware of
RF exposure, and what to do to assure that this radio
operates within the FCC and IC RF exposure limits of this
radio.
FCC INFORMATION
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
CAUTION: Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void
your authority to operate this transceiver under FCC
regulations.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the condition that this device does
not cause harmful interference.
PRECAUTIONS
R DANGER! NEVER short the terminals of the battery
pack. Shorting may occur if the terminals touch metal
objects such as a key, so be careful when placing the
battery packs (or the transceiver) in bags, and so on.
Carry them so that shorting cannot occur with metal
objects. Shorting may damage not only the battery pack,
but also the transceiver.
R DANGER! NEVER use or charge Icom battery packs
with non-Icom transceivers or non-Icom chargers. Only
Icom battery packs are tested and approved for use with
Icom transceivers or charged with Icom chargers. Using
third-party or counterfeit battery packs or chargers may
cause smoke, fire, or cause the battery to burst.
R DANGER! NEVER operate the transceiver near
unshielded electrical blasting caps or in an explosive
atmosphere.
R WARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10
cm (2 to 4 inches) away from the lips and the transceiver
is vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
The continuous high volume operation may cause a
ringing in your ears. If you experience the ringing, reduce
the volume level or discontinue use.
CAUTION: DO NOT use harsh solvents such as Benzine
or alcohol when cleaning. This could damage the
equipment surfaces. If the surface becomes dusty or dirty,
wipe it clean with a soft, dry cloth.
CAUTION: DO NOT place or leave the transceiver in
excessively dusty environments. This could damage the
transceiver.
CAUTION: DO NOT expose the transceiver to rain, snow
or any liquids. The transceiver meets IP67* requirements
for dust-tight and waterproof protection. However, once the
transceiver has been dropped, dust-tight and waterproof
protection cannot be guaranteed due to the fact that
the transceiver may be cracked, or the waterproof seal
damaged, and so on.
* Only when the jack cover or the optional HM-168LWP is
attached.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF
energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn off
the radio in areas where signs are posted to do so. DO
NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and
blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons
are exposed as a consequence of their employment,
provided those persons are fully aware of the potential for
exposure and can exercise control over their exposure.
RECOMMENDATION
CLEAN THE TRANSCEIVER THOROUGHLY IN A BOWL
OF FRESH WATER after exposure to saltwater, and dry
it before operating. Otherwise, the transceiver's keys,
switches, and controllers may become unusable, due to
salt crystallization, and/or the charging terminals of the
battery pack may corrode.
NOTE: If the transceiver's waterproof protection appears
defective, carefully clean the transceiver with a soft,
damp (fresh water) cloth, then dry it before operating. The
transceiver may lose its waterproof protection if the case,
jack cap, or connector cover is cracked or broken, or the
transceiver has been dropped.
Contact your Icom distributor or your dealer for advice.
VOICE CODING TECHNOLOGY
The AMBE+2™ voice coding Technology embodied in this
product is protected by intellectual property rights including
patent rights, copyrights and trade secrets of Digital Voice
Systems, Inc. This voice coding Technology is licensed
solely for use within this Communications Equipment.
The user of this Technology is explicitly prohibited from
attempting to extract, remove, decompile, reverse
engineer, or disassemble the Object Code, or in any other
way convert the Object Code into a human-readable form.
U.S. Patent Nos.
#8,595,002, #8,359,197, #8,315,860, #8,200,497,
#7,970,606, #6,912,495 B2.
DO NOT place or leave the transceiver in direct sunlight or
in areas outside of the specified temperature range:
–30°C (–22°F) ~ +60°C (+140°F)
Keep the transceiver in a secure place to prevent use by
unauthorized persons.
D Battery caution
Misuse of Li-ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse
can also cause damage to the battery or degradation of
battery performance.
R DANGER! NEVER solder the battery terminals, or
NEVER modify the battery pack. This may cause heat
generation, and the battery may burst, emit smoke or
catch fire.
R DANGER! NEVER place or leave battery packs in
areas with temperatures above 60°C (140°F). High
temperature buildup in the battery cells, such as could
occur near fires or stoves, inside a sun-heated vehicle,
or in direct sunlight for long periods of time may cause
the battery cells to rupture or catch fire. Excessive
temperatures may also degrade the battery pack's
performance or shorten the battery cell's life.
R DANGER! NEVER strike or otherwise impact the
battery pack. Do not use the battery pack if it has been
severely impacted or dropped, or if the pack has been
subjected to heavy pressure. Battery pack damage may
not be visible on the outside of the case. Even if the
surface of the battery does not show cracks or any other
damage, the cells inside the battery may rupture or catch
fire.
R DANGER! NEVER expose the battery pack to rain,
snow, seawater, or any other liquids. Do not charge or
use a wet pack. If the pack gets wet, be sure to wipe it dry
before using.
R DANGER! NEVER place or leave battery packs near
fire. Fire or heat may cause them to rupture or explode.
Dispose of used battery packs in accordance with local
regulations.
R DANGER! NEVER let fluid from inside the battery get
in your eyes. This can cause blindness. Rinse your eyes
with clean water, without rubbing them, and immediately
go to a doctor.
R WARNING! NEVER put the battery pack in a microwave
oven, high-pressure container, or in an induction heating
cooker. This could cause a fire, overheating, or cause the
battery cells to rupture.
R WARNING! NEVER use the battery pack if it emits an
abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
R WARNING! NEVER Iet fluid from inside the battery cells
come in contact with your body. If it does, immediately
wash with clean water.
CAUTION: DO NOT use the battery pack out of the
specified temperature range for the transceiver (–30°C
~ +60°C (–22°F ~ +140°F)) and the battery itself (–20°C
~ +60°C (–4°F ~ +140°F)). Using the battery out of its
specified temperature range will reduce its performance
and battery cell's life. Please note that the specified
temperature range of the battery may exceed that of the
transceiver. In such cases, the transceiver may not work
properly because it is out of its operating temperature
range.

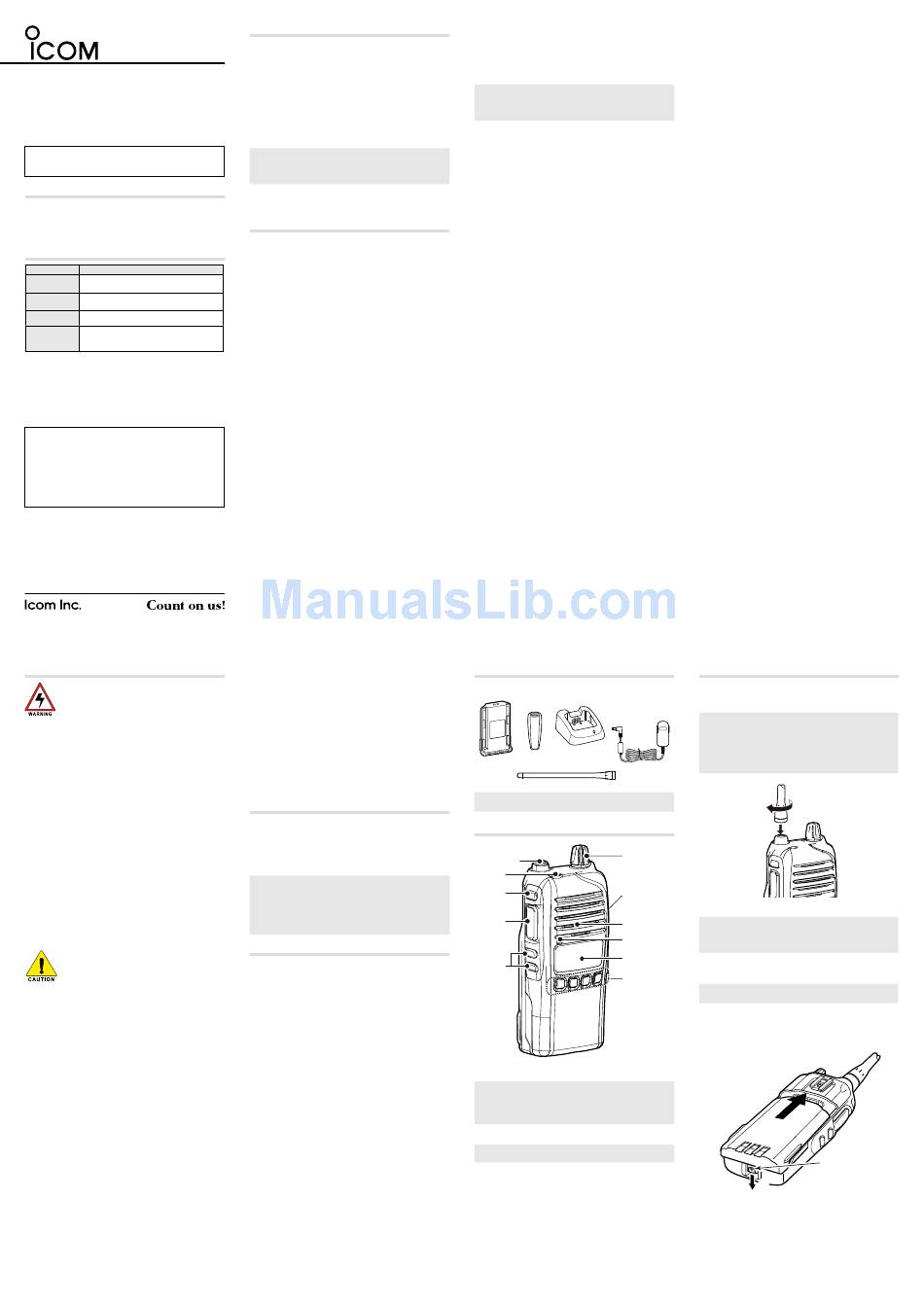

SUPPLIED ACCESSORIES
Battery pack Battery charger
Belt clip
Power adapter
Flexible antenna
NOTE: Some accessories are not supplied, or the shape
is different, depending on the transceiver version.
PANEL DESCRIPTION
Antenna
[VOL]
Connector
[Emer]
External
[Side1]
microphone/
speaker jack
[PTT]
Speaker
Microphone
Function
[Side2]/
Display
[Side3]
[P0]/[P1]/
[P2]/[P3]
D About the External microphone/speaker jack
Connects to an optional speaker microphone or speaker.
CAUTION: DO NOT use the transceiver without the jack
cover or the optional equipment attached.
The transceiver meets IP67 requirements for dust-tight
and waterproof protection only when the jack cover or the
optional HM-168LWP is attached.
D About the Assignable key functions
NOTE: Your dealers can assign the functions to the keys
and keypads.
CAUTION: DO NOT leave the pack fully charged,
completely discharged, or in an excessive temperature
environment (above 60°C, 140°F) for an extended
period of time. If the battery pack must be left unused
for a long time, it must be detached from the transceiver
after discharging. You may use the battery pack until the
remaining capacity is about half, then keep it safely in a
cool and dry place at the following temperature range:
–20°C ~ +50°C (–4°F ~ +122°F) (within a month)
–20°C ~ +40°C (–4°F ~ +104°F) (within three months)
–20°C ~ +20°C (–4°F ~ +68°F) (within a year)
BE SURE to replace the battery pack with a new one
approximately five years after manufacturing, even if it still
holds a charge. The material inside the battery cells will
become weak after a period of time, even with little use.
The estimated number of times you can charge the pack
is between 300 and 500. Even when the pack appears to
be fully charged, the operating time of the transceiver may
become short when:
• Approximately 5 years have passed since the pack was
manufactured.
• The pack has been repeatedly charged.
D Charging caution
R DANGER! NEVER charge the battery pack in areas
with extremely high temperatures, such as near fires or
stoves, inside a sun-heated vehicle, or in direct sunlight.
In such environments, the safety/protection circuit in the
battery will activate, causing the battery to stop charging.
R WARNING! NEVER charge the transceiver during a
lightning storm. It may result in an electric shock, cause
a fire or damage the transceiver. Always disconnect the
power adapter before a storm.
R WARNING! NEVER charge or leave the battery in the
battery charger beyond the specified time for charging. If
the battery is not completely charged by the specified time,
stop charging and remove the battery from the battery
charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may
rupture.
R WARNING! NEVER insert the transceiver (battery
attached to the transceiver) into the charger if it is wet or
soiled. This could corrode the battery charger terminals or
damage the charger. The charger is not waterproof.
CAUTION: DO NOT charge the battery outside of the
specified temperature range:
BC-160/BC-171: (0˚C ~ 45˚C (32˚F ~ 113˚F))
BC-119N/BC-121N/BC-197: (10˚C ~ 40˚C (50˚F ~ 104˚F))
Otherwise, the charging time will be longer, but the battery
will not reach a full charge. While charging, at a point
after the temperature goes out of the specified range, the
charging will automatically stop.
ATTACHING ACCESSORIES
D Flexible antenna
Connect the antenna to the antenna connector.
CAUTION:
• DO NOT carry the transceiver by holding only the
antenna.
• DO NOT connect an antenna other than those listed in
the INSTRUCTIONS.
• Transmitting without an antenna may damage the
transceiver.
D Battery pack
CAUTION: DO NOT attach or detach the battery pack
when the transceiver is wet or soiled. This may result in
water or dust getting into the transceiver/battery pack and
may damage the transceiver.
To attach:
Slide the battery pack in the direction of the arrow (
1
until the battery release button makes a 'click' sound.
NOTE: Push on the bottom of the pack to make sure the
release button is firmly locked.
To detach:
Slide the battery release button in the direction of the
arrow ( ) as shown below. The battery pack is then
2
detached.
1
Battery release button
2
)
