Page 1: Table Of Contents

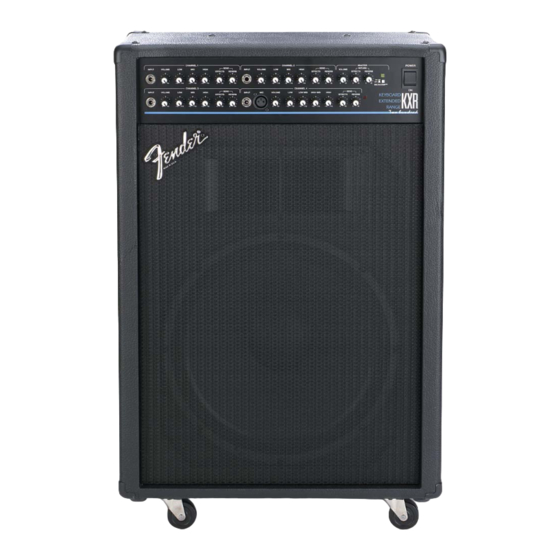

KXR 200 SERVICE MANUAL CONTENTS: Notices Specifications Circuit description Parts lists: Preamp PCB assembly Pwr amp PCB assembly Chassis assembly Cabinet assembly Miscellaneous Schematics/diagrams Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: Kxr 200
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
KXR 200 SPECIFICATIONS Product Release No.: PR 286 (This is not a model number) Power output: 200 Watts RMS Distortion at 200 watts: Less than .1% @ 1kHz, below compression Less than 1% @ 1kHz, maximum compression 4 Ω Rated Load Impedance:... -
Page 4: Circuit Description
KXR 200 CIRCUIT DESCRIPTION PREAMPLIFIER Input channels 1 thru 3 will accept a balanced or unbalanced signal via a ¼” phone jack. Resistors R1 & R2 are precision 1% parts which maximize the Common Mode Rejection of the first opamp stage U1A.U1A provides a gain of 1, and rolls off high frequencies above 87kHz. - Page 5 KXR 200 DELTACOMP (CONT) current controls the output amplitude of U2. The inverted signal from U2 mixes with the input to U1B providing cancellation which reduces the input to the power amplifier. This prevents the amplifier from clipping. When the output of the power amplifier is reduced, the output of U1A toggles back to +15dvc.
-
Page 6: Parts List
ALWAYS use the Fuse-Type OEM part. PARTS LIST PREAMP PRINTED CIRCUIT BOARD ASSEMBLY PART # DESCRIPTION REFERENCE DESIGNATION 048497001 PCB ASSY KXR 200 PREAMP STUFFED 048914000 CABLE RIBBON 8 CKT 7 IN 048836000 CABLE RIBBON 12 CKT 23 IN 037943000 CAP AE RDL .33uF 50V... - Page 7 FUSE QA 20MMX5MM 250V 3.15A F1 (EXPORT 220/230/240V ONLY) 013112000 FUSE TD 20MMX5MM 250V 1A F2,3 027416000 HDR .1 CTR 8CKT SQ PIN 048939000 HEATSINK BAR BXR/KXR 200 MAIN HEATSINK 025796000 HEATSINK TO-220 @U3,4 027404000 IC CA3080AE OTA 016795000 IC DUAL OP AMP TL072...
-
Page 8: Power Amplifier
014866000 XSTR PNP MPSW92 TO-226AE CHASSIS ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 048505000 CHS ASSY KXR 200 120V 00756500 BUSHING SR .625X.125X37/64 BLK @ PWR CABLE 100/120V ONLY 010401 BUSHING SR .625X.125X37/64 WHT @ PWR CABLE 230/240V ONLY 026541000 CABLE ASSY PRW W/.250 TAB 120V... -
Page 9: Cabinet Assembly
TOLEX BLACK LT WEIGHT 029527000 WSHR FNSH 8-5/8 FLNGD BLX WX CHASSIS MOUNT MISCELLANEOUS QTY PART # DESCRIPTION REFERENCE DESIGNATION 048502000 MANUAL OWNER KXR 200 048493 SCHEM REDU W/SVC KXR200 PRE PREAMP 048840 SCHEM REDU W/SVC PA BXR/KXR 200 POWER AMPLIFIER...
