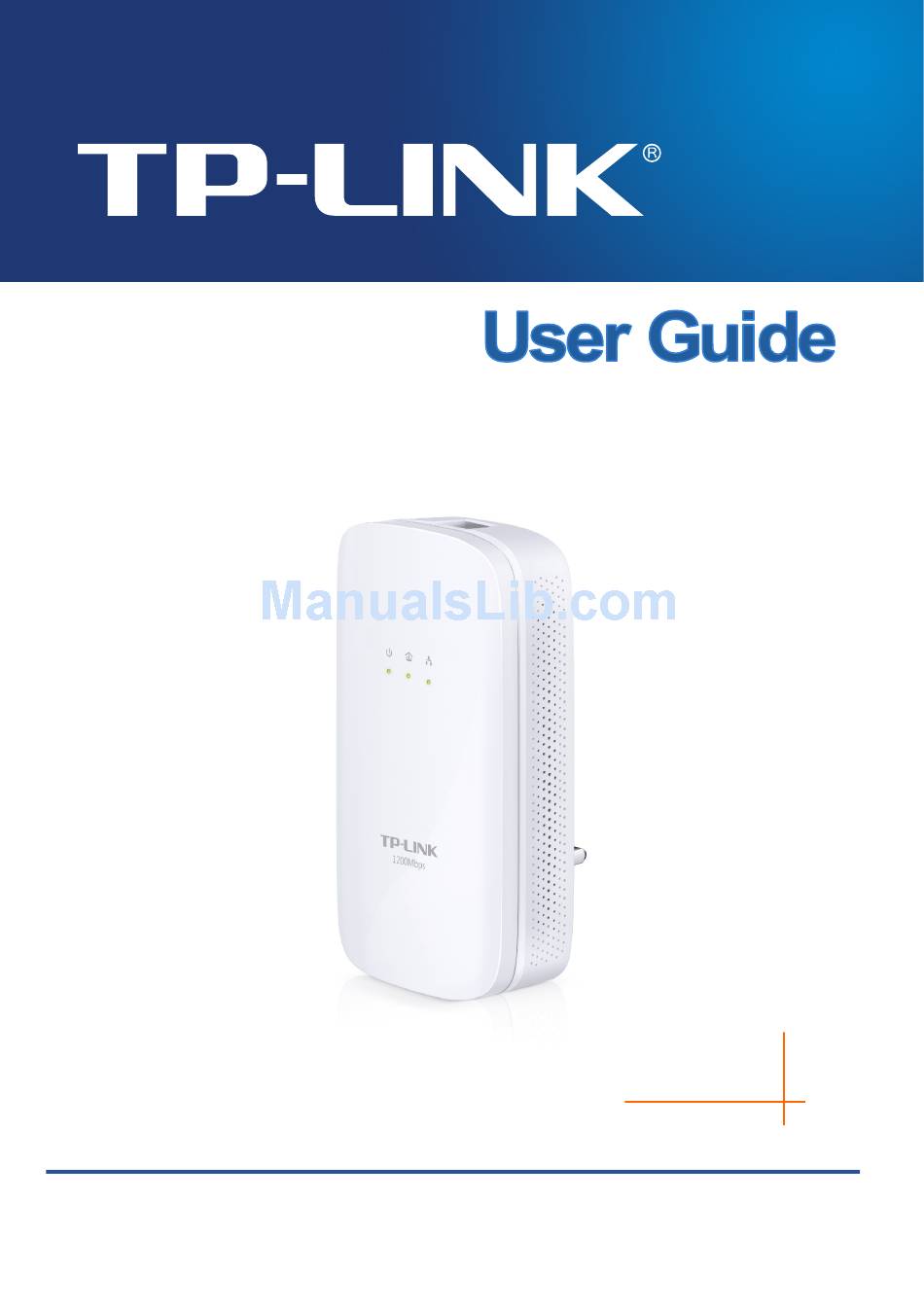

- Page 1 TL-PA8010 AV1200 Gigabit Powerline Adapter REV1.0.0 1910011574...
-
Page 2: Table Of Contents
CONTENTS Chapter 1 Introduction ..................1 1.1 System Requirement ..................1 1.2 Important Safety Instructions ..............1 1.3 Conventions .......................2 1.4 LED Indicator .....................2 1.5 Physical Interface ....................3 Chapter 2 Connecting Mechanism ............... 5 2.1 Introduction ......................5 ... -
Page 3: Chapter 1 Introduction
2． Reset to default setting via the tpPLC or the Pair Button. Note: TP-LINK tpPLC Utility is provided to manage powerline devices. For detailed instructions, please refer to the tpPLC Utility’s User Guide. 1.1 System Requirement a) At least two AC power outlets (100–240V~, 50/60Hz) with standard home power wiring b) A computer with the following: ... -
Page 4: Conventions
16. The Storage temperature is -20℃~70℃ (-4℉~158℉). 1.3 Conventions The powerline adapter or AV1200 Gigabit Powerline Adapter mentioned in this guide stands for TL-PA8010 AV1200 Gigabit Powerline Adapter without any explanation. 1.4 LED Indicator The LED indicator displays information about the device’s status. -
Page 5: Physical Interface
TL-PA8010 AV1200 Gigabit Powerline Adapter Item Status Indication Yellow-green Powerline network is in good condition. Powerline network is in poor condition. We recommend trying another wall socket. Powerline LED The powerline adapter is not connected to any powerline network or is in Power-Saving Mode. - Page 6 TL-PA8010 AV1200 Gigabit Powerline Adapter Interface Description Press and hold for 1 second to set up or join a secure powerline network. Press and hold for about 8 seconds to leave an existing powerline Pair Button network. Press and hold for more than 15 seconds to reset the powerline adapter.
-
Page 7: Chapter 2 Connecting Mechanism
TL-PA8010 AV1200 Gigabit Powerline Adapter Chapter 2 Connecting Mechanism 2.1 Introduction The powerline adapter supports up to 1200Mbps data rate. With this high speed connection rate, this powerline adapter allows you to set up a high speed home network by using your home existing electrical wiring. -
Page 8: Hardware Connection - Internet
TL-PA8010 AV1200 Gigabit Powerline Adapter 2． Connect the other end of the Ethernet (RJ45) cable to your computer’s LAN port. 3． Plug the powerline adapter into a wall socket next to the computer. The hardware connection mechanism is shown below: ... - Page 9 TL-PA8010 AV1200 Gigabit Powerline Adapter The hardware connection mechanism is shown below: Note: Where the MAINS plug or an appliance coupler is used as the disconnected device, the disconnected device shall remain readily operable. The idle wall sockets or electrical outlets in your household...
-
Page 10: Chapter 3 Advanced Feature: How To Use The Pair Button
TL-PA8010 AV1200 Gigabit Powerline Adapter Chapter 3 Advanced Feature: How to Use the Pair Button 3.1 Set Up a Secure Powerline Network The Homeplug AV standard uses 128-bit AES (Advanced Encryption Standard) to safely transmit data between powerline adapters. For the powerline adapters to communicate with each other they all need to use the same Network Membership Key (NMK). -
Page 11: Appendix: Troubleshooting
TL-PA8010 AV1200 Gigabit Powerline Adapter Appendix: Troubleshooting The Troubleshooting provides answers to common problems regarding the powerline adapter. 1. The Power LED does not light up. Ans. Check the following: 1. Make sure that the powerline adapter is properly plugged into a power outlet. - Page 12 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
-
Page 13: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 14: Safety Information
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. -
Page 15: Declaration Of Conformity
TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: AV1200 Gigabit Powerline Adapter Model No.: TL-PA8010 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...
