3-2.

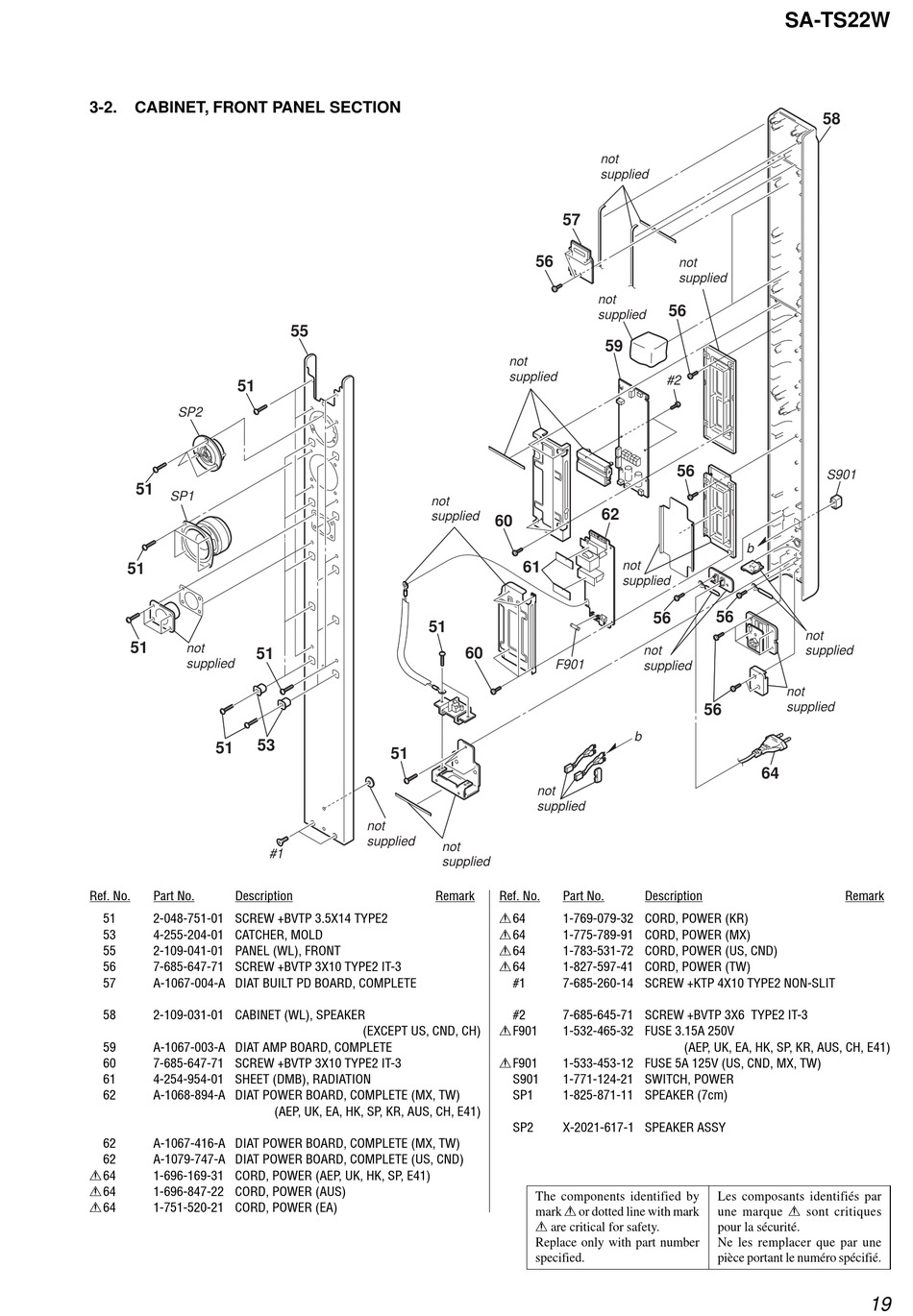

CABINET, FRONT PANEL SECTION

51
SP2
51
SP1
51
51
not
51
supplied
53
51
Ref. No. Part No. Description
51 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2
53 4-255-204-01 CATCHER, MOLD
55 2-109-041-01 PANEL (WL), FRONT
56 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
57 A-1067-004-A DIAT BUILT PD BOARD, COMPLETE
58 2-109-031-01 CABINET (WL), SPEAKER
59 A-1067-003-A DIAT AMP BOARD, COMPLETE
60 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
61 4-254-954-01 SHEET (DMB), RADIATION
62 A-1068-894-A DIAT POWER BOARD, COMPLETE (MX, TW)
62 A-1067-416-A DIAT POWER BOARD, COMPLETE (MX, TW)
62 A-1079-747-A DIAT POWER BOARD, COMPLETE (US, CND)
0 64 1-696-169-31 CORD, POWER (AEP, UK, HK, SP, E41)
0 64
1-696-847-22 CORD, POWER (AUS)
0 64
1-751-520-21 CORD, POWER (EA)
55
not
supplied
51
51
not
supplied
not
#1
supplied
Remark
(EXCEPT US, CND, CH)
(AEP, UK, EA, HK, SP, KR, AUS, CH, E41)
not
supplied
57
56
not
supplied
59
not
supplied
62
60
not
61
supplied
60
F901
b
not
supplied
Ref. No. Part No.
0 64 1-769-079-32 CORD, POWER (KR)
0 64
1-775-789-91 CORD, POWER (MX)
0 64 1-783-531-72 CORD, POWER (US, CND)
0 64 1-827-597-41 CORD, POWER (TW)
#1 7-685-260-14 SCREW +KTP 4X10 TYPE2 NON-SLIT
#2 7-685-645-71 SCREW +BVTP 3X6 TYPE2 IT-3
0 F901
1-532-465-32 FUSE 3.15A 250V
0 F901
1-533-453-12 FUSE 5A 125V (US, CND, MX, TW)
S901 1-771-124-21 SWITCH, POWER
SP1 1-825-871-11 SPEAKER (7cm)
SP2 X-2021-617-1 SPEAKER ASSY
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
SA-TS22W
not
supplied
56
#2
56
b
56
56
not
not supplied
supplied
not
supplied
56
64
Description
(AEP, UK, EA, HK, SP, KR, AUS, CH, E41)
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
58
S901
Remark
