Printed Wiring Board - Diat Power Board - Sony SA-TS22W Service Manual

SA-TS22W

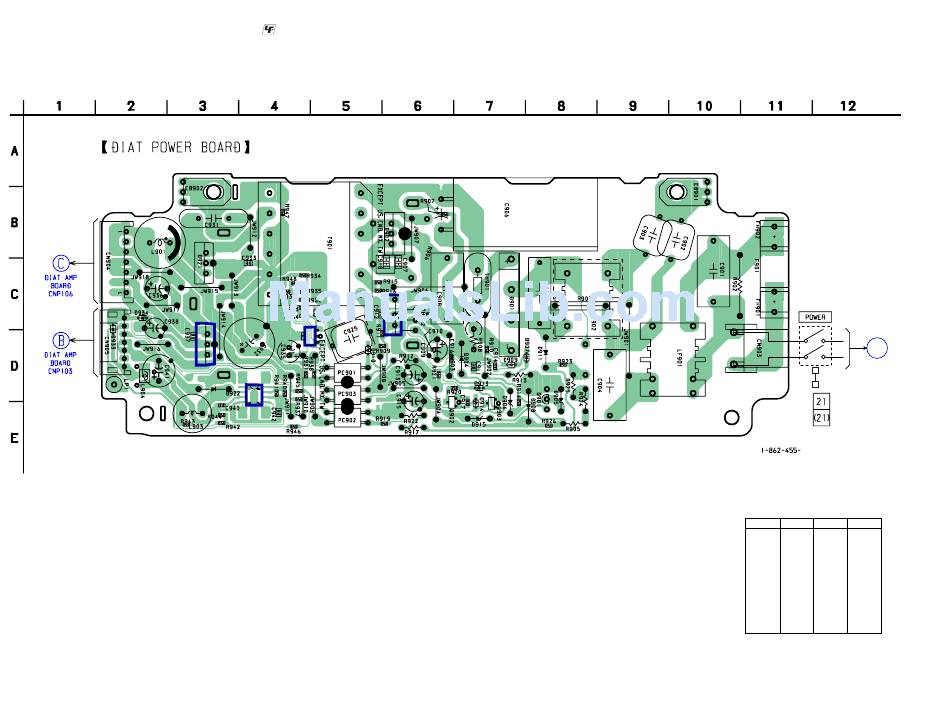

2-6. PRINTED WIRING BOARD — DIAT POWER BOARD —
(Page 5)
(Page 5)
SA-TS22W
:Uses unleaded solder.
IC901
IC905
IC903
IC904
10 10
EXCEPT MX, TW
• Semiconductor Location
Ref. No. Location
D901 C-7
D902 B-6
D904 D-7
D905 E-8
D906 E-7
D907 D-7
D908 E-8
D909 D-7
D910 D-5
D911 D-8
D913 D-7
D914 E-7
D915 E-7
S901
G
POWER
O
CONNECT
BOARD
I
CN904
(Page 12)
Ref. No. Location
D921 C-3
D922 D-3
D933 D-2
D934 C-2
IC901 C-6
IC903 D-3
IC904 D-4
IC905 D-5
Q901 E-8
Q902 E-6
Q903 E-7
