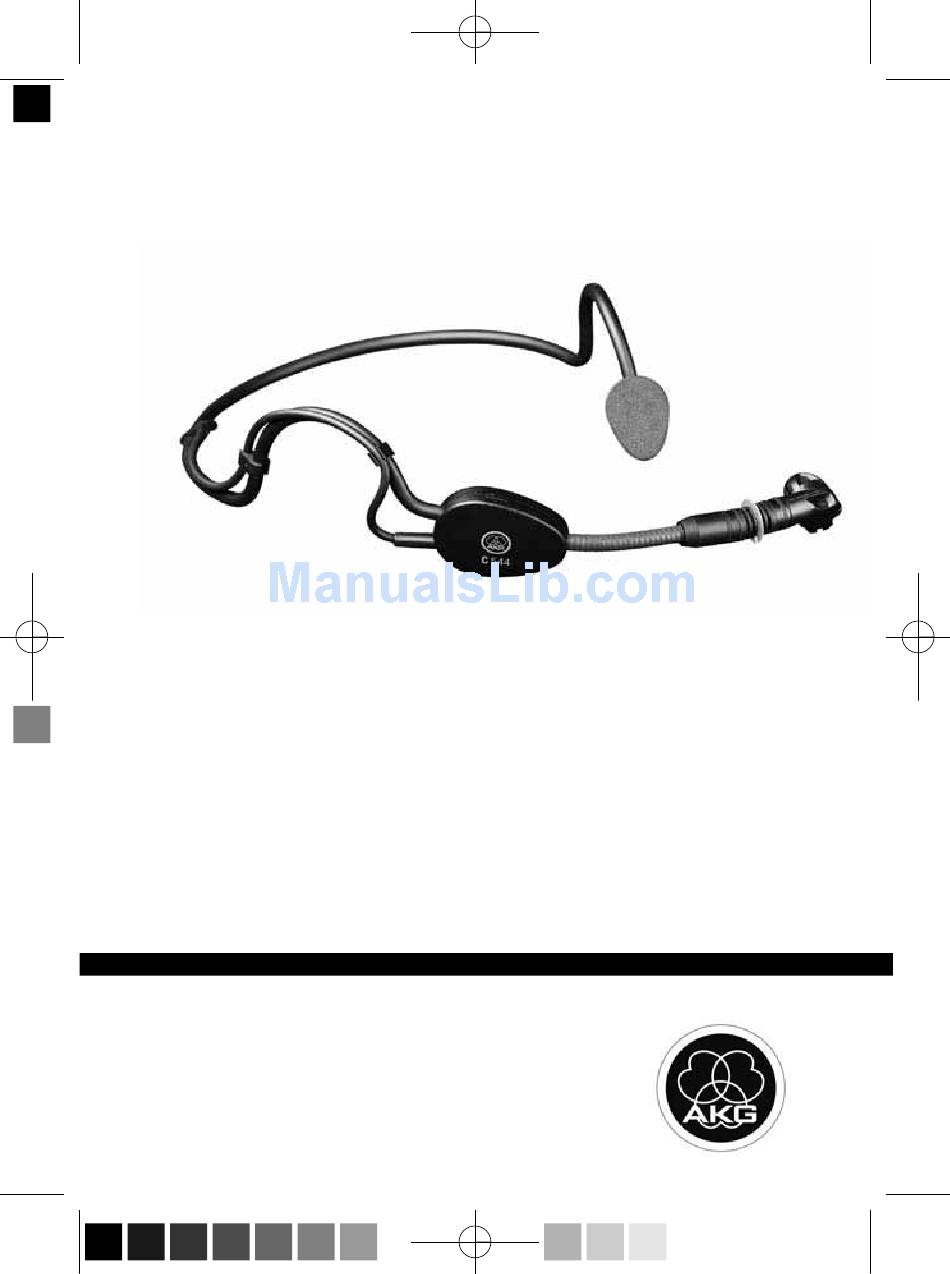

- Page 1 C 544_F031003_Hex1 02/24/2010 15:03 Seite 1 (Schwarz/Black Au C 544 BEDIENUNGSANLEITUNG S. 2 ..Bitte vor Inbetriebnahme des Gerätes lesen! USER INSTRUCTIONS p. 12 ....Please read the manual before using the equipment! MODE D’EMPLOI p.
-
Page 2: Table Of Contents
C 544_F031003_Hex1 02/24/2010 15:04 Seite 12 (Schwarz/Black A Table of Contents Page Safety and Environment ........13 Safety . -
Page 3: Safety And Environment
C 544_F031003_Hex1 02/24/2010 15:04 Seite 13 (Schwarz/Black A 1 Safety and Environment Safety • Please make sure that the piece of equipment your microphone will be connected to fulfills the safety regulations in force in your country and is fitted with a ground lead. -
Page 4: Description
• C 544 microphone • W 444 foam windscreen • 4 moisture shields Optional • For optional accessories, refer to the current AKG catalog or Accessories folder, or visit www.akg.com. Your dealer will be glad to help. The Microphone The C 544 is a head-worn miniature condenser microphone with a convenient behind-the-neck headband. -
Page 5: Interfacing
Introduction The C 544 is a condenser microphone and therefore needs a power supply. • Using any power supply other than those recom- mended by AKG may damage your microphone and will void the warranty. IMPORTANT Connecting 1. Plug the mini XLR connector on the microphone cable all the... -
Page 6: Operating Notes
C 544_F031003_Hex1 02/24/2010 15:04 Seite 16 (Schwarz/Black A 4 Operating Notes Putting the Microphone On Fig. 1: Putting the mic on. 1. Put the microphone on as shown in fig. 1 above. 2. Bend the gooseneck so that the microphone will sit to one side in front of the corner of your mouth. -
Page 7: Using The Windscreen
C 544_F031003_Hex1 02/24/2010 15:04 Seite 17 (Schwarz/Black A 4 Operating Notes Using If (for instance, in outdoor use) excessive wind or pop noise be- the Windscreen comes audible, attach the supplied windscreen to the micro- phone. 1. Slide the windscreen onto the microphone capsule. 2. -
Page 8: Cleaning
C 544_F031003_Hex1 02/24/2010 15:04 Seite 18 (Schwarz/Black A 5 Cleaning Microphone Body • To clean the microphone surface, use a soft cloth moistened with water. Windscreen • Clean the foam windscreen in mild soap suds. You can use the windscreen again as soon as it has dried. C 544... -
Page 9: Troubleshooting
C 544_F031003_Hex1 02/24/2010 15:04 Seite 19 (Schwarz/Black A 6 Troubleshooting Problem Mögliche Ursache Abhilfe No sound: 1. Power to mixer and/or 1. Switch power to mixer amplifier is off. or amplifier on. 2. Channel or master fader 2. Set channel or master on mixer, or volume fader on mixer or vol- control on amplifier is at... -
Page 10: Specifications
1.5 m (5 ft.) Net weight: 30 g (1.1 oz.) exc. of connector This product conforms to the standards listed in the Declaration of Conformity. To order a free copy of the Declaration of Conformity, visit http://www.akg.com or contact sales@akg.com. C 544... - Page 11 C 544_F031003_Hex1 02/24/2010 15:04 Seite 21 (Schwarz/Black A 7 Specifications Frequency Response Polar Diagram C 544...
