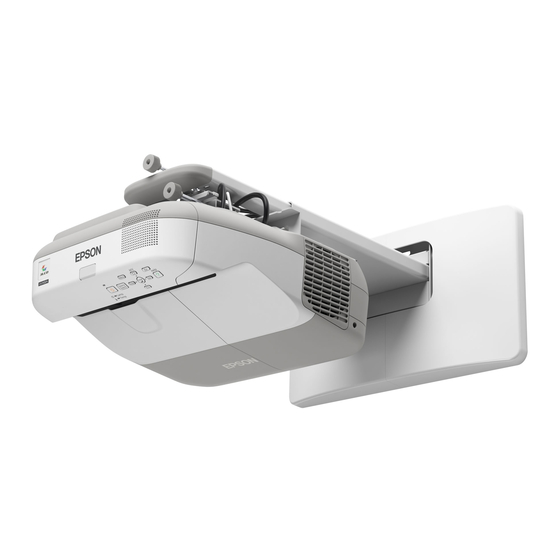

Epson eb-595wi Installation Manual

Hide thumbs Also See for eb-595wi:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Epson eb-595wi

Summary of Contents for Epson eb-595wi

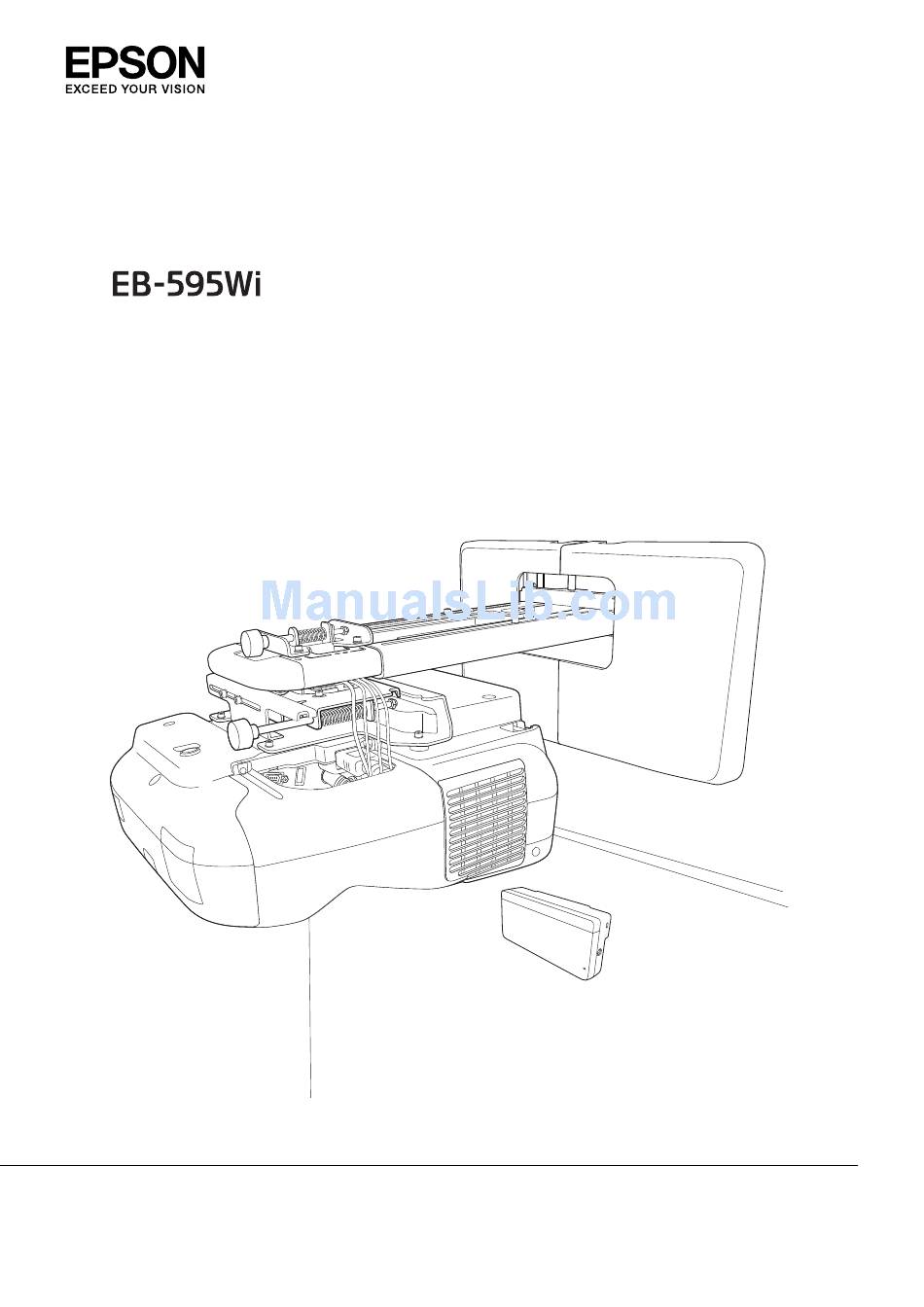

  • Page 1 Installation Guide...

  • Page 2: Using The Product Safely

    Using the Product Safely Safety Instructions For your safety, read all the instructions in this guide before using this product. Incorrect handling that ignores instructions in this guide could damage this product or could result in personal injury or property damage. Keep this installation guide at hand for future reference.
  • Page 3 Use M10 nuts and bolts. Nuts and bolts smaller than M10 could cause the setting plate to fall. Epson accepts no responsibility for any damage or injury caused by lack of wall strength or inadequate installation.

  • Page 4: Notes On Handling The Touch Unit

    If any abnormalities occur with this product, immediately disconnect the cables from the product, and then contact your local dealer or the nearest Epson service call center. Continuing to use the product in an abnormal condition could cause a fire, electric shock, or visual impairment.

  • Page 5: About This Installation Guide

    A powerful magnet within the unit could corrupt data or cause a malfunction. About This Installation Guide This guide describes how to mount the short-throw projector EB-595Wi on a wall. It also explains how to install the Touch Unit after mounting on a wall.

  • Page 6: Choosing An Installation Location

    Using the Product Safely Choosing an Installation Location Projector installation location • Carry out power supply wiring work for the installation location of the setting plate in advance. • Install the projector away from other electric devices such as fluorescent lights or air conditioners. Some kinds of fluorescent lights could interfere with the remote control of the projector.
  • Page 7 Using the Product Safely Correct installation position Incorrect installation position • When installing the Touch Unit, make sure there are no obstacles, such as cables, or protruding items such as whiteboard trays, holders, or thick frames in the shaded areas in the following figure. The Touch Unit will not operate correctly.

  • Page 8: Table Of Contents

    Contents Installation Procedure ....24 Using the Product Safely Disassemble the parts ....25 Safety Instructions .

  • Page 9: Installation Guide

    Installation Guide Installation Work Flow Follow the procedures below to mount the projector on a wall. Installing the Setting Plate and the Projector ( p.23) Adjusting the Projected Image ( p.34) Calibrating the Interactive Pen ( p.41) When installing the Touch Unit, finish installing the projector first, and then follow the procedures below. Installing the Touch Unit ( p.47) Adjusting the Angle of Laser Diffusion (...

  • Page 10: Package Contents

    Installation Guide Package Contents Setting plate The following supplied items are necessary to mount the projector on a wall. Confirm that you have all items before beginning. Setting plate Hexagonal axis Wall plate Wall plate cover 3-axis adjustment unit Template sheet (for installing the wall plate) *The slide plate ( ) is secured dur-...

  • Page 11: Touch Unit

    Installation Guide Touch Unit The following supplied products are necessary when attaching the Touch Unit. Confirm that you have all items before beginning. Touch Unit/Markers x2 (attached to Touch Unit) Touch Unit connection cable Spacer for screw hole x3 Label x4 Tape (approx.

  • Page 12: Specifications

    Installation Guide Specifications Setting plate Item Specification Remark Reference Page Setting plate weight Approx. 8.1 kg Setting plate (3.0 kg), 3-axis adjustment unit (1.2 kg), slide plate (0.8 kg), wall plate (2.7 kg), wall plate cover and end cap (0.4 kg) Maximum load capacity 7 kg Forward/backward slide ad-...

  • Page 13: Vertical Slide Adjustment Range

    Installation Guide Cable routing holes When routing cables to connect to the projector through a wall, use positions ( ) and ( ) in the following figure as the cable routing holes. Vertical slide adjustment range [Unit: mm] Horizontal slide adjustment range [Unit: mm] Forward/backward slide adjustment range Arm slide adjustment range...

  • Page 14: Touch Unit

    Installation Guide Adjustment range for 3-axis adjustment unit installation position [Unit: mm] Touch Unit Touch Unit (external dimensions/weight) [Unit: mm] The Touch Unit weighs approximately 450 g. Attached labels The Touch Unit is a Class 1 laser product that conforms to the JIS C 6802:2011 standard. There are warning labels affixed to the Touch Unit to indicate that it is a Class 1 laser product.

  • Page 15: Laser Diffusion Port

    Installation Guide The labels contain the following information. • CLASS 1 LASER PRODUCT • WARNING: Never open any covers on this unit. Laser product inside. • WARNING: • CAUTION: CLASS 3B INVISIBLE LASER RADIATION WHEN OPEN • AVOID EXPOSURE TO THE BEAM Laser diffusion port The laser beam is diffused from the laser diffusion ports at the back of the Touch Unit.

  • Page 16: Projection Distance Table

    Installation Guide Projection Distance Table Figures of Installation Dimensions To find the appropriate screen size, see the following figures when installing. The values are only rough estimates. The recommended range for the projection distance (a) is 62 to 311 mm. The offset value for the position of the center of the projected image and the center of the wall plate is 70.5 When the projected image size (S) is 75 inches or more, the scale on the arm slide (b) is equal to the projection distance (a).

  • Page 17: When Projected Image Is Smaller Than 75 Inches

    Installation Guide : Minimum projection distance (Wide: maxi- : Screen mum zoom) to maximum (Tele: minimum zoom) : Numbers on the arm slide scale : Distance from projected image to wall plate : Height of projected image : Distance from surface of screen to wall (100 mm or less) Aspect ratio for standard projected image When Projected Image is Smaller than 75 Inches...

  • Page 18: 16:9 Projected Image

    Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 60" 129.2x80.8 6.2 - 19.3 14.9 - 28.0 17.4 80.8 61"...

  • Page 19: 4:3 Projected Image

    Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 70" 155.0x87.2 13.7 - 29.3 22.4 - 38.0 25.4 87.2 71"...

  • Page 20: When Projected Image Is Larger Than 75 Inches

    Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 74" 150.4x112.8 21.0 - 31.1 29.7 - 39.8 23.8 112.8 Images smaller than 53 inches are not projected correctly.

  • Page 21: 16:9 Projected Image

    Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 75" 161.5x101.0 15.5 - 31.1 21.4 101.0 76" 163.7x102.3 16.2 - 31.1 21.7 102.3...

  • Page 22: 4:3 Projected Image

    Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 75" 166.0x93.4 16.8 - 31.1 27.2 93.4 76" 168.2x94.6 17.5 - 31.1 27.5 94.6...
  • Page 23 Installation Guide Projected image size Projection Dis- Numbers on the Distance from Height of projec- tance arm slide scale projected image ted image Minimum (Wide) to wall plate to Maximum (Tele) 78" 158.5x118.9 23.8 - 31.1 25.0 118.9 79" 160.5x120.4 24.5 - 31.1 25.3 120.4...

  • Page 24: Installing The Setting Plate

    Installation Guide Installing the Setting Plate Connecting Devices Necessary cables Prepare the necessary cables according to the devices being used. • Power cord supplied (necessary) • USB cable supplied • Touch Unit connection cable supplied • Optional computer cables and other cables (prepare according to the connected devices) For details, see the projector's User's Guide (on the Document CD-ROM).

  • Page 25: Installation Procedure

    Installation Guide Prepare cables for the connected devices (example) Document camera Computer Dedicated USB cable (supplied with document cam- Computer cable (optional accessory) era) External speakers Microphone (commer- LAN device cially available) Audio cable (commercially available) LAN cable (commercially available) Installation Procedure Make sure to follow the steps below to install the setting plate.

  • Page 26: Disassemble The Parts

    Installation Guide Disassemble the parts Remove the M4 bolts (x2), and then remove the slide plate from the 3-axis adjustment unit. Assemble the parts Assemble the three wall plates into one unit, and secure them with the M4 bolts (x6) supplied Secure the slide plate to the base of the projector with the M4 bolts (x4) supplied Bolt installation positions...

  • Page 27: Install The Wall Plate On The Wall

    Installation Guide Attach the 3-axis adjustment unit to the setting plate with the M4 bolts (x4) supplied • When a projected image is smaller than 75 inches: Mount the unit at the stamp ( • When a projected image is larger than 75 inches: Mount the unit at the stamp ( : Smaller than 75 inches : Larger than 75 inches...
  • Page 28 Installation Guide Attach the template sheet to the wall • Match the center line ( ) checked in step 1 to the Image Center line on the template sheet. Confirm where the beams are within the wall, and shift the position left or right as necessary. (The position can be shifted horizontally left or right from the center line of the projection surface up to a maximum of 45 mm.) •...

  • Page 29: Determine The Projection Distance, And Then Pass The Cables Through The Setting Plate

    Installation Guide Drill the holes in the wall Drill diameter: 10.5 mm Pilot hole depth: 45 mm Anchor hole depth: 40 mm Remove the template sheet, and clean the concrete dust from the holes with a dust pump Position the wall plate on the wall and insert M10 x 60 mm commercially available anchors into the holes Attach the nut and tap it with a hammer until the core touches the top of the an-...
  • Page 30 Installation Guide Loosen the M4 bolts (x2) and extend the arm slide on the setting plate Align the slider with the combined distances of (b) and (x) that you checked in step 1. Route the necessary cables through the setting plate See the following figure to route the cables so that the ends of the cables that connect to the projector are on the projector's interface side.

  • Page 31: Attaching The Setting Plate To The Wall Plate

    Installation Guide Attaching the setting plate to the wall plate Insert the hexagonal axis into the setting plate Mount the setting plate to the wall plate Insert the top of the hexagonal axis into the wall plate, and then insert the M8 bolt into the slot at the bottom.
  • Page 32 Installation Guide Secure the setting plate and the wall plate Secure the supplied M6 screws (x3) with a commercially available No.3 cross-head screwdriver, and then lightly tighten the supplied M6 bolt (x1) with the spanner. Adjust the vertical slide with the open-ended spanner, and align it with the standard position ( •...

  • Page 33: Securing The Projector To The Setting Plate

    Installation Guide Tighten the M6 bolt (x1) to fix the setting plate in position Securing the projector to the setting plate Loosen the screws (x2) and remove the cable cover from the projector Insert the slide plate into the setting plate from the interface side of the projector...
  • Page 34 Installation Guide Align the 3-axis adjustment unit with the slide plate's standard position ( ) indicates the screw holes for the bolts. Tighten the supplied M4 bolts (x2) Connect the cables to the projector...

  • Page 35: Adjusting The Projected Image

    Installation Guide • Connect the power cord last. • When connecting to the Audio1, Audio2, and Computer1 ports, we recommend connecting cables to the ports in the following order: Audio1, Audio2, and then Computer1. Adjusting the Projected Image Follow the procedures below to adjust the projected image. Adjusting the Projection Position ( p.34) Fine-tuning the Focus (...
  • Page 36 Installation Guide Change the aspect ratio of the projected image (only when necessary) Project images from a connected device, and then press the [Aspect] button on the remote control. Each time you press the button, the aspect name is displayed on the screen and the aspect ratio changes.
  • Page 37 Installation Guide Open the air filter cover, and then adjust the focus using the focus lever After you finish making adjustments, close the air filter cover. Loosen the M4 screw (x1) with the hexagon wrench, and then adjust the horizontal roll with the adjustment dial Repeat steps 5 to 10 as necessary.
  • Page 38 Installation Guide Loosen the M4 screws (x2) with the hexagon wrench, and then adjust the horizontal rotation with the adjustment dial After you finish making adjustments, tighten the M4 screws that you loosened. Loosen the M4 screw (x1) with the hexagon wrench, and then adjust the vertical tilt with the adjustment dial After you finish making adjustments, tighten the M4 screw that you loosened.
  • Page 39 Installation Guide Loosen the M4 bolts (x2) with the hexagon wrench, and then adjust the horizontal slide After you finish making adjustments, tighten the M4 bolts that you loosened. Loosen the M4 bolts (x2) with the hexagon wrench, and then adjust the forward/backward slide After you finish making adjustments, tighten the M4 bolts that you loosened.

  • Page 40: Fine-Tuning The Focus

    Installation Guide Loosen the M6 bolt (x1) with the open-ended spanner, and then adjust the vertical slide Adjust the vertical slide with the hexagonal axis at the top or the bottom. • Tightening the hexagonal axis at the top raises the setting plate, and loosening the axis lowers it. •...
  • Page 41 Installation Guide Select Pattern from Settings Select Test Pattern When displaying on a 4:3 screen, set Pattern Type to Pattern 5, and then select Pattern Display.

  • Page 42: Calibrating The Pen

    Installation Guide Adjust the focus to match the focus in the following figure ( Open the air filter cover, and then adjust the focus. "Adjusting the Projection Position" p.34 When ( ) is in focus, check the ( ) areas. If any of the ( ) areas are out of focus, adjust the focus until the ( ) areas are uniform.
  • Page 43 Installation Guide Select Easy Interactive Function from Extended Select Manual Calibration Check that the screen is in focus, and then select Yes A green dot is displayed at the top left of the projection screen.
  • Page 44 Installation Guide Touch the center of the dot with the pen tip button The dot disappears and moves to the next position. Make sure you touch the center of the dot. Otherwise, it may not be positioned correctly.
  • Page 45 Installation Guide Repeat step 5 until all of the dots disappear The dot appears at the top left first and then moves towards the bottom right. When all of the dots disappear, calibration is complete. • Check that there are no obstacles between the interactive pen and the Easy Interactive Function receiver ( •...

  • Page 46: Attaching The Covers

    Installation Guide Attaching the Covers Attach the wall plate covers Depending on the cable configurations, you may need to cut notches ( ) in the wall plate covers to route the cables. Perform deburring on the cut sides to smooth off any sharp edges. Make sure you do not damage the cables when routing them through the cut holes.
  • Page 47 Installation Guide Attach the cable cover to the projector, and then secure it with the screws (x2) Caution Only a specialist should remove or reinstall the projector, including for maintenance and repairs. See the projector's User's Guide for instructions on maintenance and repairs. Warning •...

  • Page 48: Installing The Touch Unit

    Install the Touch Unit, and then connect to the projector. Caution Only connect the Touch Unit to the EB-595Wi. Do not connect it to any other projectors or devices. Turn on the projector, and then press the [Menu] button Using the Remote Control...
  • Page 49 Installation Guide Select Touch Unit Setup Select Installation Pattern The installation pattern is displayed on the projected image. Loosen the screw at the bottom of the dial cover using a commercially available No.2 cross- head screwdriver...
  • Page 50 Installation Guide Slide the dial cover down to remove it Remove the markers (x2) from the Touch Unit Use the removed markers to perform angle adjustment for laser diffusion after installing the Touch Unit. Determine the installation position for the Touch Unit We recommend marking the following installation positions to make installation easier.
  • Page 51 Installation Guide Secure the Touch Unit • Magnetic screens: Place the back of the Touch Unit on the screen surface, and then secure. Caution When installing the Touch Unit on a magnetic surface, be careful not to trap your fingers or any other part of your body between the magnets and the installation surface.

  • Page 52: Angle Adjustment

    Installation Guide [Unit: mm] Screw hole cross-section Connect the Touch Unit connection cable that is connected to the projector to the TCH port on the Touch Unit Angle Adjustment Adjust the angle of the laser light coming from the Touch Unit so that the Touch Unit can detect the position of your fingers.
  • Page 53 Installation Guide Before adjusting the angle, make sure that interactive pen calibration is complete. "Calibrating the pen" p.41 Select Easy Interactive Function in Extended from the projector's Configuration menu Select Touch Unit Setup...
  • Page 54 Installation Guide Set Power to On The Touch Unit power turns on and the indicator is lit blue. Warning Do not look into the projector's projection window or the Touch Unit's laser diffusion ports. This could cause damage to eyesight due to the powerful laser light emitted. When Power is set to On, the next time the projector is turned on, the Touch Unit automatically turns on.
  • Page 55 Installation Guide Select Angle Adjustment The following screen is displayed.
  • Page 56 Installation Guide Turn the adjustment dials on the Touch Unit counterclockwise until you hear a clicking sound When you hear a clicking sound coming from the adjustment dial, stop turning, and then press the ] button on the remote control. The following screen is displayed.
  • Page 57 Installation Guide Attach the two markers that you removed from the Touch Unit to the marker positions ) on the projection screen Match the positions so that the crosses ( ) for the markers overlap with the points ( ) for the When pointers ( ) with the same color as the marker positions are displayed on the left and right of the projection screen, attach the markers to the projection screen.
  • Page 58 Installation Guide Turn the adjustment dials on the Touch Unit to move the pointers ( ) so that they overlap with the target ( ) of the same color on either side When you turn the adjustment dial clockwise, the pointer moves diagonally up towards the center of the projected image.
  • Page 59 Installation Guide When the pointers on the left and right become solid colors ( ), press the [ button on the remote control The following screen is displayed. Place the markers at the top marker positions [1] ( When angle adjustment is performed correctly, the upper pointers become solid colors ( If the upper pointers do not become solid colors ( ), start again from step 4.
  • Page 60 Installation Guide Place the markers at the bottom marker positions [2] ( When angle adjustment is performed correctly, the bottom pointers become solid colors ( If the bottom pointers do not become solid colors ( ), start again from step 4. When you have finished checking, remove the markers, and then press the [ ] button on the remote control...
  • Page 61 Installation Guide Trace the dots ( ) with your finger When angle adjustment is performed correctly, the dots you have traced disappear. Touch operations may not perform correctly if you are wearing artificial nails or nail polish, or if your fingers are obstructed by bandages and so on. When all of the dots have disappeared, press the [ ] button on the remote control, and then go to step 14.
  • Page 62 12 again. If the dots do not disappear even after performing the above procedures, contact your local dealer from the Epson Projector Contact List provided on the Document CD-ROM. Store the markers in the Touch Unit...

  • Page 63: Touch Calibration

    Installation Guide Attach the labels at the tabs on either side of the Touch Unit Match the center of the labels with the tabs on the Touch Unit. If the Touch Unit moves out of position, use the labels to reinstall it at the correct position. Attach the dial cover, and then tighten the screw at the bottom of the dial cover Touch Calibration Perform touch calibration so that the projector can recognize touch operations precisely.
  • Page 64 Installation Guide Select Easy Interactive Function from Extended Select Touch Unit Setup Select Touch Calibration The focus adjustment message is displayed.
  • Page 65 Installation Guide Check that the screen is in focus, and then select Yes A dot is displayed at the top left of the projection screen. Touch the center of the dot with your finger When the dot disappears and moves to the next position, remove your finger. •...
  • Page 66 Installation Guide Repeat step 6 until all of the dots disappear When all of the dots disappear, touch calibration is complete. • If you touch the wrong position, press the [Esc] button on the remote control or control panel. This returns you to the previous dot. You cannot go back by two dots. •...

  • Page 67: Appendix

    Appendix Batch Setup Function Once the Configuration menu content has been set for one projector, you can use it to perform batch setup for multiple projectors (batch setup function). The batch setup function is only for projectors with the same model number.

  • Page 68: Reflecting Saved Settings To Other Projectors

    Appendix Connect the USB flash drive to the projector's USB-A port • Connect the USB flash drive directly to the projector. If the USB flash drive is connected to the projector through a USB hub, the settings may not be saved correctly. •...

  • Page 69: Setup By Connecting The Computer And Projector With A Usb Cable

    Appendix Connect the USB flash drive containing the saved batch setup file to the projector's USB-A port • When the USB flash drive contains 1 to 3 types of batch setup files, the file is reflected to the projector with the same model number. If there are multiple files for a projector with the same model number, the settings may not be reflected correctly.

  • Page 70: Saving Settings To A Computer

    Appendix Saving settings to a computer Disconnect the power cord from the projector, and check that all of the projector's indicators have turned off Connect the computer's USB port to the projector's USB-B port with a USB cable While holding down the [Esc] button on the remote control or the control panel, connect the power cord to the projector The status indicator and the power indicator turn blue, and the lamp indicator and the temperature indicator turn orange.
  • Page 71 Appendix Connect the computer's USB port to the projector's USB-B port with a USB cable While holding down the [Menu] button on the remote control or the control panel, connect the power cord to the projector The status indicator and the power indicator turn blue, and the lamp indicator and the temperature indicator turn orange.

  • Page 72: When Setup Fails

    Stop using the projector, remove the indicator and the temperature indicator power plug from the electrical outlet, and contact your local dealer flashing orange quickly? or the nearest address provided in the Epson Projector Contact List.

  • Page 73: Using The Interactive Function When Multiple Projectors Are Installed

    Appendix Using the Interactive Function when Multiple Projectors are Installed When using the interactive pen in the same room as multiple projectors, infrared interference may cause pen operations to become unstable. Interactive pen operations are stabilized by linking the projectors using cables.

  • Page 74: Attaching A Security Cable

    Appendix Attaching a Security Cable A commercially available theft-prevention wire lock can be attached to this product. Pass the wire for the theft-prevention wire lock through the security cable installation points on the projector and the setting plate. See the user's guide supplied with the wire lock for locking instructions. The security slot on this product is compatible with the Microsaver Security System manufactured by Kensington.

  • Page 75: General Notice

    Appendix General Notice OS X is a trademark of Apple Inc. Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. ©SEIKO EPSON CORPORATION 2014. All rights reserved.
