Indoor Camera Housing
WV-7110AE
Before attempting to connect or operate this product,
please read these instructions completely.

Advertisement

loading

Summary of Contents for Panasonic WV-7110AE

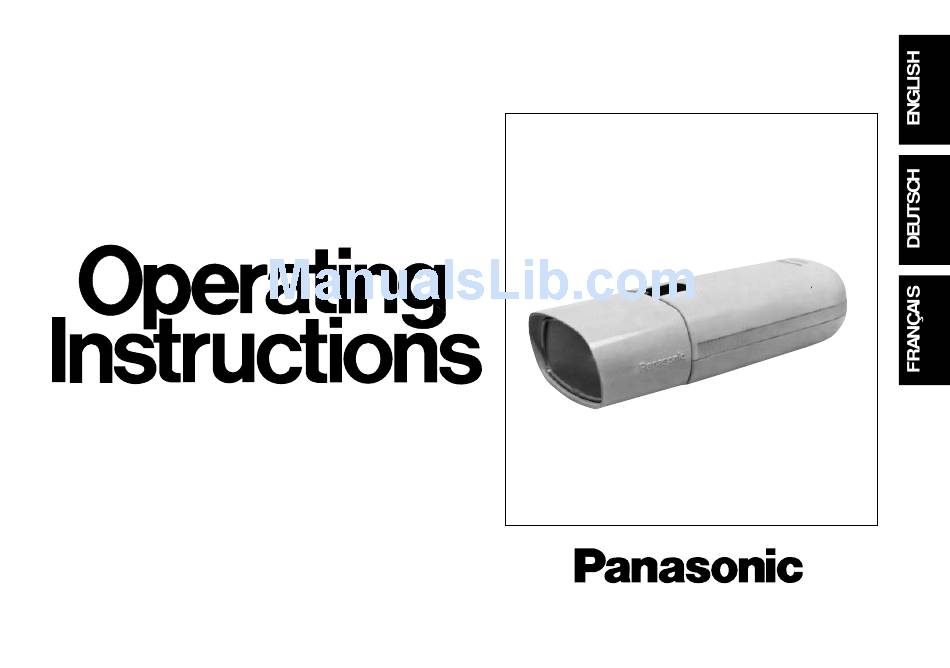

  • Page 1 Indoor Camera Housing WV-7110AE Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 Model No. WV-7110AE Serial No. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3: Table Of Contents

    CONTENTS PREFACE The Panasonic's WV-7110A Camera Housing is PREFACE ..............3 designed to be used for indoor applications. This hous- PRECAUTI0NS ............3 ing can easily be installed after the camera adjustment INSTALLATION ............4 and installation had been completed.
  • Page 4: Installation

    INSTALLATION 2. Mounting of the Camera 2-1. Mount the camera mounting bracket or the pan/tilt A. Mounting from top mechanism onto the mounting adaptor of the cam- era. 1. Disassembling of camera housing Remove the Front Case, Rear Cover and Upper/ Lower Covers as shown in the following.
  • Page 5 APPLICABLE MODELS AND MOUNTING Camera Lens Use Angle WV-CP460 Series See below. Angle-A WV-CP470 Series Apply the placing directions and fixing holes shown WV-CP240 Series below. WV-BP140 Series <Normal Position> <180˚ Reversal Position> Hole D C B A Hole A B C D E F Use properly the other side applicable hole, besides the hole A through F.
  • Page 6 a. Mounting of the Angle-A (supplied) a-2. Fix the Angle-A onto the camera by using the a-1. Remove the mounting adaptor of the camera two Angle Fixing Screws(supplied) as shown by removing the two mounting adaptor fixing in the following. screws.
  • Page 7 a-3. Be sure to stick the Angle Seat(supplied) onto b. Mounting of the Angle-B (supplied) the Angle-A. b-1. Remove the mounting adaptor of the camera by removing the two mounting adaptor fixing screws. Angle seat (supplied) Mounting Adaptor b-2. Fix the Angle-B onto the camera by using the two Angle Fixing Screws (supplied) as shown Caution: When the left and right pan limit screws in the following.
  • Page 8 b-3. Re-install the mounting adaptor on the Angle- 3. Installation of Upper and Lower Cover 3-1. Place the Upper Cover on the camera. 3-2. Attach the Lower Cover to the Upper Cover. 2-2. Complete adjustment connections required for the camera operation. 2-3.
  • Page 9 3-3. Attach the Front Case to the Upper and Lower 4. Installation of Rear Cover Covers. Attache the Rear Cover as shown in the following. Cut off the shaded portion Note: Be sure to insert the cable opening side to this housing first.
  • Page 10: Lens Focus Adjustment

    5 Cable Clamp LENS FOCUS ADJUSTMENT 5-1. Attach the Cable Clamp (supplied) to the housing. When the focus adjustment is required, remove the 5-2. Clamp the cables with the cable clamp. Front Case. Note: When the WV-LZ61/10 or WV-LZ62/8 is mounted on the camera, adjust the lens focus before mounting the upper cover, lower cover, and front case.
  • Page 11: Specifications

    SPECIFICATIONS Dimensions : 133(W) X 83(H) X 320(D) mm 5-1/4"(W) X 3-1/4"(H) X 12-5/8"(D) Weights : 0.5 kg (1.1 lbs.) Weight and dimensions indicated are approximate. Specifications are subject to change without notice. ACCESSORIES Angle-A..............1 pc. Angle-B..............1 pc. Angle Fixing Screw..........2 pcs. Angle Seat .............1 pc.
  • Page 12 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N0694-2092 V8QA3354CN Printed in Japan N 19 Gedruckt in Japan Imprimé au Japon 2001 © Matsushita Communication Industrial Co., Ltd.
