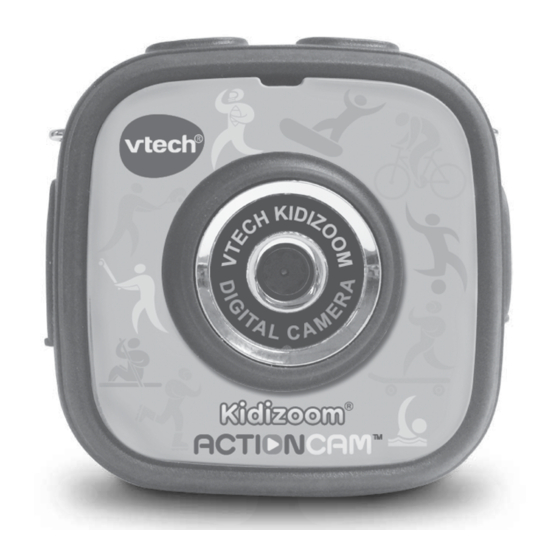

VTech Kidizoom User Manual

Hide thumbs Also See for Kidizoom:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User's Manual
© 2015 VTech
Printed in China
91-003007-007
UK

Advertisement

Table of Contents
loading

Related Manuals for VTech Kidizoom

Summary of Contents for VTech Kidizoom

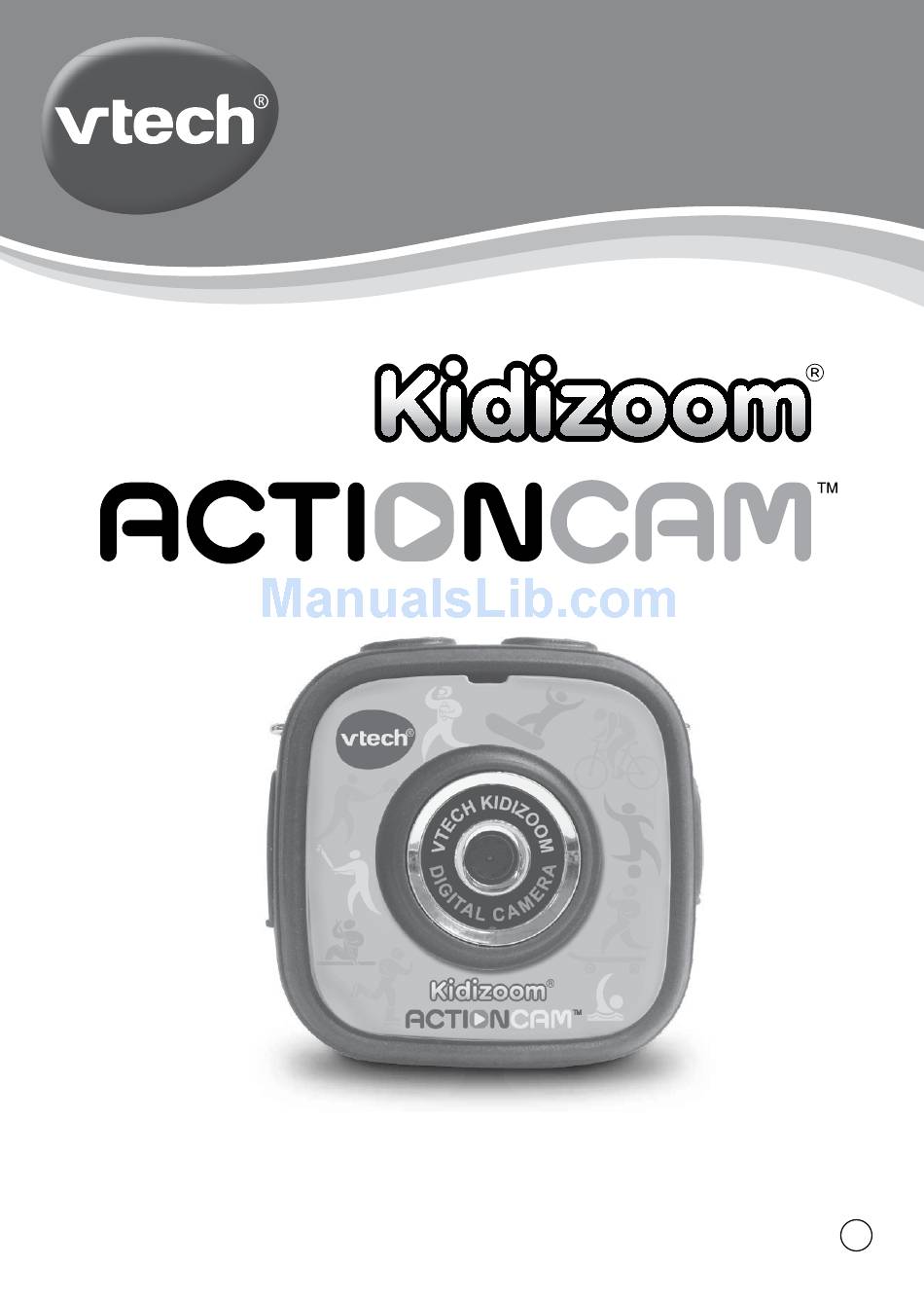

  • Page 1 User’s Manual © 2015 VTech Printed in China 91-003007-007...

  • Page 3: Included In This Package

    Place the camera in a position where your child will not be tempted to play with it whilst riding. VTech claims no responsibility for any misuse or failure to follow these guidelines. INCLUDED IN THIS PACKAGE...
  • Page 4 Kidizoom Action Cam Waterproof Case Camera Holder ® Bike Mount Mounting Attachment Adhesive Flat Mount Double-Sided micro-USB Cable Wrist Strap Adhesive Tape Strips WARNING: All packing materials, such as tape, plastic sheets, packaging locks and tags are not part of this toy, and should be discarded for your child’s safety.
  • Page 5 PRODUCT LAYOUT AND BUTTONS Left button Right button OK button...
  • Page 6 Master Power Switch When the switch is set to 0 , the unit is disconnected from the battery and the battery will not charge. Move the switch to 1 to connect the unit to the battery to allow it to charge and switched on. Note: It is not necessary to move the switch to the off position when the camera is in daily use.

  • Page 7: Product Specification

    PRODUCT SPECIFICATION Display 1.41” colour LCD Photo Resolution 640 X 480 (0.3 MP) Video Resolution 640 X 480 (available when using memory card only, and does not support video effects) 320 X 240 (default resolution) 160 X 120 Video Length 30 minutes Limit per file As limited by the maximum size per file (2 GB),...

  • Page 8: Getting Started

    The video length limit per file is 30 minutes, or a file size no larger than 2 GB. GETTING STARTED When you use Kidizoom Action Cam ® for the first time, you will need to switch the master power switch to on.

  • Page 9: Battery Recharging

    When the battery level is too low, the camera will not turn on until it is charged. POWER SAVING To preserve battery life, the Kidizoom Action Cam will automatically ®...

  • Page 10: Battery Maintenance

    The preview screen can also be set to automatically turn off after a while in Settings to help save power. Please refer to the Settings section in this manual. BATTERY MAINTENANCE Give the battery a regular charge to keep it at optimum performance, even when the camera isn’t in use.

  • Page 11: Memory Card Installation

    13th August, 2005. Help protect the environment by disposing of your product or batteries responsibly. For more information, please visit: www.recycle-more.co.uk www.recyclenow.com MEMORY CARD INSTALLATION Kidizoom Action Cam supports the below memory cards for ® memory expansion. microSD microSDHC The microSD and microSDHC logos are trademarks of SD-3C, LCC •...
  • Page 12 To remove the memory card from the slot, push the card once and it will eject. Note: • It is recommended to format your memory card before using in Kidizoom Action Cam ® • If a memory card is being used, data stored on the camera’s internal memory cannot be seen until the card is removed.

  • Page 13: Take Photos

    Note: VTech recommends setting the screen to auto off when the camera is mounted for sports, such as on a bike or skateboard. Please refer to the Settings section of this manual to enable the camera screen auto off function.
  • Page 14 A USB port is usually marked with this symbol • You will see a removable drive called VTech 1707, please use this to transfer files to and from the camera. There is another removable drive called VT SYSTEM, which is for the storage of system data only.

  • Page 15: System Requirements For Computer Connection

    Note: Do not transfer photo or video files created by other cameras to Kidizoom Action Cam , as these file formats may not be compatible. ® SYSTEM REQUIREMENTS FOR COMPUTER CONNECTION: Minimum System Requirements PC Software Requirements: Microsoft Windows XP, Windows Vista...
  • Page 16 Note: VTech recommends setting the screen to auto off when the camera is mounted for sports, such as on a bike or skateboard. Please refer to the Settings section of this manual to enable the camera screen auto off function.
  • Page 17 • Please check there is enough free memory for this activity, otherwise the pictures taken may not be saved. Games There are 3 built-in games in Kidizoom Action Cam . Select the ® game icon in the home menu to enter the game menu. Press the...
  • Page 18 jumping patterns! 2.Mountain Bike Go on a riding adventure! Test your reactions by avoiding the obstacles in the road and collecting stars on the way. Press the left or right buttons to control your bike. Can you reach the end of the race and become the champion? 3.Crazy Captain The captain is going sky diving with his toy friends,...
  • Page 19 Note: For safety, VTech highly recommends setting the screen to auto off when the camera is mounted for sports, such as on a bike or skateboard. (E) Self-timer Press the left or right buttons to turn it on or off, then press the OK button to confirm.
  • Page 20 delete the files in the internal memory to free up space. (ii) Video Resolution There are 3 video resolutions to choose from, press the left or right buttons to select an option and press the OK button to confirm. 160 X 120: This is the smallest video size, you can record and save more videos.

  • Page 21: Care And Maintenance

    A very small percentage of the public, due to an existing condition, may experience epileptic seizures or momentary loss of consciousness when viewing certain types of flashing colours or patterns. While Kidizoom Action Cam does not contribute to any additional ®...
  • Page 22 ® formats: Photos in Standard Baseline JPEG and Videos in AVI (Motion JPEG) created by Kidizoom Action Cam ® If the problem persists, please call our Consumer Services Department on 01235 546810 (from UK) or +44 1235 546810 (outside UK), and a service representative will be happy to help you.
  • Page 23 For earlier operating systems that do not support mass storage, a system upgrade or mass storage device driver may be available. Again, please check with your PC manufacturer. Question 2: What is the ISO value (light sensitivity) of the Kidizoom Action Cam ® Answer:...
  • Page 24 Kidizoom Action Cam ® Moreover, if you wish to download images to be viewed on Kidizoom ® Action Cam , you can do so by moving the JPEG image files into the...
  • Page 25 Microsoft , Windows and Windows Vista are either registered ® ® ® trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh, Mac and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. All other trademarks are the property of their respective owners.
  • Page 26 4. The front transparent plate of the camera can then be pulled out. 5. Remove the paper plate under the transparent plate and you will find 4 screws. Use a screwdriver again to remove them. 6. The whole camera can then be disassembled. 7.
  • Page 27 KIDIZOOM ACTION CAM ® ACCESSORIES Waterproof Case Camera button Video button Strap hook Strap hook Mic hole Buckle handle Case body Buckle Left button Right button OK button O-ring Case cover...
  • Page 28 Insert the camera into the waterproof case 1. Be sure you have inspected the O-ring (refer to the later section for details about inspecting the O-ring) and checked for water leaks before inserting the camera. 2. If you have attached a wrist strap to the camera, detach it before inserting the camera to this unit.
  • Page 29 Notes on use • This waterproof case is operable up to a water depth of 2 meters for 30 minutes with the camera inserted. • The waterproof performance is in accordance with the current toy safety standards • Do not subject this unit to a jet of pressurised water. •...
  • Page 30 Perform the above maintenance each time you use this unit. In the unlikely event that a malfunction of this unit causes damage due to water leakage, VTech does not guarantee against damage to the equipment contained in it (camera, battery pack, etc.) and the recorded...
  • Page 31 Bike mount / Adhesive Mount / Camera Holder Camera Holder Bike mount Adhesive mount (mounting attachment + adhesive flat mount) Screw Screw knob Detachable buckle...
  • Page 32 QUICK SET UP GUIDE Make Kidizoom Action Cam ready to be mounted ® Insert your Kidizoom Action Cam on the camera holder / waterproof ® case if you would like to hold it on the bike mount or adhesive mount.
  • Page 33 2. Push the handle as illustrated below. If you cannot see the whole screw head, continue to turn the handle anti-clockwise until you can see the whole screw head exposed. 3. Pull out the handle as illustrated. 4. Attach the head tube clamp onto the head tube of the bike. Note: It is recommended to mount the camera on the head tube of the bike instead of the handle bar as illustrated.
  • Page 34 6. Mount the holder / waterproof case on the bike mount. Align the tripod screw hole on the camera holder / waterproof case to the screw of the bike mount. Screw the knob on the bike mount clockwise to fix the camera to the mount.
  • Page 35 3. Remove the protective cover of the adhesive surface and stick it on a clean, flat and smooth surface. Note: If the surface is not very flat or a bit curved, such as that of a helmet, add the extra two double-sided adhesive tape strips (included) onto the adhesive flat mount to improve the contact area between the surface and the adhesive flat mount.

  • Page 36: Important Note

    The mount can be detached from the adhesive part. Push the detachable buckle as shown in the illustration to separate the two parts. IMPORTANT NOTE: Creating and developing VTech ® products is accompanied by a responsibility that we take very seriously. We make every effort to ensure the accuracy of the information, which forms the value of our products.
  • Page 37 WRIST STRAP ATTACHMENT INSTRUCTIONS Step 1: Locate the thread loop on the end of the strap. Insert it into the groove behind the bar and then push it through. Step 2: Feed the end of the strap up through the loop and pull it all the way through.
