42 inch Class 720p Plasma HDTV
TC-42PX34
Model No.
GPH14DU Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC110442CE
B34 Canada: B62

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-42PX34

Summary of Contents for Panasonic TC-42PX34

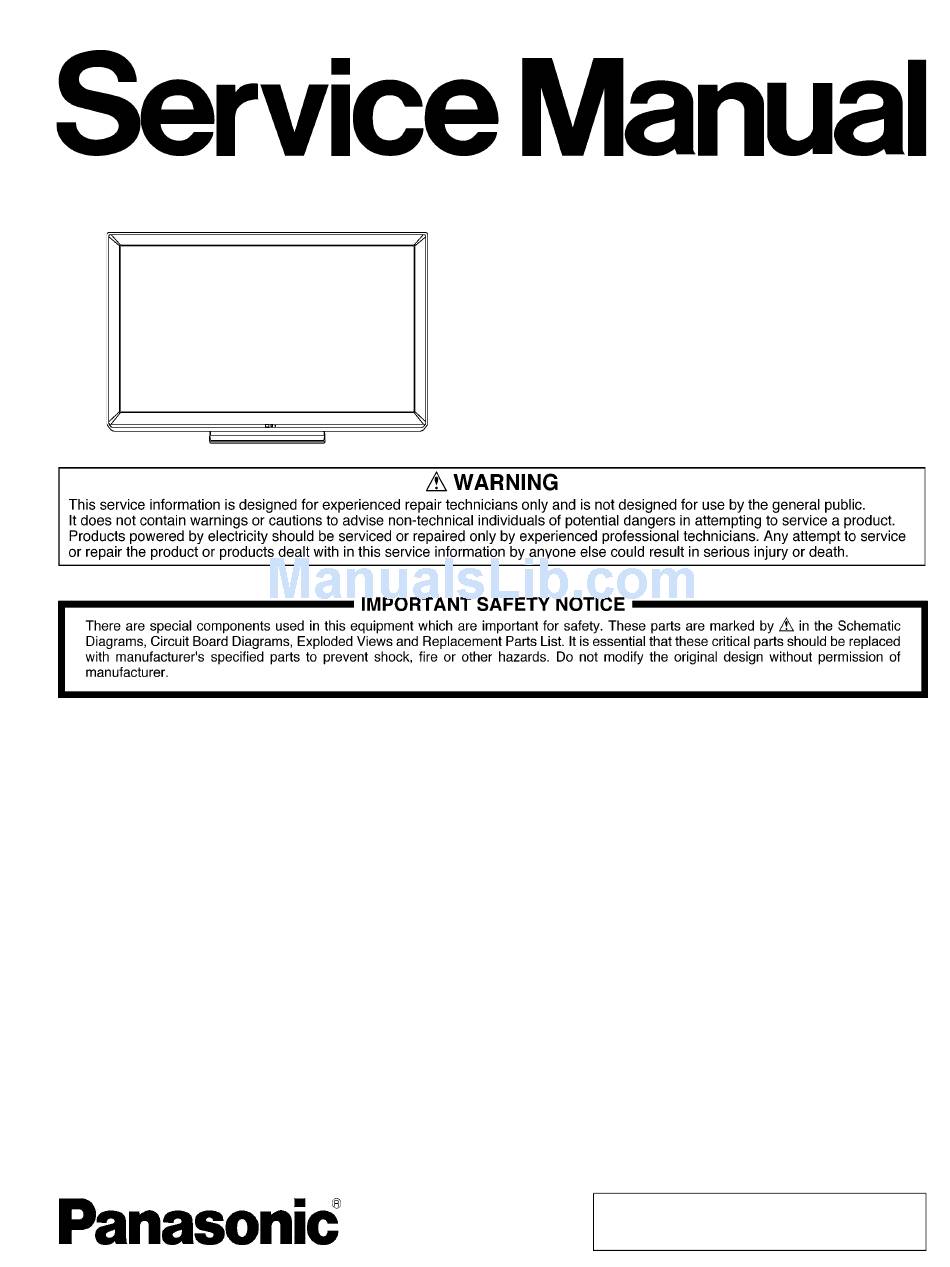

  • Page 1 ORDER NO.MTNC110442CE B34 Canada: B62 42 inch Class 720p Plasma HDTV TC-42PX34 Model No. GPH14DU Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 13 Exploded View 1.1. General Guidelines ----------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2. About lead free solder (PbF) ----------------------------5 3 Service Navigation------------------------------------------------6 3.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Non serviceable Data Driver (Lower Left) P-Board should be exchange for service Scan Drive Main AV input, processing Sustain Drive Remote receiver, Power LED, C.A.T.S. sensor...

  • Page 7: Applicable Signals

    3.2. Applicable signals * Mark: Applicable input signal for Component (Y, P ), HDMI horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI 525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080) /60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 120 V, 60 Hz Power Consumption Rated Power Consumption 193 W Standby condition 0.2 W Plasma Display panel Drive method AC type Aspect Ratio 16:9 Visible screen size 42 inch class (41.6 inches measured diagonally) (W ×...

  • Page 9: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode 5.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds 5.1.2.

  • Page 10: Contents Of Adjustment Mode

    Contents of adjustment mode 5.1.4. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 11: Option - Mirror

    5.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 12: Hotel Mode

    5.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Input Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched on.

  • Page 13: Data Copy By Sd Card

    5.5. Data Copy by SD Card 5.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 14 5.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 15 5.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 16: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access 6.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 17: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 18: No Picture

    6.4. No Picture...

  • Page 19: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 20: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Remove the Rear cover 7.4. Remove Side terminal cover 1. See PCB Layout (Section 3) 7.2. Remove the AC inlet 1. Remove the screws (×2 2. Remove the Side terminal cover. Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors.

  • Page 21: Remove The A-Board

    7.6. Remove the A-Board 7.8. Remove the SN-Board 1. Remove the Tuner unit. (See section 7.5.) 1. Remove the flexible cables (SN11, SN12, SN13, SN14, SN15, SN16, SN17 and SN18) connected to the SN- 2. Remove the screws (×2 ) and remove the A-Board. Board.

  • Page 22: Remove The Hanger Metals And The Stand Brackets

    7.10. Remove the Hanger metals and 7.11. Remove the C1-Board the Stand brackets 1. Remove the Hanger metal R and the Stand bracket R. (See section 7.10.) 1. Remove the Plasma panel section from the servicing 2. Remove the Flexible cable holder fastening screws (×8 stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing 3.

  • Page 23: Remove The Plasma Panel Section From The Cabinet Assy

    7.13. Remove the Plasma panel sec- 7.14. Remove the Glass holders tion from the Cabinet assy 1. Remove the Cabinet assy. (See section 7.13.) 2. Remove the screws (×5 1. Remove the Plasma panel fastening screws (×4 ) and 3. Remove the Glass holder top. remove the Cabinet assy.

  • Page 24: Replace The Plasma Panel

    7.16. Replace the Plasma panel Caution: A new Plasma panel itself without Hanger metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Hanger metals after assembling the Hanger metals and the Stand brackets. 1.

  • Page 25: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Adjustment 8.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 26 8.1.2. RF video sub contrast adjustment Instrument Name Remarks 1. REMOTE TRANSMITTER 2. RF analog signal (Sprit color bar. The pattern for adjustment must contain 100% white part.) Adjustment or Inspection Procedure Remarks 1. Receive the sprit color bar with RF analog signal. (ASPECT FULL, Picture menu: Vivid) 2.

  • Page 27: White Balance Adjustment

    4. Push [5] key of remote controller to display window pattern. 5. Confirm the brightness. The following is the confirmation value. TC-42PX34 117cd/m2 or more 6. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1. 7. Attach the sensor of color analyzer to the center of window pattern.

  • Page 31: Block Diagram

    9 Block Diagram 9.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1,2 (HDMI1) TMDS DATA HDMI I/F SIF_OUT SIF I/F SD CARD DATA SD CARD I/F SD CARD IFD_OUT TUNER TUNER I/F PEAKS-sLD2 CVBS/Y,PR/C,PB VIDEO INPUT VIDEO DDR3 I/F DDR3 AUDIO INPUT Y/PB/PR AV SW COMP...

  • Page 32: Block (1/4) Diagram

    9.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R D3050 DIGITAL JK8650 AUDIO JK4600 JK4601 TU4801 SD CARD HDMI1 HDMI2 MAIN AV INPUT,PROCESSING ANT IN TUNER DMD_ IIC0 Q4500 IC4900 AUDIO AMP SOUND15V SUB3.3V VDDSD18V33V X8300 24.576MHz IC3001 AV SW JK3000 V1_V V1_L TUNER VIDEO VIDEO...

  • Page 33: Block (2/4) Diagram

    9.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PD5L VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA P+3.3V Sub Filed Processor IC9304 P+3.3V P+3.3V SI/SO SOS8_SS IIC0 FLASH I/F FLASH SOS8_SS P_S0 DATA DRIVER CONTROL P_S0 P_S1 P_S1...

  • Page 34: Block (3/4) Diagram

    9.4. Block (3/4) Diagram POWER SUPPLY COLD COLD AC CORD Fuse AC Vin PHOTO (Live) Detection COUPLER (Neutral) FILTER STANDBY SS11 VOLTAGE CONVERTER T101 FET SW Vsus P+15V FET SW Relay F15V for prevention of inrush current F15V STB5V Drop IC SOUND15V OCP/OVP P+15V...

  • Page 35: Block (4/4) Diagram

    9.5. Block (4/4) Diagram SUSTAIN DRIVE SCAN DRIVE TPVSUS TPVSUS Vsus L16011 Vsus P+15V D16618 MAIN H Q16607 IC16131 Q16001 CERS IC16784,85 IC16684 Q16003 PC16897 BUFFER CPH1 IPD CIRCUIT TPVAD BUFFER Q16601 T16471 VAD GEN. TPSS1 IC16501 SHUNT REG Q16401 BUFFER Q16402 PLASMA...

  • Page 37: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring (1)

  • Page 38: Wiring (2)

    10.3. Wiring (2)

  • Page 39: Wiring (3)

    10.4. Wiring (3) 10.5. Wiring (4)

  • Page 40: Wiring (5)

    10.6. Wiring (5)
  • Page 41 Model No. : TC-42PX34 Schematic Diagram Note...
  • Page 42 Model No. : TC-42PX34 Replacement Parts List Note...
  • Page 43 Model No. : TC-42PX34 A-Board (1/16)
  • Page 44 Model No. : TC-42PX34 A-Board (2/16)
  • Page 45 Model No. : TC-42PX34 A-Board (3/16)
  • Page 46 Model No. : TC-42PX34 A-Board (4/16)
  • Page 47 Model No. : TC-42PX34 A-Board (5/16)
  • Page 48 Model No. : TC-42PX34 A-Board (6/16)
  • Page 49 Model No. : TC-42PX34 A-Board (7/16)
  • Page 50 Model No. : TC-42PX34 A-Board (8/16) and K-Board S-10...
  • Page 51 Model No. : TC-42PX34 A-Board (9/16) S-11...
  • Page 52 Model No. : TC-42PX34 A-Board (10/16) S-12...
  • Page 53 Model No. : TC-42PX34 A-Board (11/16) S-13...
  • Page 54 Model No. : TC-42PX34 A-Board (12/16) S-14...
  • Page 55 Model No. : TC-42PX34 A-Board (13/16) S-15...
  • Page 56 Model No. : TC-42PX34 A-Board (14/16) S-16...
  • Page 57 Model No. : TC-42PX34 A-Board (15/16) S-17...
  • Page 58 Model No. : TC-42PX34 A-Board (16/16) S-18...
  • Page 59 Model No. : TC-42PX34 C1-Board S-19...
  • Page 60 Model No. : TC-42PX34 C2-Board S-20...
  • Page 61 Model No. : TC-42PX34 SN-Board (1/6) S-21...
  • Page 62 Model No. : TC-42PX34 SN-Board (2/6) S-22...
  • Page 63 Model No. : TC-42PX34 SN-Board (3/6) S-23...
  • Page 64 Model No. : TC-42PX34 SN-Board (4/6) S-24...
  • Page 65 Model No. : TC-42PX34 SN-Board (5/6) S-25...
  • Page 66 Model No. : TC-42PX34 SN-Board (6/6) S-26...
  • Page 67 Model No. : TC-42PX34 SS-Board (1/2) S-27...
  • Page 68 Model No. : TC-42PX34 SS-Board (2/2) S-28...
  • Page 69 Model No. : TC-42PX34 A-Board (Foil side) S-29...
  • Page 70 Model No. : TC-42PX34 A-Board (Component side) S-30...
  • Page 71 Model No. : TC-42PX34 K-Board S-31...
  • Page 72 Model No. : TC-42PX34 C1-Board S-32...
  • Page 73 Model No. : TC-42PX34 C2-Board S-33...
  • Page 74 Model No. : TC-42PX34 SN-Board (Foil side) S-34...
  • Page 75 Model No. : TC-42PX34 SN-Board (Component side) S-35...
  • Page 76 Model No. : TC-42PX34 SS-Board S-36...
  • Page 77 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TXN/A1QJUUS CIRCUIT BOARD A 1 (RTL)PAVCA N0AE5JK00006 CIRCUIT BOARD P 1 PAVCA TXNC11PPUU CIRCUIT BOARD C1 1 (RTL)PAVCA TXNC21PPUU CIRCUIT BOARD C2 1 (RTL)PAVCA...
  • Page 78 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4810 F1G1A105A047 C 1UF 10V C4811 F1G1A105A047 C 1UF 10V C4816 F1G1C104A077 C 0.1UF 16V C4817 F1G1C104A077 C 0.1UF 16V C4820 F1G1H220A565 C 22PF, 50V...
  • Page 79 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8025 F1J1A106A087 C 10UF, 10V C8026 F1J0G2260001 C 22 UF 4 V C8028 F1G1C104A077 C 0.1UF 16V C8029 F1G1C104A077 C 0.1UF 16V C8031 F1G1C104A077 C 0.1UF 16V...
  • Page 80 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8620 F1G1C104A077 C 0.1UF 16V C8627 F1G1C104A077 C 0.1UF 16V C8629 F1J0G2260001 C 22 UF 4 V C8630 F1J0G2260001 C 22 UF 4 V...
  • Page 81 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9411 F1G1A105A047 C 1UF 10V C9413 F1G1A105A047 C 1UF 10V C9809 F1K0J226A049 C 22UF, 6.3V C9810 F1G1E1030005 C 0.01UF 25V C9811 F1G1E1030005 C 0.01UF 25V...
  • Page 82 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16310 F2A2T181A007 E 180UF, 220V C16315 ECJ1VB1A105K C 1UF, 10V C16316 ECJ1XB1C104K C 0.1UF, Z, 16V C16317 ECJ1VB1A105K C 1UF, 10V C16318 F1J1H104A717 C 0.1UF, 50V C16319 F1J1H104A717 C 0.1UF, 50V...
  • Page 83 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16856 ECJ1VB1A105K C 1UF, 10V C16858 ECJ1XB1C104K C 0.1UF, Z, 16V C16859 F1J1H104A717 C 0.1UF, 50V C16860 ECJ1VB1A105K C 1UF, 10V C16861 ECJ1XB1C104K C 0.1UF, Z, 16V...
  • Page 84 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16001 B0ECLP000010 DIODE 1 PAVCA D16002 B0ECLP000010 DIODE 1 PAVCA D16021 B0ECLP000010 DIODE 1 PAVCA D16101 B0JCME000093 DIODE D16131 B0ECKP000055 DIODE D16133 B0ACCJ000048 DIODE...
  • Page 85 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16728 B0ECKP000055 DIODE D16791 DZ2J240M0L ZENER DIODE D16822 B0ACCJ000048 DIODE D16823 B0ADCJ000100 DIODE D16824 B0ACCJ000048 DIODE D16825 DZ2J330M0L ZENER DIODE D16833 B0ECHR000004 DIODE IC3001 C1AB00003385...
  • Page 86 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC16785 C0DBZYY00352 IC16786 MIP3910MSSCF IC16787 C0DBZYY00352 IC16795 C0CBALC00012 IC16921 C1ZBZ0004292 IC17101 C0JBAU000088 IC17201 C0JBAU000088 IC17202 C0JBAU000089 JK3000 K1U816A00007 CONNECTOR UNIT 1 PAVCA JK4600 K1FY119D0017...
  • Page 87 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks PA5601 K5H5022A0031 FUSE PC14951 B3PBE0000059 1 PAVCA PC14952 B3PBE0000059 1 PAVCA PC16131 B3PBE0000060 PC16191 B3PBE0000060 PC16192 B3PBA0000580 PC16461 B3PBE0000058 PC16462 B3PBE0000060 PC16463 B3PBE0000060 PC16480 B3PBA0000580...
  • Page 88 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16891 DSA2001S0L TRANSISTOR Q16892 DSC2001Q0L TRANSISTOR R1010 D0GA101JA015 M 100 OHM, J,1/16W R1011 D0GA101JA015 M 100 OHM, J,1/16W R1013 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 89 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4602 D0GA103JA015 M 10KOHM,J,1/16W R4608 D0GA103JA015 M 10KOHM,J,1/16W R4609 D0GA103JA015 M 10KOHM,J,1/16W R4611 D0GA102JA023 M1KOHM, J.1/16 W R4612 D0GA473JA015 M 47KOHM, J,1/16W R4615 D0GA103JA015...
  • Page 90 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8001 D0GA331JA023 M 330 OHM, J,1/16W R8100 D1BB1301A087 M 1.3KOHM,J.1/10W R8102 D1BB2101A087 M 2.1KOHM,J.1/10W R8104 D1BB8200A087 M 820 OHM,J.1/10W R8106 D1BB2001A087 M 2KOHM,J.1/10W R8108...
  • Page 91 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8665 D0GA103JA015 M 10KOHM,J,1/16W R8666 D0GA103JA015 M 10KOHM,J,1/16W R8667 D0GA103JA015 M 10KOHM,J,1/16W R8668 D0GA103JA015 M 10KOHM,J,1/16W R8669 D0GA103JA015 M 10KOHM,J,1/16W R8670 D0GA103JA015 M 10KOHM,J,1/16W...
  • Page 92 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R9105 D0GA473JA015 M 47KOHM, J,1/16W R9198 EXB38V101JV M 100 OHM 1/16 W R9203 D0GA272JA023 M 2.7KOHM, J.1/16W R9205 D0GA333JA023 M 33KOHM,J,1/16W R9206 D0GA563JA023 M 56KOHM, J,0.063W...
  • Page 93 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16138 D0GF102JA048 M 1.0 KOHM,J,1/3W R16141 D0GD100JA059 M 10 OHM,J,1/4W R16143 D0GB473JA065 M 47KOHM J. 1/10W R16161 D0GD100JA059 M 10 OHM,J,1/4W R16163 D0GB473JA065 M 47KOHM J. 1/10W R16191 D1BD2700A044 M 270 OHM,J.1/8 W...
  • Page 94 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16515 D0D52R2KA005 M 2.2 OHM,J,5W R16517 D0GB473JA065 M 47KOHM J. 1/10W R16522 D0GF101JA048 M 100 OHM,J,1/3W 1 PAVCA R16525 D0GB4R7JA065 M 4.7 OHM J 1/10W...
  • Page 95 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16684 D0GB220JA065 M 22 OHM J 1/10W R16685 D1BD1500A044 M 150 OHM,J.1/8 W R16686 D0GB103JA065 M 10K OHM J 1/10W R16761 D0GD100JA059 M 10 OHM,J,1/4W R16763 D0GB473JA065 M 47KOHM J.
  • Page 96 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17135 D0GZ1R0JA020 M 1 OHM, J,1/2W R17137 D0GZ1R0JA020 M 1 OHM, J,1/2W R17161 D0GB470JA065 M 47 OHM,J,1/10W R17162 D0GB470JA065 M 47 OHM,J,1/10W R17163 D0GB681JA065...
  • Page 97 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks T16471 G4DYA0000253 SWITCHING TRANS T16472 G4DYA0000252 SWITCHING TRANS TU4801 ENGS6302D5F TUNER 1 PAVCA X8300 H0J245500113 CRYSTAL X9300 H0J200500076 CRYSTAL ZA16002 K4AZ01D00004 TERMINAL ZA16402 K4AZ01D00004...
  • Page 98 Model No. : TC-42PX34 Exploded View 1 S-58...
  • Page 99 Model No. : TC-42PX34 Exploded View 2 S-59...
  • Page 100 Model No. : TC-42PX34 Accessories S-60...
  • Page 101 Model No. : TC-42PX34 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0061100 BATTERY COVER 1 PAVCA K2AHYH000040 AC INLET WITH CABLE 1 PAVCA K2CG3YY00069 AC CORD(USA) 1 PAVCA MD42H14C1A PLASMA DISPLAY PANEL 1 PAVCA N2QAYB000570...
