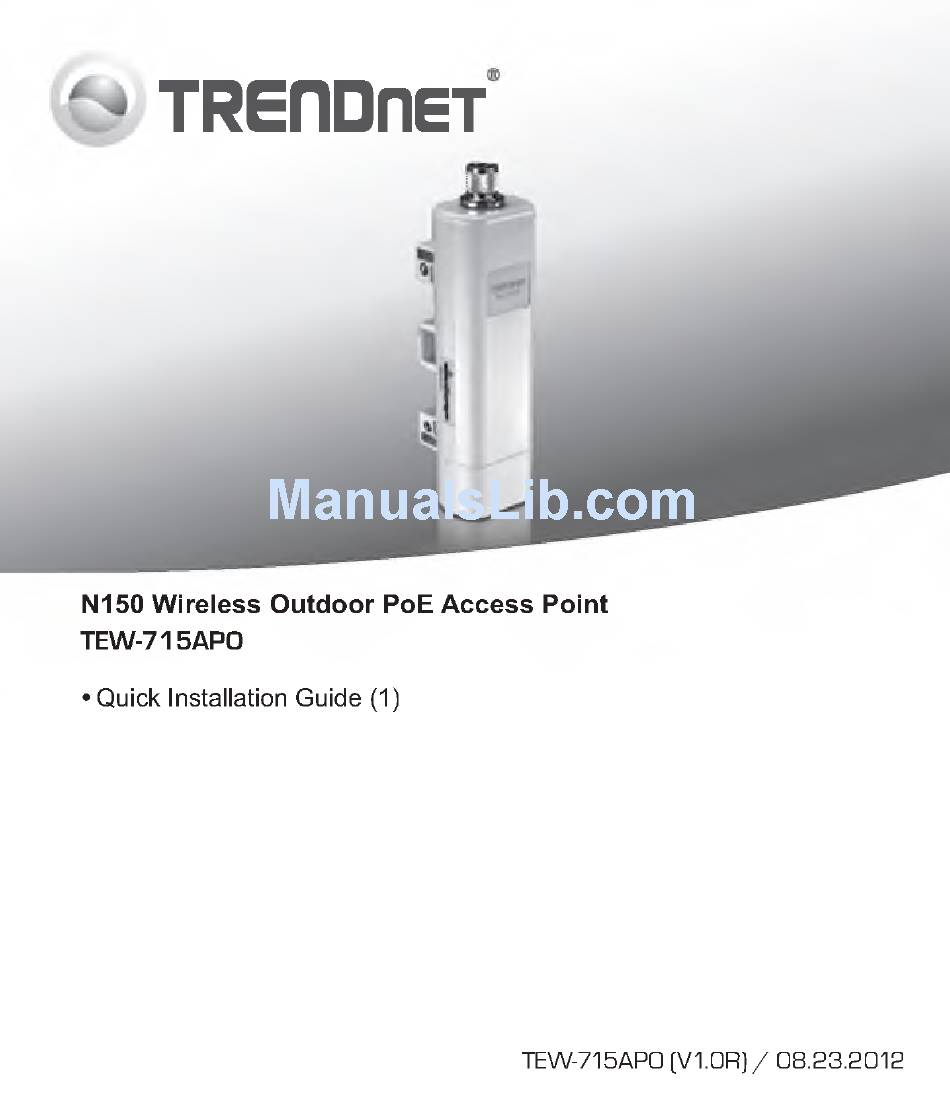

- Page 1 TRenDnET N 150 W ireless O u td o o r PoE A c cess P oint TEW -71 5A P 0 • Quick Installation Guide (1) TEW-715APO (V1.0R) / 08.23.2012...
-
Page 2: Minimum Requirements
• Power cord • Pole mounting clamp • Grounding wire Note: The TEW-715APO does not support IEEE 802.3af. You must use the proprietary Power over Ethernet injector that is supplied with the TEW-715APO. 2. Hardware Configuration N o te : 1. - Page 3 Phase 1: Configuration N o te : 1. The initial configuration should be completed in a testing environment with the two TEW -715APO's approximately 15 ft. (5 meters) apart from one another, 2. Configure and connect the devices before mounting. TEW-715APO...
- Page 4 1. W rite the MAC address of the two 9. Open your web browser, type the IP address TEW-715APOs. The MAC address can be of the access point in the address bar, and found on the back of the unit. then press Enter.
- Page 5 R o u te r IP A dd re ss: 192.168.10.1 S u b n e t M ask: 255.255.255.0 DHCP Pool: 192.168.10.100~192.168.10.199 The TEW-715APO will be setup with the following IP address assignment: IP A d d re s s: 192.168.10.200 19. C lick OK.
- Page 6 N ote: 1. Leave TEW-715APO #2 connected to your computer, 2. Connect TEW-715APO #1 to a LAN port of a router on your network. 3. To verify connectivity, run your computer's command prompt and ping TEW-715APO #1's assigned IP address from your computer.
-
Page 7: Hardware Installation
3. Hardware Installation B u ild in g 1 B u ild in g 2... -
Page 8: Connecting The Grounding Wire
1. Refer to the above diagram. 2. Mount the TEW -715APOs in your desired location. See Pole M ou n ting the TEW -715APO for mounting instructions. 3. Connect the TEW -715APOs to their respective network. 4. Confirm that the TEW -715APOs are facing each other, 5. - Page 9 3. W rap the mounting clamp around a pole. Pole Mounting the TEW-715APO N o te : The pole mounting clamp supports poles with a maximum diam eter of 63mm (2.48 inches). 1. Turn the screw on the pole mounting clamp counter clockwise.
-
Page 10: Declaration Of Conformity
Declaration of Conformity TREflDnET Company Information: Company Name: TRENDnet, Inc. Company Address: 20675 Manhattan Place Torrance, CA 90501 Product Information: Product Description: N150 Wireless Outdoor PoE Access Point Model Number: TEW-715APO Brand name: TRENDnet Technical Standards: EN 300 328 V l.7 .1 :10-2006 EN 301489-1 V l.9 .2 :09-2011... - Page 11 Public License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM. Please also go to (http://www.gnu.org/licenses/gpl.txt) or (http://www.gnu.org/licenses/lgpl.txt) for specific terms of each license.
- Page 12 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes codigos sao distribwdos SEM GARANTIA e estao sujeitos aos direitos autorais dos desenvolvedores. TRENDnet nao presta suporte tecnico a estes codigos. Os detalhes do GNU GPL e do LGPL estao no CD-ROM do produto. Favor acessar http://www.gnu.org/licenses/gpl.txt ou http://www.gnu.org/licenses/lgpl.txt para os termos especficos de cada licenga.
-
Page 13: Product Warranty Registration
T R E N D n et 2 0 6 7 5 M a n h a tta n Place Torrance, CA 9 0 5 0 1 . USA C opyright © 2 0 1 2 . All Rights Reserved. TRENDnet.
