51AKB / 51 AKC
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Carrier 51AKB

Summary of Contents for Carrier 51AKB

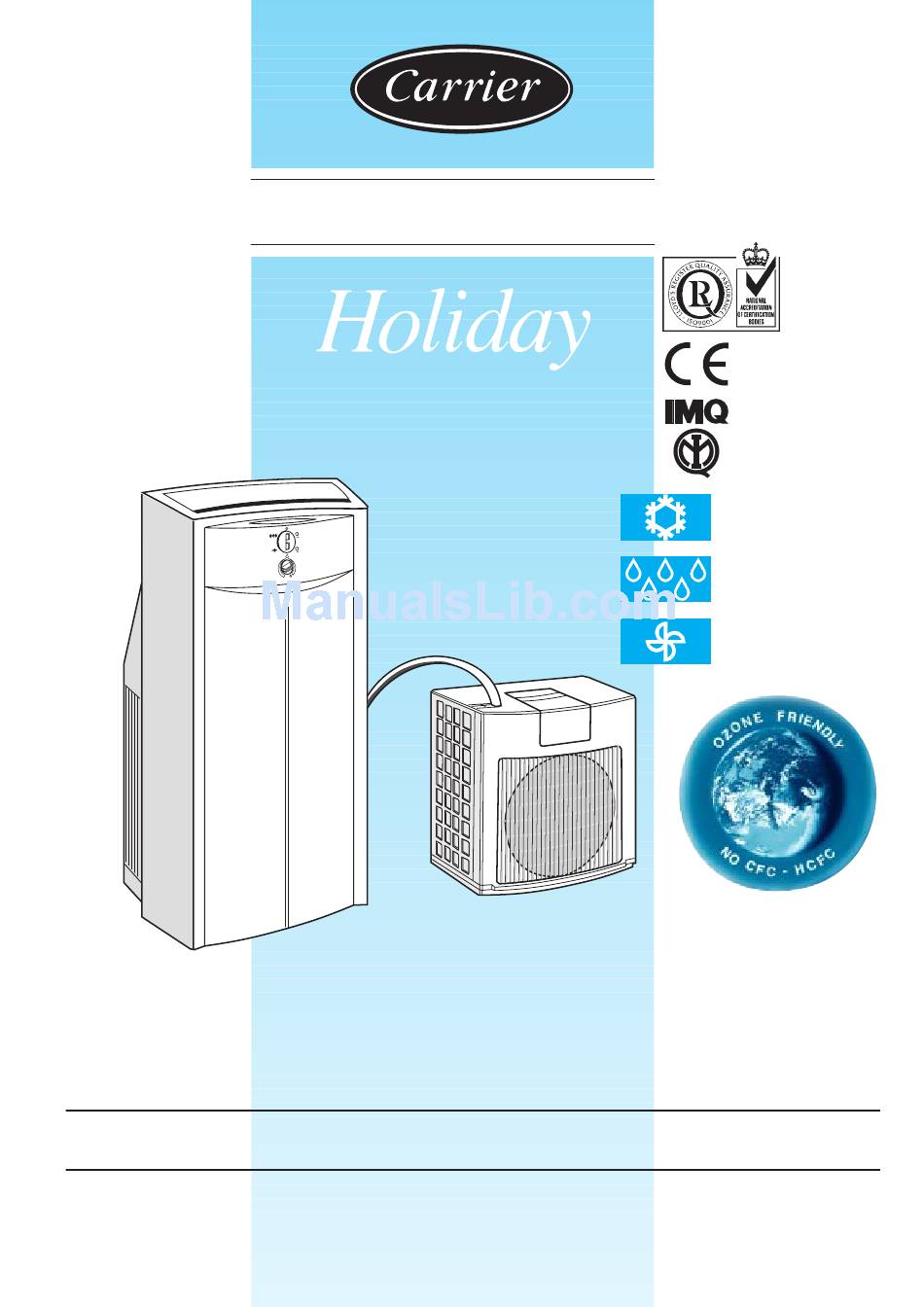

  • Page 1 51AKB / 51 AKC OWNER’S MANUAL...

  • Page 2: Table Of Contents

    This manual applies to the following models Contents 51AKB 009 Page 51AKB 012 Control panel ............ 1 Accessories supplied ........1 51AKC 009 General information ......... 2 Correct use ............ 2/3 Preparing to use ..........4 51AKC 012 Cooling with dehumidification ......5 Dehumidification ..........

  • Page 3: General Information

    General information • Check that the power supply at the installation cooling with dehumidification: remove it carefully. The unit must then be site is 230 V (min. 198 V - max. 264 V). indoor temp.: min. 21°C d.b. - 15°C w.b. delivered to an appropriate disposal center •...
  • Page 4 Correct use E N G L I S H 5 MIN. Always disconnect the cable from the power socket before moving or cleaning When switching off or moving the unit to Do not obstruct the sides, front and rear the unit. another place wait at least 5 minutes grille with curtains or other objects.

  • Page 5: Preparing To Use

    Preparing to use Outdoor section may be placed on the ground or a balcony or hung from a window sill using the straps and bracket Place the outdoor unit outside, ensuring that air can provided. circulate freely around and through the unit. For window sill installation use the supplied bracket and screws.

  • Page 6: Cooling With Dehumidification

    Cooling with dehumidification E N G L I S H Place the flexible tube between two shutters set ajar. Place the outdoor unit outside, ensuring that air can circulate freely around Hold the hose end in position with the and through the unit. fastening strap and suction cup.

  • Page 7: Dehumidification

    Dehumidification TURBO SILENT The dehumidification only function should be used if you want to remove moisture from the room air without lowering Plug the unit in. the temperature. Open the air flow direction guide vane. Place the unit in the space to be dehumidified (room, garage, Turn the mode selector to the dehumidification symbol.

  • Page 8: Fan Only

    Fan only E N G L I S H TURBO SILENT If the air conditioner is to be used in the fan only mode (ventilation) the outdoor unit can be placed either Plug the unit in. Turn the mode selector to the high or outside or inside the room.

  • Page 9: In Case Of

    In case of… ... the water collection tank is correctly inserted in its position. If the unit is not used for extended periods: • Empty the remaining condensate water through the drain tube at the If the unit appears not to be operating back of the unit.
  • Page 10 L010121H12 - 0398 Via R. Sanzio, 9 - 20058 Villasanta (MI) Italy - Tel. 039/3636.1 The manufacturer reserves the right to change any product specifications without notice. Order No. 15157-74M8, March 1998. Supersedes Order No. 15157-74, February 1997. Printed in Italy...

This manual is also suitable for:

51 akc
