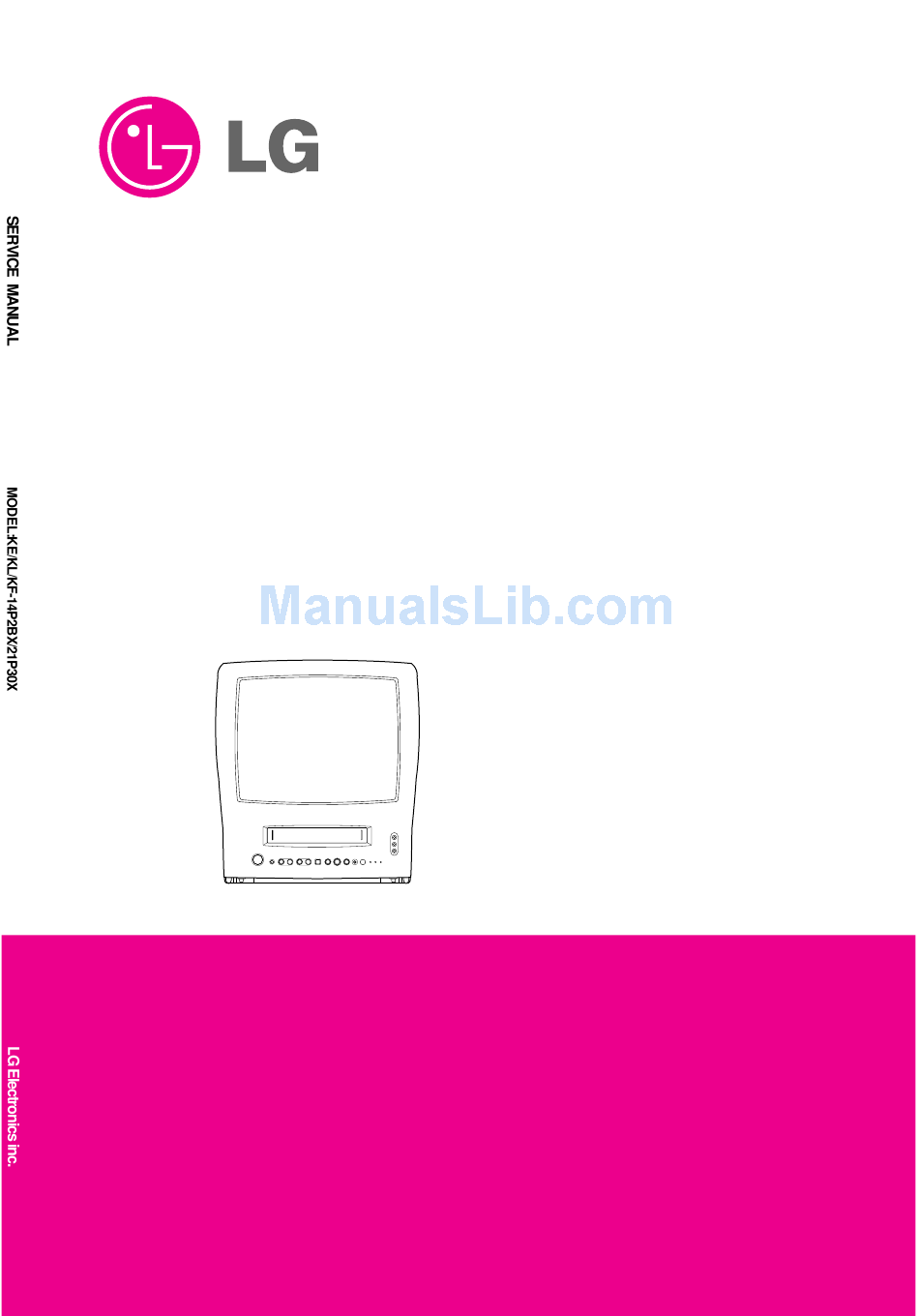

LG KB-14P2B Service Manual

Hide thumbs Also See for KB-14P2B:
Table of Contents

Advertisement

Quick Links

TVCR
SERVICE MANUAL
CHASSIS : MV-995B
MODEL : KB/KE/KL/KF-14P2B/G/P/S
MODEL :
MODEL :
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
KB/KE/KL/KF-14P2BX/GX/PX/SX
KB/KE/KL/KF-20/21P30X
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
