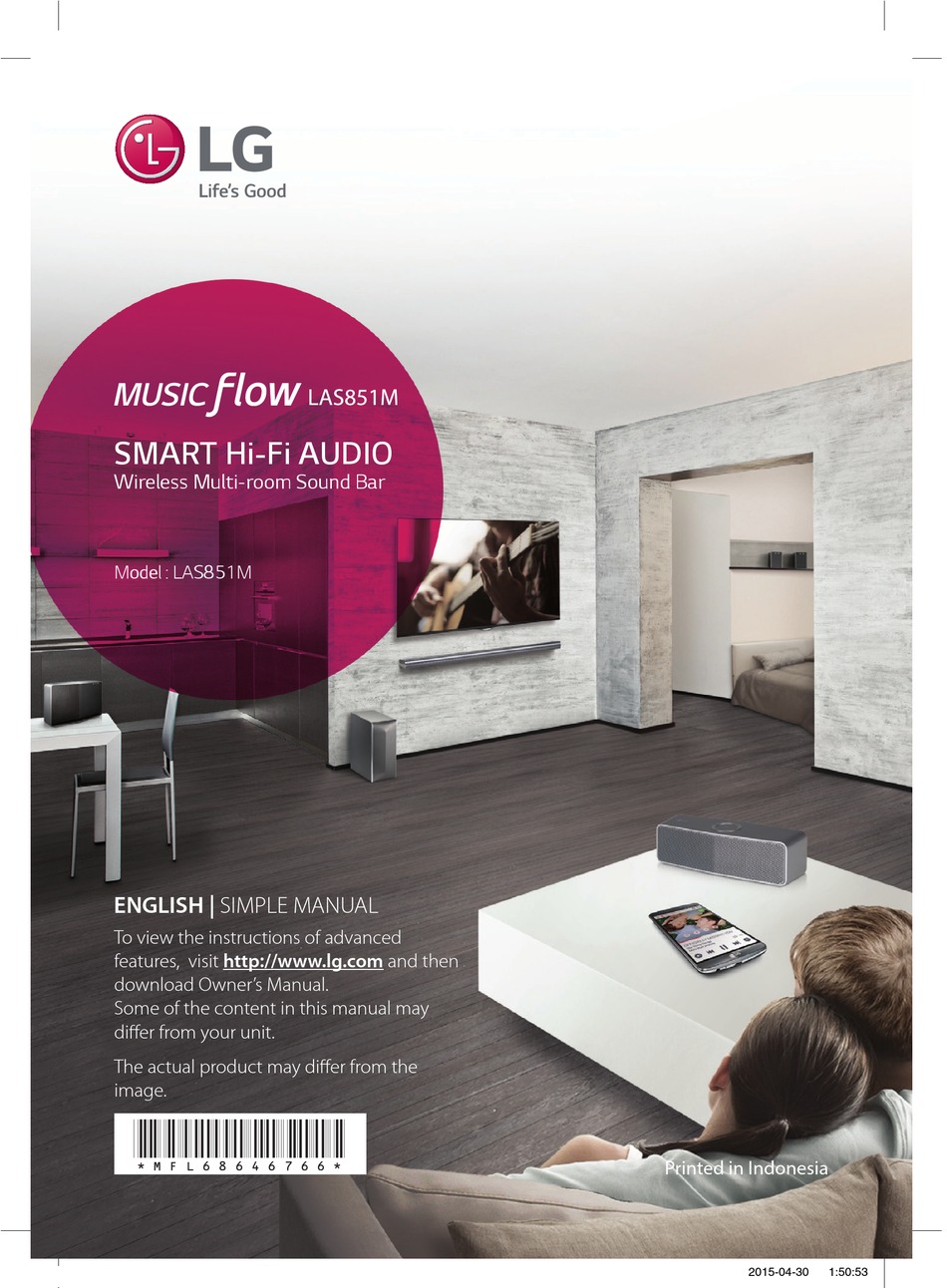

User Manual
SMART Hi-Fi AUDIO
Wireless Multi-room Sound Bar
Model : LAS851M
ENGLISH | SIMPLE MANUAL
To view the instructions of advanced
features, visit http://www.lg.com and then
download Owner's Manual.
Some of the content in this manual may
differ from your unit.
The actual product may differ from the
image.
*MFL68646766*
Printed in Indonesia
LAS651M_BUSALLA_SIM_ENG_6766.indd 1
2015-04-30
1:50:53
Advertisement
Table of Contents
Related Manuals for LG LAS851M
Summary of Contents for LG LAS851M
- Page 1 Wireless Multi-room Sound Bar Model : LAS851M ENGLISH | SIMPLE MANUAL To view the instructions of advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit. The actual product may differ from the image.
- Page 2 Getting Started Getting Started Safety Information in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CAUTION NOTICE: For safety marking information including product identification and supply ratings, please RISK OF ELECTRIC SHOCK refer to the main label on the bottom or the other DO NOT OPEN...
-
Page 3: Getting Started
Responsible Party : on, the user is encouraged to try to correct the LG Electronics USA, Inc.1000 Sylvan Avenue interference by one or more of the following Englewood Cliffs, NJ 07632 measures: TEL. -
Page 4: Important Safety Instructions
Getting Started IMPORTANT SAFETY 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has INSTRUCTIONS been damaged in any way, such as power- supply cord or plug is damaged, liquid has been 1. Read these instructions. spilled or objects have fallen into the apparatus, 2. -
Page 5: Table Of Contents
Table of Contents Table of Contents Getting Started Using External device Safety Information Using External device – IMPORTANT SAFETY – 1. HDMI Input connection INSTRUCTIONS – 2. PORTABLE IN connection – 3. BLUETOOTH® connection Unpacking – Additional Information for some accessories Troubleshooting Front panel... -
Page 6: Unpacking
Adapter and power cord Wall brackets and Subwoofer Optical cable screws LAN cable LG Tag On Sticker Wall bracket install guide y When mounting this unit on a wall, refer to page 22. Additional Information for some accessories Subwoofer 1. Connect the supplied AC power cord to the AC adapter. -
Page 7: Front Panel
Getting Started Front panel A Display window (Add): Adds additional MUSICflow B Remote sensor products to your network. C LED indicator: Shows connection status. (In case one or more MUSICflow products are (Page 23) connected) y White (blinking): waiting for network (Wi-Fi): Connects initial MUSICflow connection product to your network wirelessly. -
Page 8: Remote Control
Getting Started Remote control (Mute) : Mutes the sound. OPTICAL : Changes input source to OPTICAL directly. SOUND EFFECT : Selects a sound effect mode. WOOFER LEVEL : Sets the sound level of woofer. o/p (VOL) : Adjusts speaker volume. •... -
Page 9: Connecting To Your Tv
You can control some functions of this unit by your TV’s remote control with LG Sound Sync. It is compatible with the LG TV that is supported LG Sound Sync. Make sure of the LG Sound Sync logo on your TV. -
Page 10: Using Multi-Room
Using Multi-Room Using Multi-Room Multi-Room Network Setup Step 1. Home Network Requirement a Make sure that a wireless network environment using a router is installed at your home. The home router should be connected to the internet. b Connect your smart device to your home network. c Connect the speaker to the power supply. -
Page 11: Step 2. Installing "Music Flow Player
Media server software allows you to access audio files stored in media server (PC, Mac or Network storage) and enjoy them on your speaker via home networking. On www.lg.com website, type model name in the search bar and find media server software on support tab. -
Page 12: Step 3. Initial Multi-Room Setup
Using Multi-Room Step 3. Initial Multi-Room Setup When installing the MUSICflow product for the first time, you can choose two types of connection as below. Option 1. Wireless connection (Standard Wireless Connection) MUSICflow products offer music streaming service within home router’s Wi-Fi coverage. Connect one of the MUSICflow products (sound bar, speaker) to the home router wirelessly. - Page 13 Using Multi-Room Option 2. Wired connection (MUSICflow Mesh Network Connection) Connect the one of MUSICflow products (sound bar, speaker or bridge) to the home router using LAN cable. Then you can connect the additional MUSICflow products (Optional) to your home network wirelessly (MUSICflow Mesh Network).
-
Page 14: Step 4. Add Speakers (Optional)
Using Multi-Room m Tip Offers music streaming service in MUSICflow system within home router’s Wi-Fi coverage. In the below case, Standard wireless connection is recommended. 1. When all speakers are within the home router’s Wi-Fi coverage. (If case that your home router supports 802.11n 2.4/5 GHz ) 2. -
Page 15: Using The Bridge
Using Multi-Room , Note for Multi-Room Setup y You can make all wireless/wired connection according to the location of the router. But we recommend that you connect the first speaker or bridge to the router using LAN cable and connect additional speakers for network stability. -
Page 16: Enjoying Multiple Musicflow Product
Enjoying Multiple MUSICflow Product 1. Home Cinema Mode (Surround Sound Mode) Simply add a LG MUSICflow sound bar to your network and synchronize it with your LG MUSICflow speakers to enjoy a home cinema system experience. If you have a bridge Bridge (Wired Connection) à... -
Page 17: Using External Device
1. Select the input source of this unit to Bluetooth function using FUNC button. “BT READY” appears on the display window. 2. Select “Music Flow LAS851M (XX:XX)” on your Bluetooth device for pairing. 3. When this unit is successfully connected with your Bluetooth device, “PAIRED” will appear on the display window and change to Bluetooth device name soon. -
Page 18: Troubleshooting
Troubleshooting Troubleshooting Troubleshooting 4. Disconnect the power cord of the main unit and the wireless subwoofer. 5. Connect them again after the LED of the main unit and the wireless subwoofer is fully turned No woofer sound off. The main unit and the wireless subwoofer You can set up wireless connection manually, when will be paired automatically when you turn on your connection is not completed. -
Page 19: Software Update
Troubleshooting Software Update There are times that speaker disappears from the application When the MUSICflow device is connected to your home network, check whether the firmware version 1. If the speaker blinking lamp is not blinking, and is the latest on all speakers and the Music Flow stays as white: Even after the speaker power Player application. - Page 20 3. Even if you connected speakers with MUSICflow y If you are using LG Musicflow PC software, mesh network, music sound breaks by ambient when you designate shared folder, the...
- Page 21 How can I use Spotify? y You must use the HDMI cable (Type A, High Speed HDMI™ cable with Ethernet). LG MUSICflow product supports Spotify connect method provided by Spotify. Through this, you y You must connect the HDMI OUT (TV ARC) on...
-
Page 22: Appendix
Appendix Appendix Mounting the main 2. When you mount it on a wall (concrete), use the wall plugs. You should drill some holes. A guide unit on a wall sheet (Wall bracket install guide) is supplied to drill. Use the sheet to check the point to drill. Preparation materials Unit Wall bracket install... -
Page 23: About Status Led's Condition
Bluetooth: Codec SBC LG Electronics will also provide open source code Dimensions (W x H x D): (1020 x 42 x 82) mm to you on CD-ROM for a charge covering the cost ((40.2 x 1.7 x 3.2) inch) (with Foot) - Page 24 LG Customer Information Center 1-800-243-0000 USA, Consumer 1-888-865-3026 USA, Commercial Register your product Online! www.lg.com LAS651M_BUSALLA_SIM_ENG_6766.indd 24 2015-04-30 1:51:07...
