EEDEN09-100
technical data

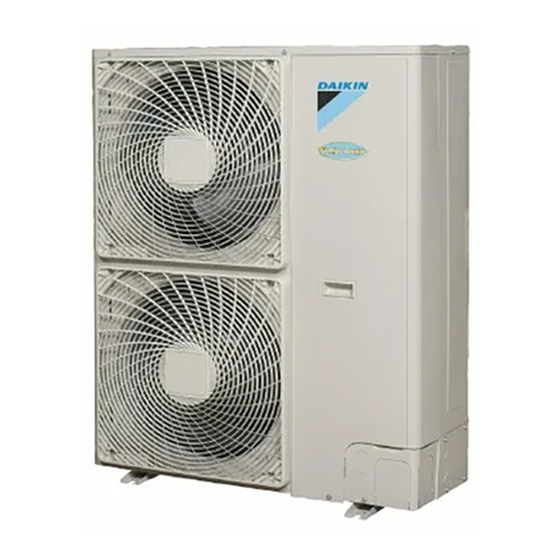

RZQS-DV1
Split
Sky Air

Advertisement

Table of Contents
loading

Related Manuals for Daikin RZQS71D7V1B

Summary of Contents for Daikin RZQS71D7V1B

  • Page 1 EEDEN09-100 technical data RZQS-DV1 Split Sky Air...
  • Page 2 “ The present publication is drawn up by way of information only Het ISO14001 assures an effective ufacturer of air conditioning equip- and does not constitute an offer binding upon Daikin Europe N.V.. environmental management system in order to ment, compressors and refrige- Daikin Europe N.V.
  • Page 3 EEDEN09-100 technical data RZQS-DV1 Split Sky Air...

  • Page 4: Table Of Contents

    • Outdoor Units • R-410A • RZQS-DV1 TABLE OF CONTENTS RZQS-DV1 Features ............. 5 Specifications .

  • Page 5: Features

    This innovative Daikin unit provides a more comfortable environment and offers great savings in energy • Daikin outdoor units are neat and sturdy and can be mounted easily consumption to shop and office owners. on a roof or terrace or simply placed against an outside wall.

  • Page 6: Specifications

    • Outdoor Units • R-410A • RZQS-DV1 Specifications 2-1 NOMINAL CAPACITY AND NOMINAL INPUT RZQS71D7V1B RZQS100D7V1B RZQS125D7V1B RZQS140D7V1B For combination indoor Indoor Units FCQ71C7VEB FCQ100C7VEB FCQ125C7VEB FCQ140C7VEB units + outdoor units Cooling capacity Standard 10.0 12.5 14.0 Heating capacity Standard 11.2...

  • Page 7: Technical Specifications

    • Outdoor Units • R-410A • RZQS-DV1 Specifications 2-1 NOMINAL CAPACITY AND NOMINAL INPUT RZQS71D7V1B RZQS100D7V1B RZQS125D7V1B RZQS140D7V1B For combination Nominal 2.81 2.81 2.81 indoor units + outdoor Nominal 3.21 3.21 3.21 units Energy Label Cooling Heating Annual energy consumption...

  • Page 8: Electrical Specifications

    • Outdoor Units • R-410A • RZQS-DV1 Specifications 2-2 TECHNICAL SPECIFICATIONS RZQS71D7V1B RZQS100D7V1B RZQS125D7V1B RZQS140D7V1B Refrigerant Type R-410A Charge 2.75 Control Expansion valve (electronic type) Nr of Circuits Refrigerant Oil Type FVC50K Daphne FVC68D Daphne FVC68D Daphne FVC68D Charged Volume 0.75...

  • Page 9: Electrical Data

    • Outdoor Units • R-410A • RZQS-DV1 Electrical data RZQS71-140DV1 Unit combination Power supply Comp. Indoor uni t Outdoor uni t Hz-volts Voltage range MCA TOCA MFA MSC RLA NOTES RLA is based on the following conditions: Power supply: 50Hz - 230V Cooling Indoor temperature 27°CDB/19°CWB Outdoor temperature 35°CDB...

  • Page 10: Options

    • Outdoor Units • R-410A • RZQS-DV1 Options RZQ(S)71-140DV1 Kit name RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B Name of option RZQS71D7V1B RZQS100D7V1B RZQS125D7V1B RZQS140D7V1B RZQ100B8W1B RZQ125B8W1B RZQ140B8W1B Central drain plug EKDK04 Twin KHRQ22M20TA (KHRQ58T): see note Triple KHRQ127H (KHRQ58H): see note Refrigerant branch piping...

  • Page 11: Capacity Tables

    • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 1 Combination table RZQ(S)71-140DV1 Multi Combination Possibilities: P = Pair 2 = Twin 35+35 50+50 60+60 71+71 3 = Triple 35+35+35 50+50+50 (*) 50+50+50 (*) 4 = Double Twin 35+35+35+35 (*) 35+35+35+35 (*) Max capacity depend on outdoor unit...

  • Page 12: Cooling Capacity Tables

    • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS71DV1 Cooling Capacity range Rated point Cooling capacity (kW) Cooling capacity Indoor Outdoor temp. (°CDB) (°C) (°C) (kW) (kW) (kW) (kW) (kW) (kW) (kW) (kW) 3DTW3172-2 NOTES SYMBOLS...
  • Page 13 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS100DV1 Cooling Capacity range Rated point Cooling capacity (kW) Cooling capacity Indoor Outdoor temp. (°CDB) (°C) (°C) (kW) (kW) (kW) (kW) (kW) (kW) (kW) (kW) 3TW31722-2 NOTES SYMBOLS...
  • Page 14 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS125DV1 Cooling Capacity range Rated point Cooling capacity (kW) Cooling capacity Indoor Outdoor temp. (°CDB) (°C) (°C) (kW) (kW) (kW) (kW) (kW) (kW) (kW) (kW) 3TW31732-2 NOTES SYMBOLS...
  • Page 15 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS140DV1 Cooling Capacity range Rated point Cooling capacity (kW) Cooling capacity Indoor Outdoor temp. (°CDB) (°C) (°C) (kW) (kW) (kW) (kW) (kW) (kW) (kW) (kW) 3TW31742-2 NOTES SYMBOLS...
  • Page 16 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS140DV1 Cooling Capacity range Rated point Cooling capacity (kW) Cooling capacity Indoor Outdoor temp. (°CDB) (°C) (°C) (kW) (kW) (kW) (kW) (kW) (kW) (kW) (kW) 3TW31742-3 NOTES SYMBOLS...
  • Page 17 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 2 Cooling capacity tables RZQS71-140DV1 Capacity in function of field piping length for non-inverter Capacity (%) Field piping length (m) Cooling Heating 3TW31712-1 • Split Sky Air • Outdoor Units...

  • Page 18: Heating Capacity Tables

    • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 3 Heating capacity tables RZQS71DV1 Heating Rated point Capacity range Heating capacity (kW) Heating capacity Indoor Outdoor temp. (°CDB) (°C) (kW) (kW) (kW) (kW) (kW) 3TW31712-2 NOTES SYMBOLS 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat AFR: Air flow rate /min)
  • Page 19 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 3 Heating capacity tables RZQS100DV1 Heating Rated point Capacity range Heating capacity (kW) Heating capacity Indoor Outdoor temp. (°CDB) (°C) (kW) (kW) (kW) (kW) (kW) 3TW31722-2 NOTES SYMBOLS 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat AFR: Air flow rate /min)
  • Page 20 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 3 Heating capacity tables RZQS125DV1 Heating Capacity range Rated point Heating capacity (kW) Heating capacity Indoor Outdoor temp. (°CDB) (°C) (kW) (kW) (kW) (kW) (kW) 3TW31732-2 NOTES SYMBOLS 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat AFR: Air flow rate /min)
  • Page 21 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 3 Heating capacity tables RZQS140DV1 Heating Rated point Capacity range Heating capacity (kW) Heating capacity Indoor Outdoor temp. (°CDB) (°C) (kW) (kW) (kW) (kW) (kW) 3TW31742-2 NOTES SYMBOLS 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat AFR: Air flow rate /min)
  • Page 22 • Outdoor Units • R-410A • RZQS-DV1 Capacity tables 5 - 3 Heating capacity tables RZQS140DV1 Heating Capacity range Rated point Heating capacity (kW) Heating capacity Indoor Outdoor temp. (°CDB) (°C) (kW) (kW) (kW) (kW) (kW) 3TW31742-3 NOTES SYMBOLS 1. Ratings shown are net capacities which include a deduction for indoor fan motor heat AFR: Air flow rate /min)

  • Page 23: Dimensional Drawing & Centre Of Gravity

    • Outdoor Units • R-410A • RZQS-DV1 Dimensional drawing & centre of gravity 6 - 1 Dimensional drawing unit (mm) RZQS71DV1 Hole for anchor bolt Gas pipe connection J15.9 flare 4-M12 Liquid pipe connection - J9.5 flare Service port (in the unit) Grounding terminal M5 (in switch box) Refrigerant piping intake Power supply wiring intake (knock out hole J34)

  • Page 24: Centre Of Gravity

    • Outdoor Units • R-410A • RZQS-DV1 Dimensional drawing & centre of gravity 6 - 2 Centre of gravity RZQS71DV1 4TW30469-3 RZQS100,125,140DV1 4TW29169-4 • Split Sky Air • Outdoor Units...

  • Page 25: Piping Diagram

    • Outdoor Units • R-410A • RZQS-DV1 Piping diagram RZQS71-140DV1 (Pair) Electronic expansion valve Heat exchanger Filter Filter 4-way valve Heat exchanger High pressure Low pressure switch sensor Field piping J9.5 C1220T-0 Service port Compressor 5/16″ Filter Field piping J15.9 C1220T-0 Accumulator Indoor unit Outdoor unit...

  • Page 26: 7 Piping Diagram

    • Outdoor Units • R-410A • RZQS-DV1 Piping diagram RZQS100,125,140DV1 (Triple) Indoor unit Heat exchanger Electronic expansion valve Stop valve Heat exchanger (with service port 5/16’ flare) Filter Filter Field piping Filter Field piping Indoor unit Heat exchanger 4-way valve High pressure Field piping J9.5 Low pressure...

  • Page 27: Wiring Diagram

    • Outdoor Units • R-410A • RZQS-DV1 Wiring diagram 8 - 1 Wiring diagram RZQS71DV1 Indoor : Printed circuit board (Main) : Printed circuit board (Inverter) BS1∼BS4 : Push button switch C1∼C3 : Capacitor : Dip switch Outdoor : Fuse (T 6.3A / 250V) : Fuse (T 3.15A / 250V) H1P∼7P (A2P) : Light emitting diode (service monitor orange)

  • Page 28: Sound Data

    • Outdoor Units • R-410A • RZQS-DV1 Sound data 9 - 1 Sound pressure spectrum RZQS71DV1 - Cooling RZQS71DV1 - Heating 3TW30467-2 3TW30467-1 Octave band center frequency (Hz) Octave band center frequency (Hz) NOTES NOTES Data is valid at free field condition Data is valid at free field condition Data is valid at nominal conditions.
  • Page 29 • Outdoor Units • R-410A • RZQS-DV1 Sound data 9 - 1 Sound pressure spectrum RZQS125DV1 - Cooling RZQS125DV1 - Heating 3TW29167-2 3TW29167-1 Octave band center frequency (Hz) Octave band center frequency (Hz) NOTES NOTES Data is valid at free field condition Data is valid at free field condition Data is valid at nominal conditions.

  • Page 30: Sound Power Spectrum

    • Outdoor Units • R-410A • RZQS-DV1 Sound data 9 - 2 Sound power spectrum RZQS71DV1 RZQS100DV1 3TW30467-3 3TW0477-3 Octave band center frequency (Hz) Octave band center frequency (Hz) NOTES NOTES dB(A) = A-weighted sound pressure level (A-scale according to IEC) dB(A) = A-weighted sound pressure level (A-scale according to IEC) Reference acoustic intensity 0dB = 10E-6μW/m Reference acoustic intensity 0dB = 10E-6μW/m...

  • Page 31: Installation

    • Outdoor Units • R-410A • RZQS-DV1 Installation 10 - 1 Installation method RZQS71-140DV1 A. Non stacked installation Legend Suction side obstacle Discharge side obstacle Left side obstacle Right side obstacle Top side obstacle Obstacle is present In these cases, close the bottom of the installation frame to prevent discharged air from being bypassed.

  • Page 32: Operation Range

    • Outdoor Units • R-410A • RZQS-DV1 Operation range RZQS71-140DV1 (Cooling) (Heating) Indoor temp. (°CWB) Indoor temp. (°CDB) NOTE Depending on operation and istallation conditions. The indoor unit can change over to freeze-up operation (indoor de-icing) To reduce the freeze-up operation (indoor de-icing) frequency it is recommended to install the outdoor unit in a location not exposed to wind. 3TW29063-1D •...
