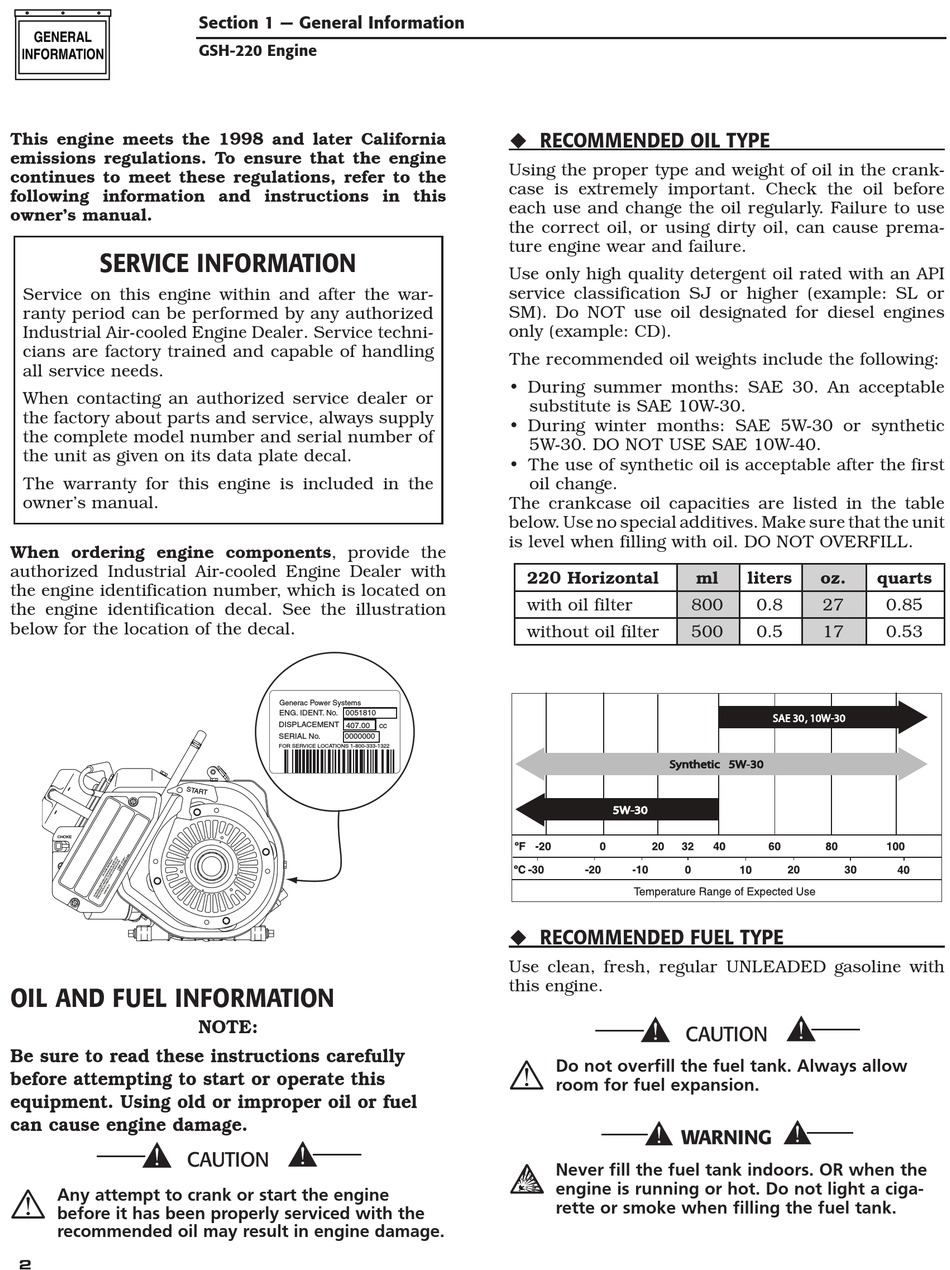

This engine meets the 1998 and later California
emissions regulations. To ensure that the engine
continues to meet these regulations, refer to the
following information and instructions in this
owner's manual.
seRviCe infoRMaTion
Service on this engine within and after the war-
ranty period can be performed by any authorized
Industrial Air-cooled Engine Dealer. Service techni-
cians are factory trained and capable of handling
all service needs.
When contacting an authorized service dealer or
the factory about parts and service, always supply
the complete model number and serial number of
the unit as given on its data plate decal.
The warranty for this engine is included in the
owner's manual.
When ordering engine components, provide the
authorized Industrial Air-cooled Engine Dealer with
the engine identification number, which is located on
the engine identification decal. See the illustration
below for the location of the decal.
CHOKE
oil and fuel infoRMaTion
Be sure to read these instructions carefully
before attempting to start or operate this
equipment. Using old or improper oil or fuel
can cause engine damage.
*
A ny attempt to crank or start the engine
before it has been properly serviced with the
recommended oil may result in engine damage.
section 1 — general information
gsh-220 engine
Generac Power Systems
ENG. IDENT. No.
0051810
DISPLACEMENT
407.00
SERIAL No.
0000000
FOR SERVICE LOCATIONS 1-800-333-1322
NOTE:
ReCoMMended oil Type
Using the proper type and weight of oil in the crank-
case is extremely important. Check the oil before
each use and change the oil regularly. Failure to use
the correct oil, or using dirty oil, can cause prema-
ture engine wear and failure.
Use only high quality detergent oil rated with an API
service classification SJ or higher (example: SL or
SM). Do NOT use oil designated for diesel engines
only (example: CD).
The recommended oil weights include the following:
• During summer months: SAE 30. An acceptable
substitute is SAE 10W-30.
• During winter months: SAE 5W-30 or synthetic
5W-30. DO NOT USE SAE 10W-40.
• The use of synthetic oil is acceptable after the first
oil change.
The crankcase oil capacities are listed in the table
below. Use no special additives. Make sure that the unit
is level when filling with oil. DO NOT OVERFILL.
220 Horizontal
with oil filter
without oil filter
cc
ReCoMMended fuel Type
Use clean, fresh, regular UNLEADED gasoline with
this engine.
*
D o not overfill the fuel tank. Always allow
room for fuel expansion.
$
N ever fill the fuel tank indoors. OR when the
engine is running or hot. Do not light a ciga-
rette or smoke when filling the fuel tank.
ml
liters
oz.
800
0.8
27
500
0.5
17
quarts
0.85
0.53
