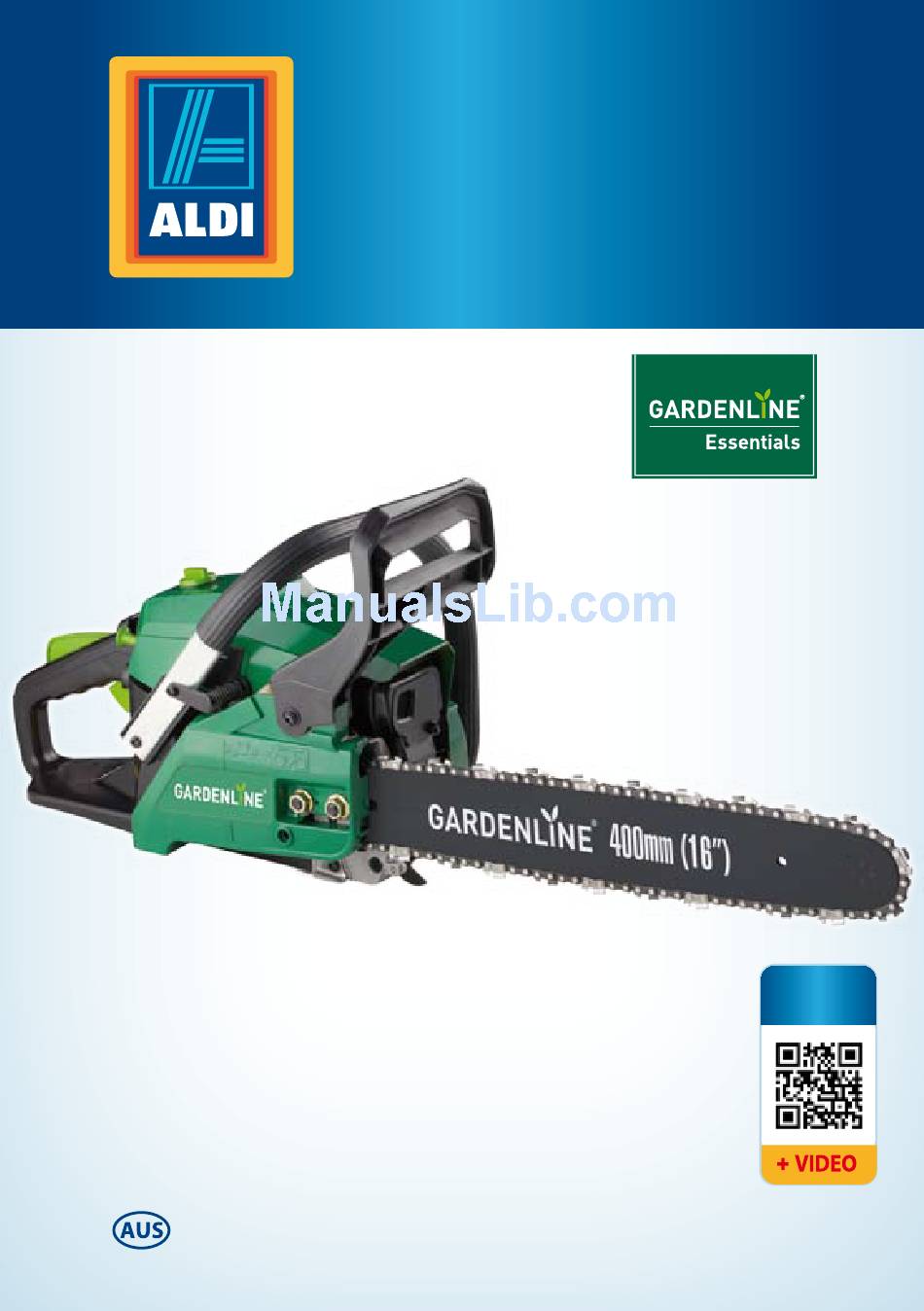

User Manual
50712
37CC
PETROL
CHAINSAW
Product
Info
www.powertoolsupport.com
Read all safety warnings and all instructions
thoroughly before operating this product.
IM ed12; 9/2015

Advertisement

Table of Contents
loading

Related Manuals for ALDI 50712 37CC

Summary of Contents for ALDI 50712 37CC

  • Page 1 User Manual 50712 37CC PETROL CHAINSAW Product Info www.powertoolsupport.com Read all safety warnings and all instructions thoroughly before operating this product. IM ed12; 9/2015...
  • Page 2 Try it out now Just scan the QR code with your smartphone and Product find out more about the Aldi product you have Info purchased*. * Depending on your tarif you may be charged for the connection.

  • Page 3: Table Of Contents

    Contents Intended use of the 37cc Petrol Chainsaw Contents of carton Description of Symbols General Safety Warnings Additional Safety Rules for Petrol Chainsaws Parts List Assembly / Installation of the Guide Bar and Chain Filling up with Fuel and Oil Mixing Fuel Fuelling the Chainsaw Adding Chain Oil...

  • Page 4: Intended Use Of The 37Cc Petrol Chainsaw

    37cc Petrol Chainsaw Pack contents / parts Congratulations on the purchase of your Gardenline® 37cc Petrol Chainsaw. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified.

  • Page 5: Description Of Symbols

    Description of symbols The instruction manual, rating plate, or on the product itself, may show these symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compatibility. Wear hearing protection, eye protection and breathing protection. Wear safety footwear.

  • Page 6: General Safety Warnings

    General safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in fire and/or serious injury. The word power tool used in the following warnings and throughout this manual refers to BOTH electrical power tools and ALSO petrol driven power tools.
  • Page 7 2. Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 8 General safety warnings 3. Power tool use and care a. Do not force the power tools. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b.

  • Page 9: Additional Safety Rules For Petrol Chainsaws

    4. Power tool use and care a. Do not force the power tools. Use the correct power tool for your Additional safety rules for Petrol Chainsaws application. The correct power tool will do the job better and safer at the rate for which it was designed. a.
  • Page 10 • Make a wedge-shaped cut before felling the tree, then the felling cut leaving a hinge for the felling direction. • Beware of any falling branches after felling operations. • Beware of wood splinters when cutting chopped wood. • Ensure your chainsaw is suitable for the job. •...

  • Page 11: Kickback Safety Precautions

    37cc Petrol Chainsaw Kickback safety precautions • Kickback may occur when the tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain. • If the bar tip or point contacts, it can produce a rapid reverse reaction, kicking the guide bar up and back towards the operator.

  • Page 12: Parts List

    Parts List 37cc Petrol Chainsaw Parts List 31. Fuel mix container 32. Spark plug / Screwdriver wrench 1. Rear handle 33. Screwdriver 2. Safety lever 34 Sharpening File 3. Throttle trigger 35. Clutch / Brake assembly (internal) 4. On/Off switch 5.
  • Page 13 Parts List 37cc Petrol Chainsaw 19 18 AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 50712 • 11/2015 • WLCS38A-375...

  • Page 14: Assembly / Installation Of The Guide Bar And Chain

    Assembly 37cc Petrol Chainsaw Assembly Before using your chainsaw, the following assembly is required to be undertaken including assembling the guide bar (18) and chain (19), and fitting the chain drive side cover (22). Assembly / Installation of the Guide Bar and Chain WARNING: The chain has sharp edges.
  • Page 15 Assembly 37cc Petrol Chainsaw 4. Push the guide bar (18) down towards the drive sprocket (28), which will result in the chain (19) loosening around the guide bar (18). (Fig D) 5. Remove the chain (19) from the guide bar (18).
  • Page 16 Assembly 37cc Petrol Chainsaw 8. Once the chain (19) is loosely in position around the guide bar (18), and ensuring the links are located within the bar guide channel (Fig G), locate the chain tensioning pin (29) in the bottom hole in the guide bar (18) by moving the bar inward or outwards.
  • Page 17 Assembly 37cc Petrol Chainsaw 12. Rotate the chain (19) a few times to ensure the chain (19) is free to rotate the drive sprocket (28) and is correctly engaged on the sprocket. Check the tension of the chain. The chain should be fully seated in the bar channel.

  • Page 18: Filling Up With Fuel And Oil

    Filling up with Fuel and Oil 37cc Petrol Chainsaw Filling up with Fuel and Oil WARNING: Fuel is very flammable. Avoid smoking or causing any sparks or flames near fuel. Make sure that you stop the engine and allow it to cool before refuelling the machine. Select outdoor bare ground for fuelling and move at least 9m (30ft) metres away from the fuelling point before starting the engine.

  • Page 19: Mixing Fuel

    Filling up with Fuel and Oil 37cc Petrol Chainsaw Mixing Fuel (40:1 mixing ratio) Mixing ratio is 40:1 IMPORTANT. Use good quality air cooled 2-stroke engine oil. This product is powered by a 2-stroke engine and requires pre-mixing fuel with 2-stroke oil. 1 litre of petrol and 25 mls of 2-stroke oil OR 5 litres of petrol and 125 mls of 2-stroke oil 1.

  • Page 20: Fuelling The Chainsaw

    Filling up with Fuel and Oil 37cc Petrol Chainsaw Fuelling the Chainsaw WARNING: Always ensure the engine is turned off before undertaking this task. Never add fuel to a machine with a running or hot engine. Move at least 9m (30 ft.) away from the refuelling site before starting engine.

  • Page 21: Starting The Chainsaw

    Starting the Chainsaw 37cc Petrol Chainsaw Starting the Chainsaw BRAKE BRAKE WARNING: Do not start the engine whilst the chainsaw hangs from one hand. This is very dangerous as the chain (19) may come in contact with your body. 1. Fill the fuel and oil tanks respectively per previous instructions and ensure both caps are secure.

  • Page 22: Stopping The Chainsaw

    Stopping the Chainsaw 37cc Petrol Chainsaw 5. Depress the safety lever (2) and slightly press on the throttle trigger (3) so the choke moves to the run position. (Fig X). 6. Pull the recoil starter (10) again and restart the engine.

  • Page 23: Adjusting The Carburettor

    Adjusting the Carburettor 37cc Petrol Chainsaw Adjusting the Carburettor NOTE: It is preferred the above operation is performed by a service centre to ensure the correct setting for both safety and performance. The carburettor is factory set and should not require adjustment.

  • Page 24: Vibration

    Operation 37cc Petrol Chainsaw Checking the operation of the clutch. Each time the chainsaw is started, the operation of the clutch (35) should be checked as per the following detail. The chain MUST first be checked to ensure correct tension adjustment before starting. 1.

  • Page 25: Operation Warnings

    Operation 37cc Petrol Chainsaw Operation WARNINGS: • Always follow the safety instructions given at the front of this manual. This chainsaw must only be used for cutting wood. It must not be used for cutting other types of material. Do not use the chainsaw as a lever for lifting, moving or splitting objects.

  • Page 26: Guard Against Kickback

    Operation 37cc Petrol Chainsaw While cutting, always: • Run the chainsaw motor at full revs. This makes the job safer, as there is less chance of pull-in or kick-back. • Position your body to the left of the chainsaw so if it kicks back uncontrollably, it goes over your right shoulder.

  • Page 27: Chainsaw Applications

    Operation 37cc Petrol Chainsaw Chainsaw Applications WARNING: Do not use the chainsaw if you are tired or under the influence of drugs, alcohol or medication. If you are unfamiliar with the following cutting procedures, ensure you fully read and understand the instructions before undertaking the task. Bucking Spike (Fig AC) This chainsaw is fitted with a spike bumper (17).

  • Page 28: Limbing

    Operation 37cc Petrol Chainsaw 1. Clear the area around the tree and make sure that you have a good foothold and clear retreat path. 2. Ensure that others in the area are aware of the felling and ensure people and animals are well clear.

  • Page 29: Bucking

    Operation 37cc Petrol Chainsaw Bucking (Fig AF) Bucking is cutting a log into lengths for easier handling. To saw a log lying on the ground, first saw halfway, then roll the log over and cut from the opposite side. To saw the end of a log supported off the ground, first saw up from the bottom one-third through the log then finish by sawing down from the top.

  • Page 30: Maintenance

    Maintenance 37cc Petrol Chainsaw Maintenance NOTE: This product is not suitable for repair or maintenance work by the unskilled person. The following detail explains how the product is cleaned, and basic maintenance / safety checks. All other maintenance work must be carried out by service agents who are experienced with both the mechanical and electrical aspects of this product.

  • Page 31: Chain Sharpening

    Chain sharpening 37cc Petrol Chainsaw Chain Sharpening WARNING: Always ensure the engine is turned off before undertaking this task. Sharpen the chain regularly to maintain optimum performance of the chainsaw. Signs of a dull chain are: • The sawdust becomes powder-like •...

  • Page 32: Guide Bar Wear

    Maintenance 37cc Petrol Chainsaw Air Filter: 1. Loosen the air filter cover (14) by turning the air filter cover knob (15) in an anti-clockwise direction and remove the filter cover (13). 2. Split the air filter into its two parts (Fig AJ) and clean the mesh.

  • Page 33: Vents

    Maintenance 37cc Petrol Chainsaw 4. A bar cover (30) is supplied with this chainsaw and should be fitted over the chain (19) and guide bar (18) whenever the chainsaw is not being used. This includes immediately after use, transportation and service where possible. The chain teeth are extremely sharp and could create a safety hazard if the bar cover (30) is not fitted.

  • Page 34: Warranty

    Warranty 37cc Petrol Chainsaw Always store the chainsaw in a area safe away from the elements of the environments, ie high humidity, wet locations, hot environments etc. Storage area should also be out of reach of children of both the chainsaw, mixing bottle and all accessories.

  • Page 35: Environmental Protection

    Warranty 37cc Petrol Chainsaw Environmental protection Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local service station for reclamation.

  • Page 36: Troubleshooting

    37cc Petrol Chainsaw Troubleshooting Troubleshooting Problem Possible Cause Solution Engine will not start No spark in the spark plug (16). (Fig AN) Clean the spark plug (16). Replace the old spark plug (16) with a new one. With the on/off switch (4) off, remove Flooded engine spark plug (16) from the engine.

  • Page 37: Specifications

    37cc Petrol Chainsaw Specifications Specifications Engine displacement: 37cc Engine type: Air cooled, single cylinder, 2-Stroke Recommended maximum engine speed at idling: 2400-3200 min- Maximum engine speed with cutting attachment: 10000 min- Maximum engine power: 1.2KW @ 8000 min- Fuel type: Unleaded petrol/2-stroke oil (40:1) Fuel tank capacity: 310 cm...
  • Page 38 ALDI guarantees that our exclusive brand products are developed to our stringent quality specifications. If you are not entirely satisfied with this product, please return it to your nearest ALDI store, within 60 days from the date of purchase, for a full refund or replacement, or take advantage of our after sales support by calling the supplier’s Customer Service Hotline.
