Summary of Contents for NEC MultiSync 75F

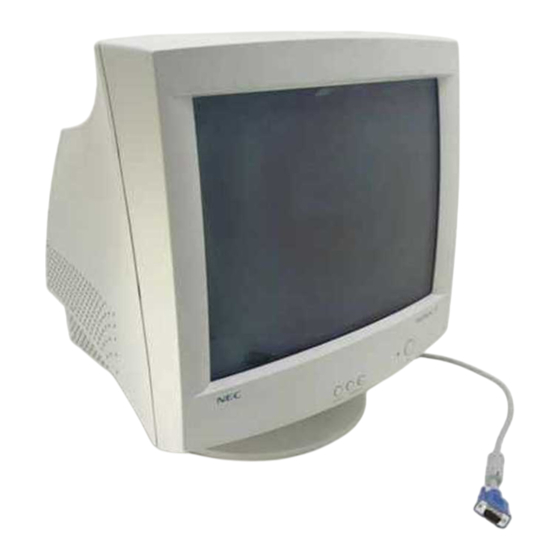

- Page 1 MultiSync 75F MultiSync 95F User’s Manual...
-
Page 2: Declaration Of The Manufacturer
MultiSync 75F (N0701) MultiSync 95F (N9902) are in compliance with Council Directive 73/23/EEC: Council Directive 89/336/EEC: and marked with NEC-Mitsubishi Electric Visual Systems Corporation KANAGAWA 258-8533, JAPAN - EN 60950 - EN 55022 - EN 61000-3-2 - EN 61000-3-3 - EN 50082-1... -
Page 3: Safety Instruction
Safety Instruction Caution: When operating the MultiSync 75F/95F with a 220-240V AC power source in Europe except UK, use the power cord provided with the monitor. In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. -
Page 4: Fcc Information
FCC Information 1. Use the attached specified cables with the N9705 and N9902 color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cable or equivalent to ensure FCC compliance. (2) Shielded captive type signal cable. Use of other cables may cause interference with radio and television reception. - Page 5 TCO‘99 Congratulation! You have just purchased a TCO‘99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
-
Page 6: Environmental Requirements
The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company impl ements i ts operational policy. - Page 7 Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO‘99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.
- Page 8 Contents MultiSync monitor box* should contain the following: • MultiSync Monitor MultiSync 75F or MultiSync 95F • Power cord • Captive Signal Cable • User‘s manual • CD-ROM includes complete User‘s Manual in PDF format and Windows related files (Inf file and color profile). To see the complete User‘s Manual, Acrobat Reader 4.0 must be installed on your PC.
-
Page 9: Quick Start
(Figure A.1) Tighten all screws. For the Mac: Connect the MultiSync 75F or 95F Macintosh Cable Adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the captive signal cable to the Macintosh cable adapter on the computer (Figure B.1). - Page 10 Mac Adapter (not included) Power Outlet Power cord 15-pin mini D-SUB Figure B.1 Figure C.1 Figure D.1 English-9 Captive Signal Cable...
- Page 11 Controls OSM (On-screen Manager) control buttons on the front of the monitor function as follows: SELECT Enters and exits the OSM menu. CONTROL-/+ Selects one of the controls and decreases or increases the adjustment. RESET Resets the highlighted control to the factory setting. Press -/+ button at the same time for approximately 1 sec.
- Page 12 Parallelogram: Decreases or increases the tilt of the sides either to the left or right. Bow (Pincushion Balance): Decreases or increases the curvature of the sides either to the left or right. Rotates: Rotates the image. Degauss: Select the degauss icon on “Icon select window” and push “SELECT”...
-
Page 13: Recommended Use
Recommended use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC COLOUR • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. - Page 14 • In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact you supplier. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...
- Page 15 • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen. • Position your monitor no closer than 30 cm and no further away than 70 cm from your eyes.
-
Page 16: Specifications
Environmental Considerations Operating Temperature: Humidity: Storage Temperature: Humidity: NOTE: Technical specifications are subject to change without notice. MultiSync 75F 43 cm (17 inch) 41 cm (16 inch) Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync. TTL Level Horizontal sync. Positive/Negative Vertical sync. -
Page 17: Multisync 95F
OptiClear screen. Depends on display card used. Automatically Automatically Some systems may not support all modes listed. NEC-Mitsubishi Electronics Display cites recommended resolution at 85 Hz for optimal display performance. Dependent upon signal timing used, and does not include border area. - Page 18 Features Flat Dot Trio CRT: Delivers an unparalleled viewing experience with a virtually flat image, eliminating distortion and reducing glare so that what you see on-screen is what you get on your printed output. OptiClear Screen Surface: Reduces reflection and glare and increases contrast without sacrificing focus level, clarity or brightness.
- Page 19 IPM (Intelligent Power Manager) System: Provides innovative power- saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace and is compliant with VESA DPMS and EPA ENERGY STAR Mode Off (IPM Mode...
-
Page 20: Troubleshooting
Troubleshooting No Picture • The display card should be completely seated in its slot. • Power Switch and computer power switch should be in the ON position. • The signal cable should be completely connected to the display card/ computer. •...
