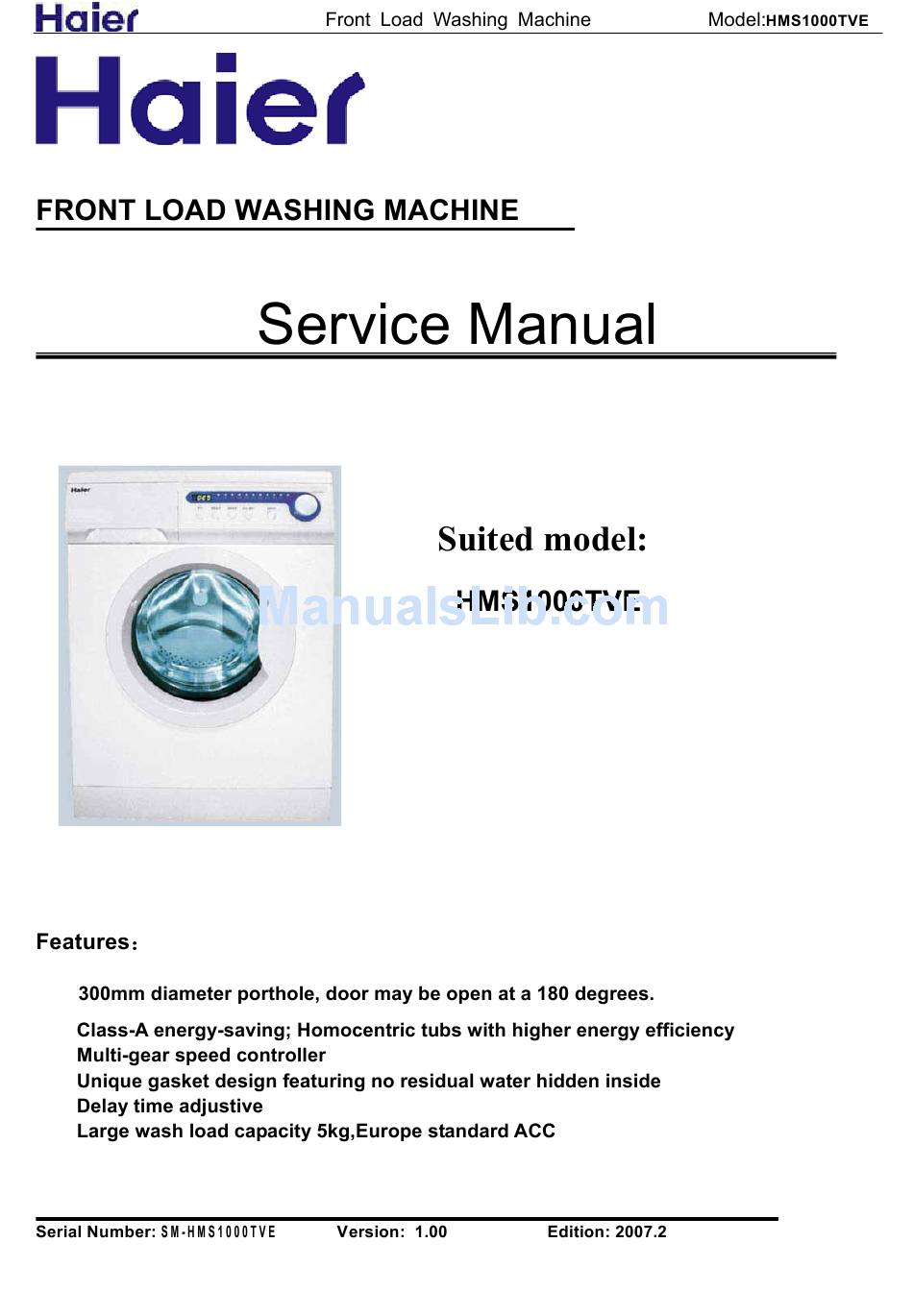

Haier HMS1000TVE Servise Manual
  1. Manuals
  2. Brands
  3. Haier Manuals
  4. Washer
  5. Thermocool HMS1000TVE
  6. Servise manual

Haier HMS1000TVE Servise Manual

Hide thumbs Also See for HMS1000TVE:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Haier HMS1000TVE

Summary of Contents for Haier HMS1000TVE

  • Page 3: Product Code Illumination And Series Introduction

    Front Load Washing Machine Model:HMS1000TVE PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION Model code rule description Model identification HMS 1000 T V E C D E A Serial code B Max spin speed C Temprature adjustive Spin speed adjustive Computer control...
  • Page 4 Front Load Washing Machine Model:HMS1000TVE FEATURES 300mm diameter porthole, door may be open at a 180 degrees. Facilitate view of wash process, facilitate unloading and easy to use with large port. Multi-gear speed controller According to different costuming you can slect corresponding spin speed from 0 to 1000 rpm.

  • Page 6: Safety Systems

    Front Load Washing Machine Model:HMS1000TVE Delay timer (from - to) 0.5-24 Self cleaning suds pump Water inlet hose cold water / hot water Water drain hose / -support Adjustable feet n° Safety systems Auto door lock Motor overheating protection No heating without water Auto water cool-down (before drain 80°C boiled water)

  • Page 7: Matters Needing Attention

    Front Load Washing Machine Model:HMS1000TVE Matters Needing Attention 2. Hold the plug and not the electric cable .A separate earthed socket is required for the power supply. The washing machine must be when unplugging the washing machine. positioned so that the plug is accessible.

  • Page 8: During Use

    Front Load Washing Machine Model:HMS1000TVE Matters Needing Attention 9.The carpet must not obstruct the ventilation .The washing machine should not be install- openings in the base of the washing machine. ed outdoors or in a damp place. In the event of water leakage or splashes allow the machine to dry naturally.
  • Page 9 Front Load Washing Machine Model:HMS1000TVE Matters Needing Attention 3. Do not place heavy, heating source or wet 4. Do not hot wash foam rubber or sponge-like materials. articles on the top of the washing machine. 5. Before washing, do up zippers, buttons and 6.

  • Page 10: Installation

    Front Load Washing Machine Model:HMS1000TVE Installation Check attachments and materials with reference to the following Dismantle the packing bolts as shown in Fig. 2. The packing bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process.

  • Page 11: Joining The Inlet Hose To The Washing Machine

    Front Load Washing Machine Model:HMS1000TVE Installation Joining the Inlet Hose to the Washing Machine 1. Connect the nut on the inlet hose to the connector on the water valve. Connect of water inlet valve The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off, fix it to the drainage hose clip at the back of the washing machine.

  • Page 13: Name Of The Parts

    Front Load Washing Machine Model:HMS1000TVE Name of the parts Detergent dispenser Top Cover Program selector Button Door handle Porthole Bottom plaque Page 12...
  • Page 14 Front Load Washing Machine Model:HMS1000TVE Opertional Functions HMS1000TVE Pre-wash Cotton Synthetic Wool Cashmere Silk Quick Wash Rinse Spin Drain Delay Power Temperature Spin Start/Pause Power Switch Press this button to switch on the washing machine. Press it again to switch it off.
  • Page 15 Front Load Washing Machine Model:HMS1000TVE Functions F: Delay Button Touch this button lightly, the washing machine will start operation after a period of time and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this button increases a half hour.
  • Page 16 Front Load Washing Machine Model:HMS1000TVE Page 15...

  • Page 17: Error Display And Troubleshooting

    Front Load Washing Machine Model:HMS1000TVE Error Display and Troubleshooting HMS1000TVE Error message:Door is not properly shut 20s after program is started. Troubleshooting: Pushing the door to Check Whether Door Shut the door properly. is properly shut or not 220-240v Cut off the power and then turn on again.
  • Page 19 Front Load Washing Machine Model:HMS1000TVE Error message:The required water level is not reached within 8 min Troubleshooting: Check if water is leaking from washer Readjust or replace the broken parts bottom. inlet pipe. drain pipe or other pipe connection Check if tap is closed or water pressure is too Open the tap or wait for normal water pressure to use low (usual between0.2 -1 MPa)
  • Page 20 Front Load Washing Error message. Motor overheat protection or is damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about Measure if resistance of motor winding by ten minutes, and then test again. If the multimeter, is it as followed? 1-2:5 ;...
  • Page 21 Front Load Washing Machine Model:HMS1000TVE Error message. Water level exceeds protective value. Troubleshooting: Clean water switch hose and air Check if water switch hose and air collector collector are jammed Pull out water switch inserts and turn on power, then set wash mode. While water...
  • Page 22 Front Load Washing Machine Model:HMS1000TVE HMS1000TVE Examination & Troubleshooting Failure:Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage Press the power switch Is power switch on? Press power switch and check the voltage...
  • Page 23 Front Load Washing Failure:no draining Troubleshooting: Adjust the height of drain pipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise open and check if Clean and tighten filter clockwise. filter is jammed Check if hose connecting cylinder to pump is Arrange hose and clean bent or jammed Turn on power and choose spin program to start.
  • Page 24 Front Load Washing Machine Model:HMS1000TVE Failure:water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it. or the tap Replace drain pipe Is drain pipe broken Remove clothes Check if there is foreign material nipped between cushion of sight window and...

  • Page 25: Wiring Circuit

    Front Load Washing Machine Model:HMS1000TVE Wiring Circuit Page 24...
