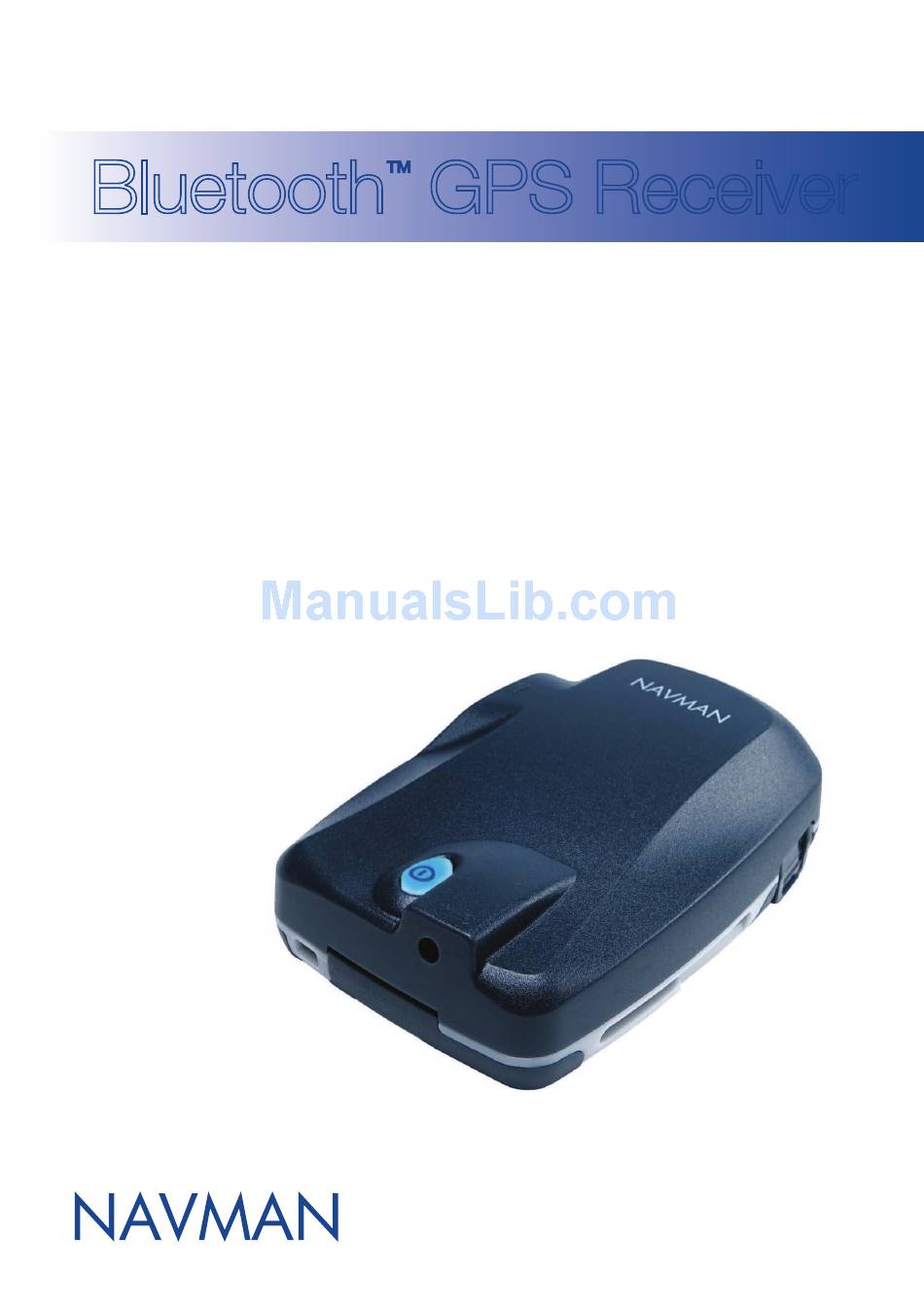

Page 1: User Manual

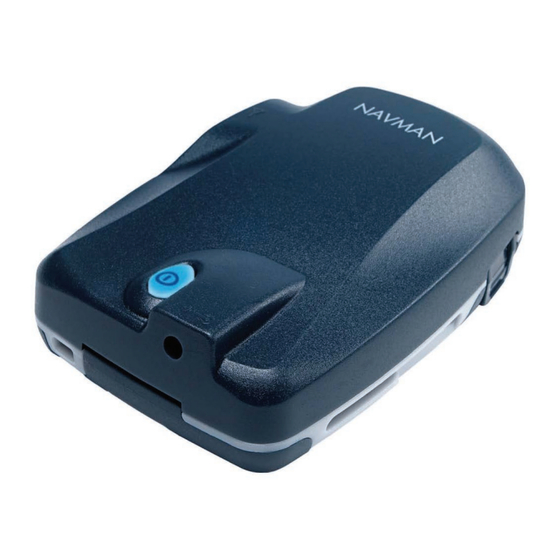

English Edition Bluetooth GPS Receiver ™ 4100 / 4420 / 4470 User Manual... -
Page 2: Table Of Contents
Bluetooth GPS Receiver | User Manual Contents Introduction ... 3 Bluetooth GPS Receiver Features ... 4 Connecting the Bluetooth GPS Receiver to your PDA ... 6 Positioning the Bluetooth GPS Receiver in a Vehicle ... 7 Batteries ... 10 Optional Accessories ... 11... -
Page 3: Introduction
• Do not use or handle the Bluetooth GPS Receiver when it is hot, leave it to cool out of direct sunlight. Navman disclaim all liability for use of this product in a way that may cause accidents, damage or that may violate law. -
Page 4: Bluetooth Gps Receiver Features
Bluetooth GPS Receiver | User Manual 2. Bluetooth GPS Receiver Features It is recommended that you familiarise yourself with the basic operations of your Bluetooth GPS Receiver: Top Components Component On/Off Button Indicator Light External Power Adapter Socket Description To turn on: Press for two seconds and release. -
Page 5: Side Components
Holds the battery cover in place. Prevents the receiver from slipping when it is not in the receiver cradle. If an external GPS antenna is plugged in, the Bluetooth GPS Receiver will use the external antenna instead of the internal antenna. -
Page 6: Connecting The Bluetooth Gps Receiver To Your Pda
GPS satellites to calculate your position. You can monitor the strength of the GPS signal using your third-party software. Note: If using Navman Smart, the GPS status can be monitored on the GPS Status screen. See the Smart User Manual for more information. -
Page 7: Positioning The Bluetooth Gps Receiver In A Vehicle
Note: If your vehicle is fitted with an athermic (heat reflecting) or a heated windscreen, you may need to purchase a Navman external antenna to allow your Bluetooth GPS Receiver to receive GPS signals inside the vehicle. See page 11. - Page 8 Option Two: Mounting Pad on Dashboard (Permanent) You can attach the Bluetooth GPS Receiver to the dashboard using the receiver cradle and mounting pad: Warning: This is a permanent solution – the mounting pad cannot be removed once fixed and will mark the dashboard if forcibly removed.
- Page 9 Vehicle Power Adapter You can use the vehicle power adapter to power the Bluetooth GPS Receiver when in a vehicle. If the vehicle power adapter is plugged in, the receiver will use the external power supply instead of the internal batteries.
-
Page 10: Batteries
Battery life is up to 30 hours of active use; however, results vary with battery type. Replacing the Batteries When the light in the On/Off button turns red, replace the batteries in the Bluetooth GPS Receiver. To replace the batteries: Remove the battery cover by squeezing the two side-clips while pulling the cover away from the main unit. -
Page 11: Optional Accessories
The antenna cable is plugged in to the External GPS Antenna MCX Socket. The cable may be threaded through the door opening. The external antenna is available from your Navman retailer. -
Page 12: Fcc Statement
fitness for a particular purpose. If any limitation or exclusion or liability contained in this warranty is held to be invalid for any reason and Navman becomes liable for loss or damage that would otherwise have been excluded, such liability will be limited to the total amount actually paid by You for the product. -
Page 13: Support Information
NAVMAN DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR VIOLATE THE LAW. Copyright © 2004 Navman NZ Limited. Navman is a registered trademark of Navman NZ Limited. All rights reserved. Microsoft Windows 98, ME, 2000 or XP, Microsoft ®...
