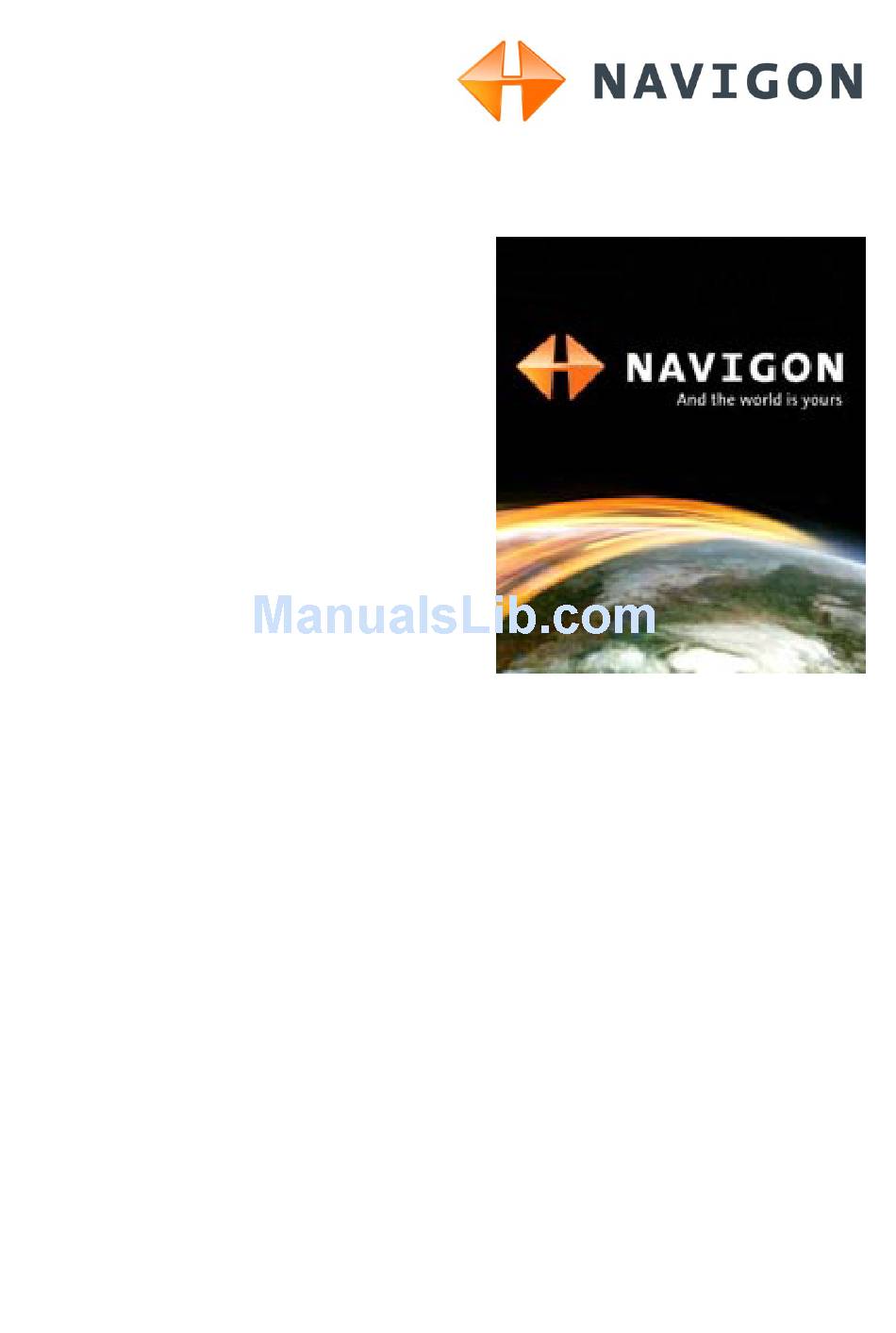

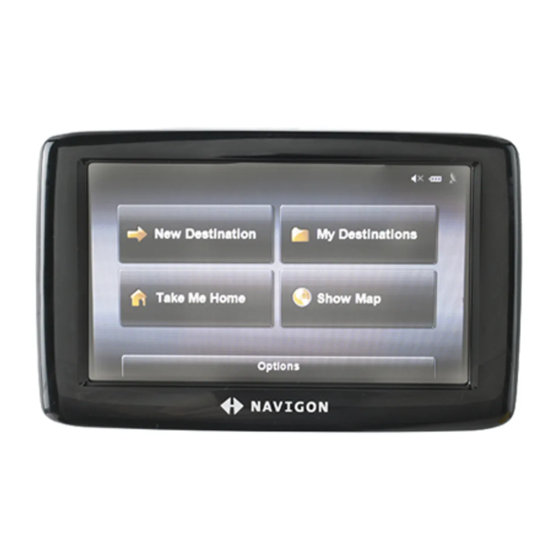

- Page 1 User’s Manual NAVIGON 21xx max English (United Kingdom) June 2008...
- Page 2 The information contained herein may be changed at any time without prior notification. Neither this manual nor any parts thereof may be reproduced for any purpose whatsoever without the express written consent of NAVIGON AG, nor may they be transmitted in any form either electronically or mechanically, including photocopying and recording.
-
Page 3: Table Of Contents
1.2.1 Liability...6 1.2.2 Trademarks ...7 Questions about the product ...7 Before you begin...7 Scope of Delivery ...7 Description of the NAVIGON 21xx max ...8 Important safety information...8 2.3.1 Navigation safety information ...9 2.3.2 Safety information for the navigation device...9 2.3.3 Safety guidelines when installing the device in your car ...10... - Page 4 GPS Status, saving the current location...46 6.7.3 Turn-by-Turn List ...47 6.7.4 TMC (Traffic Information) ...48 6.7.5 Logbook ...49 Handsfree Module (only NAVIGON 2150 max) ...50 Connecting to a telephone ...50 Taking a call ...51 Making a call ...51 7.3.1 Dialling a telephone number...51 7.3.2 Dialling a Speed Call number to call home...52...
- Page 5 Suitable files ...57 Opening the picture viewer...57 Selecting an image file ...57 Operating the picture viewer ...58 Play-back mode...58 Configuring the NAVIGON 21xx max ...59 Appendix ...61 10.1 Technical data ...61 10.2 Identification and serial number ...62 10.3 Declaration of conformity...62 Troubleshooting...63...
-
Page 6: Introduction
Liability The software and manual are subject to change without notice. NAVIGON AG is not liable for the accuracy of the information contained in this manual or for damages resulting from the use of this manual. Suggestions for improvements and information regarding errors are always welcome so that we can supply you with even better products in the future. -
Page 7: Trademarks
Microsoft, Outlook, Excel and Windows are registered trade marks ► of Microsoft Corporation. NAVIGON is a registered trade mark of NAVIGON AG. ► Questions about the product You have a question concerning your product? Then visit our webseite www.navigon.com... -
Page 8: Description Of The Navigon 21Xx Max
User’s Manual NAVIGON 21xx max Description of the NAVIGON 21xx max Important safety information In your own interest, please read the following safety information and warnings carefully before starting up your navigation system. Only NAVIGON 2150 max - 8 -... -
Page 9: Navigation Safety Information
Note: Do not kink the cable. Make sure that the cable cannot be damaged by sharp-edged objects. Note: Clean the navigation device only with a damp cloth. Note: Do not unplug by pulling the cable. Doing so could damage the cable! Before you begin User’s Manual NAVIGON 21xx max - 9 -... -
Page 10: Safety Guidelines When Installing The Device In Your Car
User’s Manual NAVIGON 21xx max Note: Create a backup of the data contained on the memory card provided. This is very easy to do with the NAVIGON Fresh software which can be downloaded free of charge from our website ww.navigon.com/max. -
Page 11: Preparing The Navigon 21Xx Max For Use
Preparing the NAVIGON 21xx max for use 2.4.1 Installing the navigation system in the vehicle Caution! Be sure to refer to all the safety information in chapter "Important safety information" on page 8. Assembling the cradle Assemble the cradle as shown in the illustration. No tools are ►... - Page 12 2. Then press the device towards the cradle until you hear the upper clip latch in place. Supplying power to the navigation device Included in delivery of the NAVIGON 21xx max is a car charger cable with which power can be supplied to the navigation device via the vehicle's cigarette lighter.
-
Page 13: Tmc Antenna
You can copy these data to another memory card or save them on your PC. To do so, use the NAVIGON Fresh software which can be downloaded free of charge from The following memory media can be used in the NAVIGON 21xx max: SD cards with maximum 2 GB ►... -
Page 14: Navigating With Gps
2. Enter the password. 3. Tap on OK. The S TART Note: When you switch on the NAVIGON 21xx max for the first time, you will be asked to make the following settings: your preferred language for using for the software ►... -
Page 15: Options In The Start Window
► Phone (Handsfree Module), see page 50. ► Note: If you have not used the NAVIGON 21xx max for a long time, the battery may be flat. In this case the device needs to be charged for approximately 3 minutes before it can be switched on. -
Page 16: Activating Password Protection
User’s Manual NAVIGON 21xx max Activating password protection 1. In the S TART The N EW PASSWORD 2. Enter a new password in the New password box. 3. Enter this password again in the Confirm new password box. 4. Tap on Activate. -
Page 17: Operating The Navigon 21Xx Max
N, NE, E, SE, S, SW, W, NW. TMC (Traffic Information) The NAVIGON 21xx max has an integrated TMC receiver which provides the navigation system with traffic information updates. If necessary it can change your route dynamically, for example in order to avoid a traffic jam. - Page 18 This enables you to use the device as a hands-free kit for a mobile phone with Bluetooth capability. The LED on the bottom of the NAVIGON 2150 max lights blue when the Bluetooth function is active. For more details refer to chapter "Handsfree Module"...
-
Page 19: Software Keyboard
Call in Progress (green mobile phone): The hands-free module of the NAVIGON 2150 max is being used for a phone call. Muting The Muting icon is visible only in the navigation application. It can indicate the following states: No symbol: The navigation application is not muted. -
Page 20: Entering Data
User’s Manual NAVIGON 21xx max When you want to enter addresses, names or special destinations, the keyboard with the alphabet for the country in question will open automatically. When you want to save a destination to Favourites or when you enter a special destination category or a country, the keyboard with the alphabet of the user interface will open automatically. -
Page 21: Options
You can then simply continue navigation. Navigation User’s Manual NAVIGON 21xx max (Open List) to call up this list. (Up) button and the (Close List) in order to close the list without selecting... -
Page 22: Starting The Navigation Application
As soon as the navigation device has been switched on, initialisation of the GPS receiver will begin. The integrated GPS receiver is not initialised for the first time until the navigation application is started for the first time. It can take up to 20 minutes to initialise the GPS receiver for the first time. -
Page 23: Specifying A Destination
Note: The first time that you want to enter a new destination you will be asked to select the country in which your destination is situated. Under My Destinations the NAVIGON 21xx max provides the following lists of destinations and addresses for you to select from: ESTINATIONS ►... -
Page 24: Entering An Address
User’s Manual NAVIGON 21xx max If your destination is in a different country, then proceed as follows: 1. Tap on the Country button. 2. Enter the first letter of the country in which your destination is situated. The C OVERED which begin with this letter and for which a map is available. -
Page 25: Points Of Interest
Note: GPS reception must be good enough for determining your position. Check the reception is good enough. For more details refer to chapter "Initialising the GPS receiver" on page 22. Note: The Direct Access section offers 3 categories of POI from the current vicinity which can be searched for quickly and without additional entry. - Page 26 User’s Manual NAVIGON 21xx max If sub-categories exist for the category you have selected, the Sub Category list opens. 3. Select the sub-category from which you would like to select a POI. The Name of the Destination list opens. It contains the nearest POI in the specified category, sorted by distance.
- Page 27 Sometimes the destination cannot be found exactly because, for example, several restaurants with the same name exist in the town in question. Navigation User’s Manual NAVIGON 21xx max window, tap on New Destination > Search for window opens. (Close List).
-
Page 28: Information About The Destination
User’s Manual NAVIGON 21xx max In this case a window opens with all the destinations matching your entry plus additional information. Tap on the destination to which you would like to navigate. ► The map opens in Preview mode. The destination is indicated on the map. -
Page 29: Last Destinations
For more details about connecting to a mobile phone refer to chapter "Connecting to a telephone" on page 50. 6.2.5 Last Destinations NAVIGON 21xx max saves the last 12 destinations to which you have navigated in the L 1. In the N AVIGATION Destinations. -
Page 30: Contacts
"Starting navigation" on page 31. Please read on there. 6.2.8 Navigating home In NAVIGON 21xx max you can save an address as your home address. You can navigate to your home address at anytime by activating a single button. -
Page 31: Selecting Destinations On The Map
The map is open in Preview mode. The navigation destination is depicted by a small flag. The route and the estimated trip time are indicated. Navigation User’s Manual NAVIGON 21xx max window, tap on Show Map. (Destination search) (OK). window opens. The detailed address data... -
Page 32: Route Profile
User’s Manual NAVIGON 21xx max Route Profile The route is calculated on the basis of a route profile. If you want to view or change the route profile, tap on Route Profile. ► Note: If you change the route profile, the changes will also apply to future navigations. -
Page 33: Managing Destinations
AVOURITES window on Take Me Home. AVIGATION list. (Refer to "Favourites” page 29) AVOURITES window, tap on Options. User’s Manual NAVIGON 21xx max AVOURITES list or from the ESTINATIONS list marked by a AVOURITES list. -
Page 34: Entering The Starting Point
User’s Manual NAVIGON 21xx max The R OUTE 6.4.1 Entering the starting point The starting point of a route is the point at which you want to begin your trip. This is not necessarily the current location. If you are planning a route for your holidays at home, you could, for example, enter your hotel as the starting point. -
Page 35: Editing Route Points
OUTE point and at least one route point. 1. Tap on Options > Save Route. 2. Enter a name for the route. Navigation window is open. You have entered the starting LANNING User’s Manual NAVIGON 21xx max - 35 -... -
Page 36: Calculating And Displaying Routes
User’s Manual NAVIGON 21xx max 3. Tap on Save. The route is now saved to the S window closes. Loading routes 1. Tap on Options > Saved Routes. 2. Tap on the route that you want to load. 3. Tap on Load Route. -
Page 37: Starting Navigation
Tap on the option you would like to use. ► If you would like to quit the options list without selecting an option, ► tap on the Options button again. Navigation User’s Manual NAVIGON 21xx max (Help) button. window opens. AVIGATION window refer to - 37 -... - Page 38 Emergency Services: Opens a window in which your current location is indicated. NAVIGON 2100 | 2110 max: You will also see the emergency phone number for the country in question. You can dial this number on a mobile phone.
-
Page 39: Working With The Map
Saved Routes: Opens a dialog window into which you can load a saved route. Settings: Opens the S system. For more details refer to chapter "Configuring the NAVIGON 21xx max" on page 49. Show on Map: Shows the selected address on the map. - Page 40 User’s Manual NAVIGON 21xx max - OR – You have planned or loaded a route and tapped on Show Route. The map opens in Preview mode. The entire route is visible. The route is highlighted in orange. Your current position is indicated (orange arrow).
-
Page 41: Map In Navigation Mode
The height above sea level and the current speed are indicated here. In the Total box you can see the distance remaining to the destination, the estimated duration of the trip and the estimated time of arrival. Navigation User’s Manual NAVIGON 21xx max - 41 -... -
Page 42: Quitting Navigation
User’s Manual NAVIGON 21xx max Your current position is indicated on the map (orange arrow). The section of the map displayed changes continually so that your current position is always in view on the map. If you are navigating a multi-leg route, you will see the remaining distance to the next interim destination, the estimated duration of the trip and the estimated time of arrival in the Next box. -
Page 43: Reality View Pro
► a three-leg motorway junction ► the exit you must take to leave the motorway ► Navigation User’s Manual NAVIGON 21xx max (Interim Destination) button to the right - 43 -... -
Page 44: Map In Destination Search Mode
User’s Manual NAVIGON 21xx max The Reality View mode shows with greater clarity the signposting and lanes you must follow. This display does not change until you have passed the spot indicated. The map will then change back to Navigation mode. -
Page 45: Operating In Destination Search Mode
You will be returned to the window from which you started this mode. Navigation (OK)..window. You can enter a name under ESTINATION AS window. Here you can search for EARBY (Destination search) in order to quit Destination User’s Manual NAVIGON 21xx max list. AVOURITES - 45 -... -
Page 46: Useful Functions
If GPS reception is good enough, the address and the geographic cooordinates of your current location will be indicated. NAVIGON 2150 max: If the NAVIGON 2150 max is connected to a mobile phone, you can have yourself connected directly to the emergency call centre. -
Page 47: Turn-By-Turn List
The navigation system calculates an alternative route avoiding the route sections selected. The new driving instructions are displayed in the T 3. Tap on window again. Navigation window opens. > Modify Route. window. (Back) in order to close the T User’s Manual NAVIGON 21xx max - 47 -... -
Page 48: Tmc (Traffic Information)
User’s Manual NAVIGON 21xx max Removing blocks and using original routes Section blocks can be removed at any time. In the T ► Original Route. 6.7.4 TMC (Traffic Information) The integrated TMC receiver enables the navigation system to make use of current traffic messaging. If necessary it can change your route dynamically, for example in order to avoid a traffic jam. -
Page 49: Logbook
6.7.5 Logbook You can use the NAVIGON 21xx max to record a logbook. The logbook is recorded in the "Logbook.xls" file. You can open the file with Microsoft Excel. Each recorded trip is added at the bottom of the table as a new entry. -
Page 50: Handsfree Module (Only Navigon 2150 Max)
3. Tap on Reason for the Trip and select a reason for the trip from the list of possibilities. Handsfree Module (only NAVIGON 2150 max) The hands-free module allows to use the NAVIGON 2150 max as a hands-free kit for your mobile phone. Opening the hands-free module Tap in the S ►... -
Page 51: Taking A Call
Tap on No if you don't want to take the call. ► Note: Navigation instructions are muted during a call. Making a call You can make a call in various ways with the NAVIGON 2150 max. 7.3.1 Dialling a telephone number 1. Tap in the H 2. -
Page 52: Dialling A Speed Call Number To Call Home
7.3.5 Transferring a call from your mobile telephone The NAVIGON 2150 max takes over active calls from the mobile phone automatically as soon as a Bluetooth connection is established between the two devices. -
Page 53: During A Call
Moving the navigation application into the foreground You can move the navigation application into the foreground at any time. When the NAVIGON 2150 max is navigating, the map can then be into the foreground while you make your call. Tap on the ►... -
Page 54: Preset
User’s Manual NAVIGON 21xx max 7.5.1 Preset The hands-free module of the NAVIGON 2150 max has four Speed Call buttons which you can configure according to your own needs. 1. In the H ANDSFREE The M ODIFY 2. Tap on the Speed Call button that you want to edit. -
Page 55: Bluetooth Function
The hands-free module cannot connect to a mobile phone if the Bluetooth function is deactivated. Discoverable by Others: Select whether you want the NAVIGON 2150 max to be detected by other Bluetooth-compatible devices (in particular mobile phones) (Yes or No). -
Page 56: Establishing A Connection From The Mobile Phone
7.6.3 Disconnecting the connection and deleting the connection data You can end the connection between the NAVIGON 2150 max and the mobile phone at any time. - 56 - BT window opens on the NAVIGON 2150 max. The (Back) in order to return to the H window opens. -
Page 57: Pictures
(refer to chapter "Connection with Mobile Phone" on page 55). Pictures The NAVIGON 21xx max can show image files which are saved on the memory card in the navigation device. Note: If your camera uses SD cards, you can insert the card from the camera. -
Page 58: Operating The Picture Viewer
User’s Manual NAVIGON 21xx max Picture File: Only files supported by the picture viewer are shown. (Refer to "Suitable files" on page 57) Folder: Sub-folders of the current folder are displayed. Tap on a sub-folder in order to open it. -
Page 59: Configuring The Navigon 21Xx Max
Configuring the NAVIGON 21xx max The S ETTINGS NAVIGON 21xx max to match your personal preferences. Settings can be accessed via the options in the S the options in many windows of the navigation application. Tap on Options > Settings. - Page 60 User’s Manual NAVIGON 21xx max 1. Tap on A list with all possible values opens. The currently valid value is marked. 2. Tap on the value you want. It is now marked. 3. Tap on OK. The list closes. The new value is indicated.
-
Page 61: Appendix
Rechargeable battery Charging Car charger cable Only NAVIGON 2150 max Appendix User’s Manual NAVIGON 21xx max 122 x 77 x 18.9 mm approx. 178 g Operating -10°C to 60°C (14°F to 140°F) temperature Storage -30°C to 70°C (-22°F to 158°F) -
Page 62: Identification And Serial Number
10.3 Declaration of conformity The NAVIGON 21xx max described in this manual bears the CE label among others. Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/ECC), the Electromagnetic Compatibility Directive (89/336/ECC) and the Low Voltage Directive (73/23/ECC) –... -
Page 63: Troubleshooting
NAVIGON AG website. (See "Questions about the product" on page 7) I have connected a charger to the NAVIGON 21xx max. A connection to a computer is shown on the display. I have connected the NAVIGON 21xx max to a computer but it is not detected as a removable disc. -
Page 64: Index
User’s Manual NAVIGON 21xx max Index Block... 43, 47 Bluetooth ... see Handsfree Module Bluetooth Function ... 55 Call Dial a Number ... 51 Phone Book ... 52 Preset ... 52 Recent Calls ... 52 Call in Progress Enter numerals ... 53 Hang up ... - Page 65 Muting... 19 My Destinations... 23 Navigation Block ... 43, 47 Interim Destination... 43 Index User’s Manual NAVIGON 21xx max No GPS ... 32, 37 POI ... 43 POI on Your Route ... 43 Route Profile... 32, 37 Skip Route Point... 43 Start ...
- Page 66 User’s Manual NAVIGON 21xx max Route points Add ... 34 Delete ... 35 Order... 35 Starting Point ... 34 Route Profile... 32, 37 Routes Manage ... 35 Planning... 33 Route points... 34 Route Profile ... 37 Save... 35 Show... 36 Simulation ...
