Sliding Latch Plate and ELR Retractor

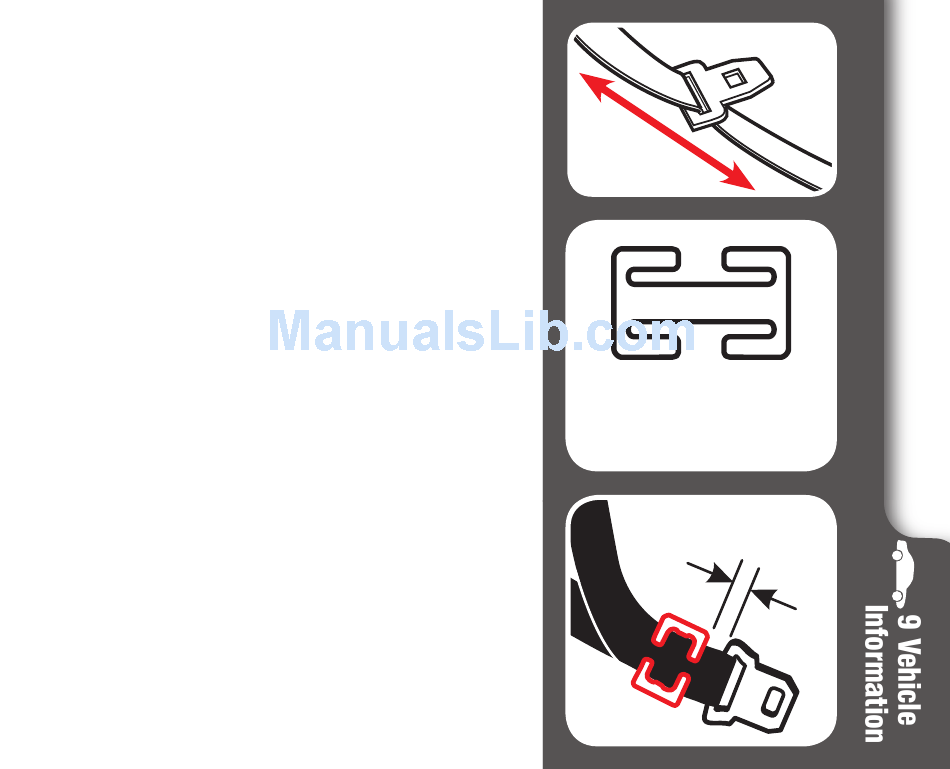

A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
With this retractor, you will need to use the
locking clip to lock the vehicle seat belt.
Route the vehicle seat belt through the
proper belt path and buckle it in. Pull the
vehicle seat belt tight. While pushing down
on seat, pinch the two straps together
behind the buckle tongue. Unbuckle the belt
Locking Clip
without allowing it to slip.
located on the back of
Attach locking clip to lap and shoulder belts
the backrest.
as shown.
Rebuckle belt. Check that lap belt does not
move by pulling hard. If belt loosens or
1" (2.5 cm)
lengthens, repeat procedure.
