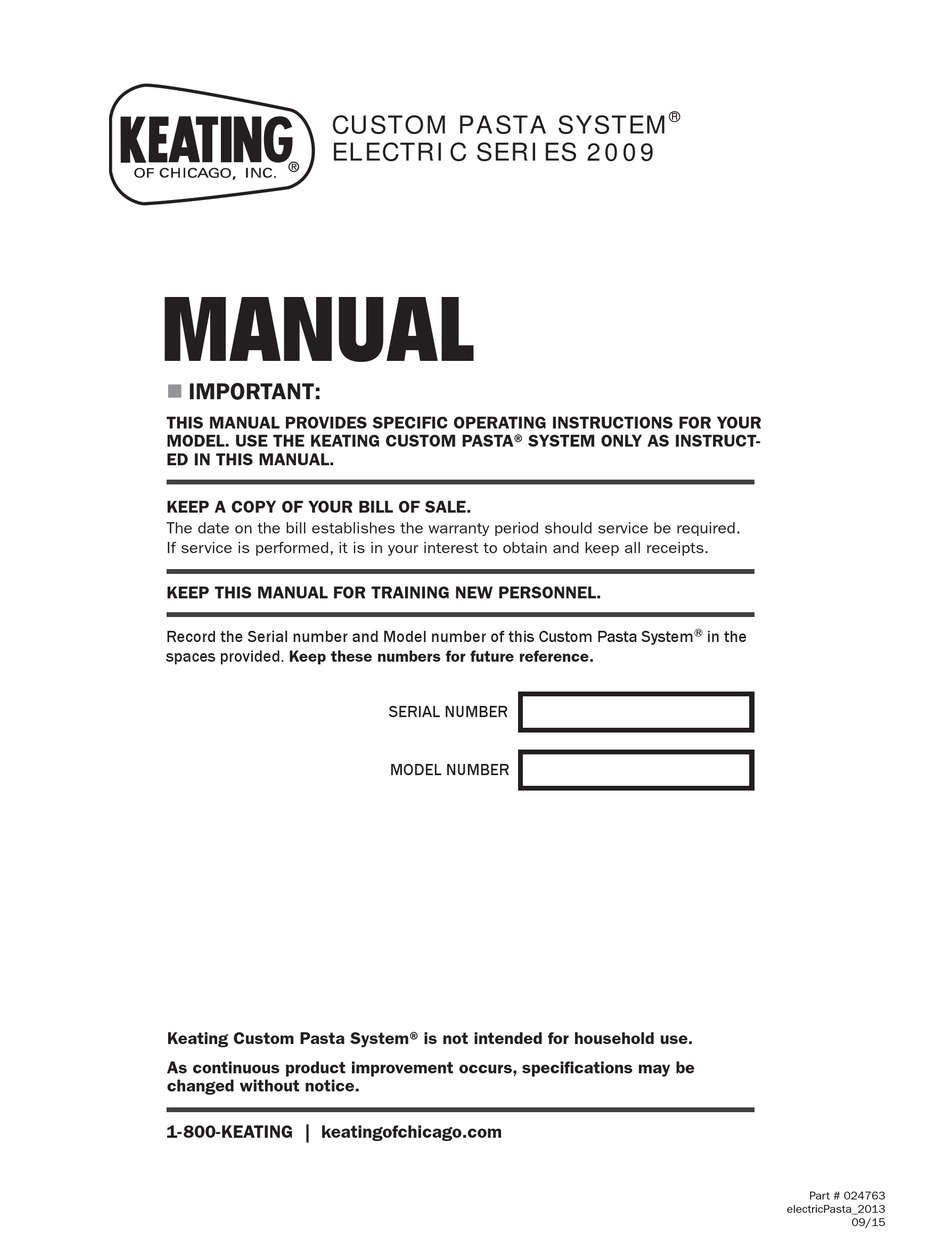

CUSTOM PASTA SYSTEM
ELECTRIC SERIES 2009
MANUAL
IMPORTANT:
THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR
MODEL. USE THE KEATING CUSTOM PASTA® SYSTEM ONLY AS INSTRUCT-
ED IN THIS MANUAL.
KEEP A COPY OF YOUR BILL OF SALE.
The date on the bill establishes the warranty period should service be required.
If service is performed, it is in your interest to obtain and keep all receipts.
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL.
Record the Serial number and Model number of this Custom Pasta System
spaces provided. Keep these numbers for future reference.
Keating Custom Pasta System® is not intended for household use.
As continuous product improvement occurs, specifi cations may be
changed without notice.
1-800-KEATING | keatingofchicago.com
SERIAL NUMBER
MODEL NUMBER
®
®
in the
Part # 024763
electricPasta_2013
09/15
