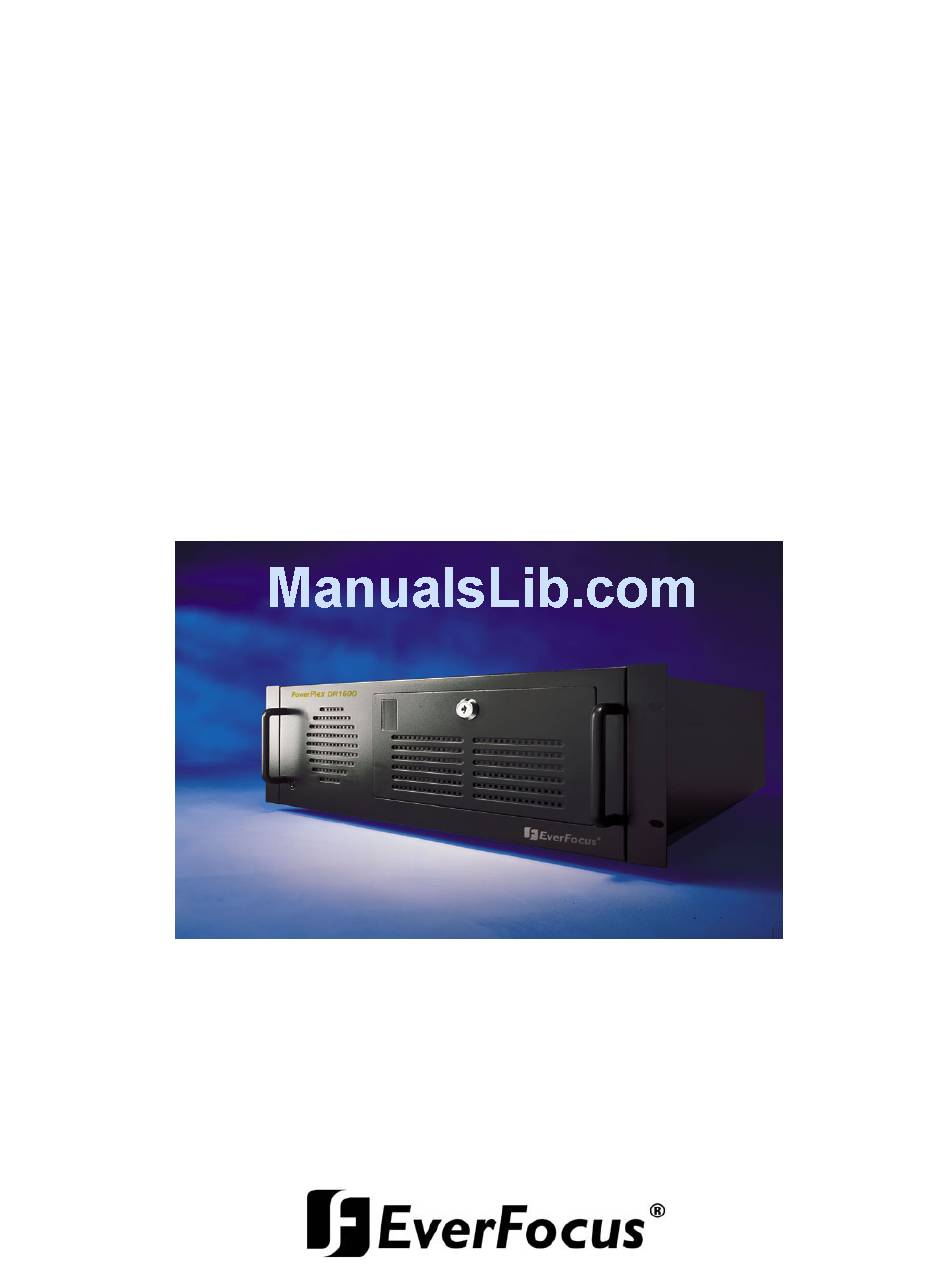

Page 1: Quick Reference
Quick Reference Digital Video Recorder EDR1600... -
Page 2: Installation
Quick Reference WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Notice: The information in this Quick Reference was current when published. The manufacturer reserves the right to revise and improve its products. - Page 3 Quick Reference Setup 1. Click on the Login icon to login in as an administrator. The factory default Login for an administrator is admin. The factory default Password for an administrator is admin. 2. Click on the System Time in order to change to your local time. The Date format is in YYYY/MM/DD.
- Page 4 Quick Reference Blacking Out Live Video 1. To black out the live images from the cameras. Login as an Administrator and set the cameras in Playback mode within the Sequence Mode display or Static Page Mode display. There are 7 Static Display pages and at most 8 display sequences. The Operator/Guest will not be able to view the live images from those cameras.
- Page 5 Quick Reference a. Select the camera that you want to PLAYBACK (W TYPE) press the drop down arrow and choose PLAYBACK. b. CLICK on SUBMIT CAMERA SETTINGS icon c. Enter START time & date and END time & date. d. CLICK on DATE/TIME SETTING e.
- Page 6 Gather the following from the ISP: Static IP address, Subnet mask, Gateway IP, DNS (Static IP address from ISP). Plug in the network cable into the network port in the EDR1600. Enter the menu screen by pressing the Config button.
- Page 7 Gather the following from the ISP: Static IP address, Subnet mask, Gateway IP. Plug in the network cable into the network port in the EDR1600. Enter the menu screen by pressing the config button. Then enter the system menu and go to IP Configuration Table.
