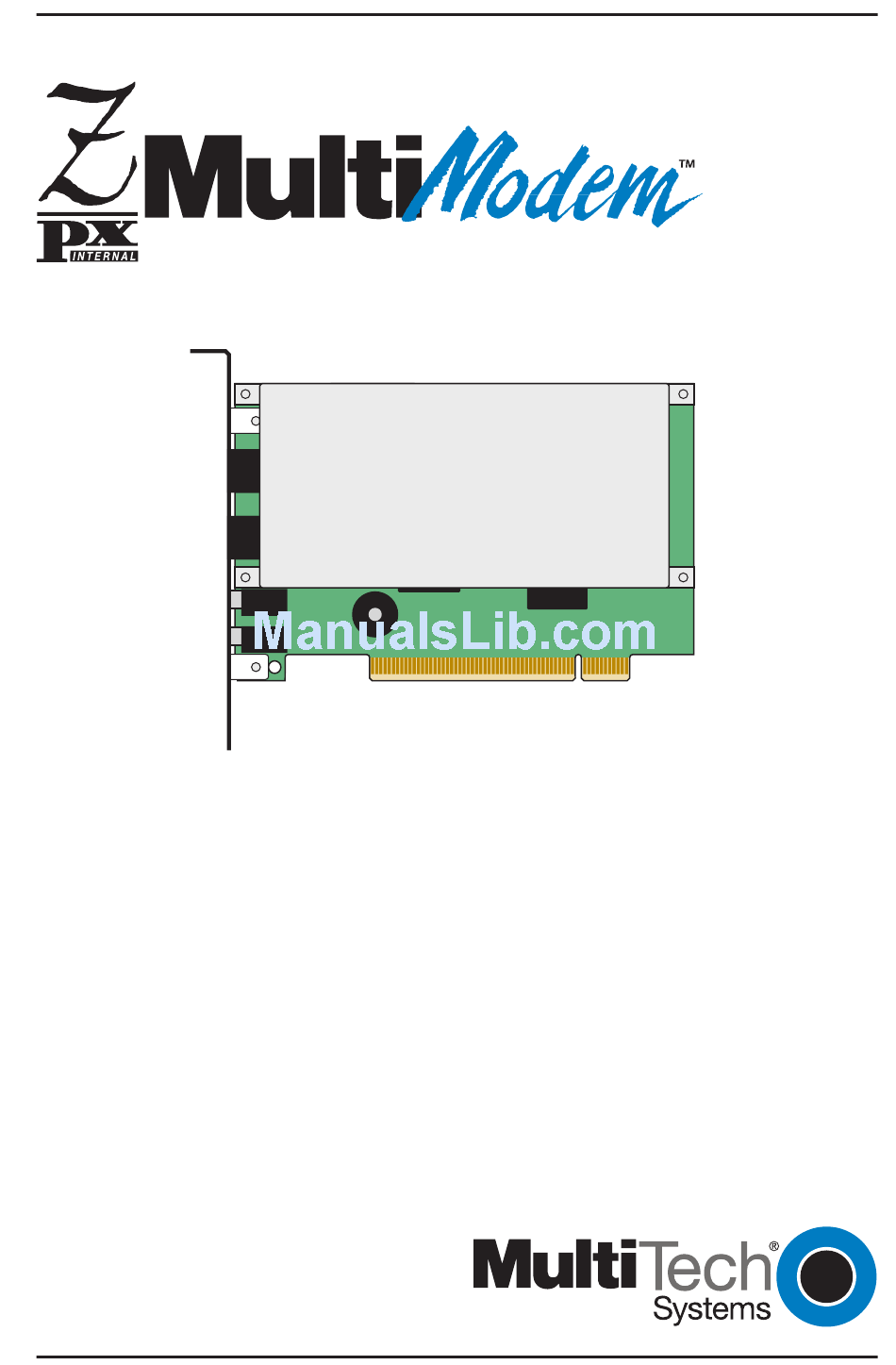

- Page 1 MT5634ZPX-PCI-U/NV MT5634ZPX-PCI-V92/NV MT5634ZPX-PCI/NV Internal Data / Super G3 Fax Modem Quick Start Guide...
- Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. Check Multi-Tech's web site for current versions of product documentation.
-
Page 3: You Supply
A MultiModemZPX system CD containing the modem driver, Global Wizard utility, data communications software (PhoneTools), Adobe Acrobat Reader, and the User Guide. If any item is missing, please contact Multi-Tech Systems or your dealer/distributor (see the User Guide for information on contacting Multi-Tech). -
Page 4: Safety Warnings
MultiModemZPX Quick Start Guide Safety Warnings • Use this product only with UL- and CUL-listed computers. • To reduce the risk of fire, use only UL-listed 26 AWG (.41mm) or larger telephone wiring. • Never install telephone wiring during a lightning storm. •... -
Page 5: Step 2: Make The External Connections
3. Select an available PCI expansion slot. Remove the expansion slot cover and save the retaining screw. 4. Before handling the MultiModemZPX, discharge static in your body by touching a metal piece of the computer chassis. Carefully remove the MultiModemZPX from its antistatic bag, handling it only by the mounting bracket and edges. -
Page 6: Line Connection
MultiModemZPX Quick Start Guide Line Connection Plug one end of the provided telephone cable into the modem’s LINE jack, and the other end into a telephone wall jack. This is the only required connection. Important: The LINE jack is not interchangeable with the PHONE jack. -
Page 7: Step 3: Install The Modem Driver
Step 3: Install the Modem Driver If you use Windows 98 or newer, you must install the modem driver. The modem driver tells Windows how to control the modem. If you use a Linux operating system or the SCO OpenServer operating system, please see the User Guide for installation instructions. - Page 8 MultiModemZPX Quick Start Guide 4. The Multi-Tech Systems NT4 PCI Modem Setup dialog box shows the COM port assigned to the modem. You can change the COM port assignment by clicking the down arrow and selecting an available COM port.
-
Page 9: Step 4: Configure The Modem For Your Country
Step 4: Configure the Modem for Your Country Different countries have different requirements for how modems must function. Therefore, before you use your modem, you must configure it to match the defaults of the country in which you are using it. You can use one of two configuration methods: Using the Global Wizard to Configure Your Modem •... -
Page 10: Using At Commands To Configure Your Modem
MultiModemZPX Quick Start Guide Using AT Commands to Configure Your Modem Non-Windows users can configure the modem using AT commands. You must enter these commands in your communication program’s terminal window. 1. Run your favorite communication program or use PhoneTools (located on the CD packaged with your modem) and open the program’s terminal window. - Page 12 82092853L...
