MultiFRAD 3000-Series User Guide

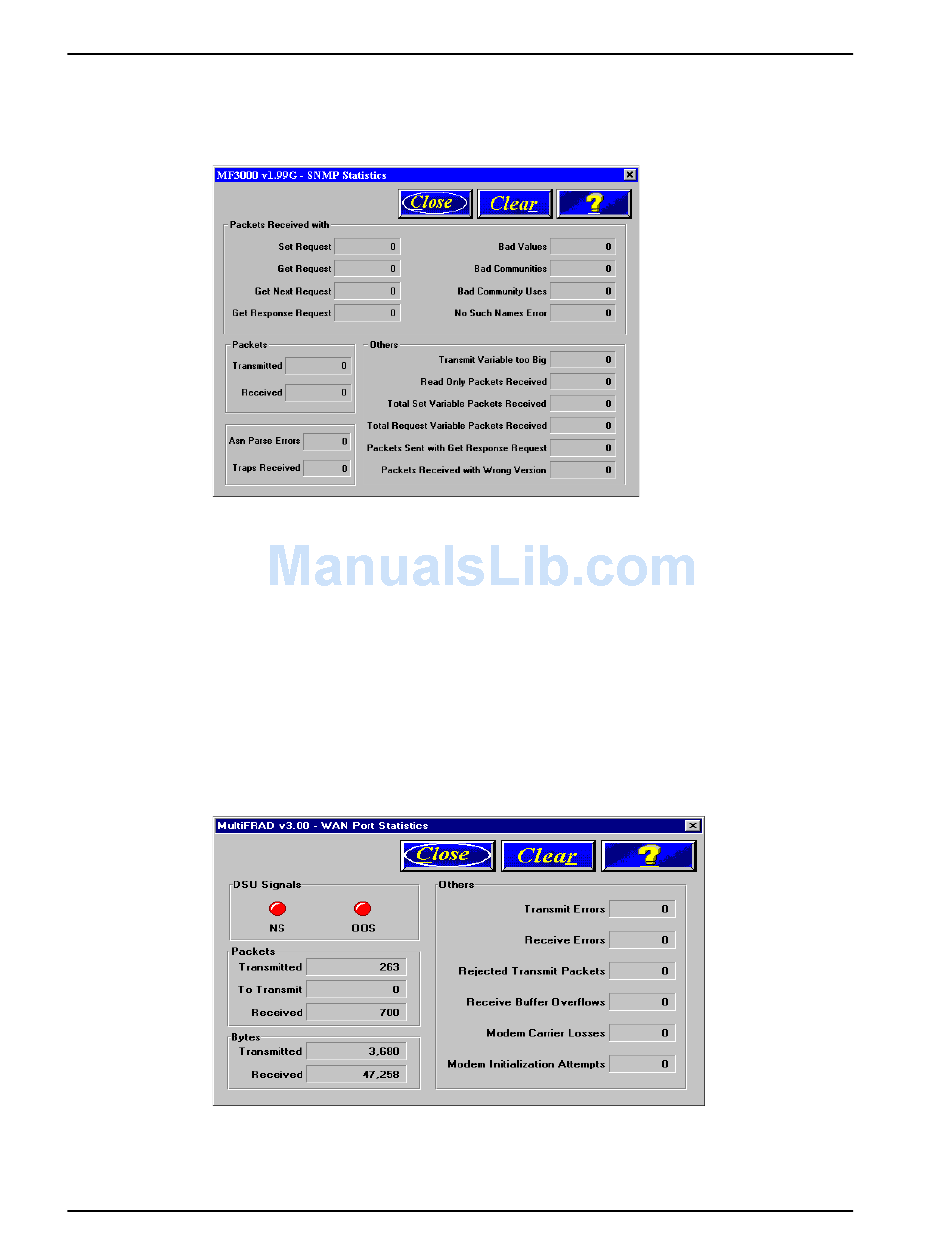

SNMP Statistics
The SNMP Statistics dialog box provides statistical information on Simple Network Management
Protocol (SNMP).
SNMP is an application layer protocol that facilitates the exchange of management information
between network devices. There are three key components in SNMP: the devices that are to be
managed, agents, and the network management systems. The managed device is the network
device, like a MultiFRAD. The agent is the software module residing in the managed device
pertaining to network management. The network management system runs the SNMP application
that controls the managed devices and monitors their status. There are four primary operations
performed using SNMP. They are Set, Get, Get Next, and Trap.
You can use these statistics to help troubleshoot in the event you have a problem communicating
with the MultiFRAD from your SNMP manager.
WAN Statistics
The WAN Statistics dialog box provides statistical information regarding the MultiFRAD's WAN port,
including the number of packets transmitted/received, and total bytes transmitted/received.
64
