the deck lift handle and move it outward. This allows the handle to
move forward, lowering the deck to the cutting position.
7.
Fuel Shutoff Valve: (See Figure 4.)
Located on top of the fuel tank. When
turned in a clockwise direction until it
stops, it will shut off the flow of fuel to
the engine. When turned in a coun-
terclockwise direction it will open and
allow fuel to flow to the engine. Close
this valve if you are not going to run
the mower for a period of 30 minutes
or more to prevent flooding the
engine.
8.
Seat Adjustment Lever: The Seat
Adjustment Lever is located beneath the seat. The Seat Adjust-
ment Lever is used to move the seat forward and backward. To
place the seat in the desired position pull the seat adjustment lever
to the left then push the seat forward or back to the desired posi-
tion. Release the lever so the seat will lock in place.
9.
Digital Tachometer and Hour Meter: (See Figure 1) Located on
the right side of the mower in front of the ignition switch. When the
machine is running the tachometer displays engine rpm. When the
machine is off the tachometer displays running time.
10. Choke Lever: (See Figure 2) The Choke Lever is located on the
left instrument panel next to the seat. The Choke Lever is operated
manually. Having the Choke Lever in the ON position helps the
engine to start during initial start-up. During normal operation the
Choke Lever should be in the OFF position.
Note:
There is a flashing "OIL" at each recommended engine oil and filter change.
B. Initial Adjustments
1.
Check the fluid levels and tires:
Note:
Fuel: Using a good grade of unleaded, regular gasoline (for
a.
a gasoline engine), fill the fuel tank (beside the engine on
the left or right side of the mower). When the fuel reaches
one inch from the top of the tank, stop. DO NOT OVER-
FILL. Space must be left for expansion.
b.
Engine Oil: (Filled at the factory before shipment.) Pull out
the oil dipstick, wipe it off and reinsert it. Pull it out again
and read the oil level. If it is below the operating range, add
There will be a flashing "LUBE" for each recommended lubrication interval.
These checks should be made daily, before starting the engine.

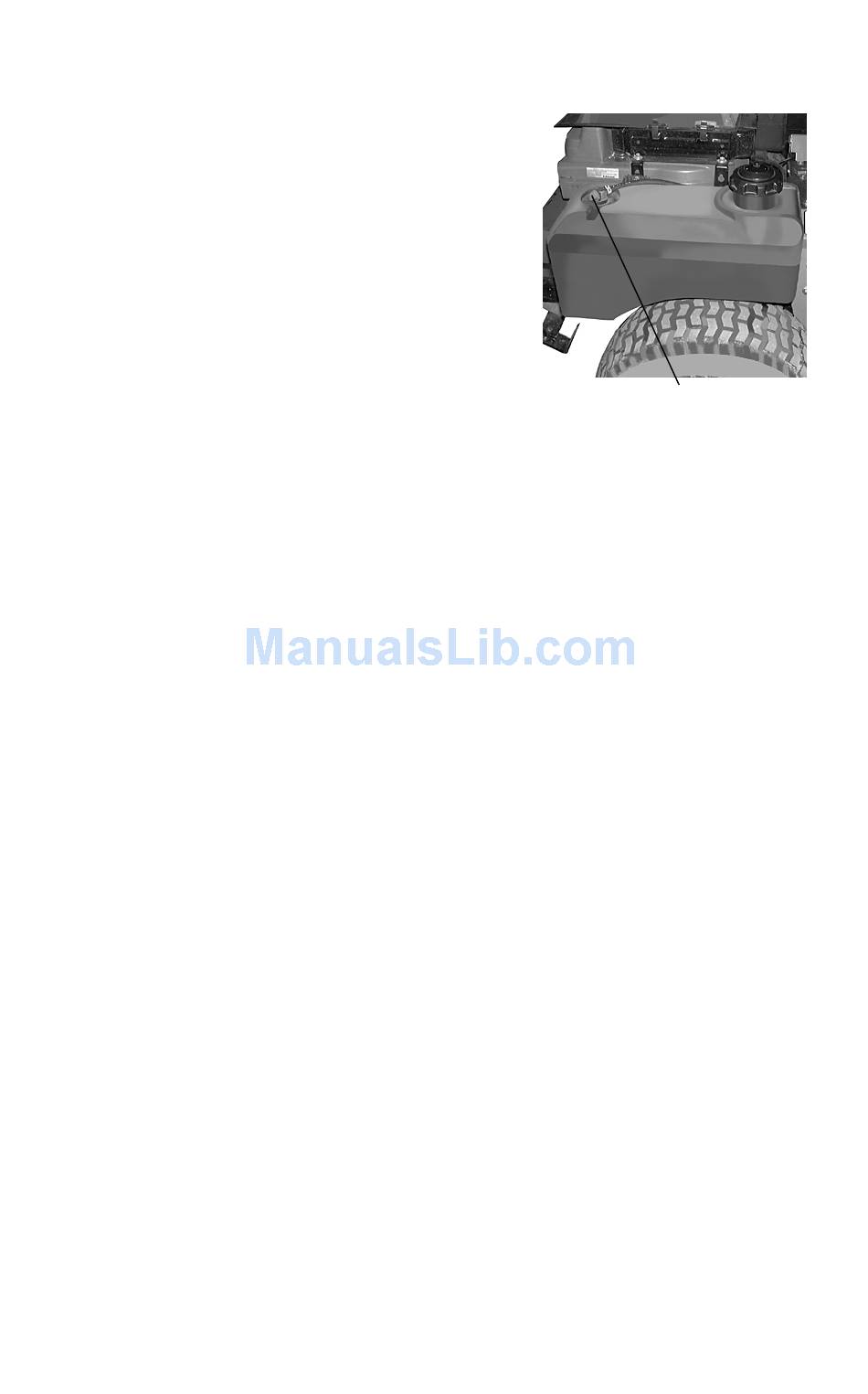

Figure. 4
9
Fuel Shutoff Valve
