EUROCOM MA6480A/MA6018/MA6008/MA6000M
EUROCOM MA6480A/MA6018/MA6008/MA6000M Ge tting started
Step 3: Getting

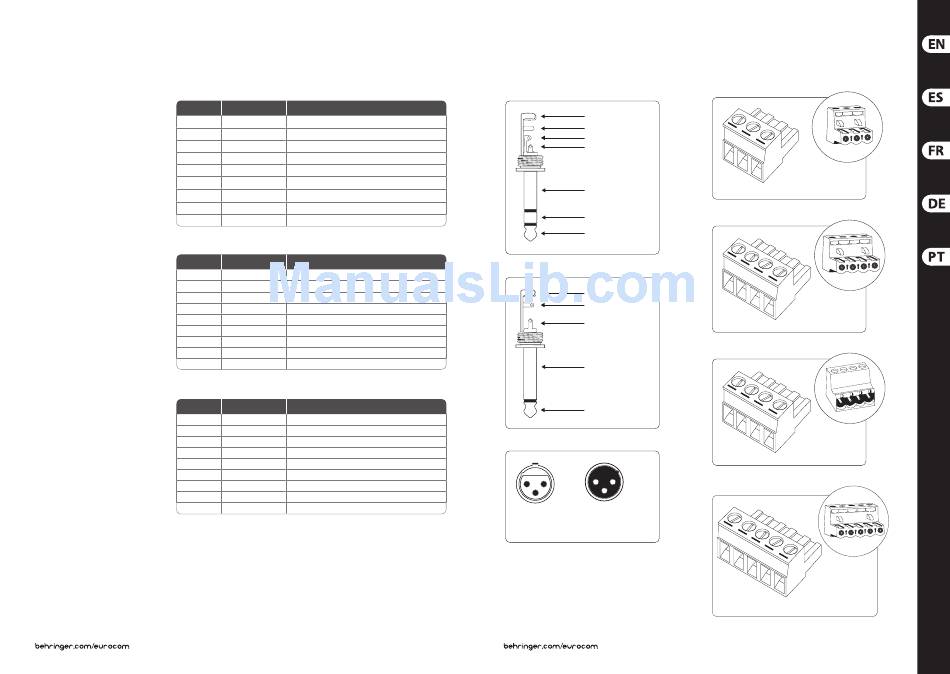

Dip Switch Settings
(EN)
started
Main
Dip Switch
Paso 3: Puesta en
(ES)
SW 9-1
marcha
SW 9-2
SW 9-3
SW 9-4
Étape 3 : Mise en
(FR)
SW 9-5
œuvre
SW 9-6
SW 9-7
SW 9-8
Schritt 3: Erste
(DE)
SW 9-9
Schritte
Tel/Page
Passo 3: Primeiros
(PT)
Dip Switch
Passos
SW 10-1
SW 10-2
SW 10-3
SW 10-4
SW 10-5
SW 10-6
SW 10-7
SW 10-8
SW 10-9
Channel
Dig Switch
SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
SW 7
SW 8
SW 9
Name Function
GATE -15/∞ Selects -15 dB (OFF) or -∞ dB (ON) unused mic attenuation
Aux to Zone 2 Routes currently selected Aux input to Zone 2 bus
Aux to Main Mix Routes currently selected Aux input to Main Mix bus
Master Mode Assigns Master functions to one of several bridged units
Chime to Zone 2 Routes internal chime to Zone 2 bus when chime active
Aux D to MOH Routes audio at Aux D to MOH output
Aux C to MOH Routes audio at Aux C to MOH output
Aux B to MOH Routes audio at Aux B to MOH output
Aux A to MOH Routes audio at Aux A to MOH output
Name Function
Zone 2 Routes Tel/Page input to Zone 2 bus
Main Routes Tel/Page input to Main Mix bus
Chime Activates the pre-announce chime function
Vox Tel/Page forced on via CTRL to GND or signal activated (ON)
Aux RCV Allows inputs 1-8 to override Aux inputs
Mute 1-8 Allows the Tel/Page input to override inputs 1-8
Mute Aux Allows the Tel/Page input to override the Aux inputs
Phantom Sends 24 VDC phantom power to Tel/Page input
Mic/Line Optimizes input for use with mic or line-level signals
Name Function
Mic/Line Switches between Mic and Line level
Phantom Connects 24 VDC phantom power
Mute Send Routes Control input to Mute Buffer
Mute Receive Routes Mute signal to Channel VCA
RVC Switches between Remote Volume and Force On
Auto Enables signal-activated gating of input
Chime Routes Mute control signal to Chime generator
Main Mix Routes channel to Main Mix bux
Zone 2 Routes channel to Zone 2 bus
43
Quick Start Guide
Connectors
Balanced 1/4" TRS Connector/conector TRS de 6,3 mm balanceado
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
cold (-)
tip
hot (+)
Unbalanced 1/4" TS Connector/conector TS de 6,3 mm no balanceado
strain relief clamp
sleeve
tip
sleeve
ground/shield
tip
signal
Balanced XLR Connectors/conectores XLR balanceados
1 2
2 1
3
3
output
input
1 = ground/shield
2 = hot (+)
3 = cold (-)
3-Pin Euroblock Connector - Input / Output/Euroconector de 3 puntas
- entrada salida
1
1. ground/shield
2
2. hot (+)
3
3. cold (-)
4-Pin Euroblock Connector - Input/Euroconector de 4 puntas - entrada
1
1. ground/shield
2
2. hot (+)
3
3. cold (-)
4
4. mute
4-Pole Euroblock Connector - Output/Euroconector de 4 polos - salida
1
1. LO-Z common
2
2. LO-Z (+)
3
3. HI-Z common
4
4. HI-Z (+)
5-Pin Euroblock Connector - Remote
1
2
1. common
3
2. +5 VDC
4
3. remote volume control
5 4. mute
5. power
