- Page 1 INPUT OUTPUT User Manual TUBE ULTRAGAIN MIC200 Audiophile Vacuum Tube Preamplifier with Preamp Modeling Technology...
-
Page 2: Table Of Contents
TUBE ULTRAGAIN MIC200 User Manual Table of Contents Thank you .................... 2 Important Safety Instructions ............3 Legal Disclaimer .................. 4 Limited Warranty ................5 1. Introduction .................. 10 1.1 The design concept ..................10 1.2 Online registration ..................11 2. Control Elements ................12 2.1 User interface ....................13... -
Page 3: Important Safety Instructions
TUBE ULTRAGAIN MIC200 User Manual The apparatus shall not be Important Safety exposed to dripping or splashing Instructions liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution ◊ These service instructions are... -
Page 4: Legal Disclaimer
TUBE ULTRAGAIN MIC200 User Manual 9. Do not defeat the safety purpose apparatus combination to avoid injury of the polarized or grounding-type plug. from tip-over. A polarized plug has two blades with one 15. Unplug this apparatus during wider than the other. A grounding-type... -
Page 5: Limited Warranty
Group Authorized Reseller in the country MUSIC GROUP PRODUCTS ARE of purchase. A list of authorized resellers SOLD THROUGH AUTHORIZED can be found on BEHRINGER’ s website FULLFILLERS AND RESELLERS ONLY. behringer. com under “Where to Buy”, FULLFILLERS AND RESELLERS ARE or you can contact the MUSIC Group offi ce NOT AGENTS OF MUSIC GROUP AND... -
Page 6: Online Registration
TUBE ULTRAGAIN MIC200 User Manual one (1) year (or otherwise applicable MUSIC Group Authorized Reseller not minimum warranty period) from the date be located in your vicinity, you may of purchase of the original product. contact the MUSIC Group Authorized Fulfi ller for your country listed under (3) Upon validation of the warranty “Support”... - Page 7 TUBE ULTRAGAIN MIC200 User Manual the valves or meters contained in the (4) This limited warranty is invalid if the product to be free from defects in material factory- applied serial number has been and workmanship for a period of ninety altered or removed from the product.
-
Page 8: Limitation Of Liability
TUBE ULTRAGAIN MIC200 User Manual § 5 Warranty transferability (7) Any repair or opening of the unit carried out by unauthorized This limited warranty is extended personnel (user included) will void the exclusively to the original buyer limited warranty. (customer of authorized reseller) and is... - Page 9 TUBE ULTRAGAIN MIC200 User Manual § 8 Other warranty rights and national law (1) This limited warranty does not exclude or limit the buyer’ s statutory rights as a consumer in any way. (2) The limited warranty regulations mentioned herein are applicable unless they constitute an infringement of applicable mandatory local laws.
-
Page 10: Introduction
1. Introduction With the MIC200, you have purchased an extremely musical mic preamp that is equipped with a 12AX7 vacuum tube. Thanks to BEHRINGER’s preamp modeling, its main advantages are the number of preamp settings you can select. Additionally, features like an integrated limiter, phase reverse function, phantom power supply, highly accurate LED meter, switchable pad function and low cut filter make the MIC200 a very powerful piece of equipment. -
Page 11: Online Registration
Please register your new BEHRINGER equipment right after your purchase by visiting http://behringer.com and read the terms and conditions of our warranty carefully. Should your BEHRINGER product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased. -
Page 12: Control Elements

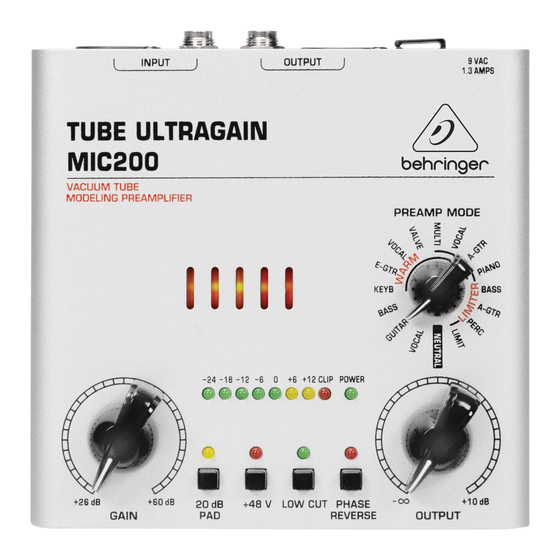

TUBE ULTRAGAIN MIC200 User Manual 2. Control Elements INPUT OUTPUT (1) (2) (4) (5) (6) (7) (3) (8) Fig. 2.1: User interface of the MIC200... -
Page 13: User Interface
TUBE ULTRAGAIN MIC200 User Manual 2.1 User interface (1) The GAIN control allows you to control the gain from +26 to +60 dB to the input signal. This control should be set all theway to the left when (dis) connecting a sound source from the MIC200. When all connections are made, slowly start raising the gain control. - Page 14 TUBE ULTRAGAIN MIC200 User Manual (8) The OUTPUT control governs the output level within a range from -∞ to +10 dB. If the control is turned all the way to the left, there is no output signal at all. The more the control is turned to the right, the higher the output level.
- Page 15 TUBE ULTRAGAIN MIC200 User Manual LIMITER (moving clockwise, starting at 3 o’clock): Select these settings if you wish to use the limiter function without adding tube warmth. • BASS: Bass guitar • A-GTR: Acoustic guitar • PERC: Percussion and drums •...
-
Page 16: Rear Panel
TUBE ULTRAGAIN MIC200 User Manual 2.2 Rear panel (12) (11) (10) Fig. 2.2: The rear panel of your MIC200 (10) The balanced ¼" TRS INPUT of your MIC200 can be used to connect your electric guitar, for example. This input is wired parallelly to the XLR input. -
Page 17: Wiring Examples
TUBE ULTRAGAIN MIC200 User Manual 3. Wiring Examples You’ll be surprised how flexibly you can set up your MIC200. The following chapter describes some typical wiring examples. 3.1 Enhancing vocals and instruments in live applications Here, the MIC200 is wired before the mixer’s channel input. Thus, the sound gains in warmth and transparency. -
Page 18: Direct To Disk" Application In Studio Or Homerecording Environments
TUBE ULTRAGAIN MIC200 User Manual 3.2 “Direct to Disk” application in studio or homerecording environments If you are looking for a device that considerably enhances the sound of your digital workstation, this is where the MIC200 comes in. Many hard disk recorders lack a certain “liveliness”. -
Page 19: The Mic200 As Di-Box
TUBE ULTRAGAIN MIC200 User Manual 3.3 The MIC200 as DI-box Your MIC200 is excellently suited for this application. For example, you can connect an unbalanced acoustic guitar signal to the MIC200 to prevent hum or interference noise. What you get is a balanced, noise-free signal. -
Page 20: Audio Connectors
TUBE ULTRAGAIN MIC200 User Manual 4. Audio Connectors Balanced use with XLR connectors input output 1 = ground/shield For unbalanced use, 2 = hot (+ve) pin 1 and pin 3 3 = cold (-ve) have to be bridged Fig. 4.1: XLR connectors Unbalanced ¼"... - Page 21 TUBE ULTRAGAIN MIC200 User Manual Balanced ¼" TRS connector strain relief clamp sleeve ring sleeve ground/shield ring cold (-ve) hot (+ve) For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug. Fig. 4.3: ¼" TRS connector...
-
Page 22: Specifications
TUBE ULTRAGAIN MIC200 User Manual 5. Specifications Audio Inputs XLR Input Connector balanced / unbalanced Type transformerless, DC-decoupled input Impedance approx. 2 kΩ Max. input level +7 dBu / -20 dB with pad ¼" TRS Input Connector balanced / unbalanced Type transformerless, DC-decoupled input Impedance approx. - Page 23 TUBE ULTRAGAIN MIC200 User Manual System Data Signal-to-noise ratio 90 dB A-weighted @ -28 dBu input level Frequency Response Mic input <10 Hz to 47 kHz (±3 dB) Line input <10 Hz to 55 kHz (±3 dB) Function Controls GAIN variable (+26 dB to +60 dB) OUTPUT variable (-∞ to +10 dB)
-
Page 24: Mains Voltage
