Insignia NS-19E310NA15 User Manual
19" 720p 60hz led tv
Hide thumbs
Also See for NS-19E310NA15:
- User manual (80 pages) ,
- Quick setup manual (2 pages) ,
- Important information manual (9 pages)
Related Manuals for Insignia NS-19E310NA15
Summary of Contents for Insignia NS-19E310NA15

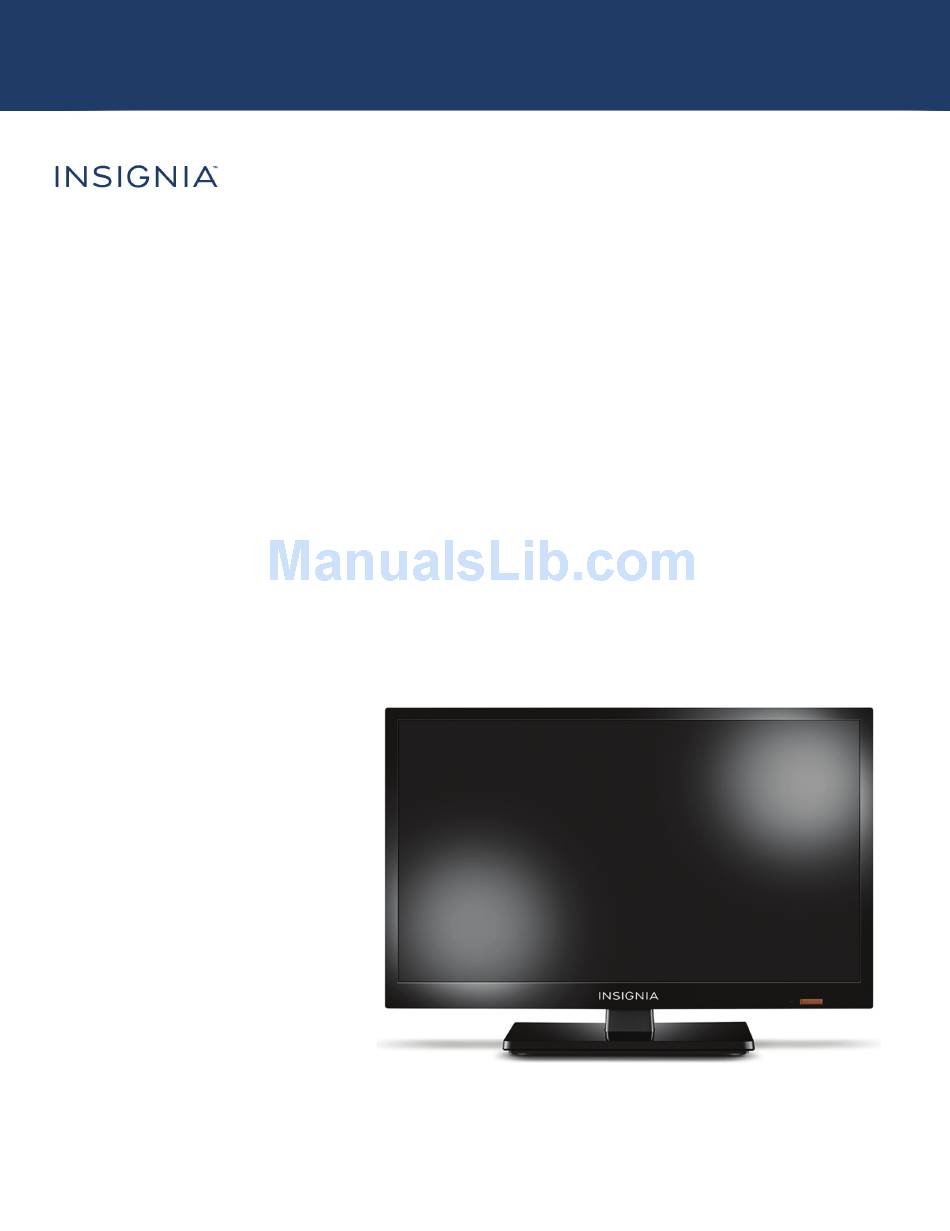

- Page 1 USER GUIDE 19" 720p 60Hz LED TV NS-19E310NA15 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents CHILD SAFETY ............. . . 1 Important Safety Instructions . - Page 3 Contents Connecting a computer ........... . . 25 HDMI (best) .
- Page 4 Contents Setting the power on picture mode ..........49 Adjusting the computer image .
- Page 5 Legal notices ............. . . 76 One-year limited warranty - Insignia Televisions ......77...
-
Page 6: Child Safety
CHILD SAFETY PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. As you enjoy your television, please note that all televisions - new and old- must be supported on proper stands or installed according to the manufacturer's recommendations. -
Page 7: Important Safety Instructions
Important Safety Instructions 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or CAUTION objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, RISK OF ELECTRIC SHOCK does not operate normally, or has been dropped. -
Page 8: Caution
NS-19E310NA15 Replacement parts Antenna lead-in wire When replacement parts are required, make sure that the service technician uses replacement parts Grounding clamp specified by the manufacturer that have the same Antenna discharge characteristics as the original part. Unauthorized unit substitutions may result in fire, electric shock, personal injury, or other hazards. -
Page 9: Introduction
Congratulations on your purchase of a high-quality simply pressing the GAME button on your remote Insignia product. Your NS-19E310NA15 represents the control, your TV settings will automatically adjust for state of the art in LED TV design and is designed for video games. -
Page 10: Installing The Stand Or Wall-Mount Bracket
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Installing the stand or wall-mount bracket • If you want to place your TV on a table or in an entertainment center, go to “Installing the stand. ” • If you want to mount your TV on a wall, go to “Installing a wall-mount... -
Page 11: Installing A Wall-Mount Bracket
Insignia 19" 720p 60Hz LED TV Installing a wall-mount bracket Warning This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See “Miscellaneous” on page 75.) 1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 12 NS-19E310NA15 Insignia 19" 720p 60Hz LED TV 4 Remove the stand column. 5 Attach the wall-mount bracket to your TV using either the four provided M4 × 8 mm screws or the screws that came with the wall-mount bracket. See the instructions that came with the wall-mount bracket for information about which screws to use and how to correctly hang your TV.
-
Page 13: Tv Components
Insignia 19" 720p 60Hz LED TV TV components Top buttons Package contents • 19" LED TV • Remote control and batteries (2 AAA) • TV stand • AC power adapter • Quick Setup Guide • Important Information This section contains information about: •... -
Page 14: Side Jacks
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Side jacks Item Description Connect headphones, a sound bar, analog speaker system, or a home theater system to this jack to listen /AUDIO OUT to TV audio through external speakers. For more information, see “Analog... -
Page 15: Back Jacks
Insignia 19" 720p 60Hz LED TV Back jacks # Item Description Plug the AC power adapter into 1 DC IN (12V) this connector. Connect the audio for a component video device to these jacks. For more information, see “Component video (better)”... -
Page 16: Remote Control
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Remote control Button Press to... Set the sleep timer. You can select Off, 5, 10, 15, 30, 60, 90, SLEEP 120, 180, or 240 minutes. See “Setting the sleep timer” on page 63. -
Page 17: What Connection Should I Use
Insignia 19" 720p 60Hz LED TV What connection should I Connection type and Cable connectors use? jacks Your TV has several connection types for connecting Coaxial digital devices to your TV. audio For the best video quality, you should connect a device to the best available connection. -
Page 18: Connecting A Cable Or Satellite Box
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Connecting a cable or satellite box Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see “What connection should I... -
Page 19: Dvi (Same As Hdmi But Requires An Audio Connection)
Insignia 19" 720p 60Hz LED TV DVI (same as HDMI but requires an audio connection) Note You must use the HDMI 2 (DVI) jack to connect a cable or satellite box using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers. -
Page 20: Component Video (Better)
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Component video (better) Note Cables are often color-coded to match color-coded jacks. Cable or satellite box Audio cable On your TV Component video cable Component Audio cable video cable connectors connectors Component Analog... -
Page 21: Av (Composite Video) (Good)
Insignia 19" 720p 60Hz LED TV AV (composite video) (good) Notes • Cables are often color-coded to match color-coded jacks. • The yellow video connector on the AV cable connects to the green VIDEO/Y jack. Cable or satellite box On your TV... -
Page 22: Coaxial (Good)
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Coaxial (good) Cable or Cable satellite box wall jack On your TV Coaxial cable connector Coaxial cable ANT/CABLE IN jack Back of TV 1 Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off. -
Page 23: Connecting An Antenna Or Cable Tv (No Box)
Insignia 19" 720p 60Hz LED TV Connecting an antenna or cable TV (no box) On your TV Antenna or cable TV (no box) Coaxial cable Coaxial cable connector ANT/CABLE IN jack Back of TV 1 Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off. -
Page 24: Connecting A Dvd Or Blu-Ray Player
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Connecting a DVD or Blu-ray player Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best connection type available. For more information, see “What connection should I... -
Page 25: Component Video (Better)
Insignia 19" 720p 60Hz LED TV Component video (better) Note Cables are often color-coded to match color-coded jacks. DVD or Blu-ray player Component video cable On your TV Audio cable Component Audio cable video cable connectors connectors Component Analog Back of TV... -
Page 26: Av (Composite Video) (Good)
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV AV (composite video) (good) Notes • Cables are often color-coded to match color-coded jacks. • The yellow video connector on the AV cable connects to the green VIDEO/Y jack. DVD or Blu-ray player... -
Page 27: Connecting A Game Console
Insignia 19" 720p 60Hz LED TV Connecting a game console You can connect a game console using: • HDMI (best) • Component video (better) • AV (composite video) (good) HDMI (best) Side of TV Game console On your TV HDMI cable... -
Page 28: Component Video (Better)
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Component video (better) Note Cables are often color-coded to match color-coded jacks. Game console Console-specific component video and audio cable On your TV Component Audio cable video cable connectors connectors Back of TV... -
Page 29: Av (Composite Video) (Good)
Insignia 19" 720p 60Hz LED TV AV (composite video) (good) Notes • Cables are often color-coded to match color-coded jacks. • The yellow video connector on the AV cable connects to the green VIDEO/Y jack. On your TV Game console... -
Page 30: Connecting A Computer
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Connecting a computer You can connect a computer using: • HDMI (best) • DVI (same as HDMI but requires an audio connection) • VGA (good) HDMI (best) Side of TV On your TV... -
Page 31: Dvi (Same As Hdmi But Requires An Audio Connection)
Insignia 19" 720p 60Hz LED TV DVI (same as HDMI but requires an audio connection) Note You must use the HDMI 2 (DVI) jack to connect a computer using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers. -
Page 32: Vga (Good)
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV VGA (good) VGA cable On your TV Audio cable VGA cable Audio cable connector connector VGA jack PC/DVI AUDIO jack Back of TV 1 Make sure that your TV’s AC power adapter is unplugged and the computer is turned off. -
Page 33: Connecting A Usb Flash Drive
Insignia 19" 720p 60Hz LED TV Connecting a USB flash drive Side of TV USB flash drive 1 Plug a USB flash drive into the USB port on the side of your TV. Caution Do not remove the USB flash drive or turn off the TV while using the USB flash drive. -
Page 34: Connecting Headphones
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Connecting headphones When you connect headphones, the TV speakers are muted. Warning Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound. -
Page 35: Connecting External Speakers Or A Sound Bar
Insignia 19" 720p 60Hz LED TV Connecting external speakers or a sound bar You can connect external speakers or a sound bar using: • Digital audio • Analog audio Digital audio Side of TV Digital speaker system On your TV... -
Page 36: Analog Audio
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Analog audio When you connect an analog speaker system or sound bar to the /AUDIO OUT jack, the TV speakers are muted. Side of TV Audio cable On your TV Audio cable connector... -
Page 37: Connecting A Home Theater System With Multiple Devices
Insignia 19" 720p 60Hz LED TV Connecting a home theater system with multiple devices DVD or Blu-ray player Cable or satellite box AV receiver Game console Antenna or cable TV connected directly to the wall jack The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation that came with your devices for connection information. -
Page 38: Connecting Power
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Connecting power 1 Connect the AC power adapter to the DC IN (12V) connector on the back of your TV. 2 Connect the other end of the adapter to a power outlet. Caution •... -
Page 39: Using The Remote Control
Insignia 19" 720p 60Hz LED TV Using the remote control Cautions • Batteries should not be exposed to excessive heat, such as sunshine, heat This section covers: registers, or fire. • Installing remote control batteries • Battery chemicals can cause a rash. If the •... -
Page 40: Programming Universal Remote Controls
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Programming universal remote controls Viewing universal remote control codes You can operate your Insignia TV with a new or You can view a list of universal remote control codes existing universal remote control. -
Page 41: Turning On Your Tv For The First Time
Insignia 19" 720p 60Hz LED TV Turning on your TV for the 4 Press to highlight Home Use Mode or Store Display Mode, then press ENTER. first time If you selected Store Display Mode, a message asks if you are sure you want this mode. Select OK... - Page 42 NS-19E310NA15 Insignia 19" 720p 60Hz LED TV 7 Press to select On to turn on Daylight 12 If you select a preset label, press to select Next, Saving or Off to turn off Daylight Saving, then then ENTER. press ENTER.
-
Page 43: Understanding The Basics
Insignia 19" 720p 60Hz LED TV • If you select Cable from the wall or Antenna Turning your TV on or off your TV starts scanning for channels and 1 Make sure that the power adapter is connected to displays a progress screen. -
Page 44: On-Screen Menu Overview
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV On-screen menu overview Settings menu (TV mode) Notes • Depending on the signal source selected, you may see different options on your screen. • Menu items that are not selectable are grayed out. -
Page 45: Navigating The Menus
Insignia 19" 720p 60Hz LED TV Navigating the menus Selecting a channel • Press CH or CH to go to the next or previous Press MENU to open the on-screen menu. channel on the memorized channel list. • Press the number buttons to enter the channel... -
Page 46: Using Inlink
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Using INlink 4 Press to highlight INlink Control, then press ENTER or . 5 Press to highlight On or Off, then press INlink lets you control HDMI CEC-compatible devices ENTER. connected to the HDMI jacks on your TV using the 6 Press MENU to return to the previous menu, or remote control that came with your TV. -
Page 47: Turning Tv Auto Power On On Or Off
Insignia 19" 720p 60Hz LED TV Turning TV Auto Power On on or off Turning Audio Receiver on or off TV Auto Power On automatically turns on your TV When INlink is turned on and you have connected an when an HDMI CEC device is turned on, if the device HDMI CEC-compatible audio receiver to your TV, has this feature. -
Page 48: Displaying A List Of Inlink-Compatible Devices
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Displaying a list of INlink-compatible devices Selecting an INlink-compatible device You can display a list of HDMI CEC devices that are When you have more than one INlink-compatible connected to your TV. device connected, you can select the device you want to use. -
Page 49: Opening An Inlink-Compatible Device's Root Menu
Insignia 19" 720p 60Hz LED TV Using a USB flash drive Opening an INlink-compatible device’s root menu You can open an INlink-compatible device’s root You can connect a USB flash drive to your TV to view menu, then use your TV’s remote control to control compatible JPEG pictures. -
Page 50: Browsing Photos
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Browsing photos When a photo is displayed full-screen, a control bar appears at the bottom of the photo. The file 1 Switch to USB mode. See “Switching to USB mode” name, picture resolution, size, and date are on page 44. -
Page 51: Viewing Favorite Photos
Insignia 19" 720p 60Hz LED TV Viewing favorite photos Viewing photos in a slideshow After you create your favorite photo list, you can You can view your photos in a slideshow. browse among your favorite photos quickly. 1 Switch to USB mode. See “Switching to USB... -
Page 52: Adjusting The Picture
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Adjusting the picture 3 Press to highlight an option, then press ENTER or to access the option. You can select: • Picture Mode—Selects the picture mode. You This section covers: can select: •... -
Page 53: Automatically Adjusting The Aspect Ratio
Insignia 19" 720p 60Hz LED TV • Aspect Ratio—Adjusts how the picture fills • Backlight—Sets the overall brilliance of the the screen. You can select: screen. • Brightness—Adjusts the brightness of the dark Aspect ratio areas of the picture. Example options •... -
Page 54: Setting The Power On Picture Mode
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Setting the power on picture mode 4 Press to highlight Computer Settings, then press ENTER. You can set the picture mode your TV uses when you turn it on. 1 Press MENU. 2 Press to highlight HELP, then press ENTER. -
Page 55: Adjusting The Sound
Insignia 19" 720p 60Hz LED TV Adjusting the sound • TV Speakers—Selects where to play TV audio. When you connect headphones to your TV, audio plays through both the headphones and This section covers: the TV speakers. You can select: •... -
Page 56: Selecting The Audio Out Mode
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV • Headphones/Audio Out—You can use the Playing TV audio only AUDIO OUT/ jack on the side of your TV to You can turn off the picture on your TV and listen to connect headphones, a home theater system, the program audio only. -
Page 57: Changing Channel Settings
Insignia 19" 720p 60Hz LED TV Changing channel settings A If you select Cable/Satellite Box, the screen that opens shows you all the ways you can connect a box to your TV. This section covers: • Automatically scanning for channels •... -
Page 58: Hiding Channels
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV C If you select Antenna, your TV scans for Hiding channels available channels. The scan may take several You can hide channels in the channel list. When you minutes. press CH or CH , your TV skips the hidden channels. -
Page 59: Setting Up A Favorite Channel List
Insignia 19" 720p 60Hz LED TV Setting up a favorite channel list Viewing a favorite channel You can create a favorite channel list so you can 1 Press FAVORITE. The Favorite List opens. quickly browse through your favorite channels by... -
Page 60: Checking The Digital Signal Strength
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Setting parental controls 5 Press to select a character, then press to move to the previous or next character position. Repeat this step to enter additional characters. You can enter as many as 11 characters Parental controls let you prevent your children from (letters, numbers, or symbols). -
Page 61: Blocking Unrated Tv
Insignia 19" 720p 60Hz LED TV 4 Press the number buttons to enter the four-digit Blocking unrated TV password. The default password is 0000. You Some TV programs, such as news and sports shows should change the password to a number you can are not rated. -
Page 62: Setting Parental Control Levels
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Setting parental control levels Canadian French ratings You can set parental controls for the U.S. and Canada. Exempt programming U.S. rating levels General audiences 8ans+ Suitable for children 8 and older U.S. TV ratings... -
Page 63: Downloading Rating Information
Insignia 19" 720p 60Hz LED TV 5 Press to highlight USA Parental Locks, Downloading rating information then press ENTER. (To set Canadian ratings, select If the program you are viewing has downloadable Canadian Parental Locks.) rating information, you can download the USA Parental Locks information to use when setting parental controls. -
Page 64: Locking Control Buttons
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV 5 Press to highlight RRT5, then press ENTER. Locking control buttons The screen that opens may vary depending on the When the button lock is turned On, the buttons on broadcaster. the side of your TV are locked, and you can only operate your TV using the remote control. -
Page 65: Using Closed Captioning
Insignia 19" 720p 60Hz LED TV Using closed captioning Selecting the analog closed captioning mode Analog channels usually have one or more closed captioning modes. The CC1 mode usually displays a Closed captioning displays a text version of the TV... -
Page 66: Selecting The Digital Closed Captioning Mode
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Selecting the digital closed captioning mode Customizing digital closed captioning settings Digital channels usually have one or more closed 1 Press MENU. captioning modes. The CC1 mode usually displays a 2 Press to highlight SETTINGS, then press text version of the TV program audio in a small or ENTER. -
Page 67: Adjusting Time Settings
Insignia 19" 720p 60Hz LED TV 5 Press ENTER, then press to select Custom. 4 Press to highlight Date/Time, then press ENTER. 6 Press to highlight an option, then press ENTER, MENU, or . You can select: • Size—Selects the font size. -
Page 68: Setting The Sleep Timer
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Adjusting menu settings Setting the sleep timer You can specify the amount of time before your TV automatically turns off. You can adjust how the TV menus look by: 1 Press MENU. • Selecting the menu language... -
Page 69: Turning Input Sensor On Or Off
Insignia 19" 720p 60Hz LED TV Turning Input Sensor on or off 3 Press to highlight Input Labels, then press ENTER or . When the Input Sensor feature is turned on, your TV automatically detects which video jacks have devices connected to them and turned on. -
Page 70: Troubleshooting
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Troubleshooting Viewing system information You may need to view system information during troubleshooting. Use the following troubleshooting information to 1 Press MENU. solve common problems. 2 Press to highlight HELP, then press Warning ENTER. -
Page 71: Learning More
. 3 Follow the instructions in the Firmware Installation Guide on the Insignia website to download the firmware update and copy it to a USB flash drive. 4 Plug the USB flash drive into the USB port on the side of your TV. -
Page 72: Customizing Tv Settings
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV 9 When the update is complete, unplug the USB Restoring settings to the defaults flash drive, then press ENTER. Your TV turns off When you restore default settings, all the settings you then on to complete the update. -
Page 73: Video And Audio
Insignia 19" 720p 60Hz LED TV Video and audio Problem Solution Dark, poor, or no Problem Solution • Try another channel. The station picture (screen is may be experiencing problems. Picture does not lit), but sound is • Press ASPECT to change the •... - Page 74 NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Problem Solution Problem Solution Only snow (noise) Dotted lines or • Try another channel. The station • Make sure that the antenna or appears on the stripes appear on may be experiencing problems.
-
Page 75: Remote Control
Insignia 19" 720p 60Hz LED TV Problem Solution Problem Solution Good picture, but Good sound, but • Increase the volume. • Adjust the contrast, color, and no sound. poor color. • Make sure that the sound is not brightness settings. See muted. -
Page 76: General
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Problem Solution Problem Solution Trouble When I press • See instructions in “Programming • Turn on the device. Your TV programming INPUT, I cannot universal remote controls” on automatically detects and your existing select my page 35. -
Page 77: Inlink (Cec-Compatible) Device
TV and the device. receiver speakers only. connected CEC • Make sure that the device is • If the device is not an Insignia device. connected to your TV with an device, it may not be HDMI cable. - Page 78 NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Problem Solution Problem Solution My TV’s remote My device does • Make sure that there are no • Make sure that the INlink control does not turn off obstructions between the feature is turned on. See...
- Page 79 Insignia 19" 720p 60Hz LED TV Problem Solution Problem Solution Two volume I cannot select • When you adjust the volume on • The device may not support this bars appear the Root Menu the audio receiver or with the feature.
-
Page 80: Specifications
NS-19E310NA15 Insignia 19" 720p 60Hz LED TV Specifications Outputs Video Specifications are subject to change without notice. Analog audio/Headphone 1 (side) Digital audio 1 (coaxial) (side) Dimensions and weight WiFi 17.3 × 10.7 × 2 in. (43.9 × 27.1 × 5 cm) -
Page 81: Legal Notices
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection Your Insignia TV is ENERGY STAR® qualified in the “Energy against harmful interference in a residential installation. This Savings”... -
Page 82: One-Year Limited Warranty - Insignia Televisions
Insignia repair center or store personnel, WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, Insignia will (at its sole option): (1) repair the Product with new or LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR rebuilt parts;... - Page 83 (877) 467-4289 INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2015 Best Buy. All rights reserved. V3 FY16 ENGLISH...
