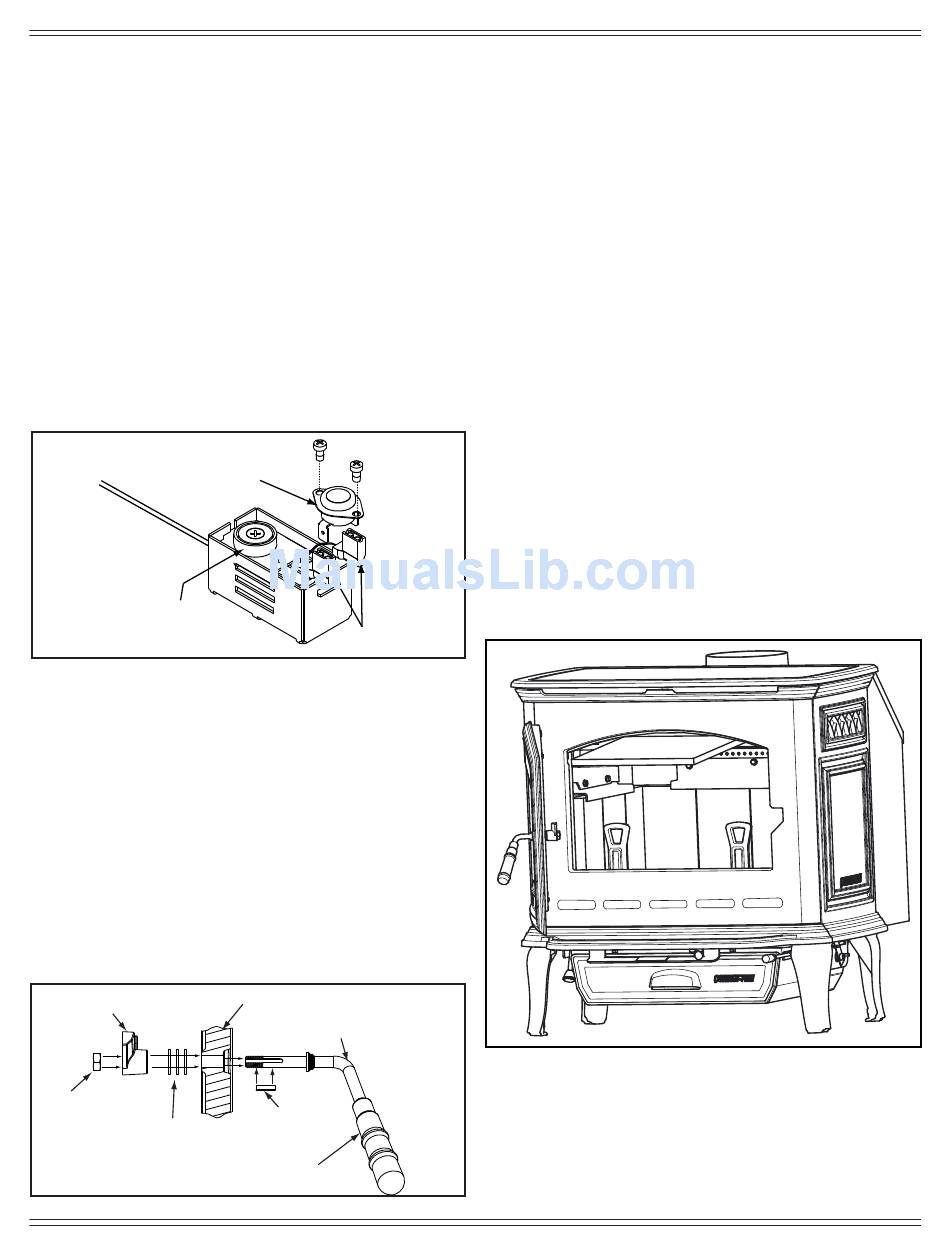

C. Snap Disc Replacement
(included with optional blower)
1. Unplug the appliance.
2. Locate the snap disc bracket assembly at the bottom left
rear corner of the appliance.
3. A magnet holds the bracket to the appliance. Pull the
bracket down away from the appliance to expose the snap
disc.
4. Pull the snap disc and spade connectors up and out of
bracket as shown in Figure 19.1
5. Using a Phillips head screw driver, remove the 2 screws
from the snap disc and then remove the snap disc from
the spade connectors. Replace with new snap disc and
re-connect to spade connectors.
6. Push the snap disc and spade connectors back inside
bracket. Reassemble in reverse order.
Snap Disc
Magnet
Figure 19.1
D. Door Handle Assembly
1. Slide door handle through door.
2. Install additional washer(s) as shown in Figure 19.2
3. Install key in groove.
4. Align groove in latch cam with key; slide latch cam over
shaft
5. Install locknut but do not overtighten, the handle needs
to rotate smoothly.
6. Install fi ber handle. Figure 19.2
CAUTION! Do not overtighten lock nut. The door handle
needs to move smoothly.
Door Cross
Latch Cam Section
Locknut
Spacing
Washers
Figure 19.2
February 25, 2016
Spade
Connectors
Door Handle Shaft
Square Key
Fiber Handle
E. Baffl e Removal
1. Remove all ash from the fi rebox and dispose appropriately.
2. Lift baffle protection channel, board, and blanket
approximately 1 inch up so it is free from the front tube.
3. Pull baffl e protection channel forward to remove.
4. Lift one half of the baffl e board just above the other and
slide over the top so it is centered in the appliance then tilt
down to remove. Slide the second half of the baffl e board
to the center then tilt down to remove. The baffl e blanket
will come out with the second board.
5. Install baffl e board in the reverse manner to which it was
removed.
6. Install baffl e blanket. It is easier to install the blanket by
folding the two sides approximately 4 inches from the end
then fl attening them down once seated against the rear of
the fi rebox.
7. Install baffl e protection channel. This must sit correctly on
the front air tube for the appliance to work as designed.
8. NOTE: Check to ensure the boards and blanket are situated
appropriately.
Figure 19.3
