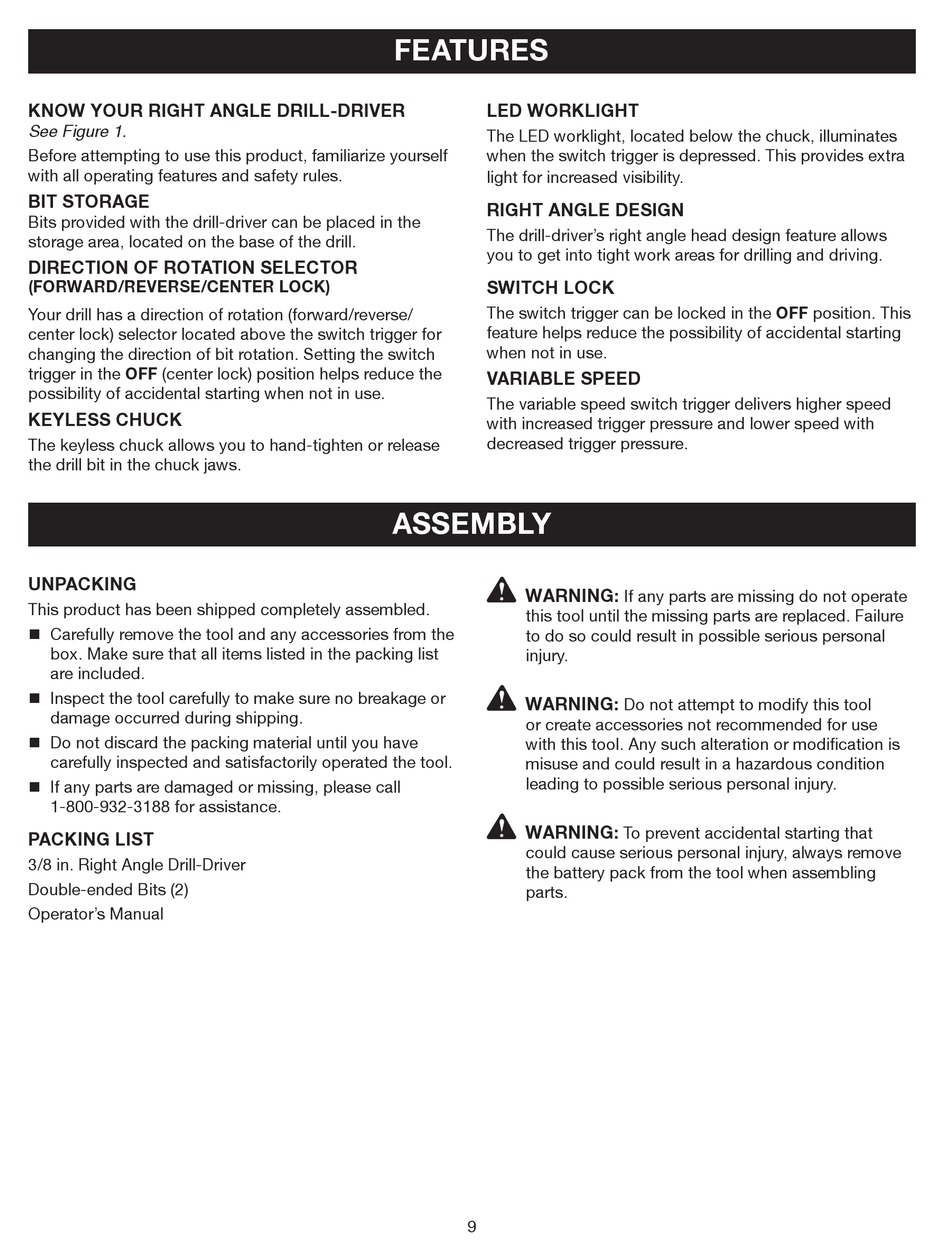

KNOW YOUR RIGHT ANGLE DRILL-DRIVER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
BIT STORAGE
Bits provided with the drill-driver can be placed in the
storage area, located on the base of the drill.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
Your drill has a direction of rotation (forward/reverse/
center lock) selector located above the switch trigger for
changing the direction of bit rotation. Setting the switch
trigger in the OFF (center lock) position helps reduce the
possibility of accidental starting when not in use.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release
the drill bit in the chuck jaws.
UNPACKING
This product has been shipped completely assembled.
n Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1-800-932-3188 for assistance.
PACKING LIST
3/8 in. Right Angle Drill-Driver
Double-ended Bits (2)
Operator's Manual
FEATURES
LED WORKLIGHT
The LED worklight, located below the chuck, illuminates
when the switch trigger is depressed. This provides extra
light for increased visibility.
RIGHT ANGLE DESIGN
The drill-driver's right angle head design feature allows
you to get into tight work areas for drilling and driving.
SWITCH LOCK
The switch trigger can be locked in the OFF position. This
feature helps reduce the possibility of accidental starting
when not in use.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed
with increased trigger pressure and lower speed with
decreased trigger pressure.
ASSEMBLY
WARNING:
this tool until the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
WARNING:
or create accessories not recommended for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
could cause serious personal injury, always remove
the battery pack from the tool when assembling
parts.
9
If any parts are missing do not operate
Do not attempt to modify this tool
To prevent accidental starting that
