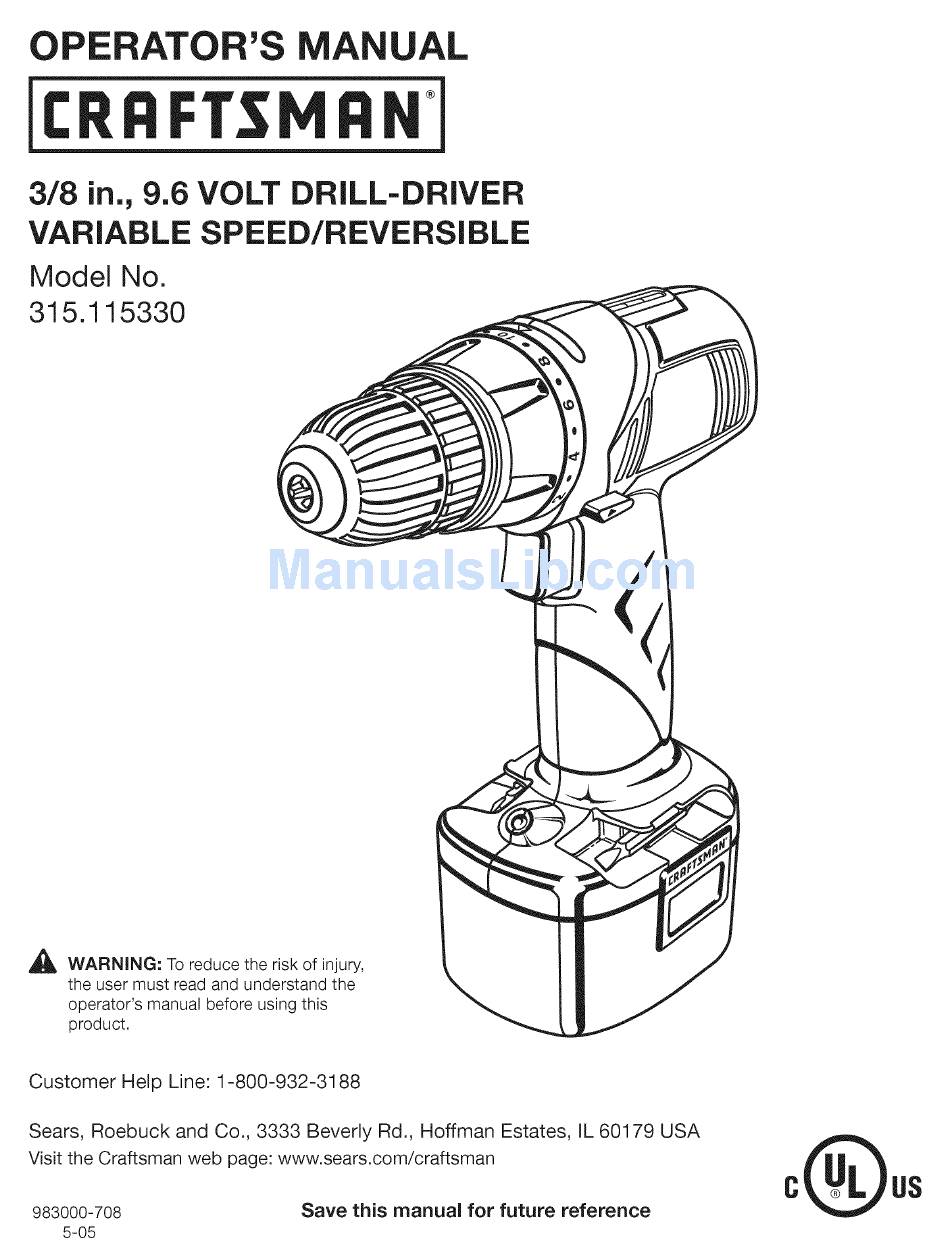

PERATOR'S
T$
MANUAL
®
Model No.
315.115330
VOLT DRILL-DRIVER
SPEED/REVERSIBLE
WARNING:
To reduce the risk of injury,
the user must read and understand the
operator's manual before using this
product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., 3333 Beverly Rd., Hoffman
Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-708
Save this manual
for future
reference
5-05
C
Advertisement
Related Manuals for Craftsman 315.115330
Summary of Contents for Craftsman 315.115330
- Page 1 Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman 983000-708 Save this manual for future reference 5-05...
-
Page 2: One Year Full Warranty
If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it, free of charge. If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase. - Page 3 [] Do not overreach. Keep proper footing and balance WARNING! READ AND UNDERSTAND ALL IN- at all times. Proper footing and balance enable better STRUCTIONS. Failure to follow all instructions listed control of the tool in unexpected situations. below may result in electric shock, fire and/or serious [] Use safety equipment.
- Page 4 SERVICE When servicing a tool, use only identical replace- [] Toolservicemustbe performed only by qualified ment parts. Follow instructions in the Maintenance repair personnel. Service or maintenance performed section of this manual. Use of unauthorized parts or by unqualified personnel may result in a risk of injury. failure to follow Maintenance Instructions may create a risk of shock or injury.
- Page 5 could result in a risk of fire and electric shock. If _IL WARNING!READ AND UNDERSTAND ALL extension cord must be used, make sure: INSTRUCTIONS. Failure to follow aii instructions a. That pins on plug of extension cord are the listed below, may result in electric shock, fire same number, size and shape as those of and/or serious personal injury.
- Page 6 Someofthefollowing symbols maybeusedonthistool.Please study themandlearn theirmeaning. Proper i nterpreta- tionofthesesymbols willallowyouto operate thetoolbetterandsafer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Current Amperes Hertz Frequency (cycles per second) Watt Power Minutes Time Alternating Current Type of current Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load...
- Page 7 Thefollowing signal w ordsandmeanings a reintended to explain the levels ofriskassociated w iththis product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will DANGER: result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could WARNING: result in death or serious injury.
- Page 8 PRODUCT SPECiFICATiONS Clutch ..............24 Position Chuck ............3/8 in. Keyless Motor ..............9.6 V DC Torque ............ Maximum 90 in.lb. Switch ............Variable Speed Charger Input ........120 V, 60 Hz, AC only No Load Speed ..........0-600/min. Charge Rate ............3 hours TORQUE LEVEL...
-
Page 9: Knowyourdrill-Driver
KNOWYOURDRILL-DRIVER LED WORKMGHT See Figure 1. The LED worklight, located on the front of the tool base, Before attempting to use this product, familiarize yourself illuminates when the switch trigger is depressed. This with all operating features and safety rules. provides extra light for increased visibility. -
Page 10: Charging The Battery
[] Press down on battery pack to be sure contacts on WARNING: Do not allow familiarity with tools to battery pack engage properly with contacts in charging make you careless. Remember that a careless stand. fraction of a second is sufficient to inflict serious [] The charge indicator light (LED), located on the charg- injury. - Page 11 TO REMOVE BATTERY PACK BATTERY PACK CHARGING SHOWNiN CHARGER See Figure 3. ASSEMBLY [] Lock the switch trigger on the drill by placing the direc- tion of rotation selector in the center position. [] Locate the latches on the side of the battery pack and depress to release the battery pack from the drill.
- Page 12 Avoid running the drill at low speeds for extended periods ,t_l_ WARNING: Battery tools are always in operating of time. Running at low speeds under constant usage may condition. Therefore, the switch should always be cause the drill to become overheated. If this occurs, cool locked when not in use or carrying at your side.
- Page 13 LED WORKMGHT ADJUSTABLE TORQUE CLUTCH See Figure 7. The drill is equipped with an adjustable torque clutch for The LED worklight on the foot of the drill will come on driving different types of screws into different materials. when the switch trigger is depressed. This provides addi- The proper setting depends on the type of material and tional lighting on the surface of the workpiece for opera- the size of screw you are using.
- Page 14 (NSTALLiNGB(TS WAF{NING: Make sure to insert the drill bit straight See Figure 9. into the chuck jaws. Do not insert the drill bit into [] Lock the switch trigger by placing the direction of rota- the chuck jaws at an angle then tighten, as shown in tion selector in the center position.
- Page 15 LEVEL WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Fail- ure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. DRILLING See Figure 11. A level is located on top of the motor housing to help keep the drill bit level during use.
- Page 16 REMOVAL WARNING: When servicing, use only identical See Figures 12- 14, Craftsman replacement parts. Use of any other part The chuck may be removed and replaced by a new one. may create a hazard or cause product damage. [] Lock the switch trigger by placing the direction of rota- tion selector in center position.
- Page 17 Insert the hex key into the chuck and tighten the chuck BATTERIES jaws securely. Tap sharply with a mallet in a counter- The battery pack for this tool is equipped with nickel-cad- clockwise direction. This will loosen the chuck on the mium rechargeable batteries.
-
Page 18: Parts List
CRAFTSMAN 9.6 VOLT DRILL=DRIVER - MODEL NUMBER 315.115330 number in all correspondence regarding your DRILL-DRIVER or when ordering repair parts, The model number will be found on a plate attached to the motor housing. Always mention the model SEE BACK...
